Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF)

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 2.6ton
Wheelbase:: 3450mm
Tire Size:: 8.25R16 6PR
Rated payload: 1.6ton
Drive 4X2 (6 wheels)
Horsepower 120
Cargo box type: Dump type

Overview

The Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) is a Medium-duty truck featuring 1.6t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4D120-45 engine, 120 hp, China IV emissions and Fast Gear transmission.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3040GF
Drive type: 4X2
Wheelbase: 3450mm
engine: YuchaiYC4D120-45
transmission: Fast Gear8JS85F
Rear Axle Ratio: 6.83
Cab length: 6.53m
Cab width: 2.4m
Cab height: 2.8m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 2.6ton
Rated payload: 1.6ton
GVWR: 4.29ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4D120-45
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China IV
Max output power: 90kW
Max hp: 120Horsepower
Max torque: 380N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Electronic unit pump EGR + POC + DOC
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Chassis Specs
rear axle allowable load: 2590kg
Axle ratio: 6.83
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16 6PR
Number of tires: 6pcs

Photos

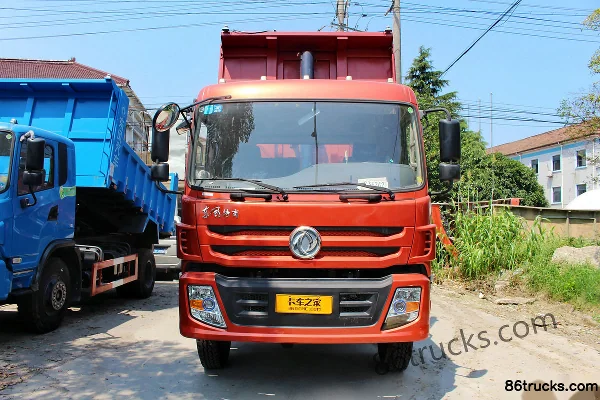

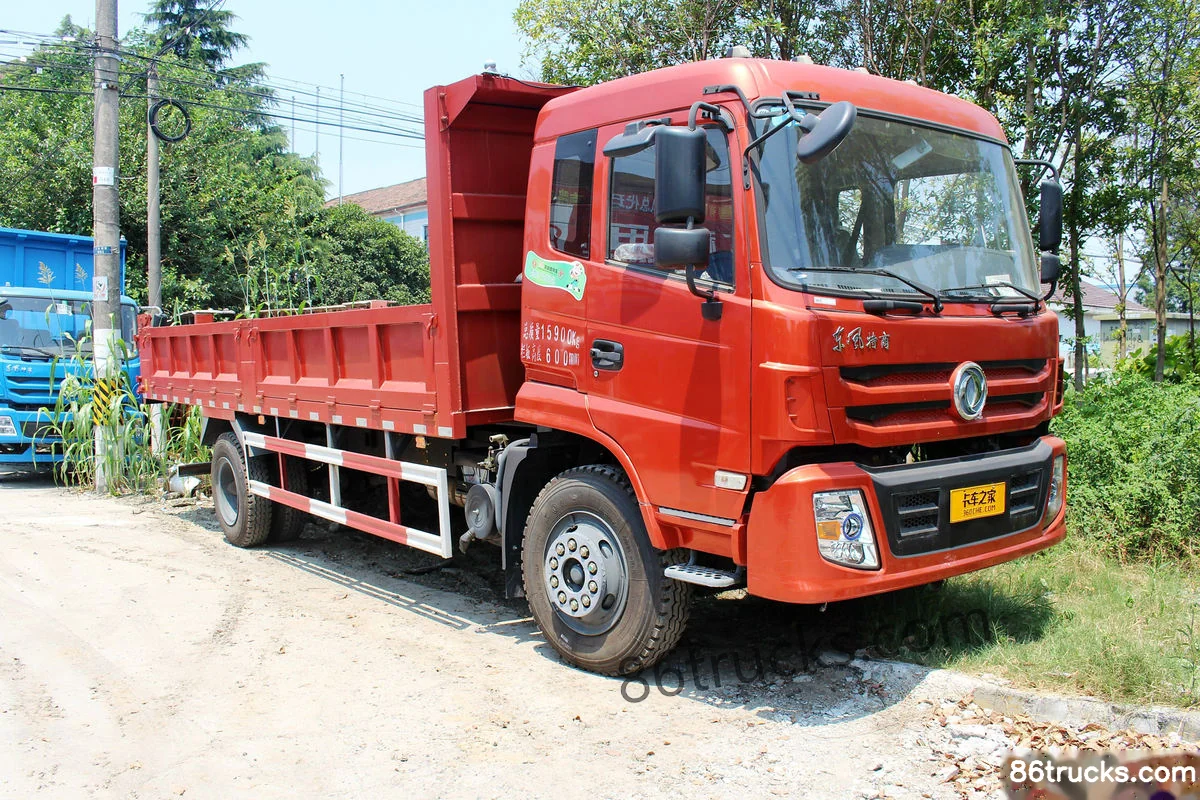

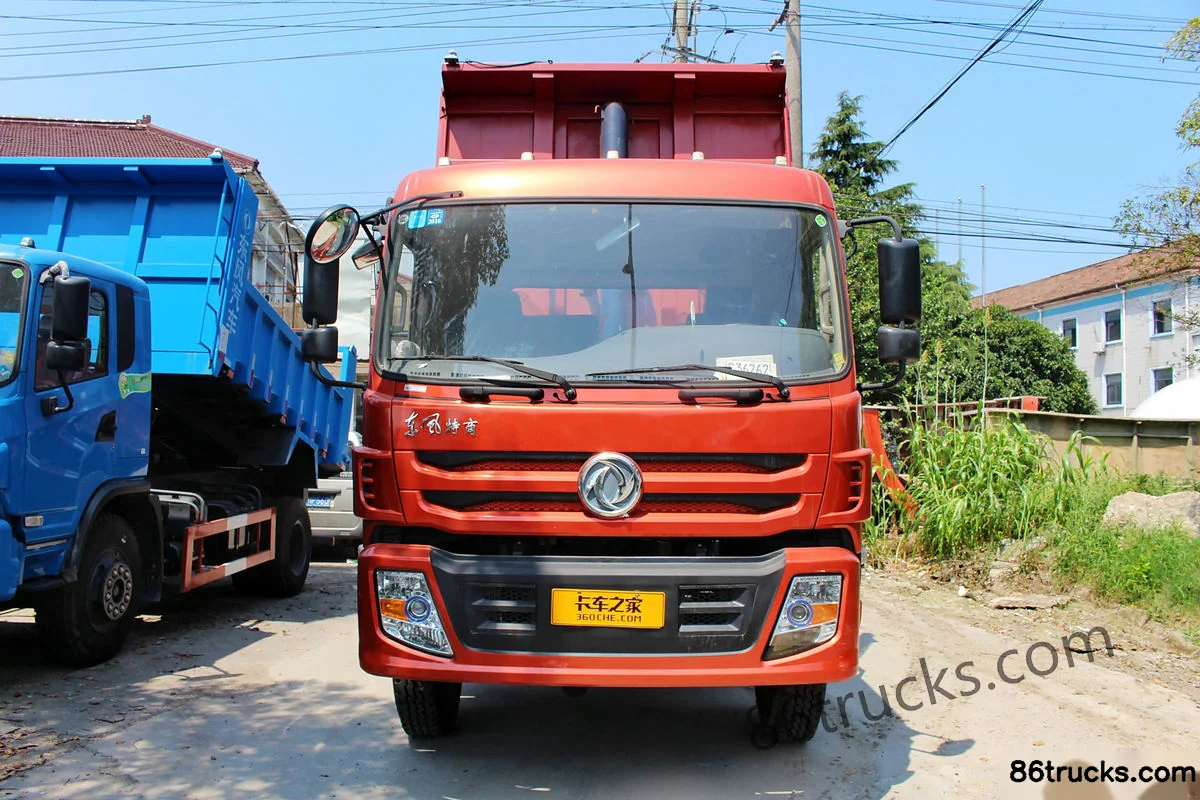

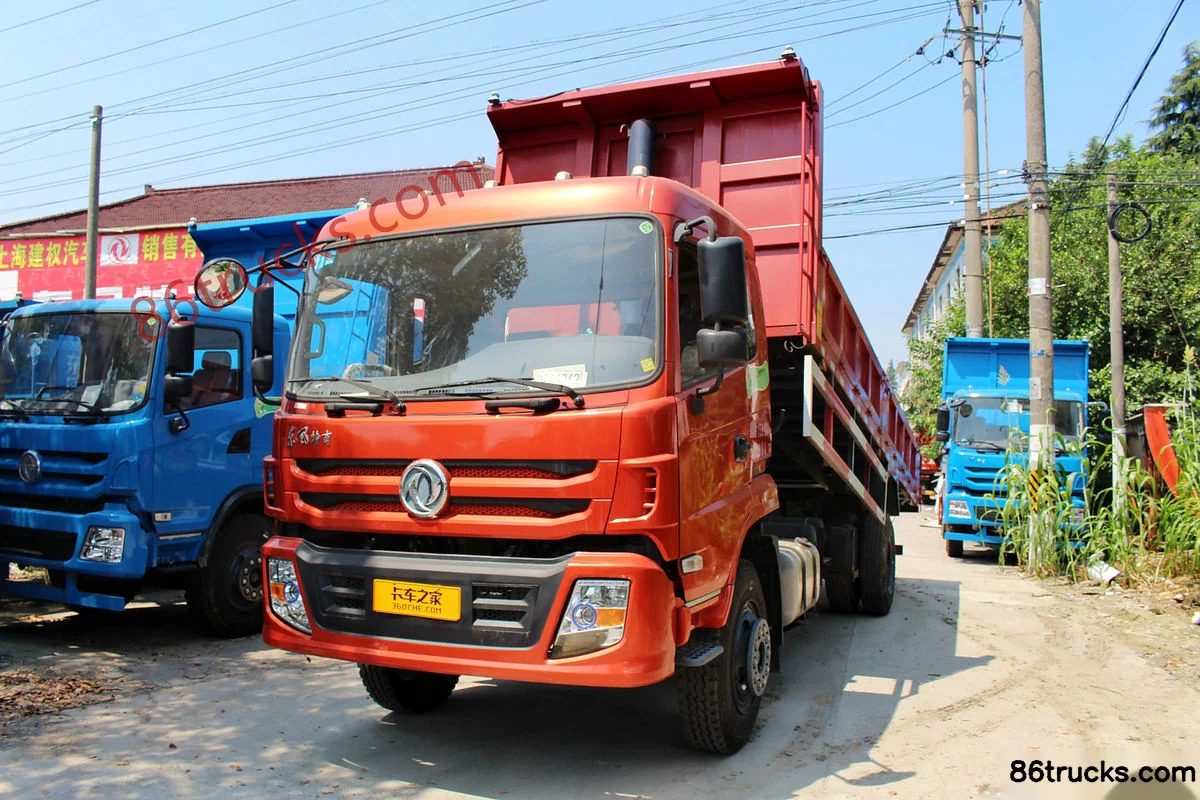

Exterior3

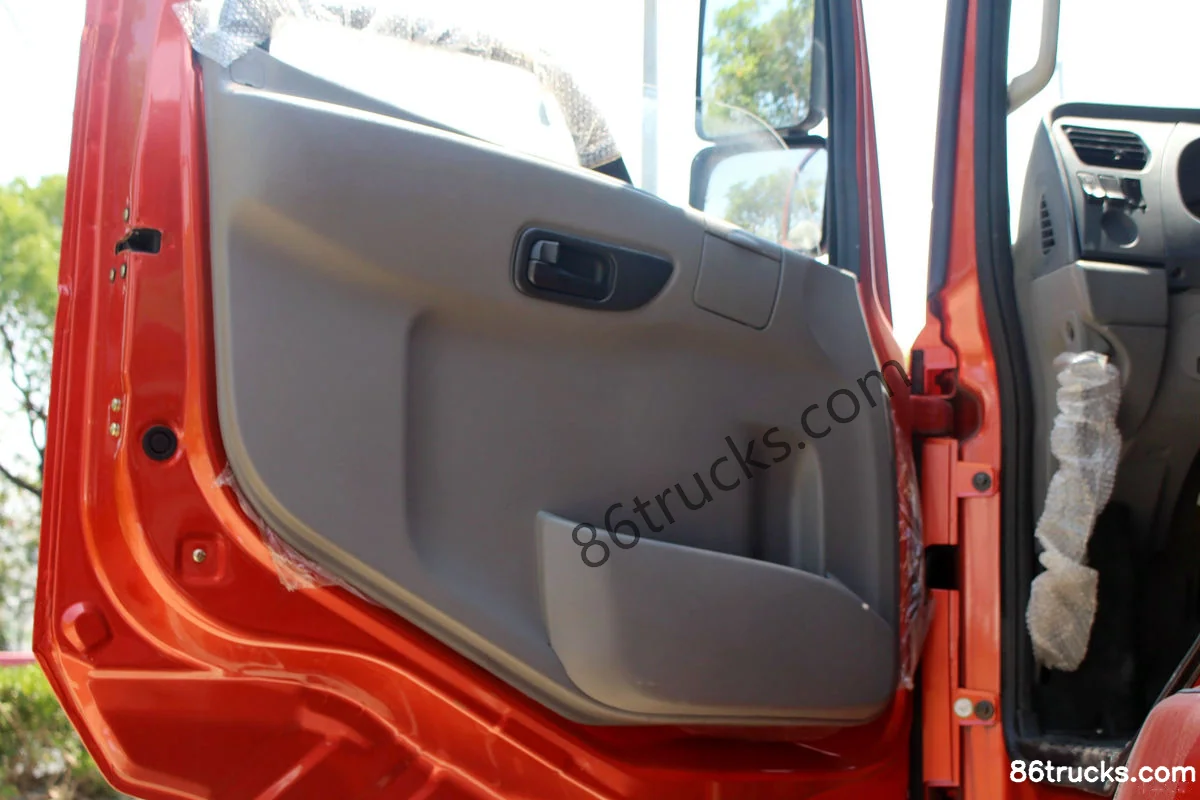

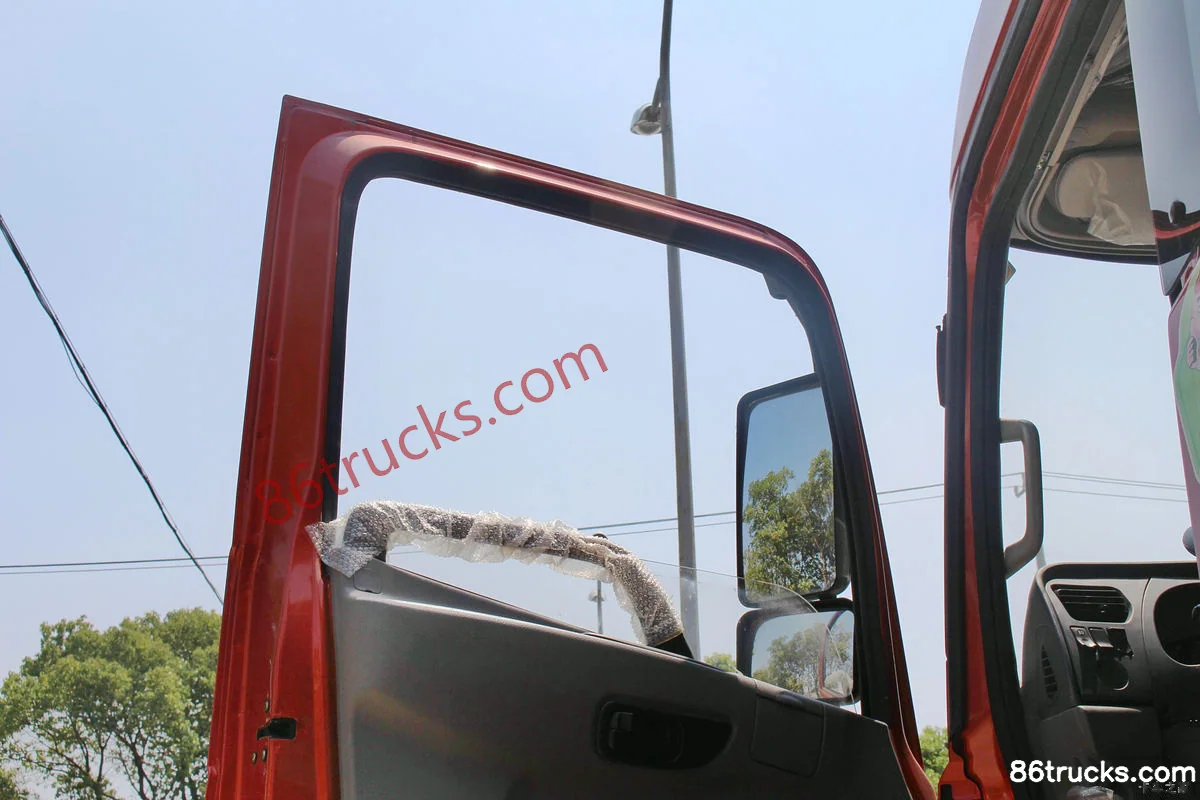

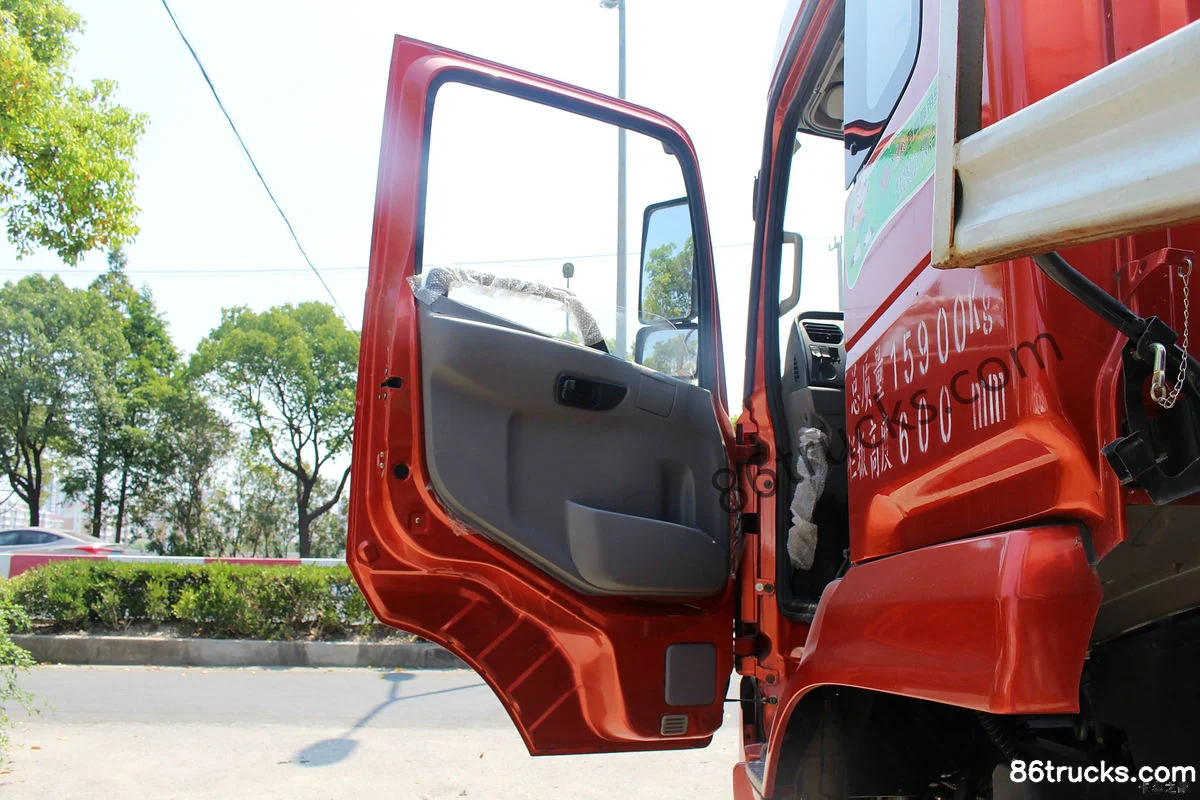

Cab3

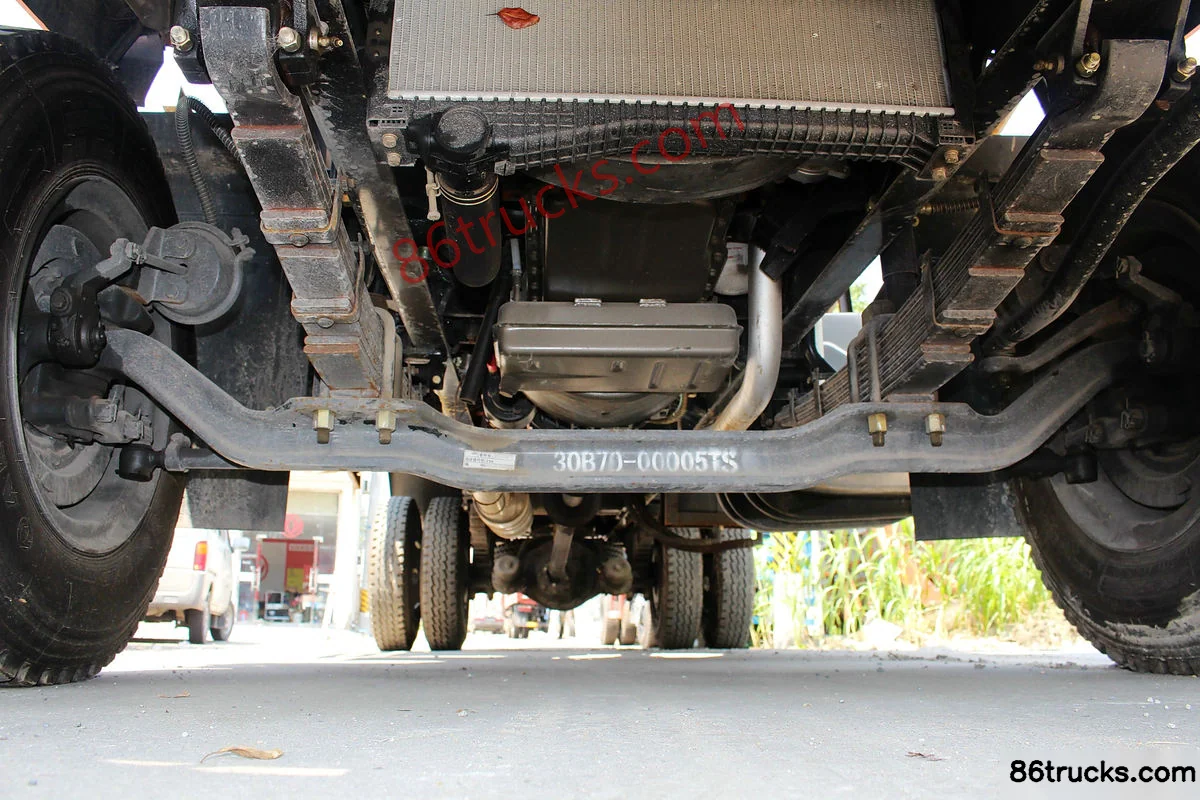

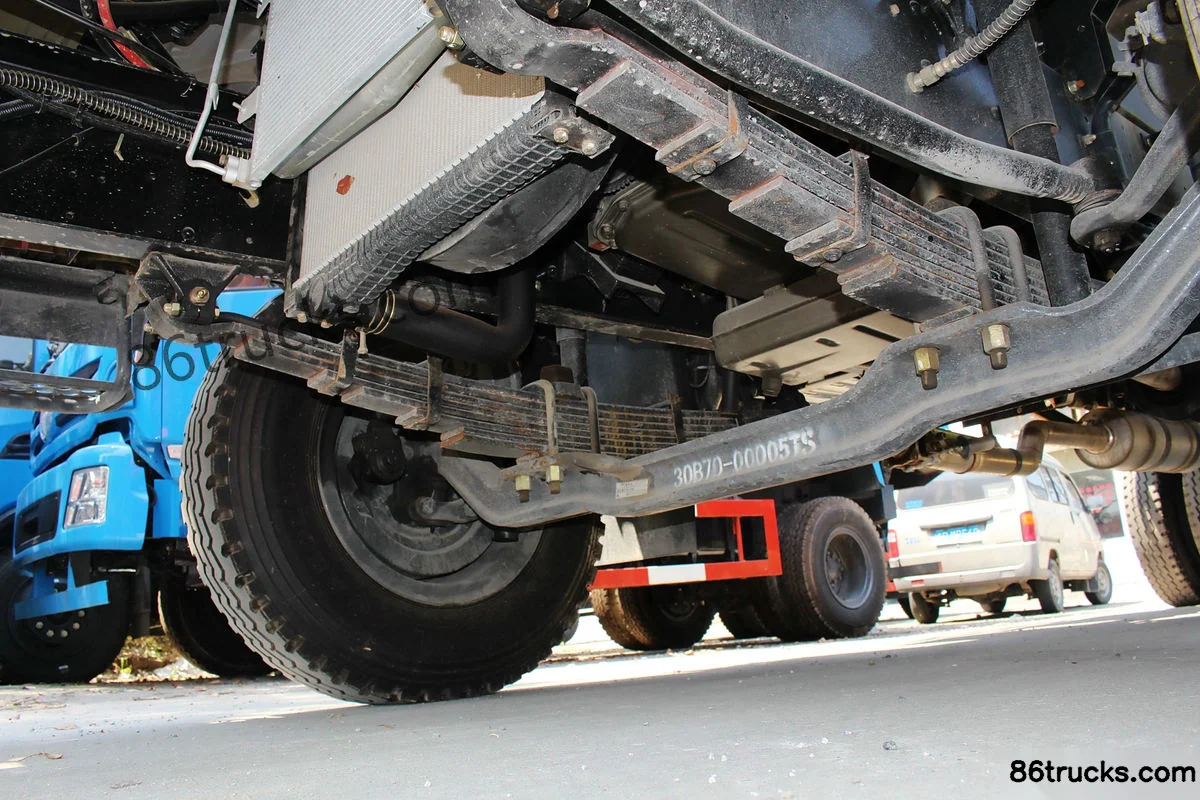

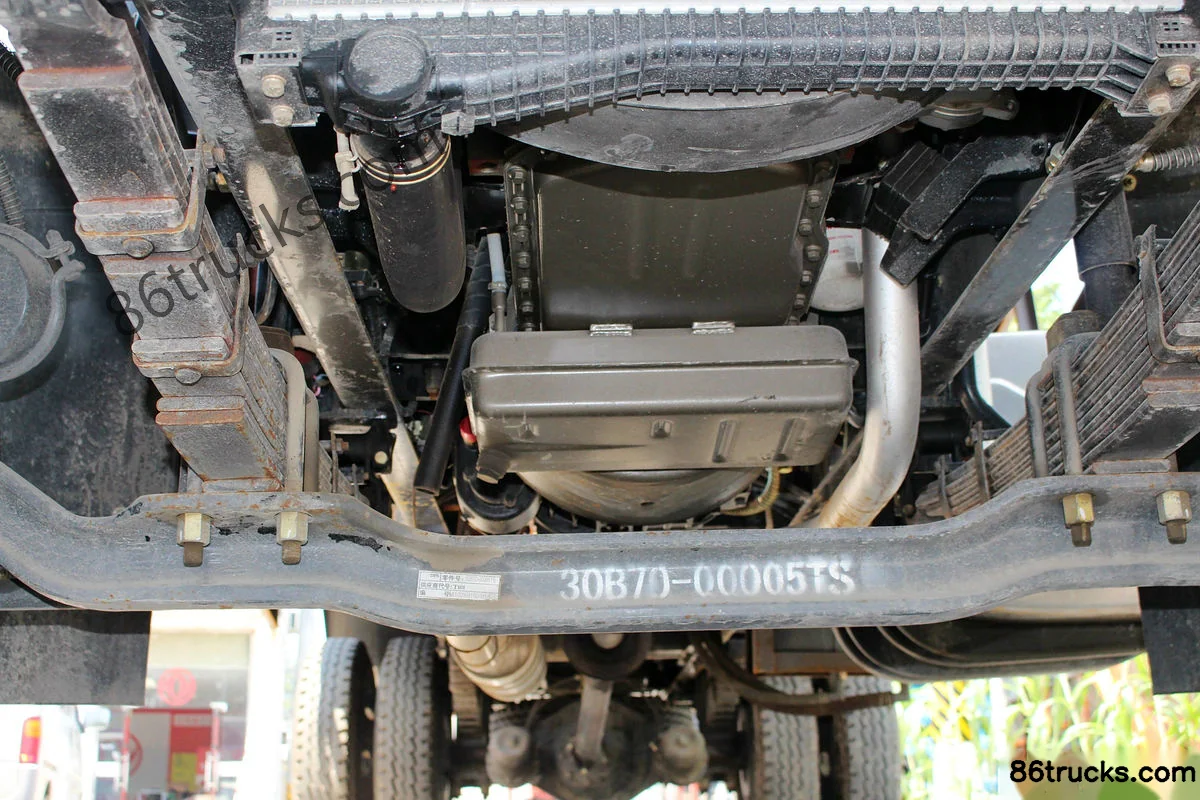

Chassis3

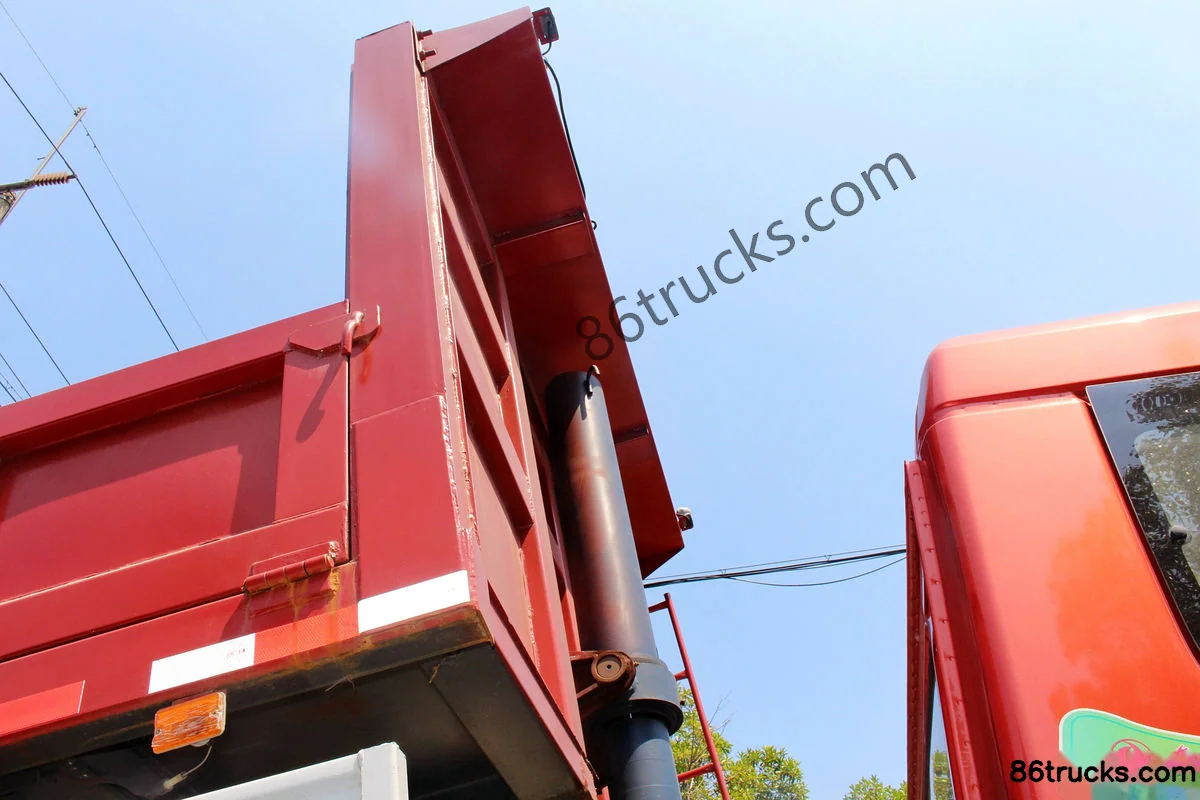

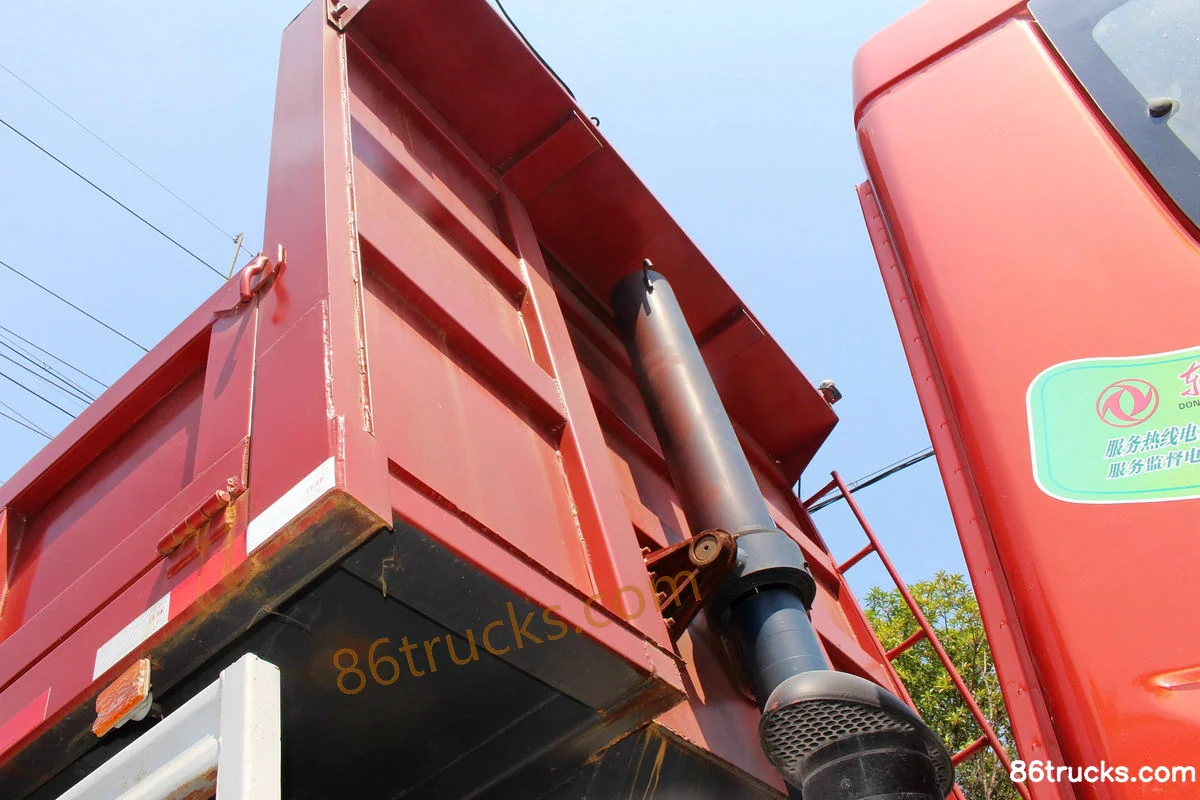

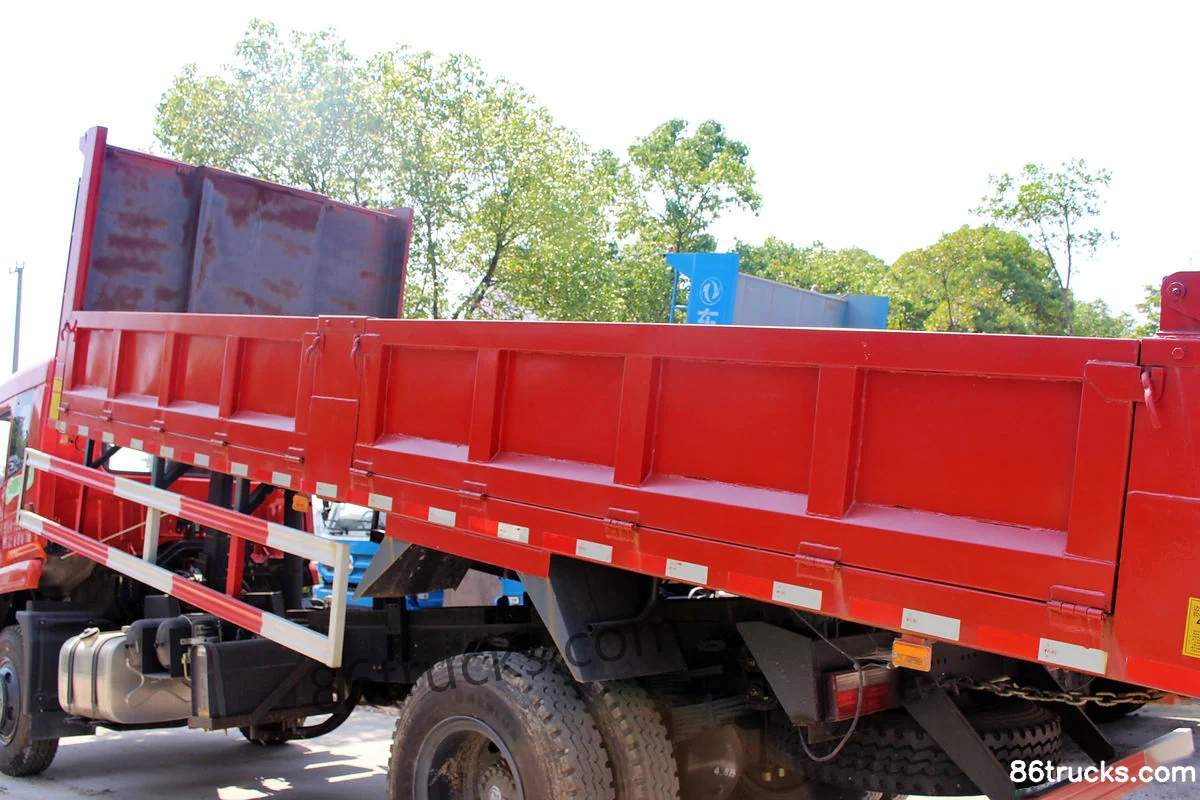

Body3

12 photos

FAQ

What emission standard does Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF)?

Key specs of Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF): Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) suited for?

Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) differ from other variants in the same series?

Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF) belongs to Dongfeng Tesun Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tesun 120 hp 4X2(6 wheels) 4.2m Dump Truck (EQ3040GF)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
