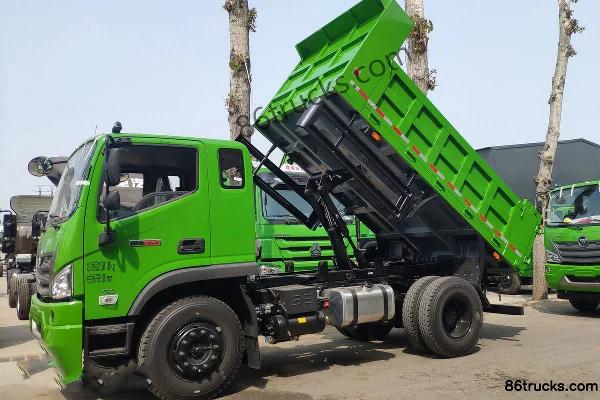

Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI)

Export reference
From $25,694
MSRP ¥18.5M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.615ton
Wheelbase:: 3700mm
Tire Size:: 9.00R20 16PR
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 190
Cargo box type: Dump type

Overview

The Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) is a Medium-duty truck featuring 7.99t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a WeichaiWP4.1NQ190E61 engine, 190 hp, China VI emissions and Fast Gear transmission.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3164DJPFA-01
Drive type: 4X2
Wheelbase: 3700mm
engine: WeichaiWP4.1NQ190E61
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 6.833
Cab length: 6.635m
Cab width: 2.51m
Cab height: 2.8m
Front track width: 1755mm
rear track: 1740mm
Curb Weight: 7.615ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP4.1NQ190E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.088L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 680N·m
Max torque speed: 1300-1900rpm
Rated speed: 2600rpm
Engine Type: High-pressure common rail, EGR+DOC+DPF+SCR
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.35m
Cargo box width: 2.2m
Cargo box height: 0.8m
Chassis Specs
Front axle allowable load: 5600kg
rear axle description: 457C
rear axle allowable load: 10200kg
Axle ratio: 6.833
Leaf spring count: 10/12+9
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What is the export price of Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI), and what does it include?

Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) export reference is about From $25,694; MSRP is ¥18.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI)?

Key specs of Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI): Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) suited for?

Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) differ from other variants in the same series?

Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI) belongs to Foton ES3 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo ES3 190hp 4X2(6 wheels) 4.35m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
