FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.1ton
Wheelbase:: 1860+4240mm
Tire Size:: 10.00R20
FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck exterior
View more photos (12)
Rated payload: 12.25ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck is a Medium-duty truck featuring 12.25t payload, 24.48t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC4EG220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): CA3243PK2E5T3A90
Drive type: 6X2
Wheelbase: 1860+4240mm
engine: YuchaiYC4EG220-50
transmission: Fast Gear10JS90A-B
Cab length: 9.512m
Cab width: 2.55m
Cab height: 3.05m
Front track width: 1845/1845mm
rear track: 1860mm
Curb Weight: 12.1ton
Rated payload: 12.25ton
GVWR: 24.48ton
Origin: Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 11°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4EG220-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China V
Max output power: 160kW
Max hp: 220Horsepower
Max torque: 800N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.1m
Cargo box width: 2.2m
Cargo box height: 1.5m
Cab parameters
Cab: Long V Flat Roof Cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6490/6490kg
rear axle allowable load: 11500kg
Leaf spring count: 10/10/8+9,10/10/13+7,10/10/10+3,7/7/8+9,7/7/13+7,7/7/10+3,3/3/4+3,10/10/10+9,4/4/10+9,4/4/4+3
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

Exterior3

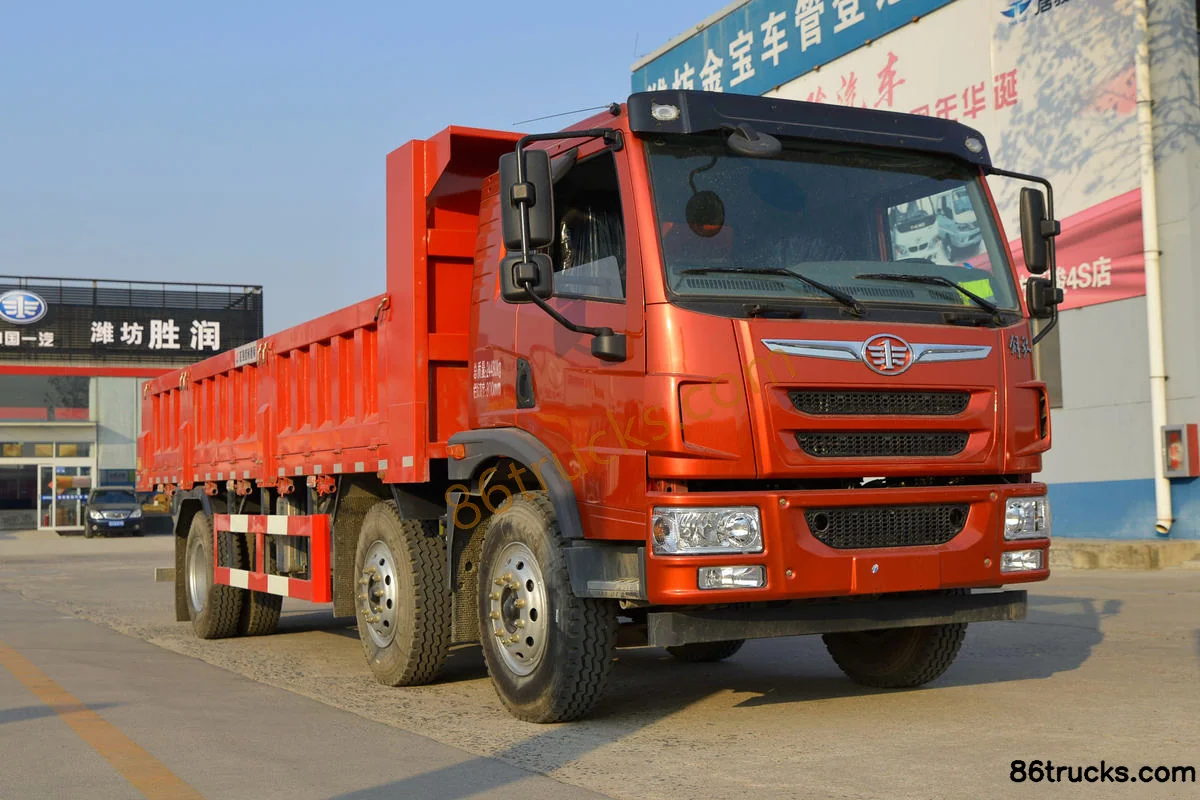

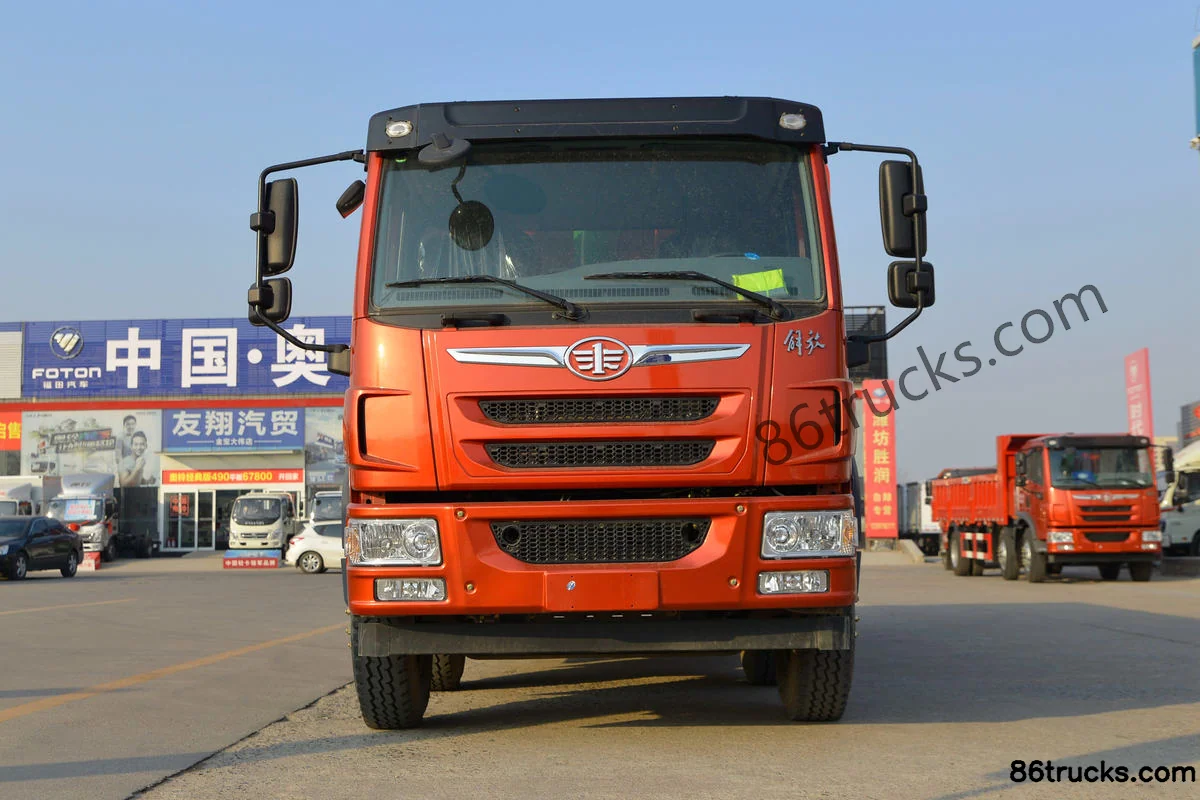

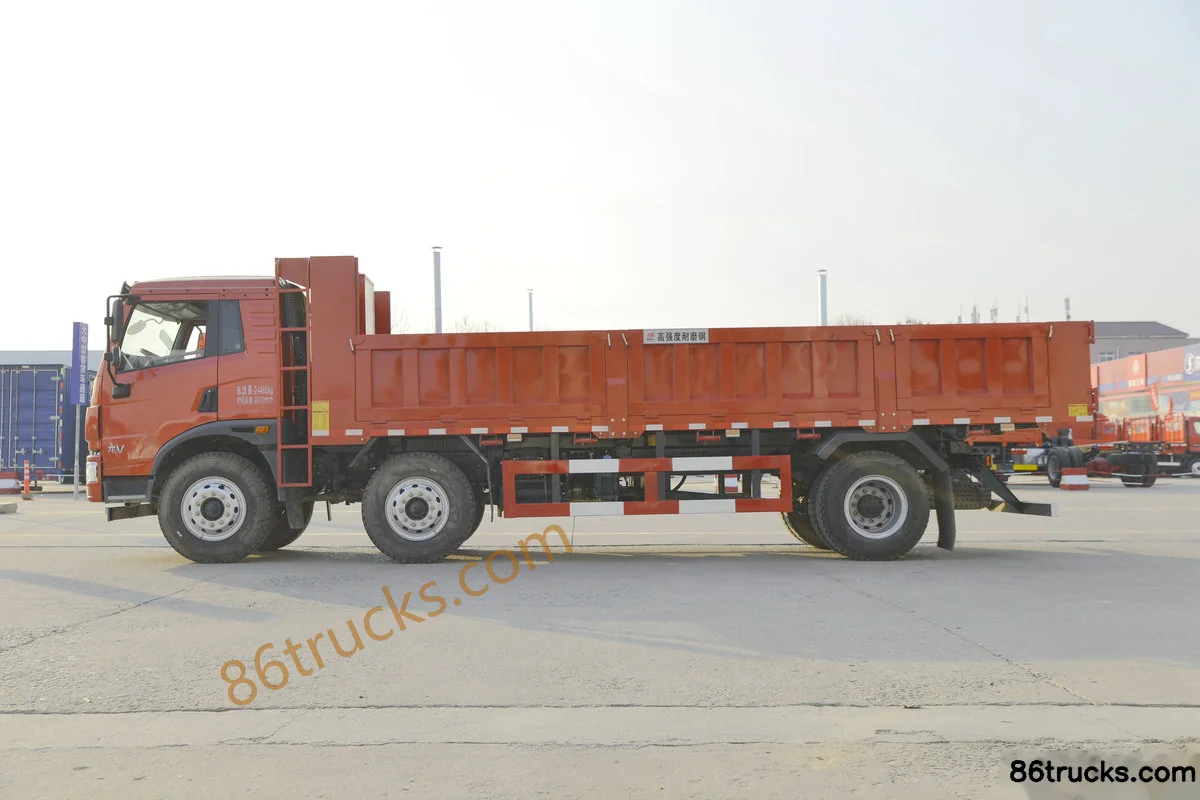

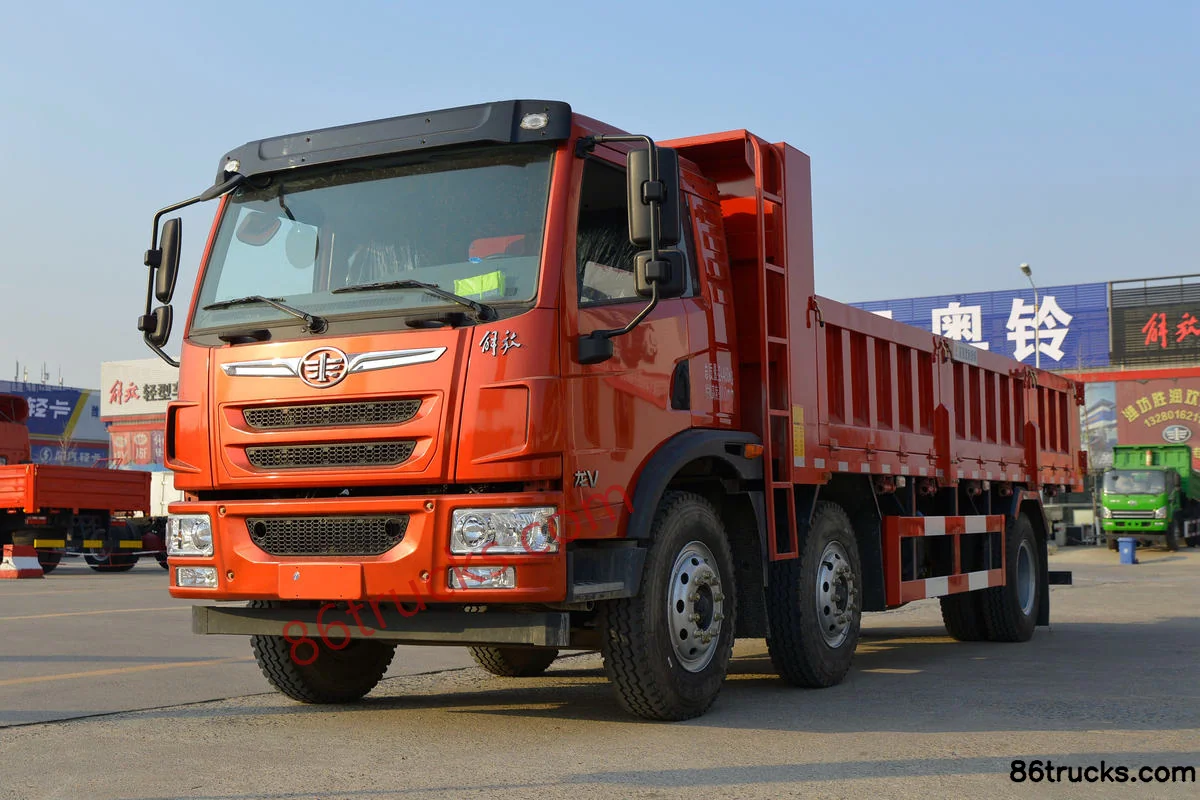

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Exterior (1) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Exterior (2) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Exterior (3) | 86Trucks

Cab3

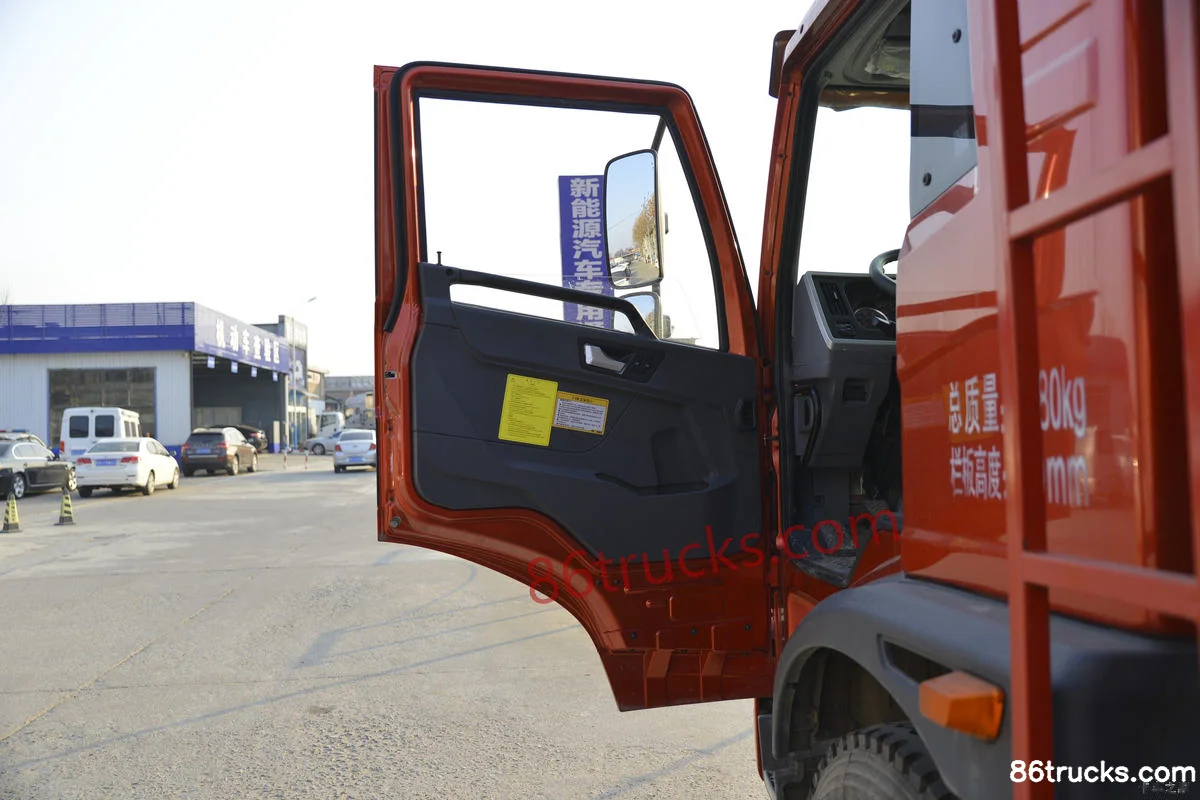

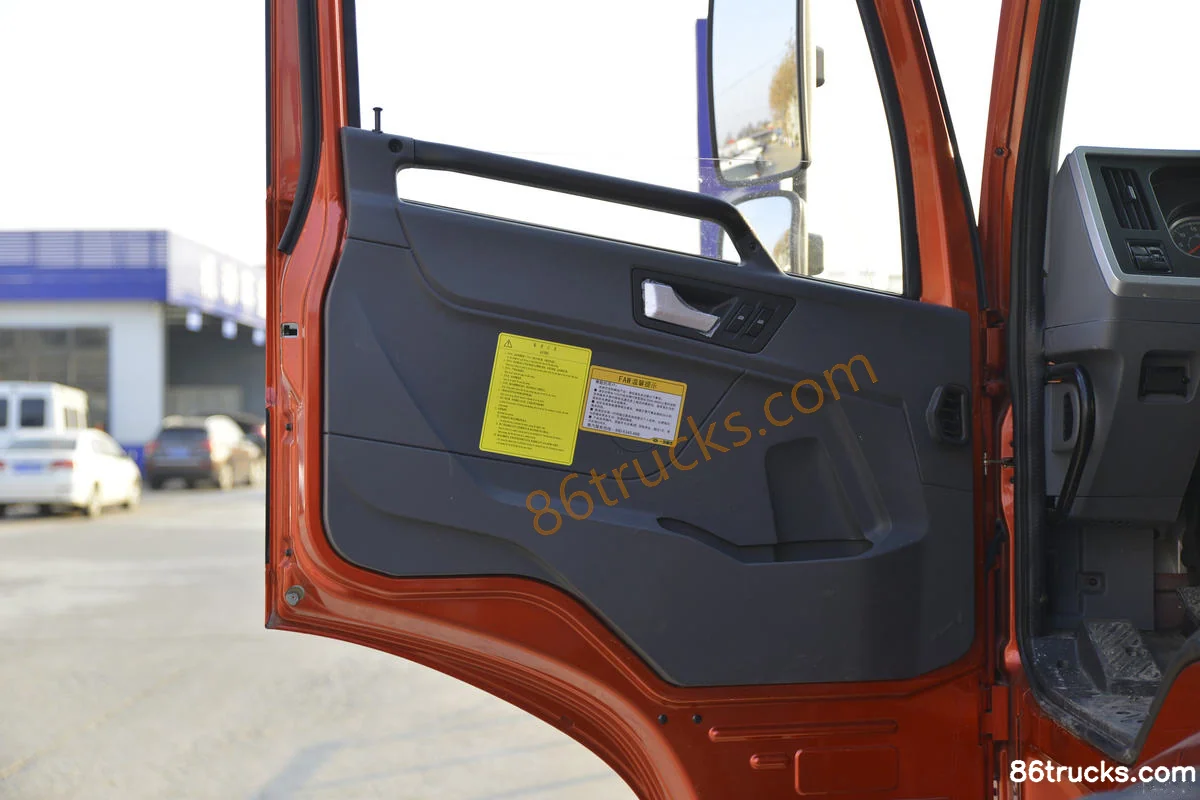

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Cab (1) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Cab (2) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Cab (3) | 86Trucks

Chassis3

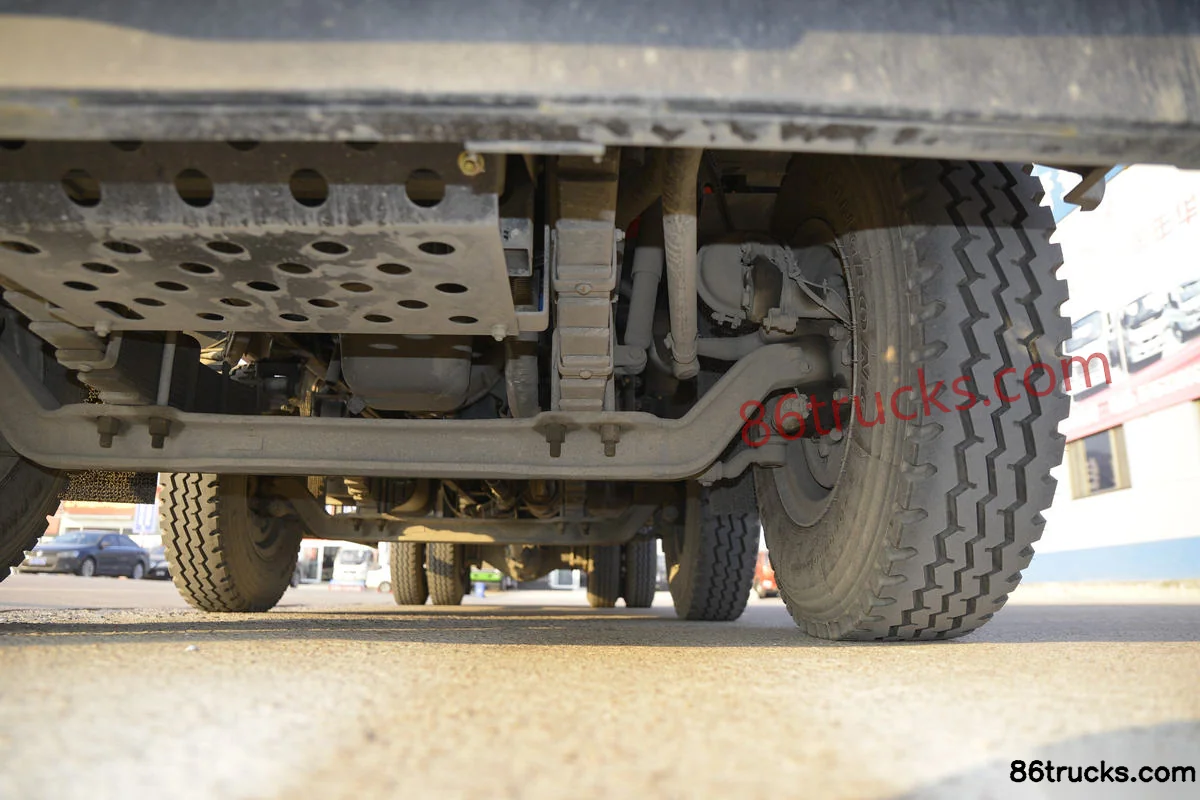

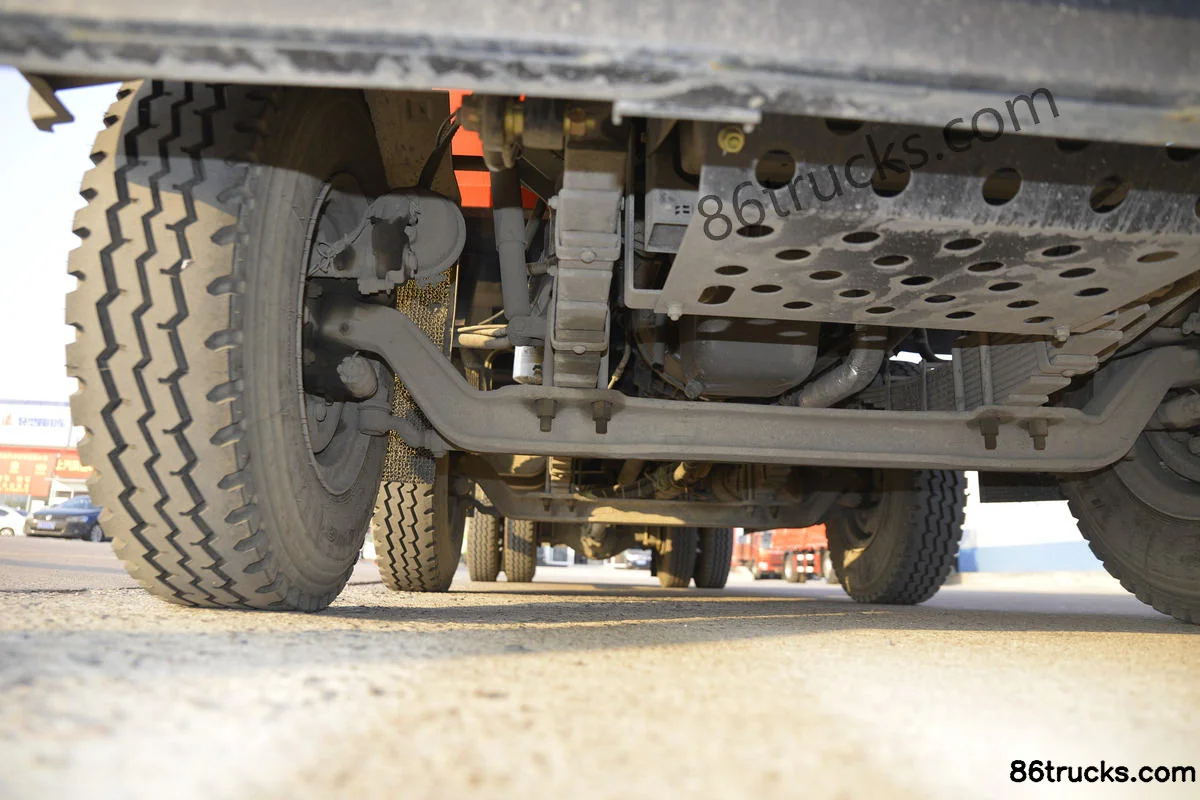

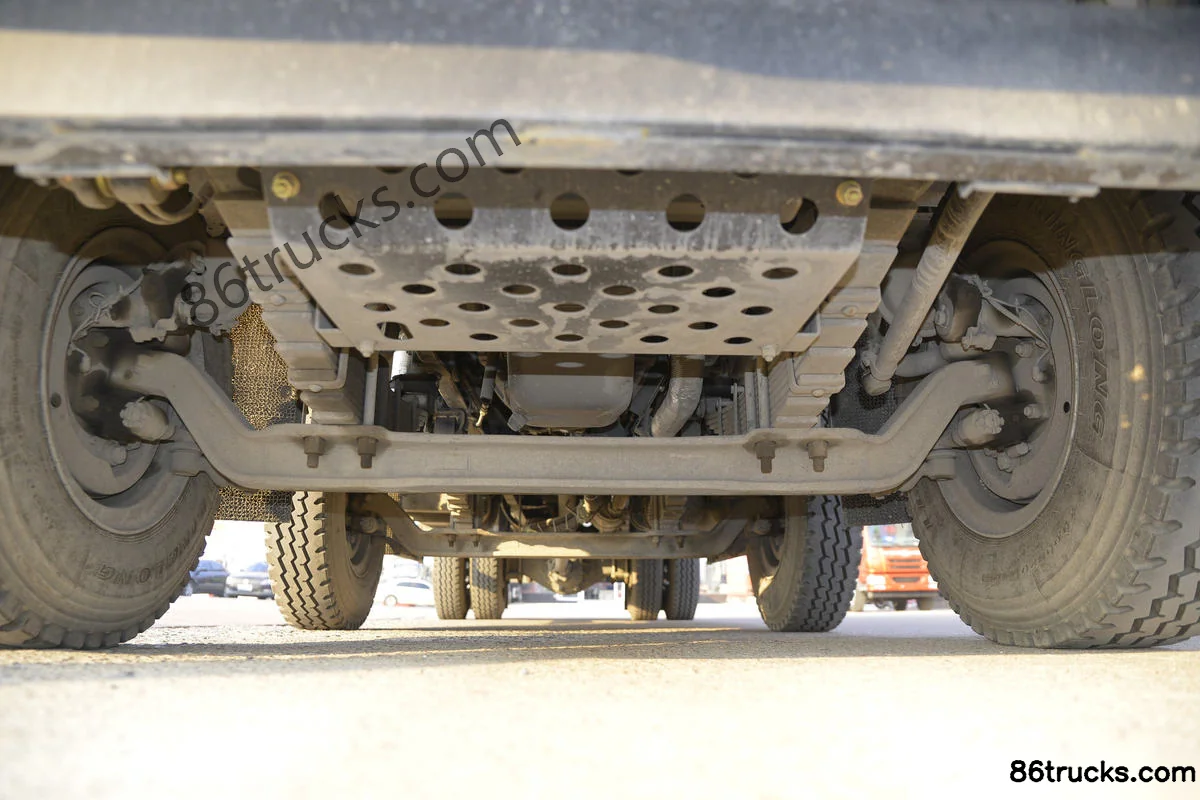

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Chassis (1) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Chassis (2) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Chassis (3) | 86Trucks

Body3

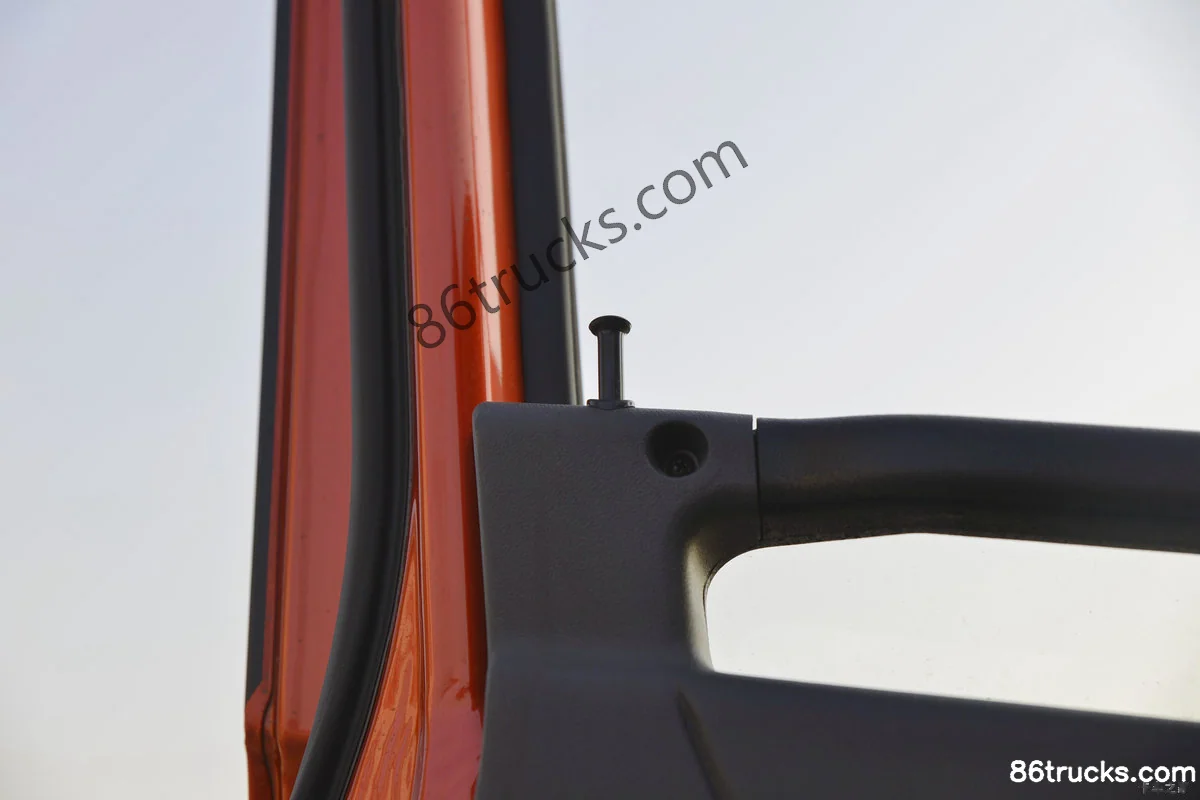

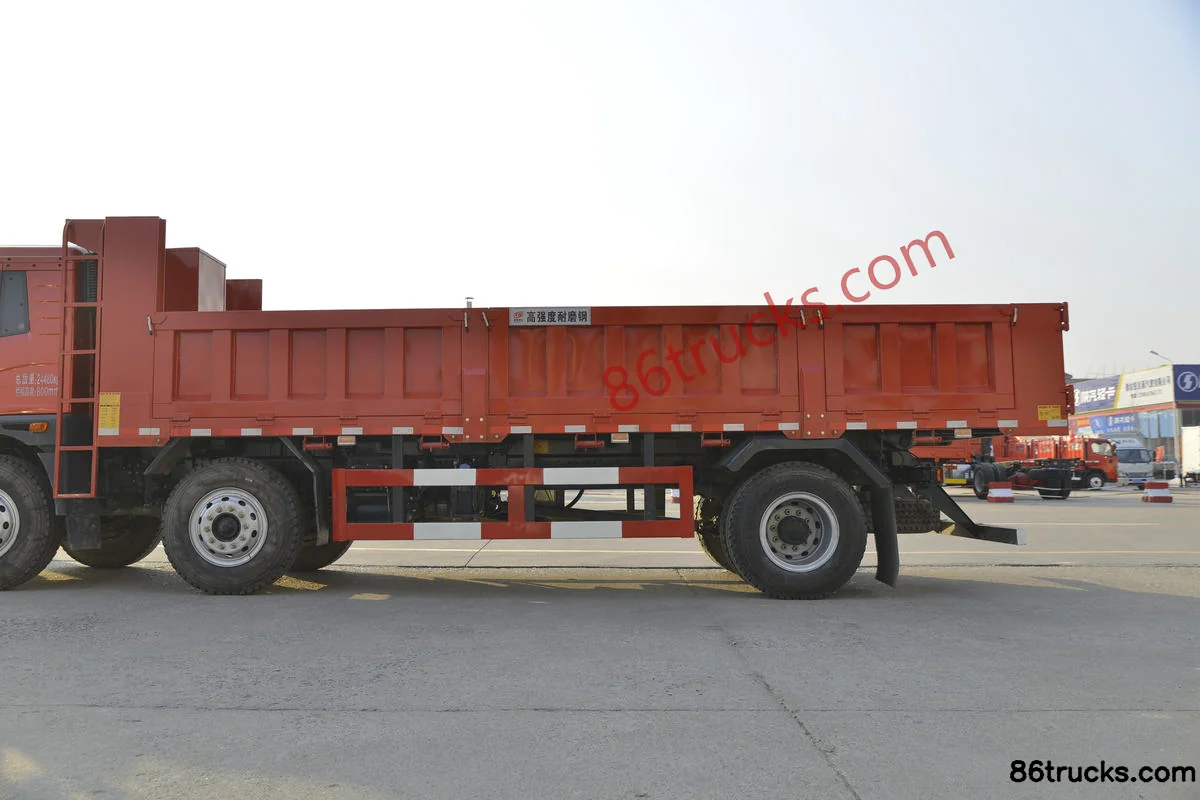

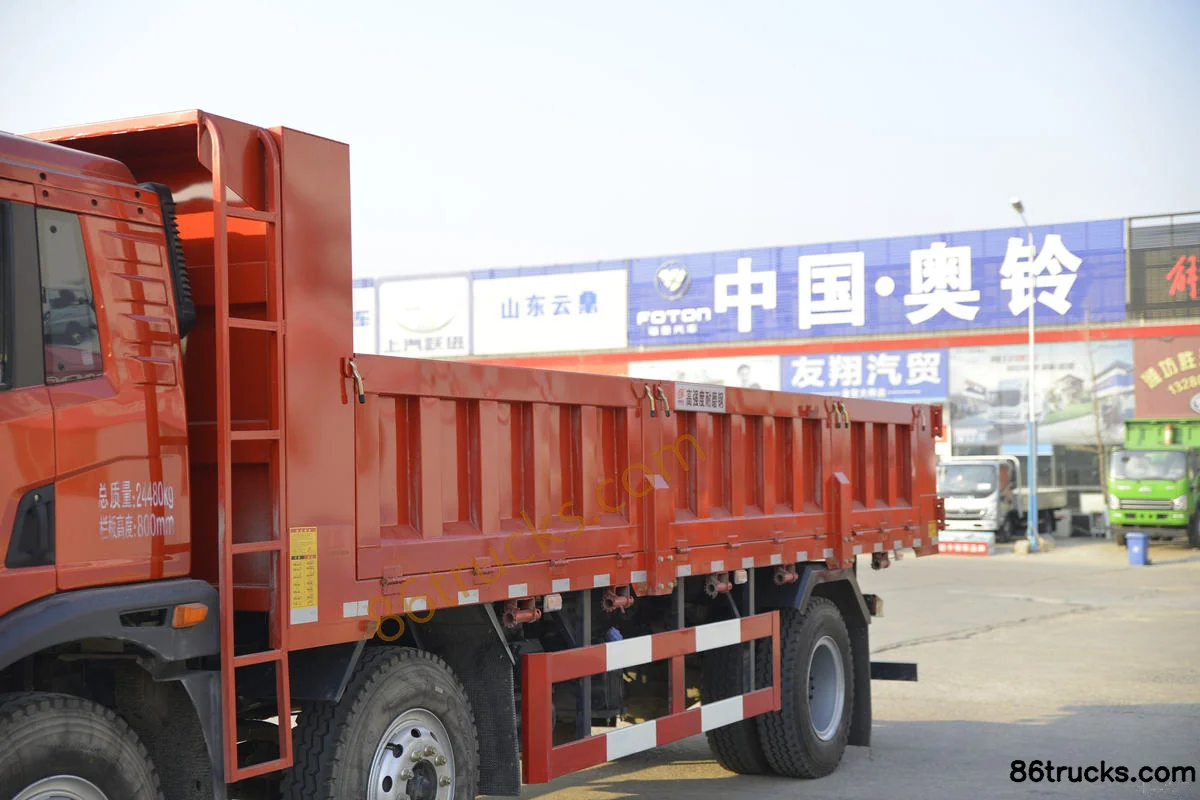

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Body (1) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Body (2) | 86Trucks FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck?

Key specs of FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck suited for?

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck differ from other variants in the same series?

FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck belongs to FAW Jiefang Qingdao Long V Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) 7.1m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
