SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck

Export reference
From $29,736
MSRP ¥21.41M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.5ton
Wheelbase:: 1800+3800mm
Tire Size:: 11.00R20 18PR
Rated payload: 15.37ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: Rear-dump body

Overview

The SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck is a Medium-duty truck featuring 15.37t payload, 25t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a WeichaiWP6.220E50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3258GP5459
Drive type: 6X2
Wheelbase: 1800+3800mm
engine: WeichaiWP6.220E50
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 4.44
Cab length: 9.93m
Cab width: 2.55m
Cab height: 3.6m
Front track width: 1964/1964mm
rear track: 1860mm
Curb Weight: 9.5ton
Rated payload: 15.37ton
GVWR: 25ton
Origin: Baoji, Shaanxi
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 18°
Remarks: Optional; Cab: Wing 6 semi-high roof Comfort Edition; Wing 6 semi-high roof Premium Edition; non-luminous badge; LED lights (Standard Edition/Comfort Edition). Chassis: lower radiator guard; aluminum air tank.
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP6.220E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.75L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: Inline, 4-stroke, water-cooled, wet cylinder liner, turbocharged intercooled, electronic high-pressure common rail SCR
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Yi6 semi-high roof/2220
Cab suspension: Four-point air suspension
Cab width: 2220mm
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 280L
Chassis Specs
Front axle description: 3.2T+3.2T
Front axle allowable load: 7000/7000kg
Frame Dimensions: 280/8+6 double-layermm
rear axle description: 10T
rear axle allowable load: 11000kg
Axle ratio: 4.44
Leaf spring count: 9/9/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Exterior features
Aluminum air tank:

Photos

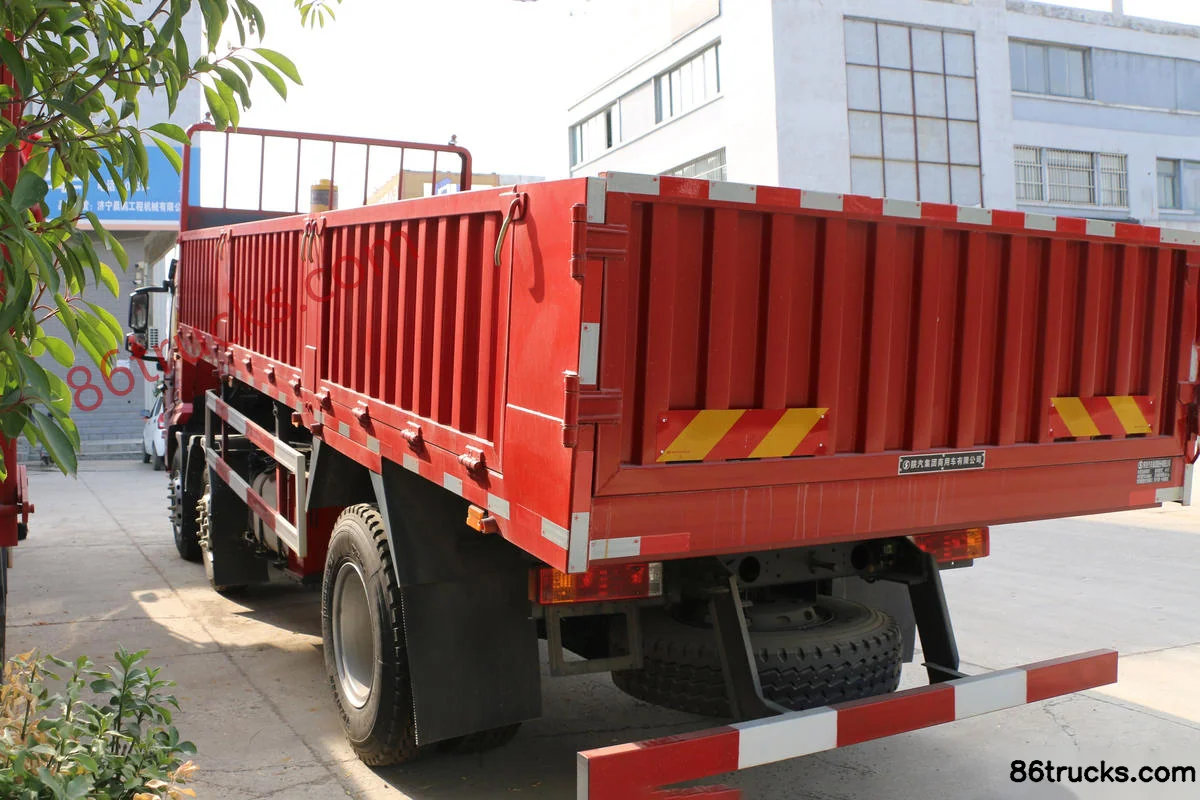

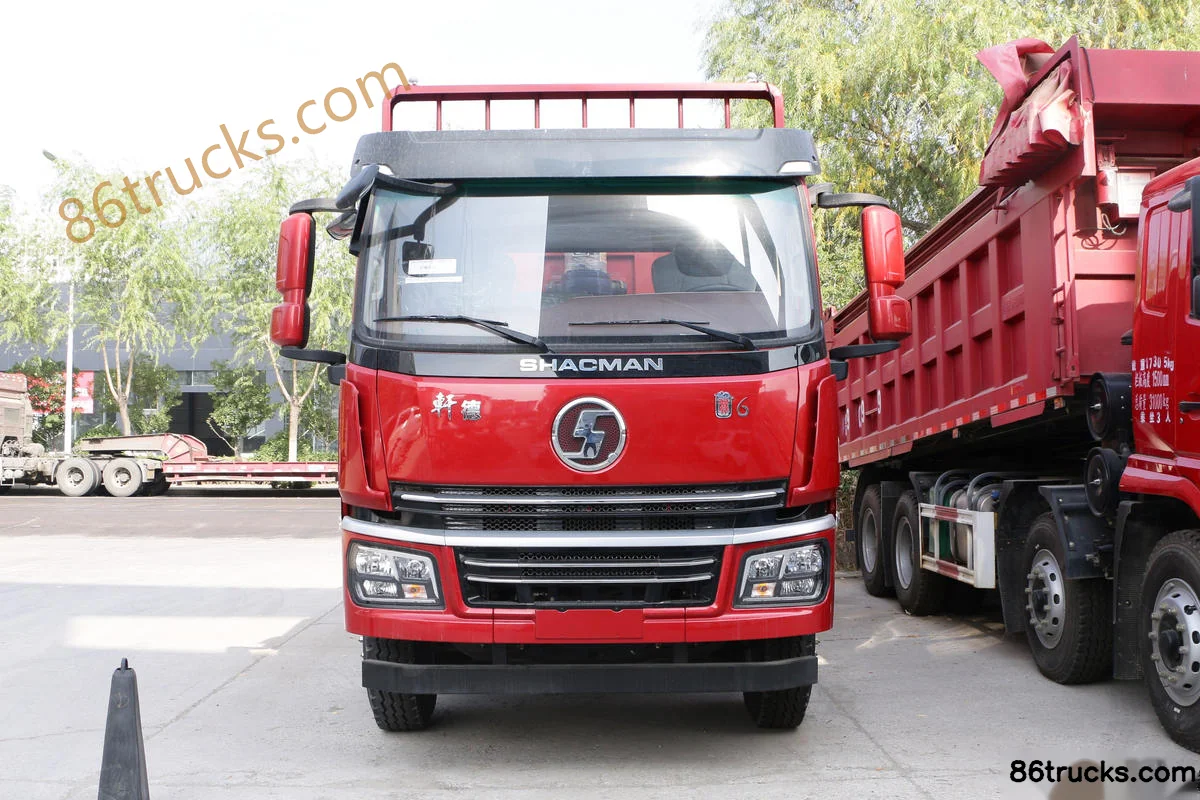

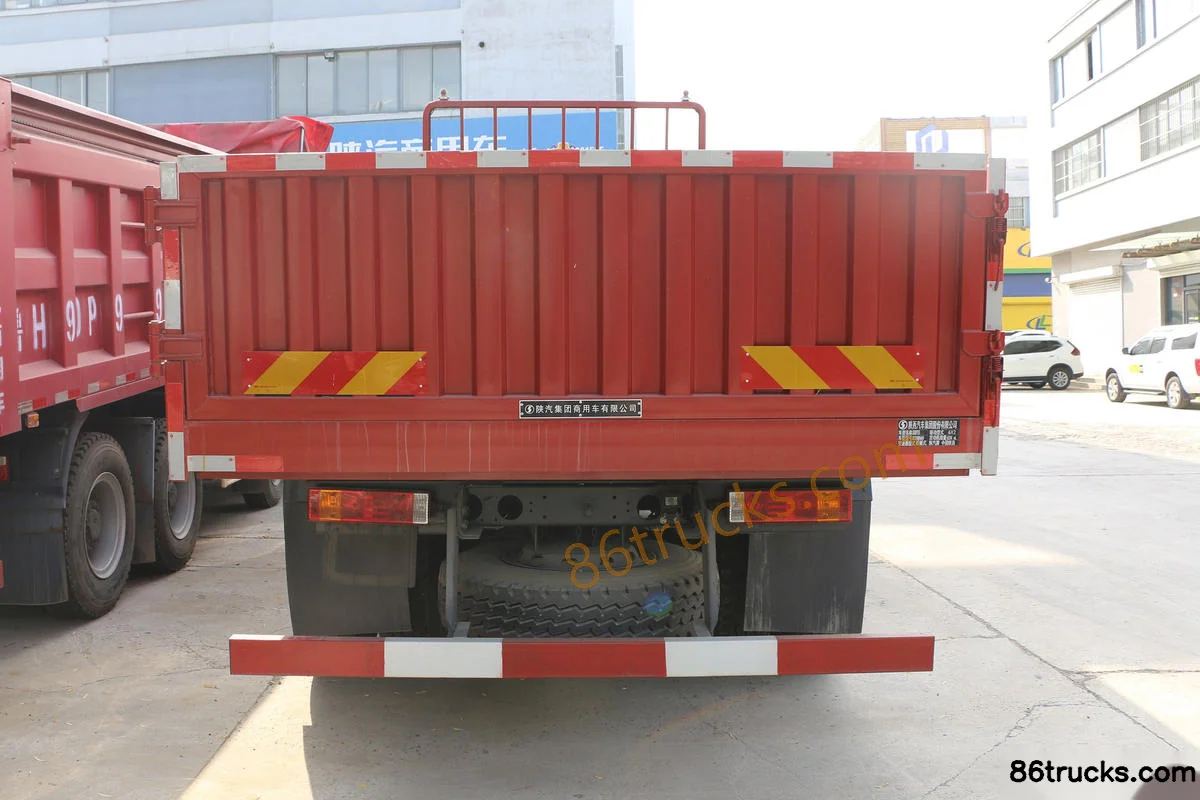

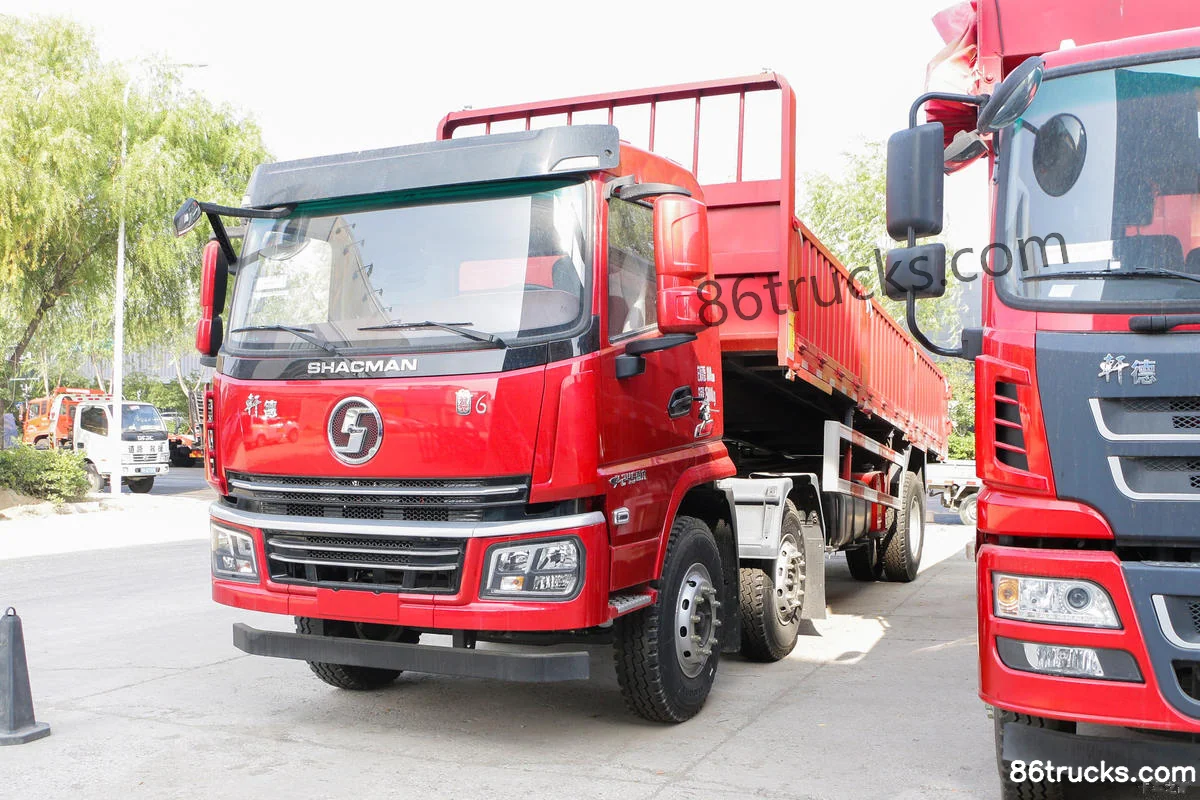

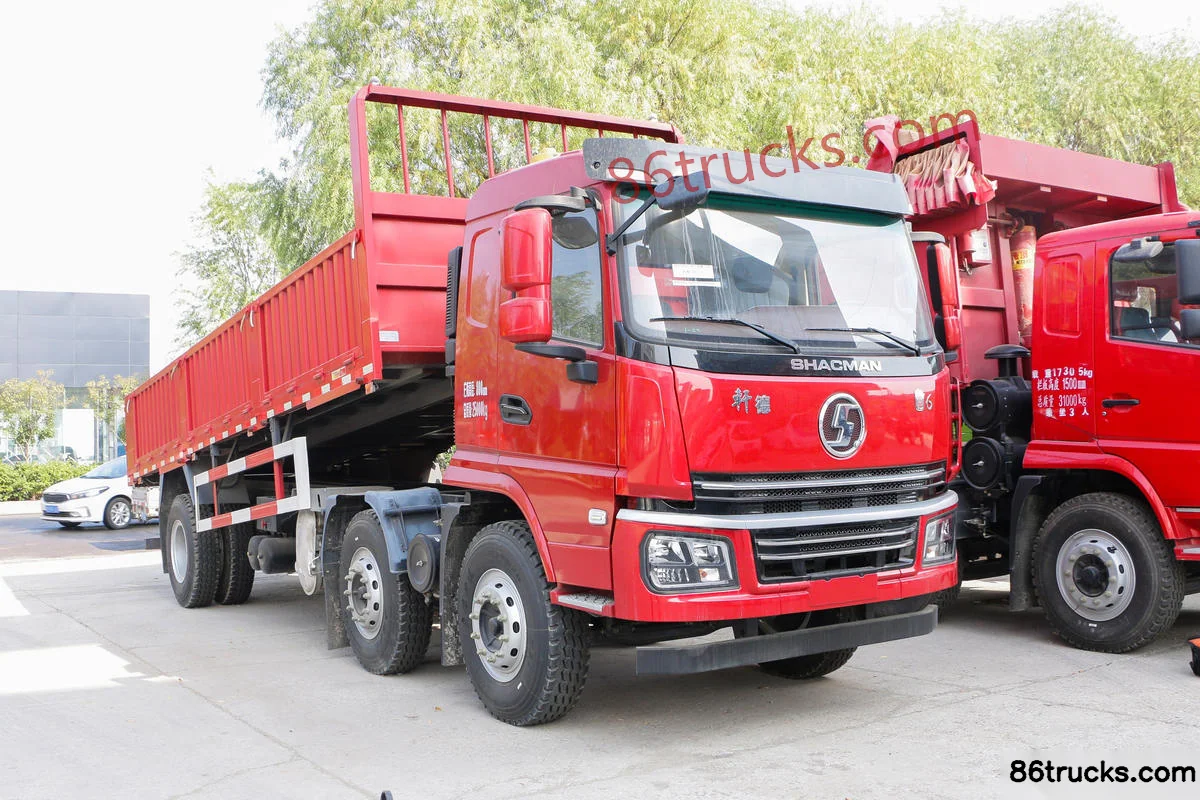

Exterior3

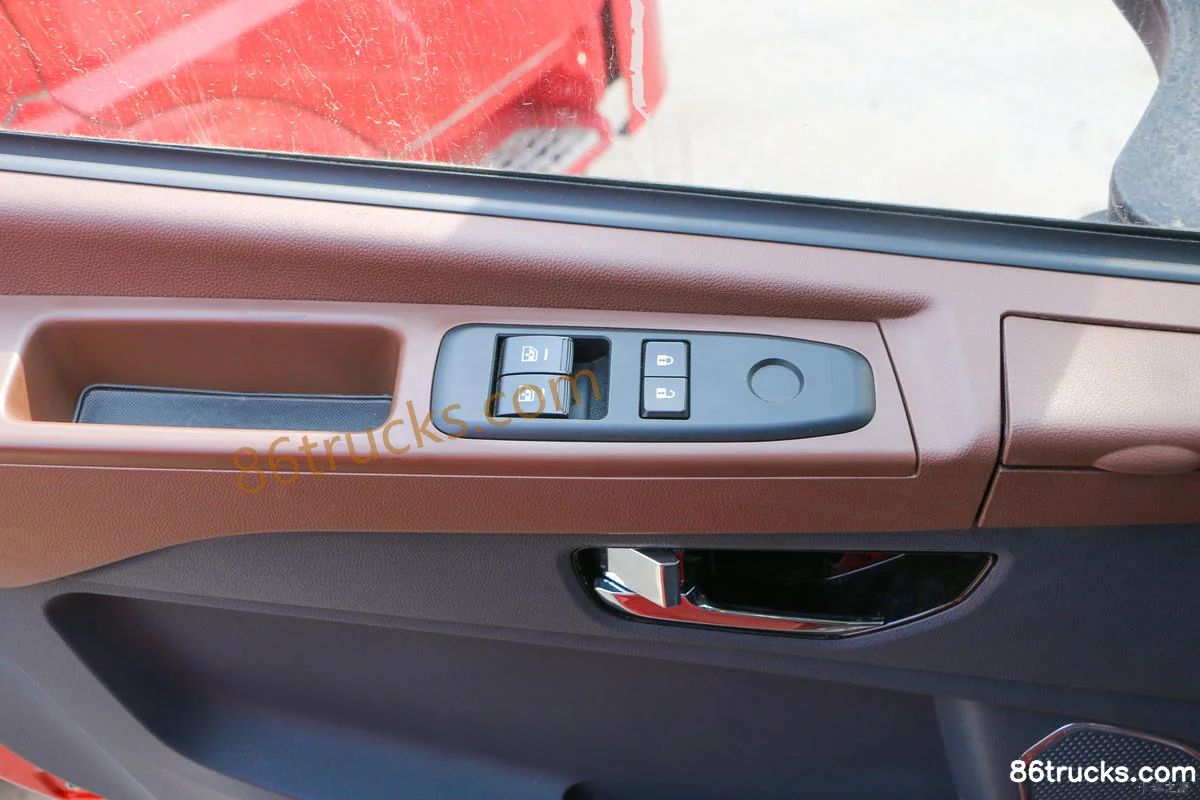

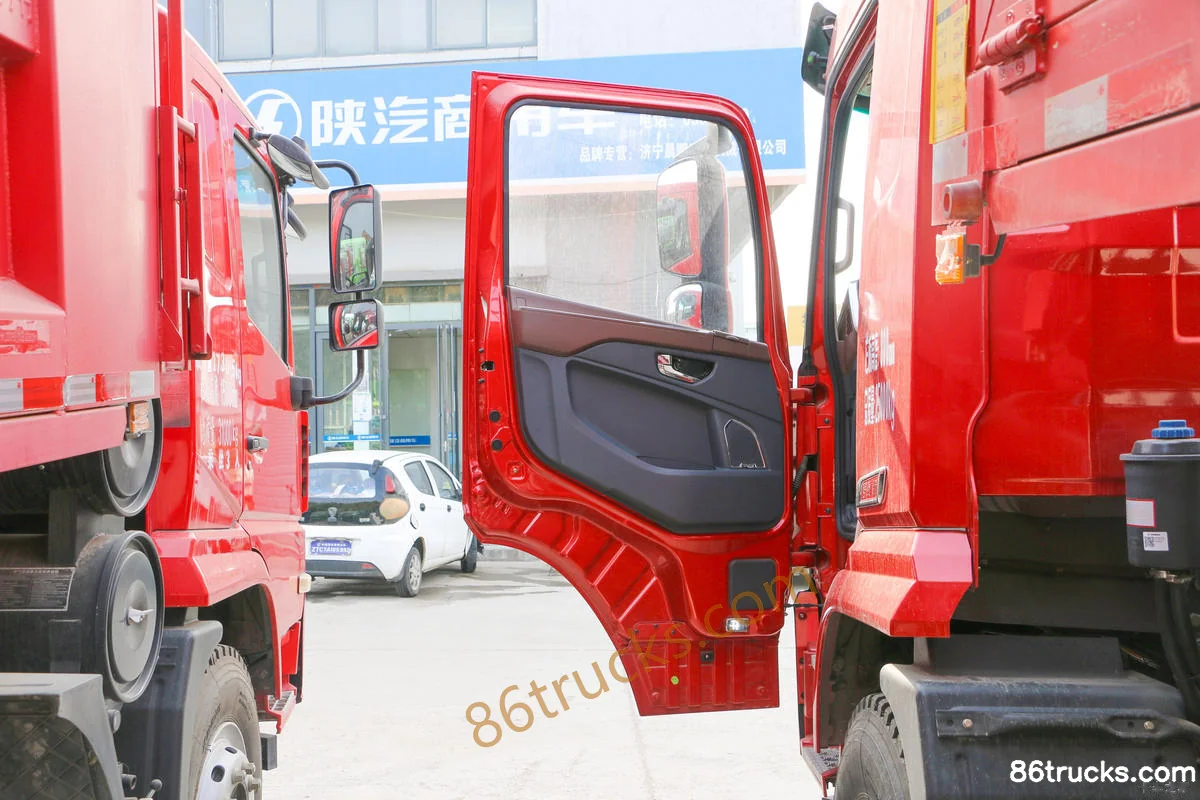

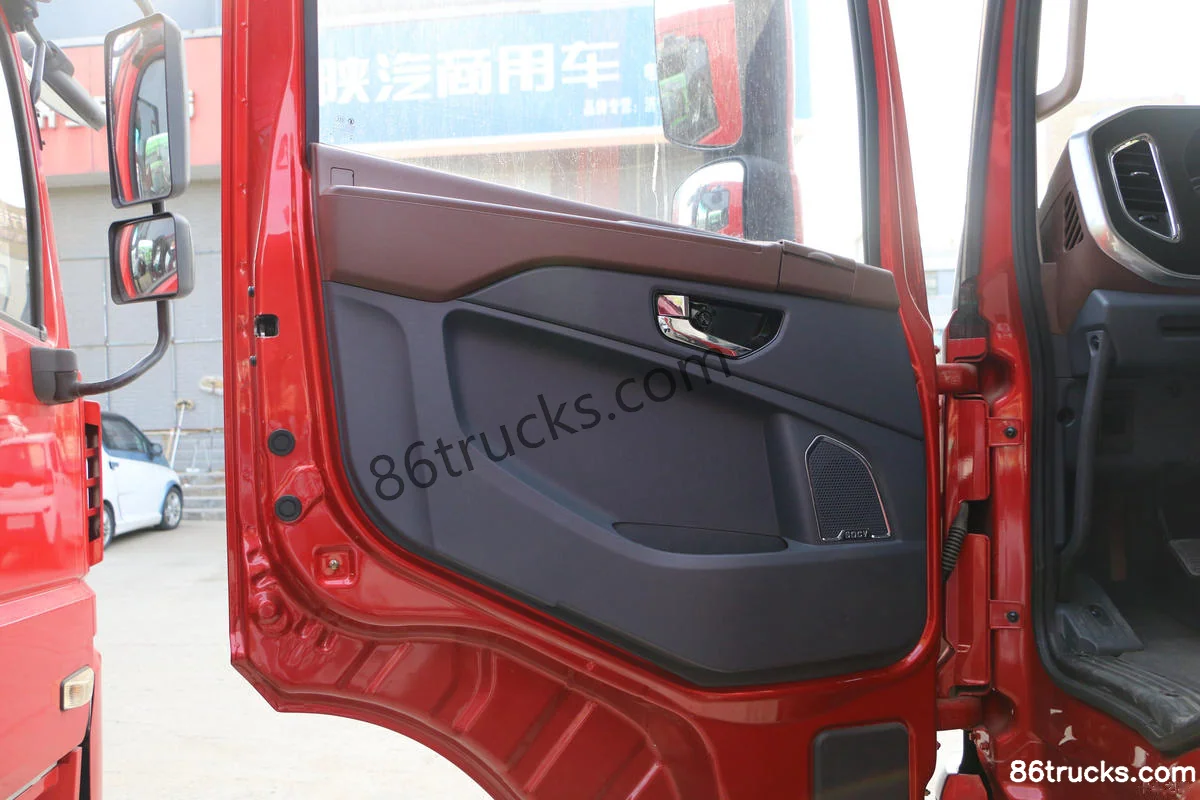

Cab3

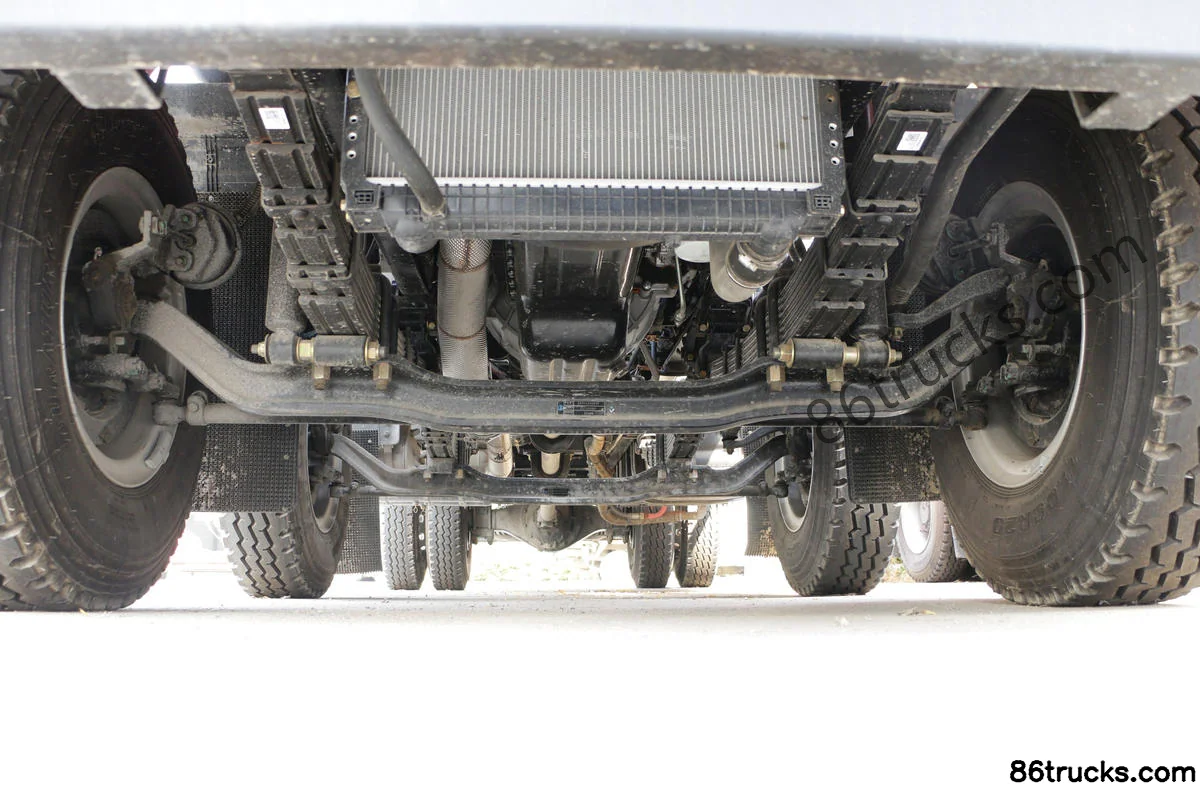

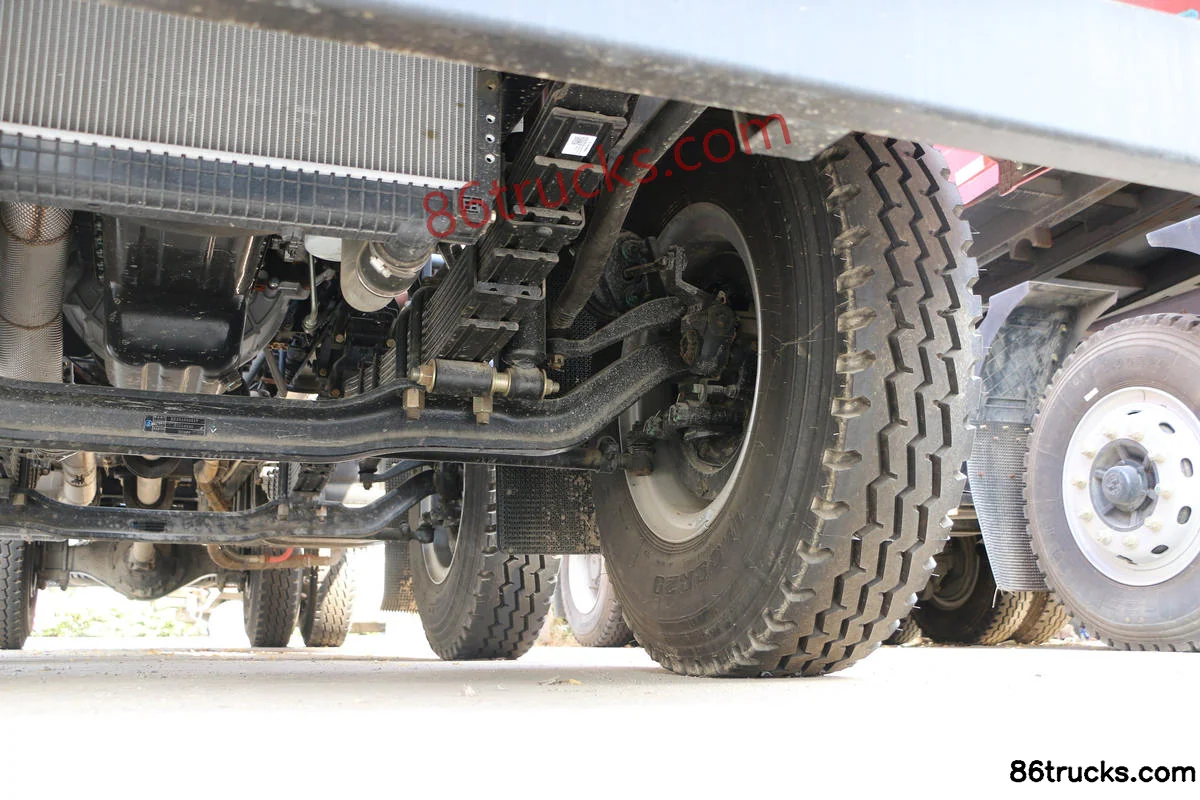

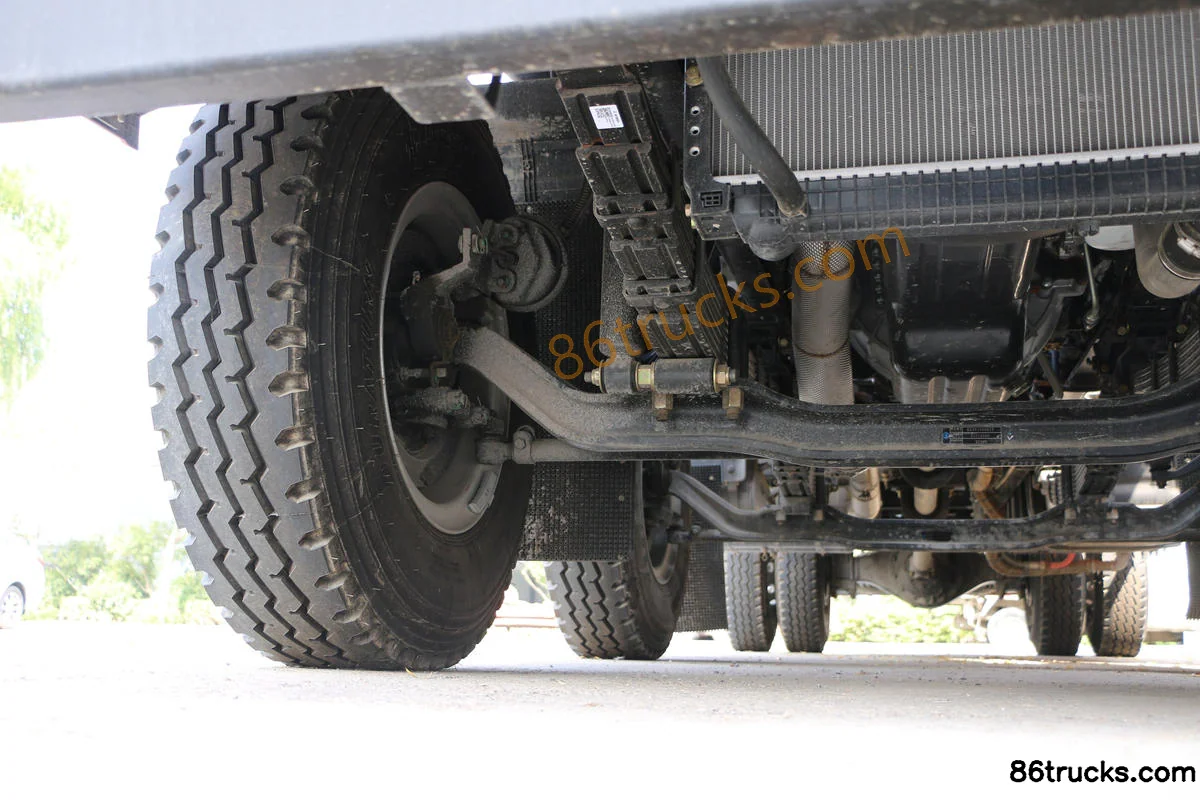

Chassis3

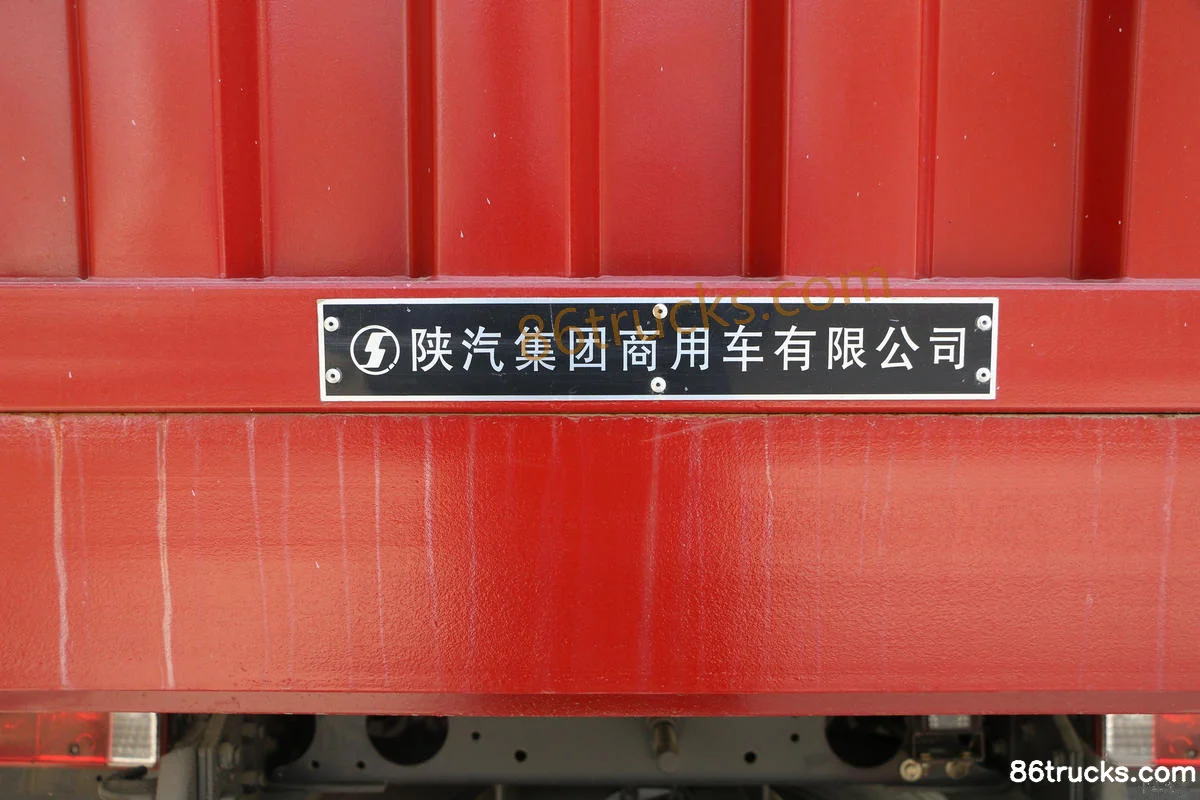

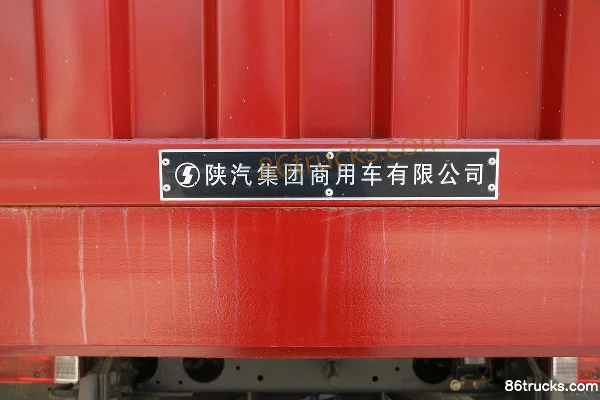

Body3

12 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck, and what does it include?

SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck export reference is about From $29,736; MSRP is ¥21.41M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck belongs to SHACMAN Commercial Vehicle Xuande Yi 6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Yi6 Standard Load Edition 220 hp 6X2(8 wheels) 6.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
