Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck

Export reference
From $43,056
MSRP ¥31M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 15.02ton
Wheelbase:: 1800+3800+1350mm
Tire Size:: 12.00R20
Rated payload: 15.85ton
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Dump type

Overview

The Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck is a Heavy truck featuring 15.85t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290E32 engine, 290 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYX3311PA38WPD3C
Drive type: 8X4
Wheelbase: 1800+3800+1350mm
engine: WeichaiWP10.290E32
transmission: Fast Gear9JS135B
Rear Axle Ratio: 5.57
Cab length: 9.83m
Cab width: 2.49m
Cab height: 3.49m
Front track width: 2060/2060mm
rear track: 1860/1860mm
Curb Weight: 15.02ton
Rated payload: 15.85ton
GVWR: 31ton
Origin: Shanxi Yuncheng
tonnage class: Heavy truck
Approach angle: 24°
departure angle: 28°
Remarks: Weichai engine, Fast Gear transmission (9JS135B+QH70), 153 front axle, 435 single-stage stamped welded dual rear axle (ratio 5.57), hydraulic power steering, pneumatic clutch, standard narrow flat-roof cab. (Optional: 457 single-stage stamped welded dual rear axle)
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E32
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear9JS135B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 7m
Cargo box width: 2.3m
Cargo box height: 0.8m
Chassis Specs
rear axle description: 435 single reduction stamped-welded dual rear axle
rear axle allowable load: 18000kg
Axle ratio: 5.57
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

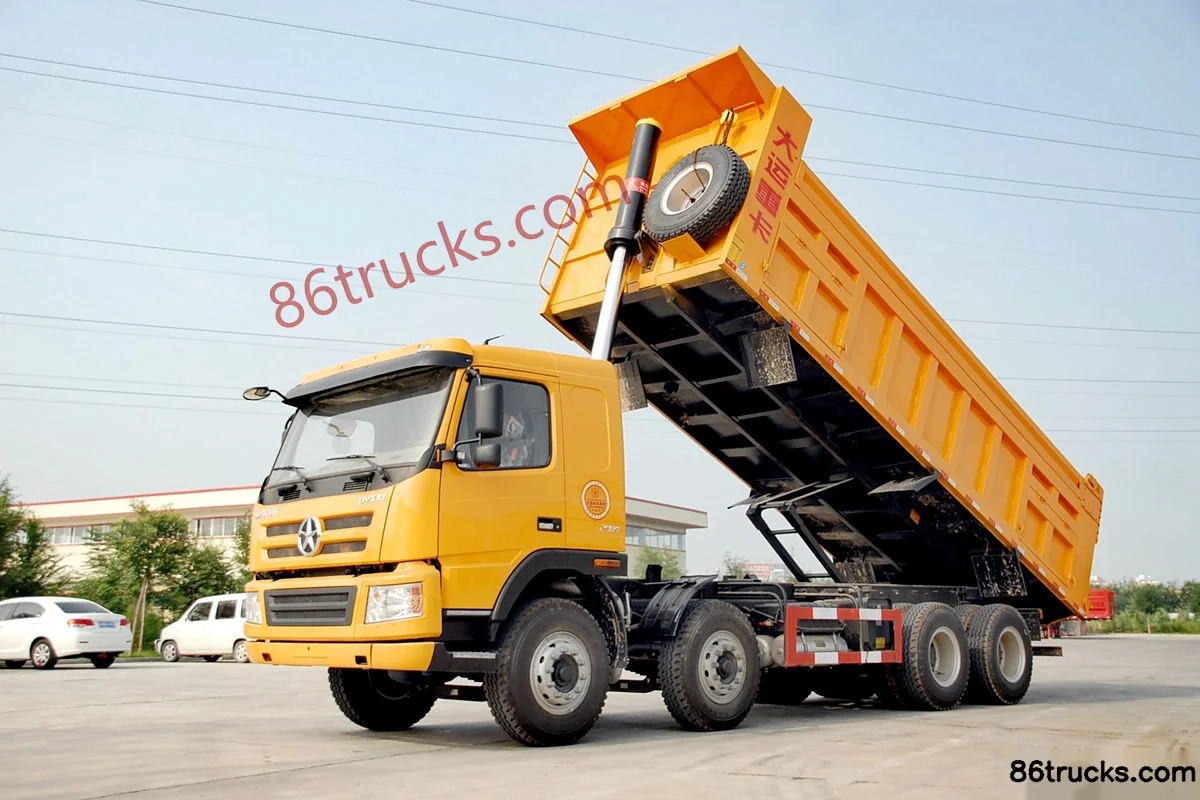

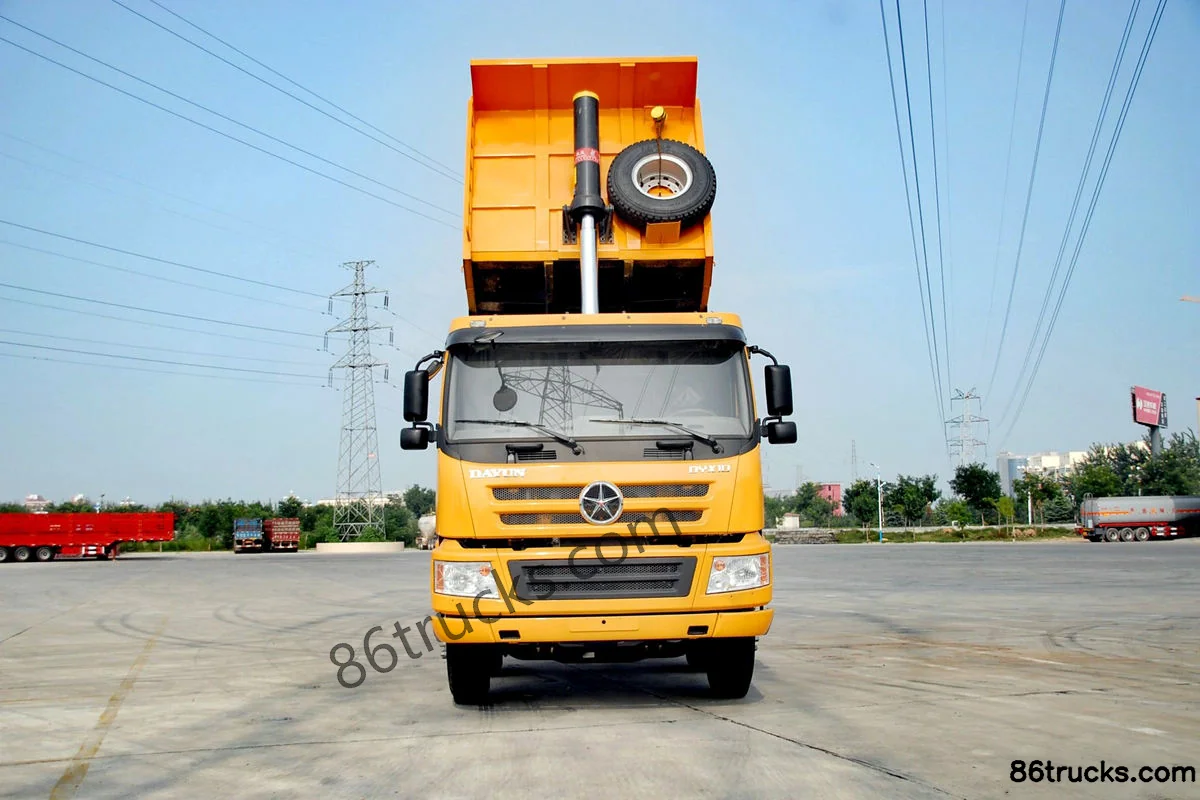

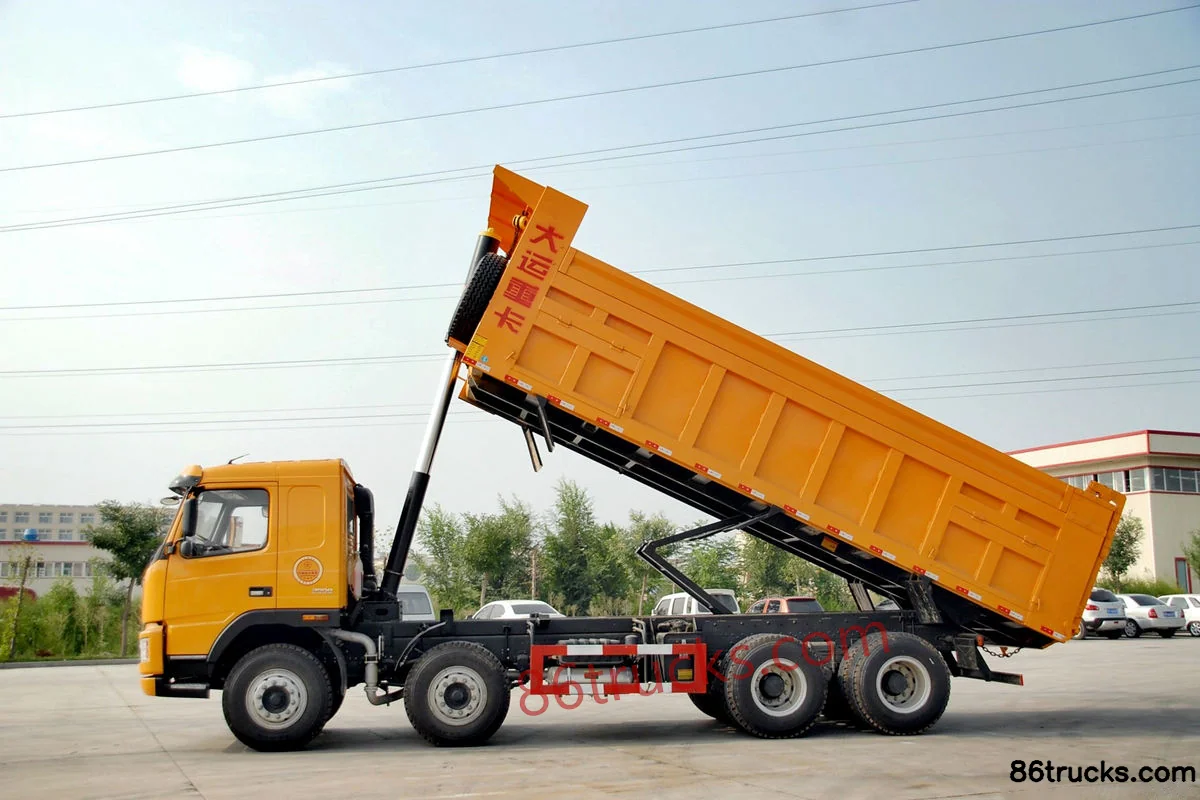

Photos

Exterior3

3 photos

FAQ

What is the export price of Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck, and what does it include?

Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck export reference is about From $43,056; MSRP is ¥31M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck?

Key specs of Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck suited for?

Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck differ from other variants in the same series?

Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck belongs to Dayun New N8E quasi-heavy truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun N8E Heavy Truck 290 hp 8X4(12 wheels) 7m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
