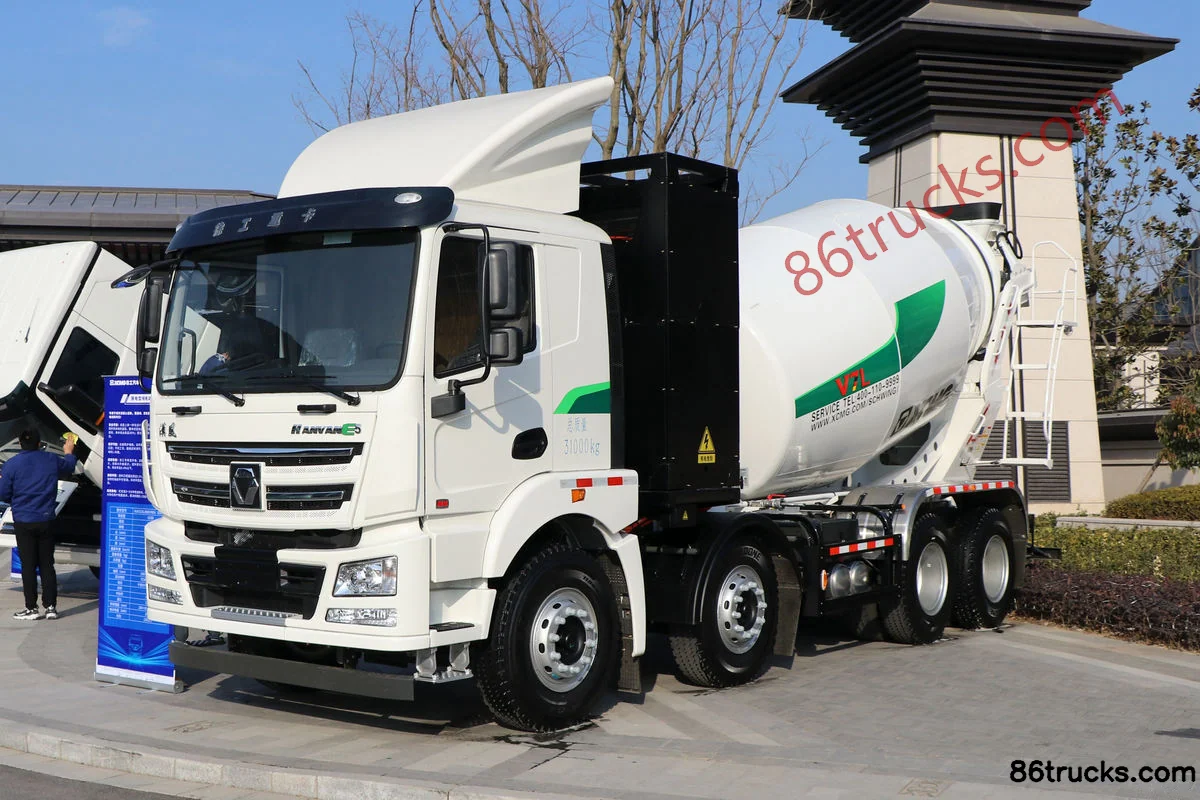

XCMG Truck E500 8X4(12 wheels) 6.81m³ Electric Concrete Mixer Truck BYD 382.46kWh

Export reference
MSRP N/A
Wheelbase:: 1950+3400+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 11.03×2.55×3.995m
Truck Type:: Concrete mixer truck
Front/rear track width:: Front track: 2048/2048mm; Rear track: 1860/1860mm
Vehicle origin:: Xuzhou, Jiangsu
Rated payload: 14.86ton
Drive 8X4 (12 wheels)
Fuel Electric
Curb Weight: 16.01ton

Overview

The XCMG Truck E500 8X4(12 wheels) 6.81m³ Electric Concrete Mixer Truck BYD 382.46kWh is a concrete mixer truck featuring 14.86t payload, 16.01ton GVW, 8X4 (12 wheels) drive and 11.03×2.55×3.995m cab. On the powertrain side, it comes with Electric fuel.

Electric 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 11.03×2.55×3.995m
Drive type: 8X4
Truck Type: Concrete mixer truck
Wheelbase: 1950+3400+1350mm
Front/rear track width: Front track: 2048/2048mm; Rear track: 1860/1860mm
Vehicle origin: Xuzhou, Jiangsu
Curb Weight: 16.01ton
Rated payload: 14.86ton
Max. speed: 80km/h
Front/rear suspension: 1.46/2.87m
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ460XS-270XGEV
Motor Type: Permanent magnet synchronous motor
total rated power: 270kW
Peak power: 405kW
Body Parameters
Mixing drum capacity: 6.81m³
Vehicle certification code: XZS5318GJB7DEV2
Body Brand: XCMG Truck
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Series: E500
Chassis Model: XGA1311BEVNEGX
Front axle description: 6.5T
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 13T
Leaf spring count: 9/9/10
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
