Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.01ton
Wheelbase:: 3600+1350mm
Tire Size:: 12.00R20
Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck exterior
View more photos (9)
Rated payload: 12.86ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Dump type

Overview

The Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck is a Heavy truck featuring 12.86t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukD10.31-50 engine, 310 hp, China V emissions and Sinotruk transmission.

China V 310 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3255N3646E1
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: SinotrukD10.31-50
transmission: SinotrukHW19712
Rear Axle Ratio: 4.77
Cab length: 8.2m
Cab width: 2.496m
Cab height: 3.5m
Front track width: 2022mm
rear track: 1830/1830mm
Curb Weight: 12.01ton
Rated payload: 12.86ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 22°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.31-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1390N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW19712
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: HF7 (drum)
Front axle allowable load: 7000kg
Frame Dimensions: 850×300×80×(8+5)mm
rear axle description: AC16
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.77
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs
Control configuration
ABS:

Photos

Exterior3

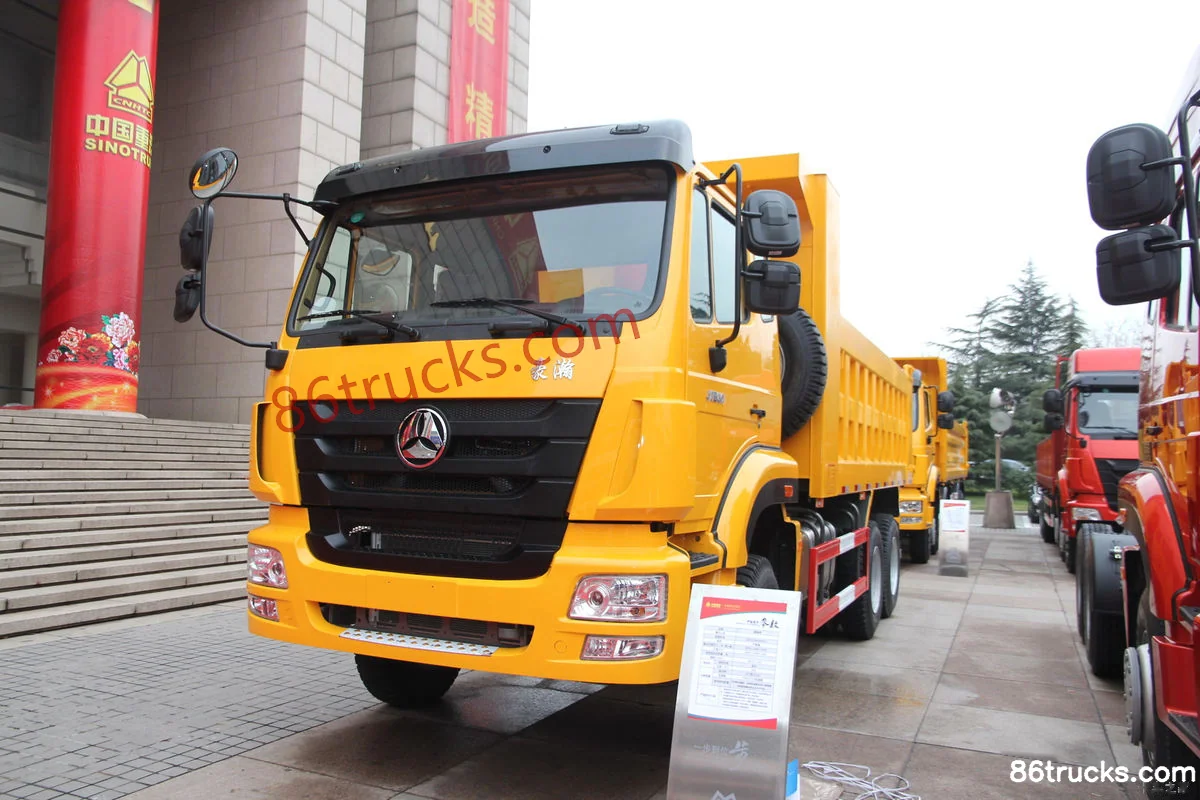

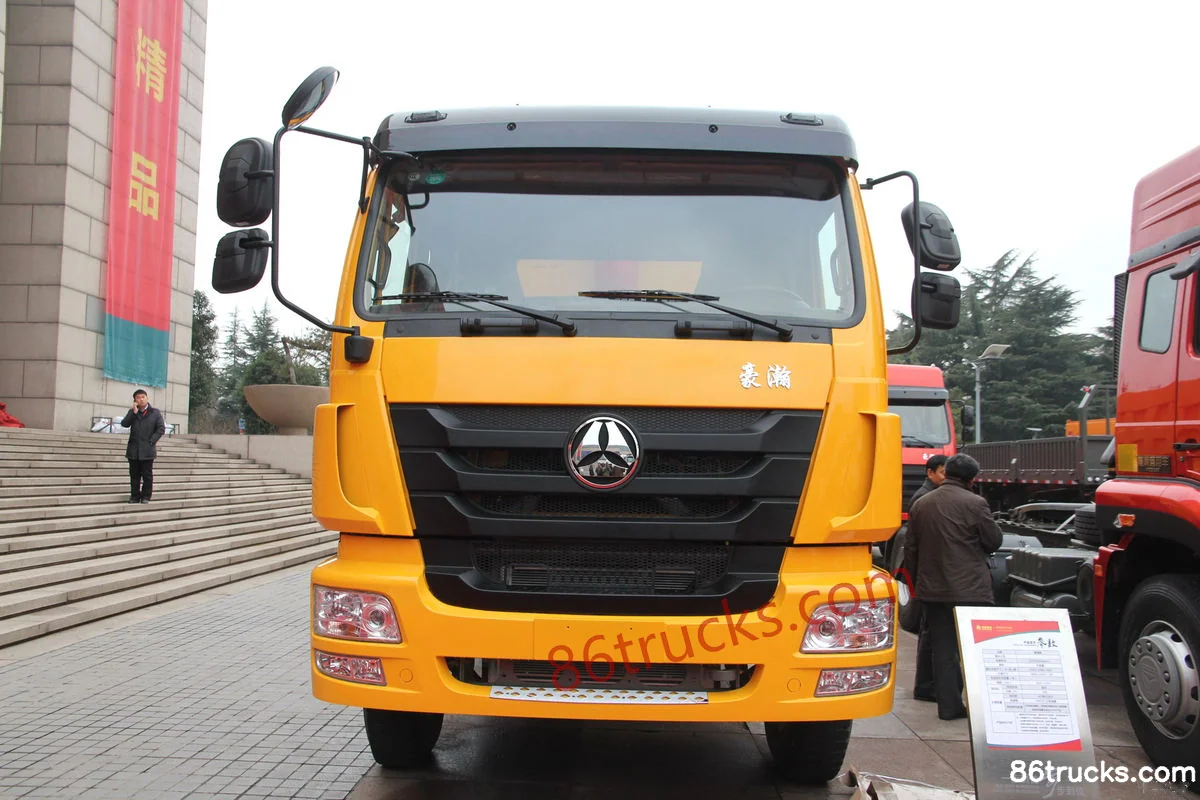

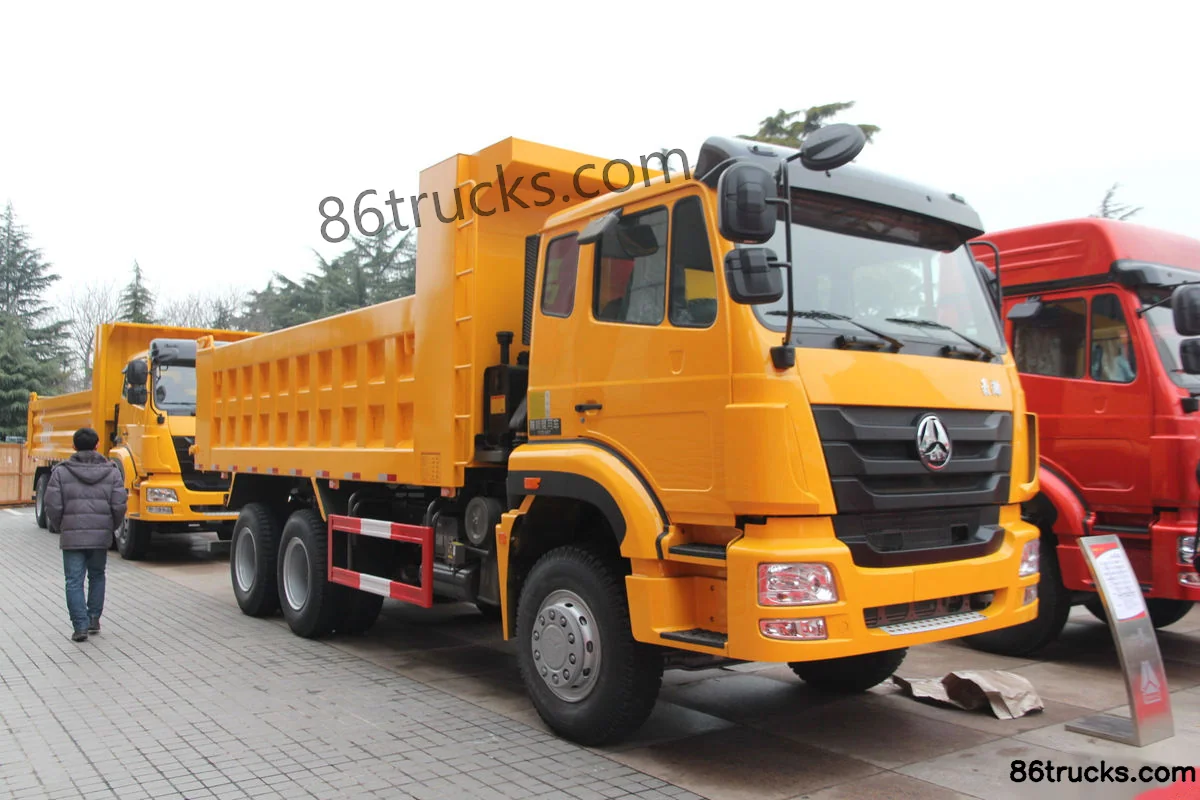

Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Exterior (1) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Exterior (2) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Exterior (3) | 86Trucks

Cab3

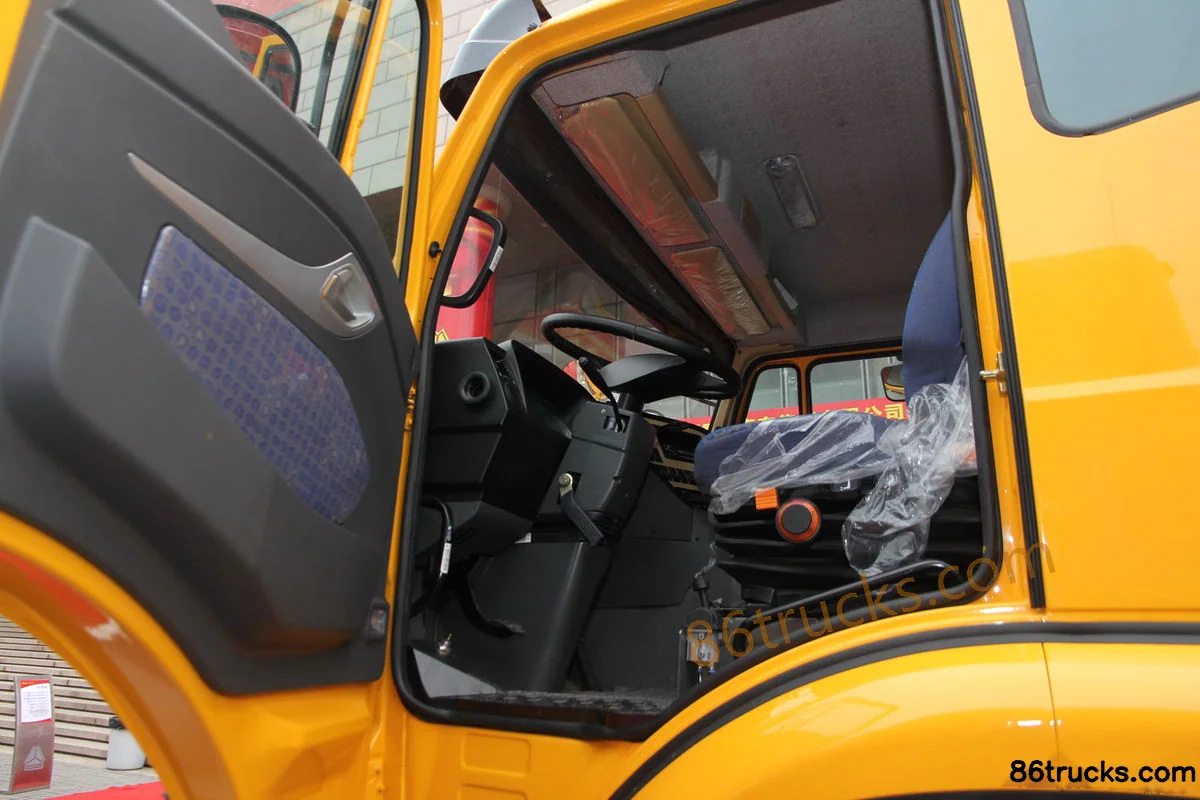

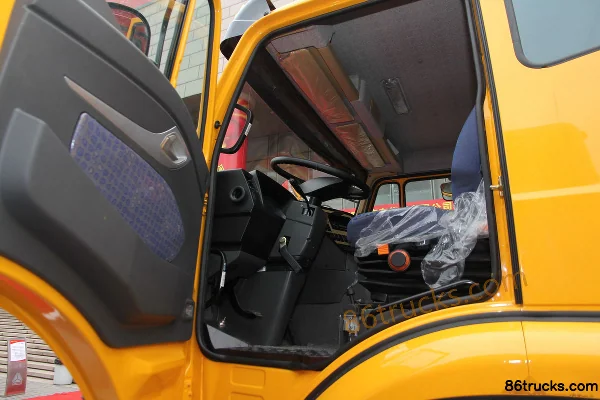

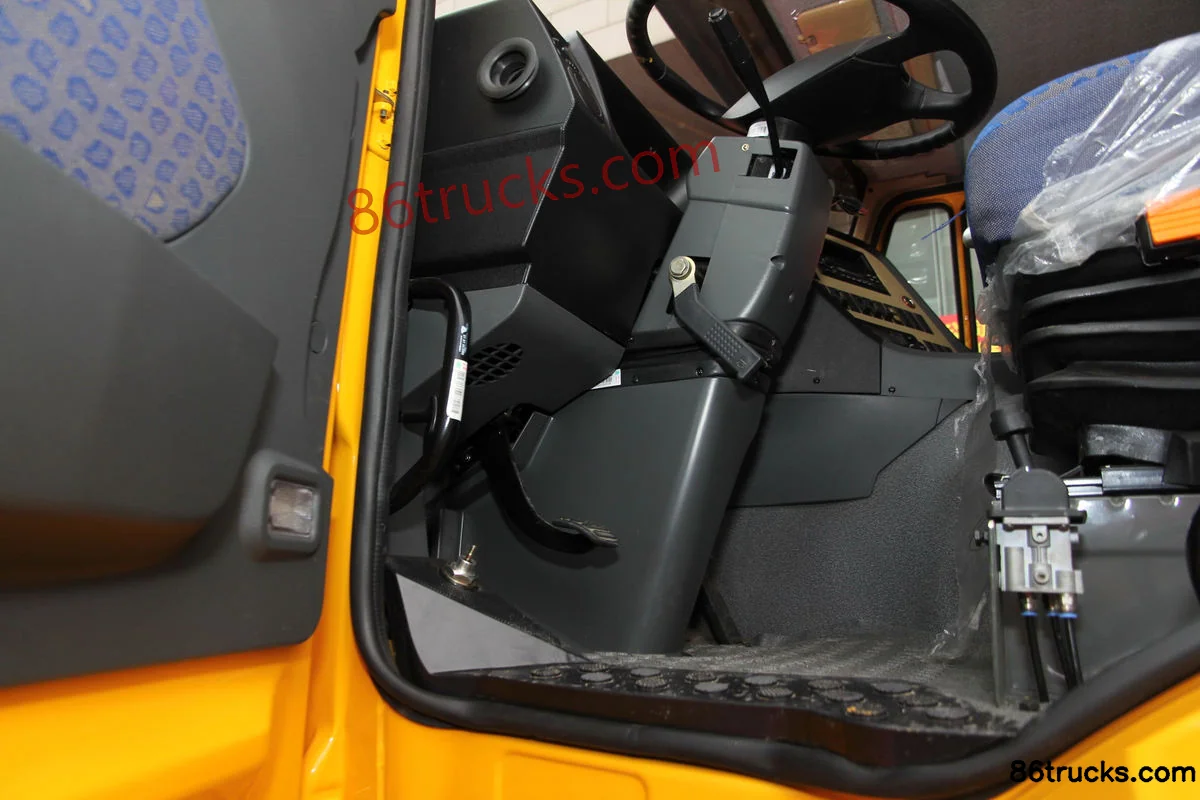

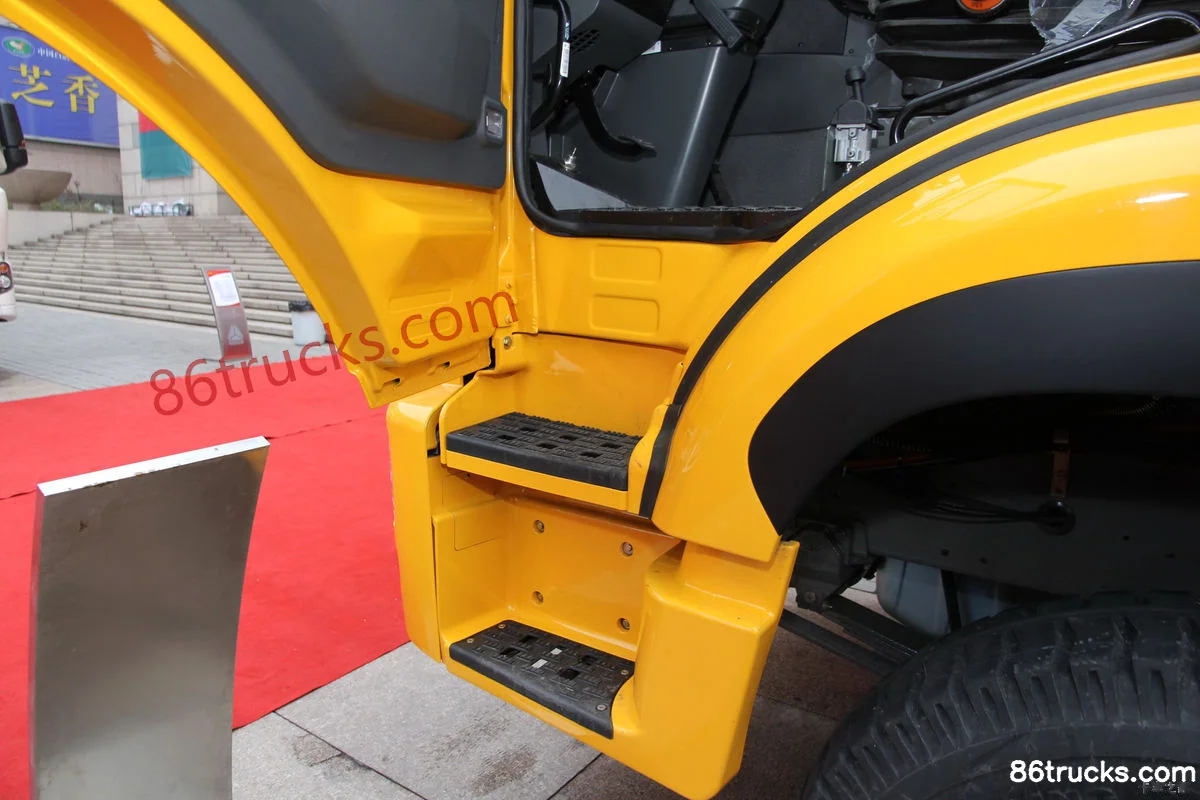

Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Cab (1) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Cab (2) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Cab (3) | 86Trucks

Chassis3

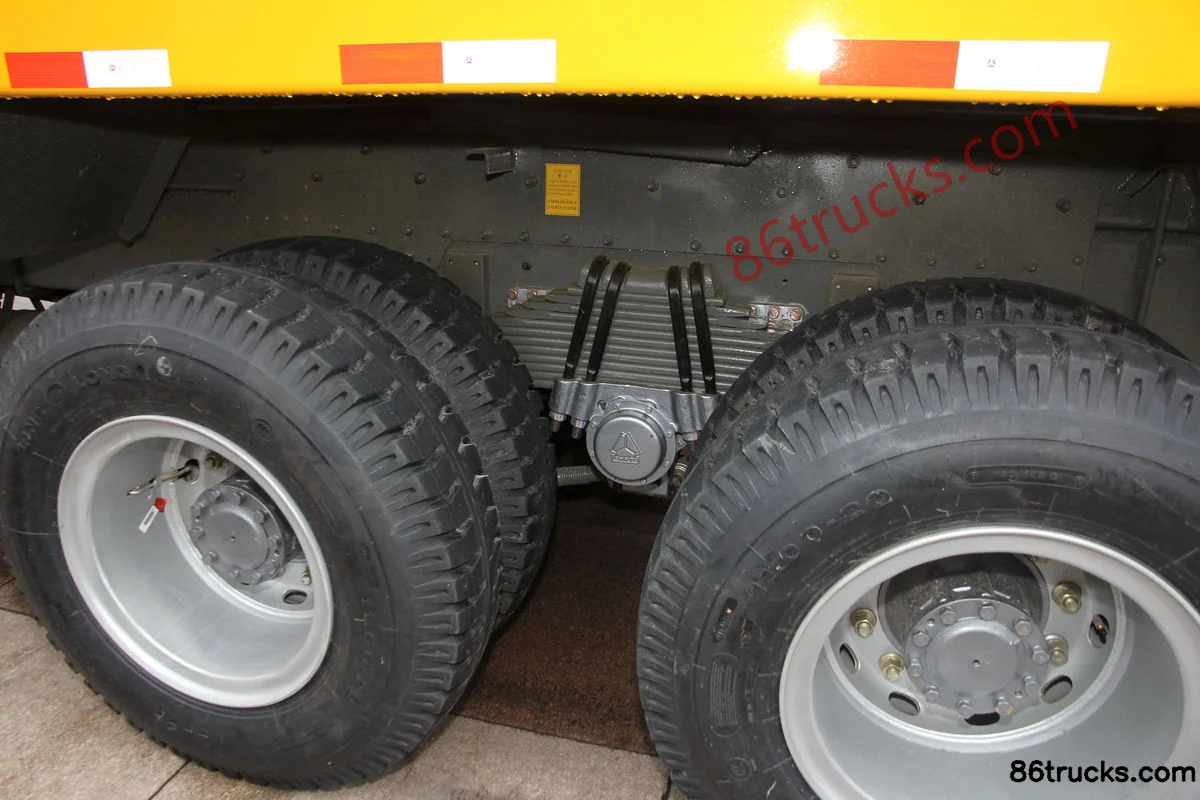

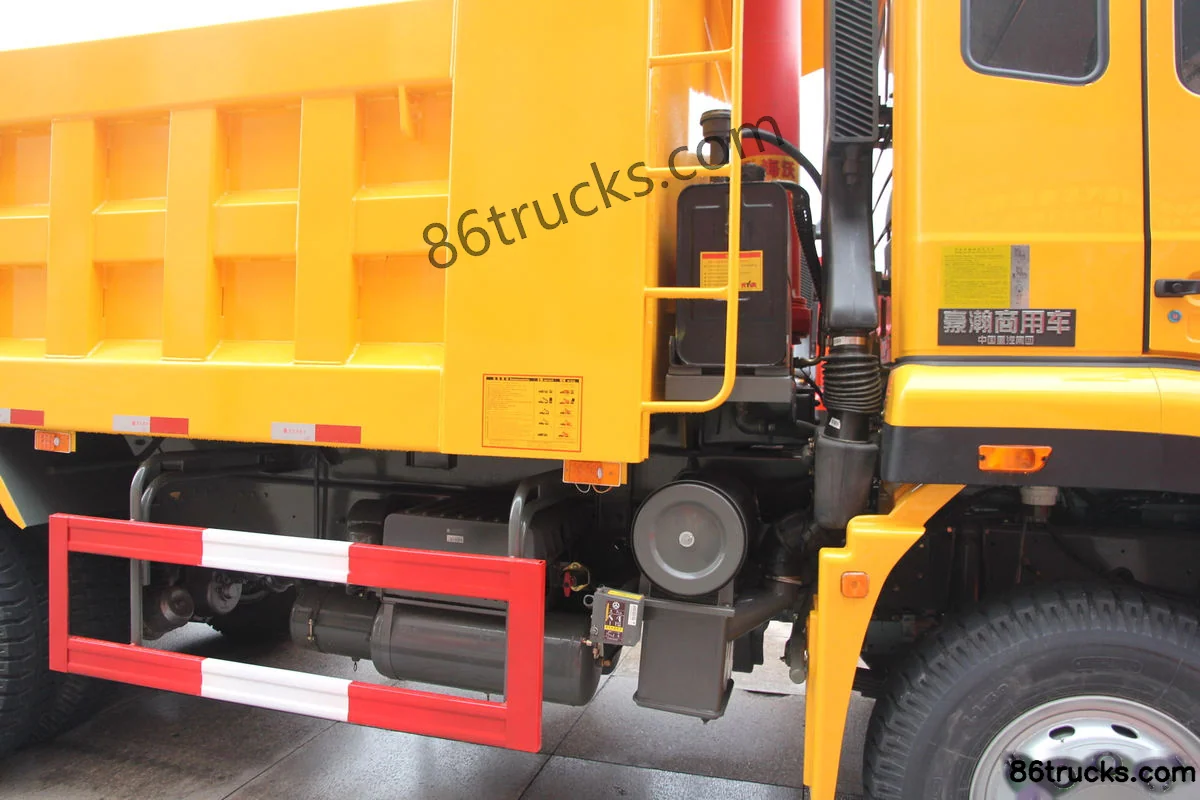

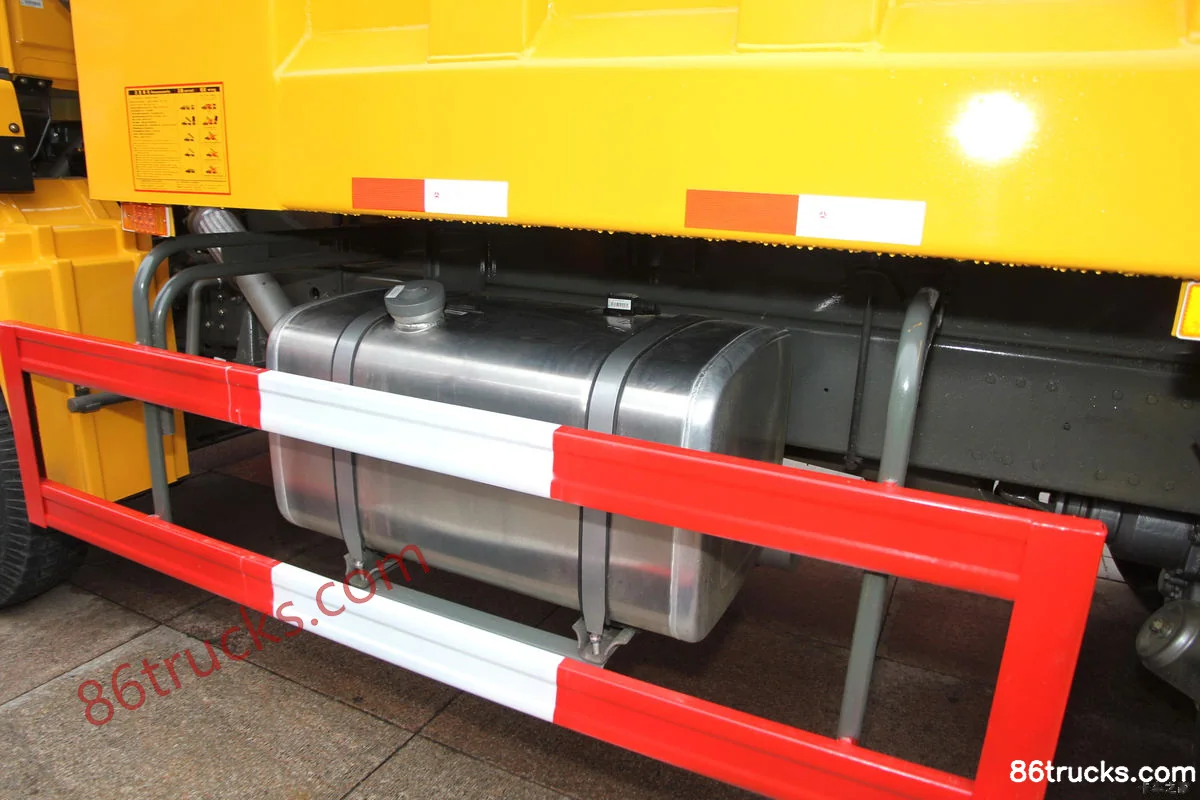

Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Chassis (1) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Chassis (2) | 86Trucks Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck?

Key specs of Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck: Drive: 6x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck suited for?

Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck differ from other variants in the same series?

Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck belongs to Sinotruk J7B Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Haohan J7B 310hp 6X4(10 wheels) 5.4m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
