Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck

Export reference
From $19,167
MSRP ¥13.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.34ton
Wheelbase:: 3260mm
Tire Size:: 8.25R16LT 18PR
Rated payload: 6.665ton
Drive 4X2 (6 wheels)
Horsepower 150
Cargo box length: 3.65m

Overview

The Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck is a Medium-duty truck featuring 6.665t payload, 11.2t GVW, 3.65m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25TCIF1 engine, 150 hp, China VI emissions and WLY transmission.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3112GC326DP6
Drive type: 4X2
Wheelbase: 3260mm
engine: Yunnei PowerD25TCIF1
transmission: WLYWLY8G45
Rear Axle Ratio: 5.286
Cab length: 5.85m
Cab width: 2.21m
Cab height: 2.4m
Front track width: 1570mm
rear track: 1655mm
Curb Weight: 4.34ton
Rated payload: 6.665ton
GVWR: 11.2ton
Origin: Ganzhou, Jiangxi
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 19°
Version: Zunxiang Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 101kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY8G45
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box length: 3.65m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: Sleeper cab
Cab width: 1820mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Axle ratio: 5.286
Leaf spring count: 9/8+4,7/9+5
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:

Photos

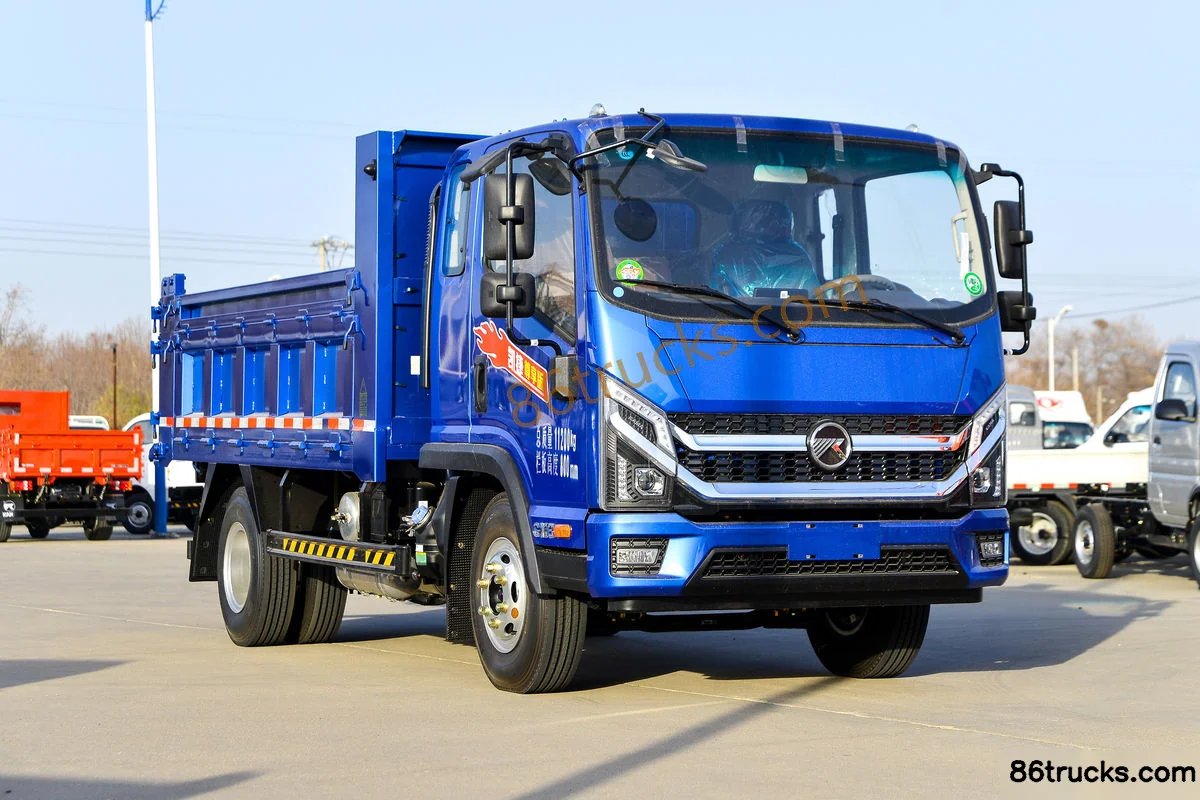

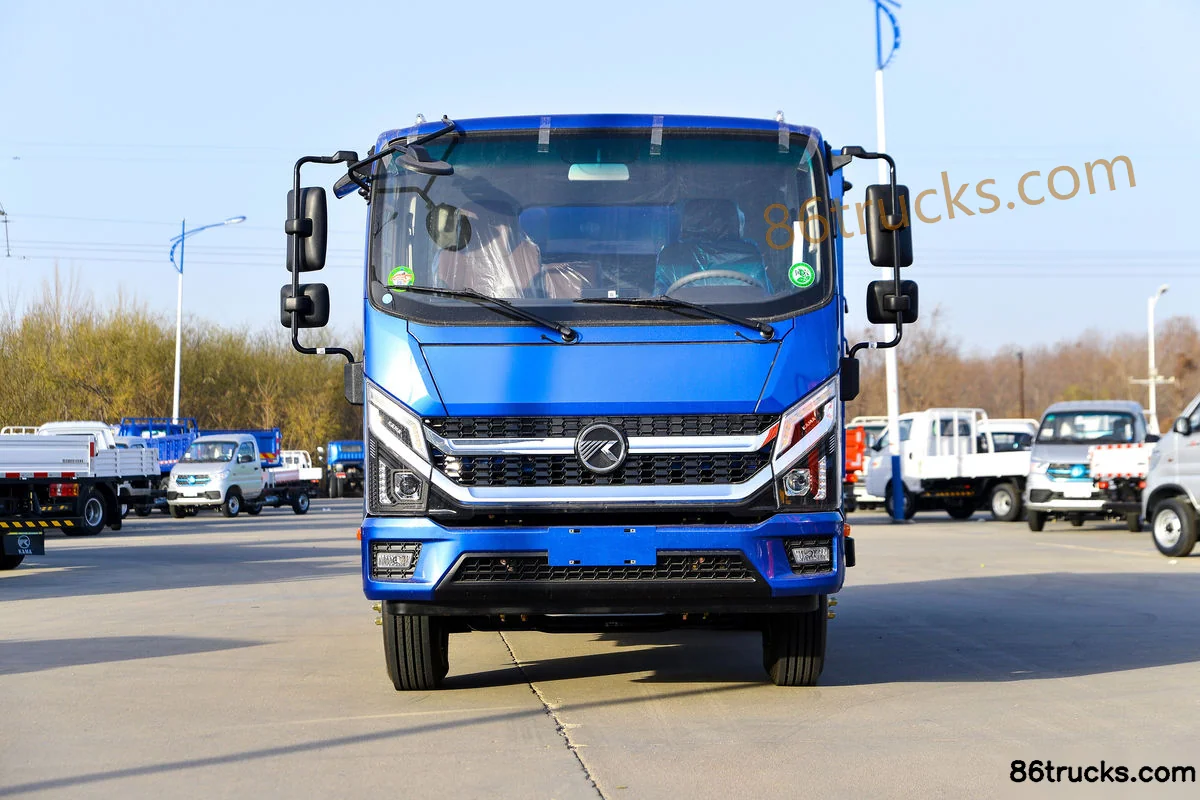

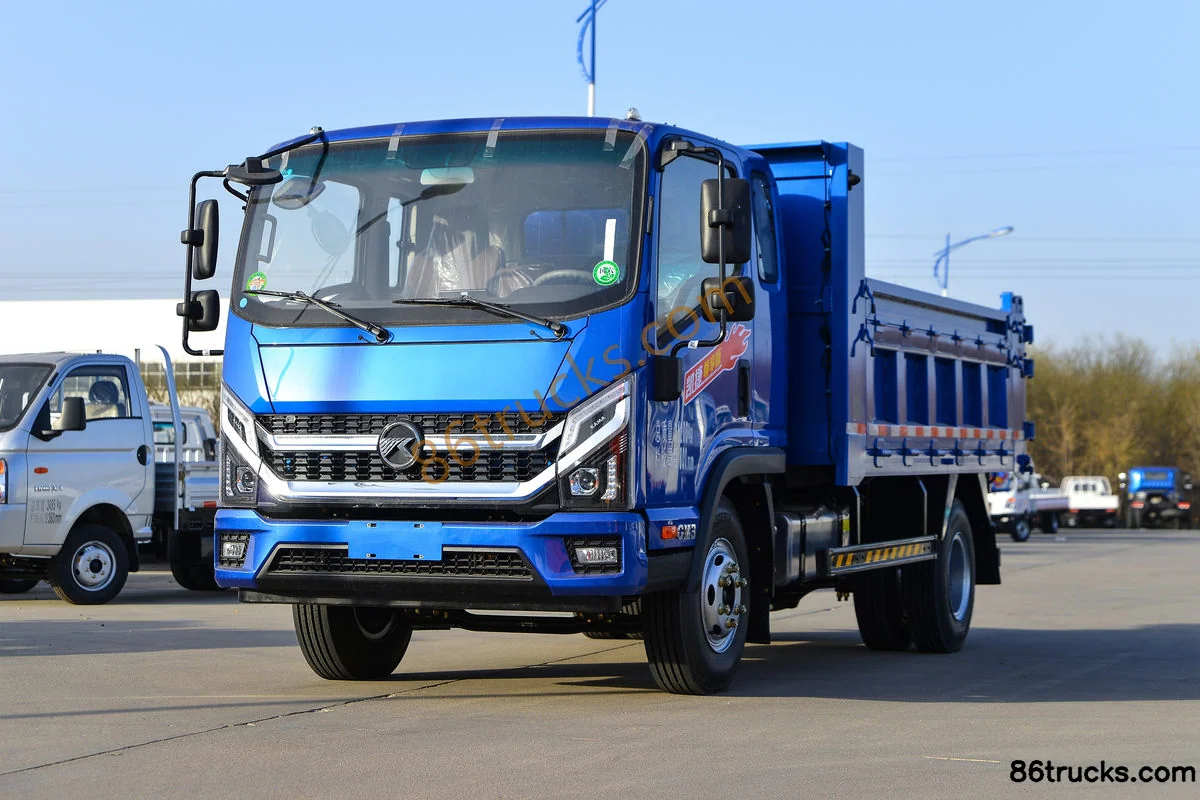

Exterior3

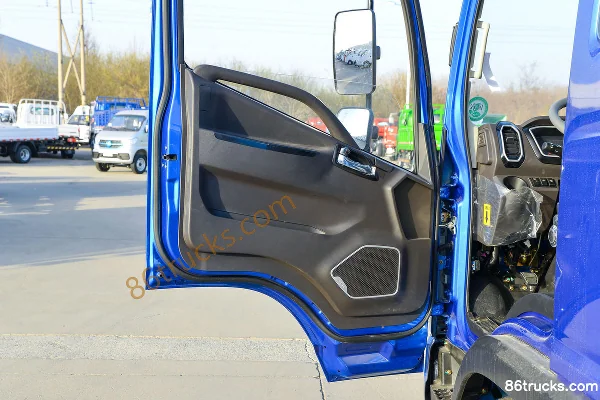

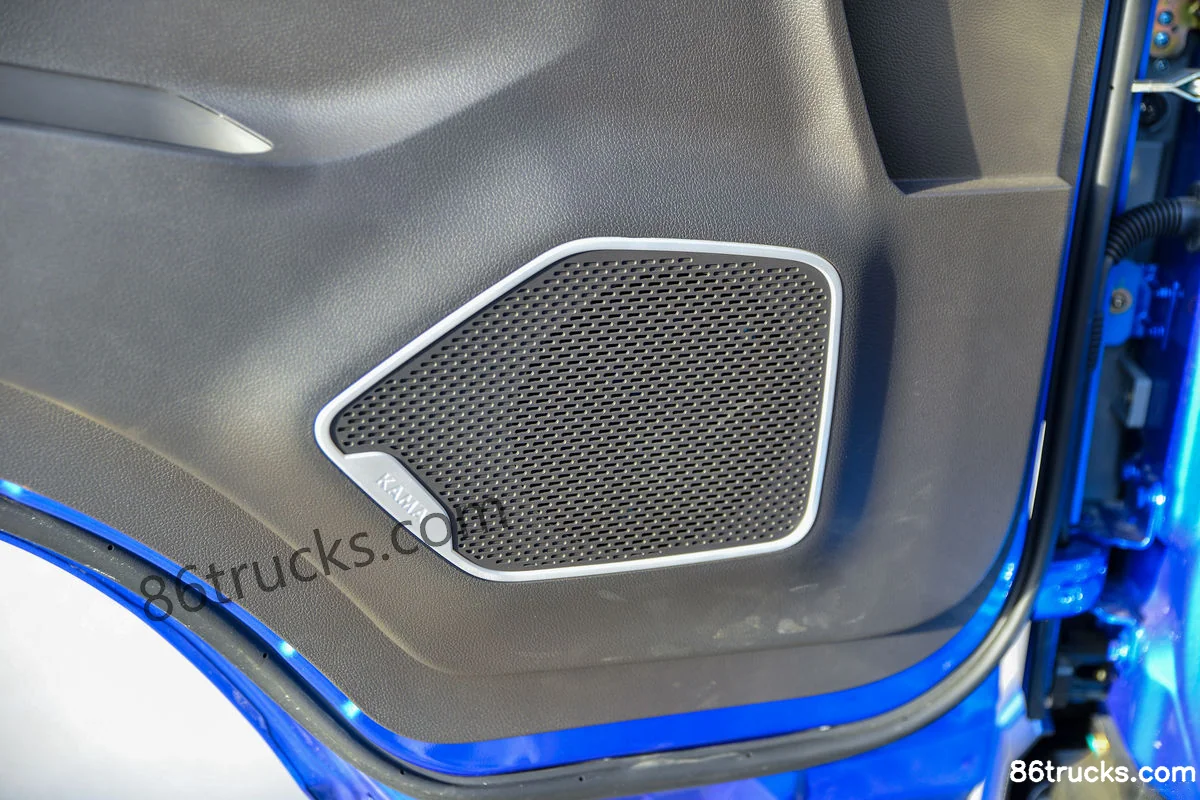

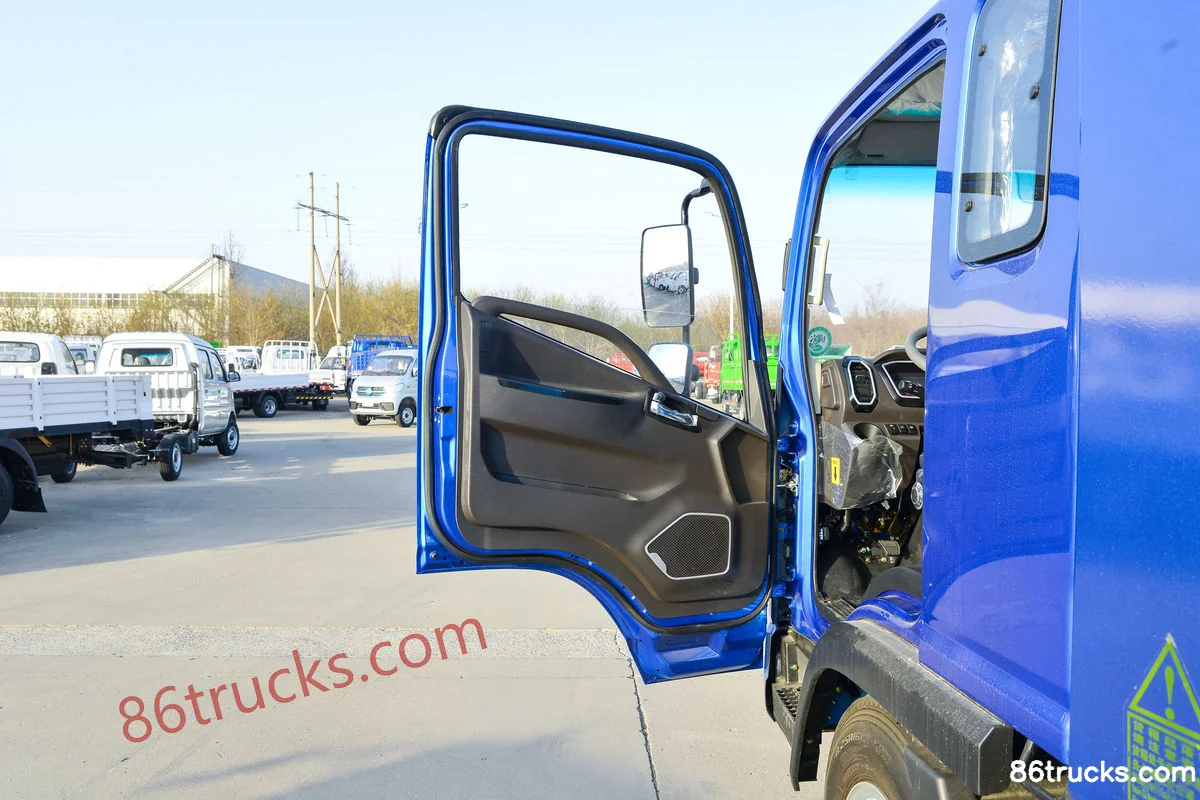

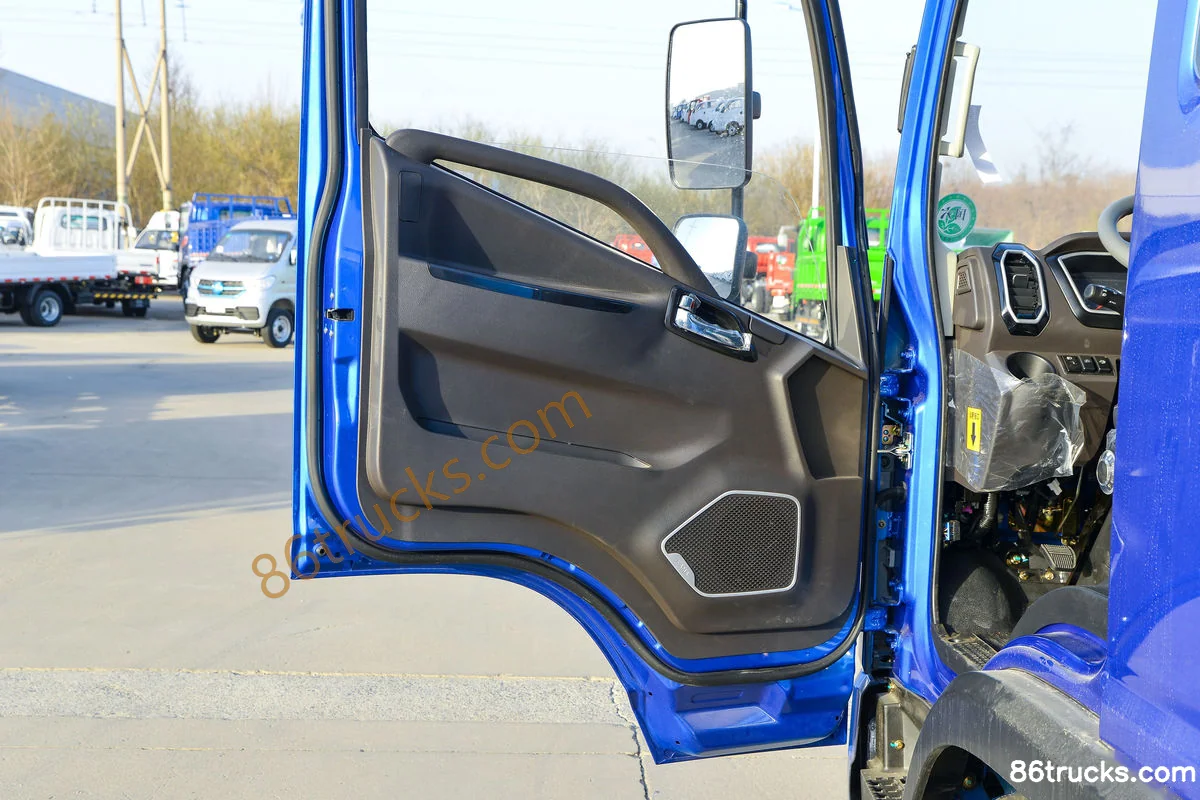

Cab3

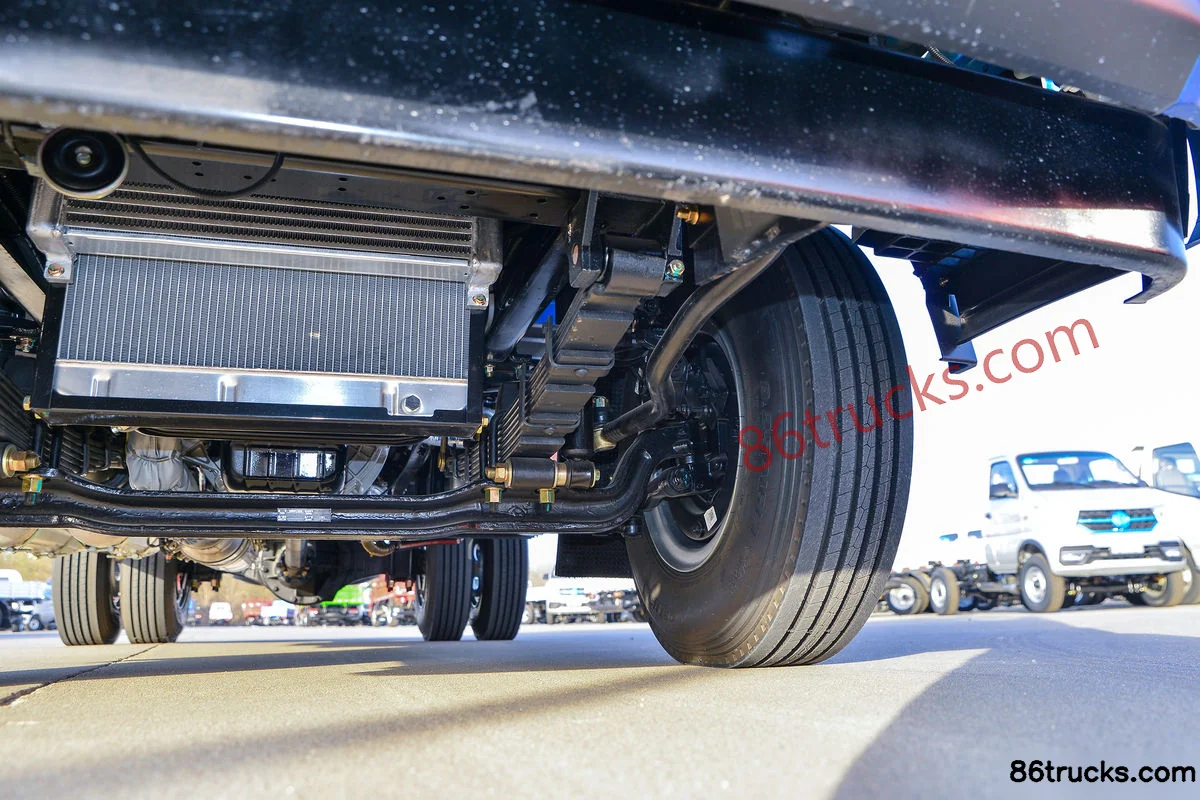

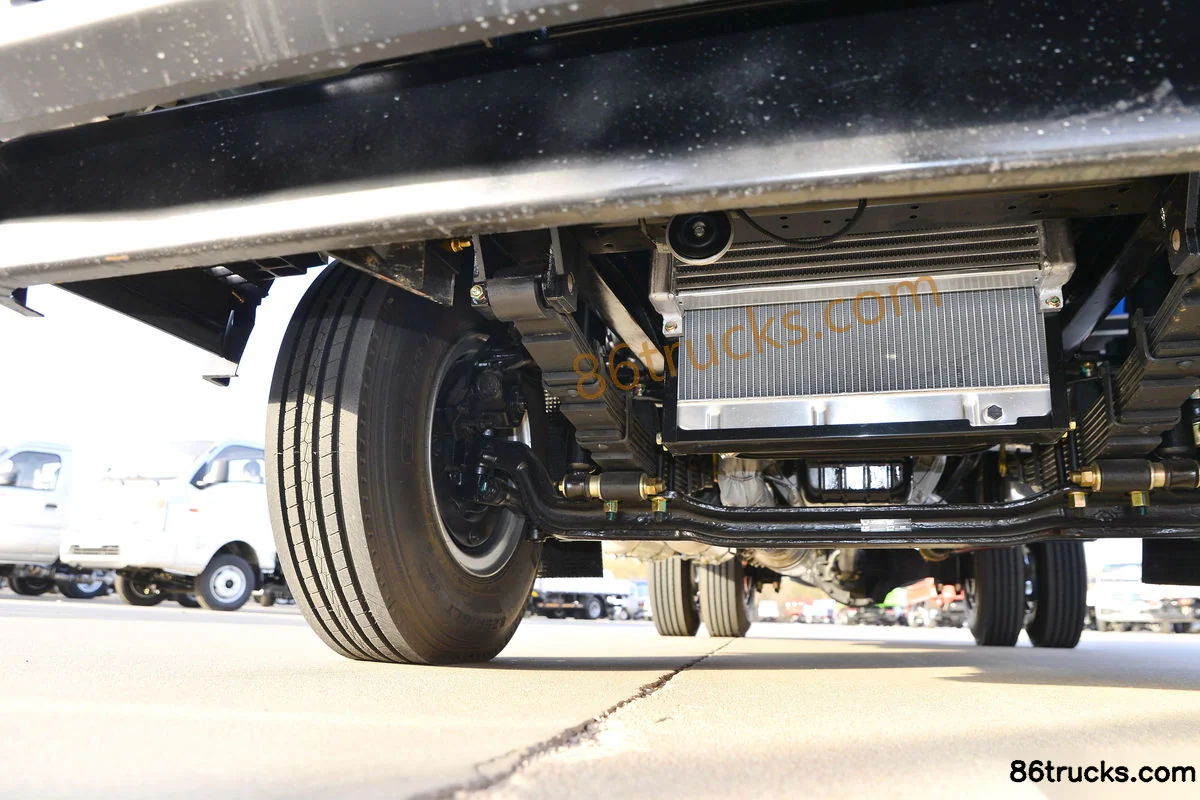

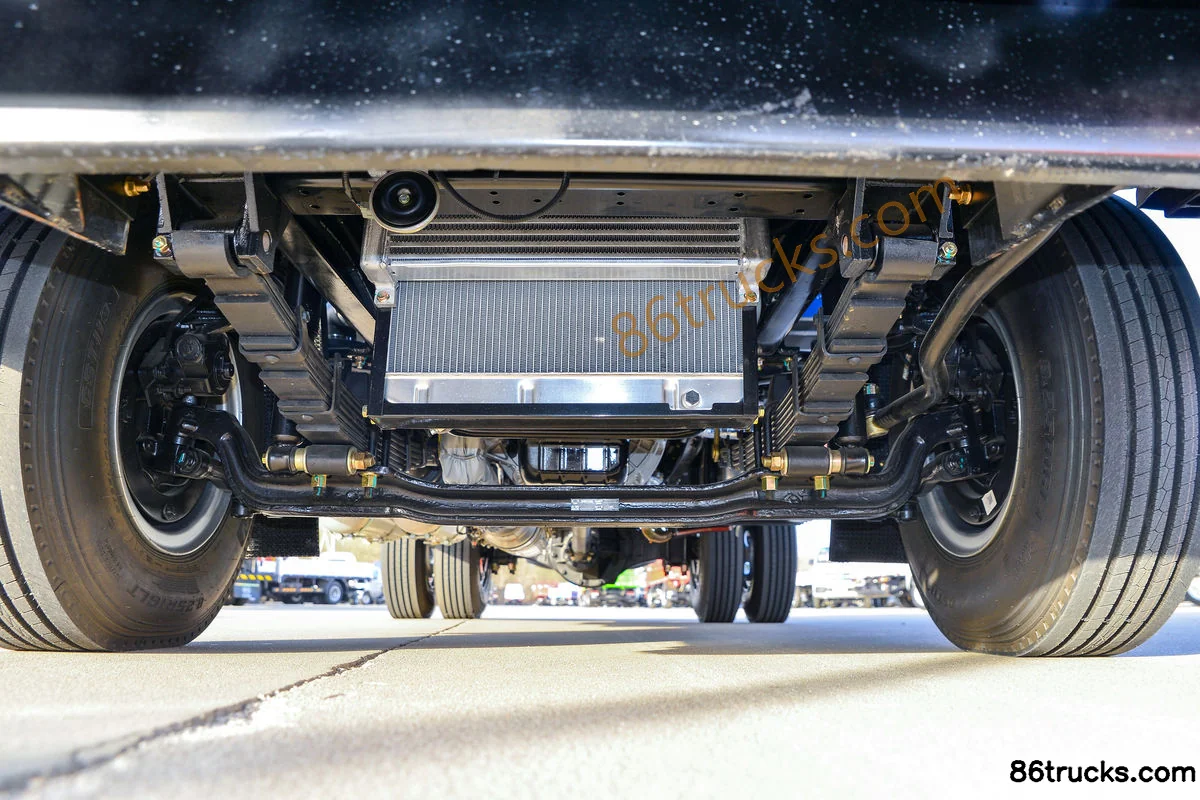

Chassis3

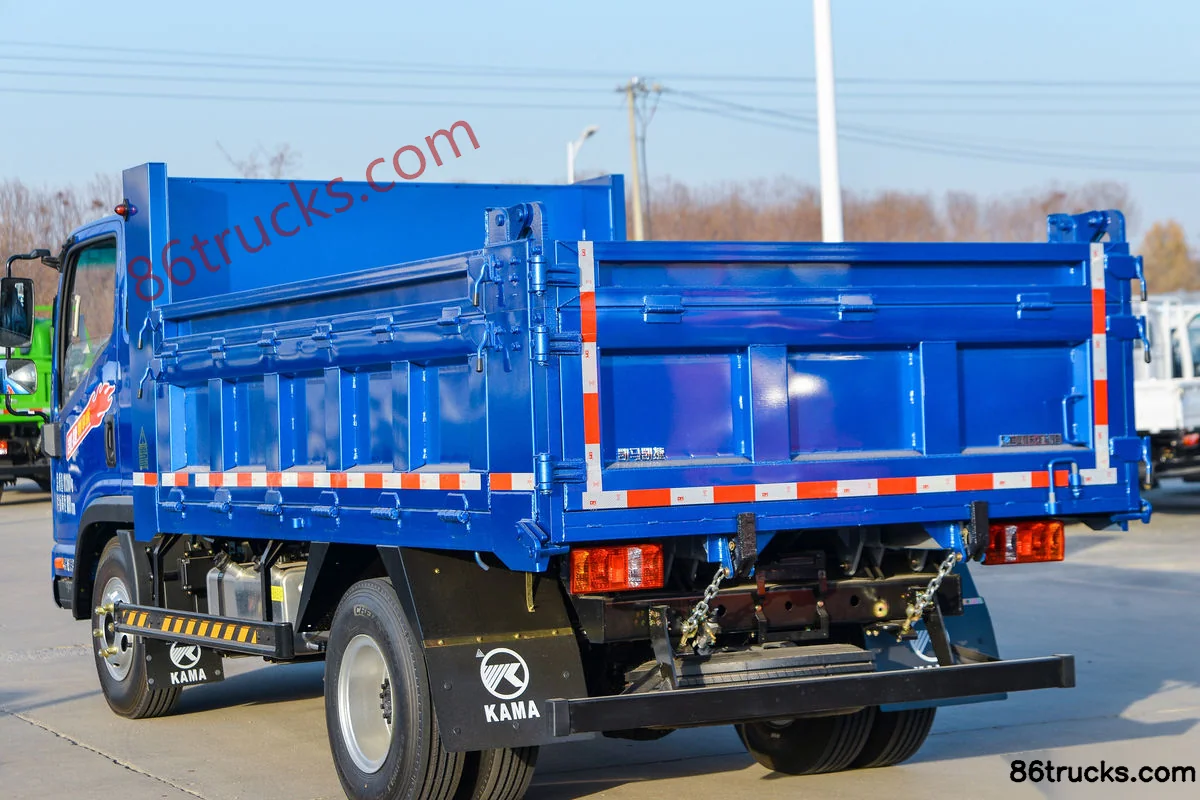

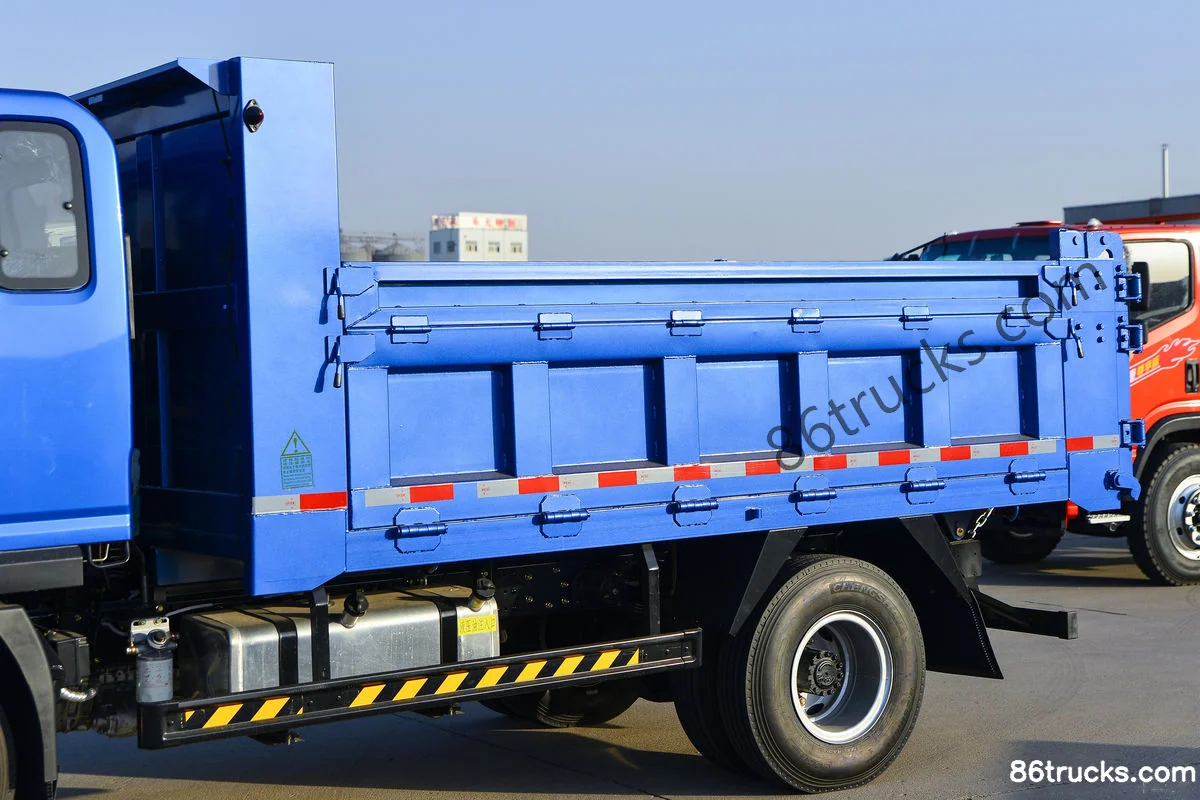

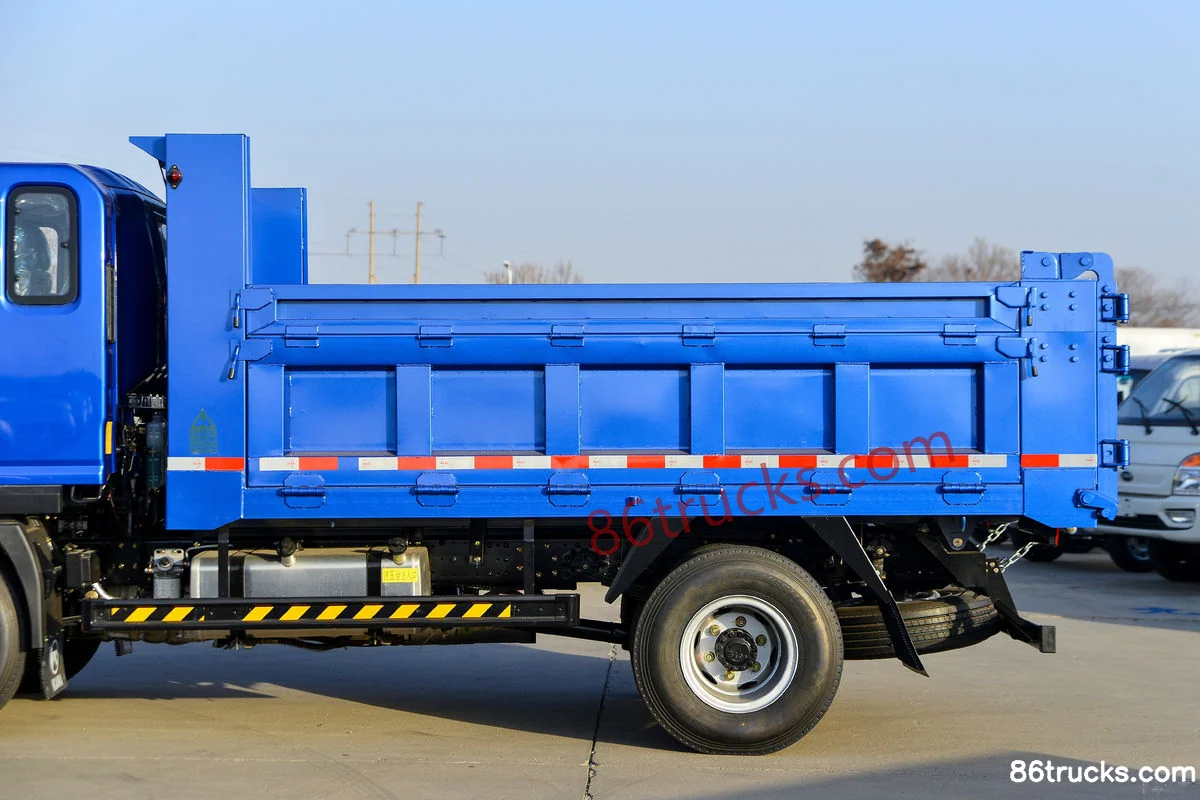

Body3

12 photos

FAQ

What is the export price of Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck, and what does it include?

Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck export reference is about From $19,167; MSRP is ¥13.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck?

Key specs of Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck: Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck suited for?

Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck differ from other variants in the same series?

Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck belongs to Kama Kaijie GM3 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie GM3 Deluxe Edition 150hp 4X2(6 wheels) 3.65m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
