Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck

Export reference
From $40,000
MSRP ¥28.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.65ton
Wheelbase:: 3650mm
Tire Size:: 10.00R20 18PR
Rated payload: 9.22ton
Drive 4X4 (6 wheels)
Horsepower 235
Cargo box length: 4.3m

Overview

The Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck is a Light Truck featuring 9.22t payload, 18t GVW, 4.3m cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCDV4863-235 engine, 235 hp, China VI emissions and Fast Gear transmission.

China VI 235 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ2188K27FB1
Drive type: 4X4
Wheelbase: 3650mm
engine: YuchaiYCDV4863-235
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.833
Cab length: 6.53m
Cab width: 2.45m
Cab height: 2.95m
Front track width: 1800mm
rear track: 1750mm
Curb Weight: 8.65ton
Rated payload: 9.22ton
GVWR: 18ton
Origin: Yong'an, Fujian
tonnage class: Light Truck
Approach angle: 24°
departure angle: 18°
Remarks: Optional cab electric hydraulic lift, optional airbag rear suspension
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCDV4863-235
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.73L
Emission standard: China VI
Max output power: 173kW
Max hp: 235Horsepower
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 4.3m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab width: 2080mm
seating capacity: 2Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 23AWS cast (drum)
Front axle allowable load: 6500kg
Frame Dimensions: 280 main/sub integratedmm
rear axle description: STRD(13T)
rear axle allowable load: 11500kg
Axle ratio: 5.833
Leaf spring count: 9/11+8
Tire
Tire Size: 10.00R20 18PR
Tire Type: Off-road Tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
lighting configuration
daytime running lights:
Service brake
Exhaust brake:

Photos

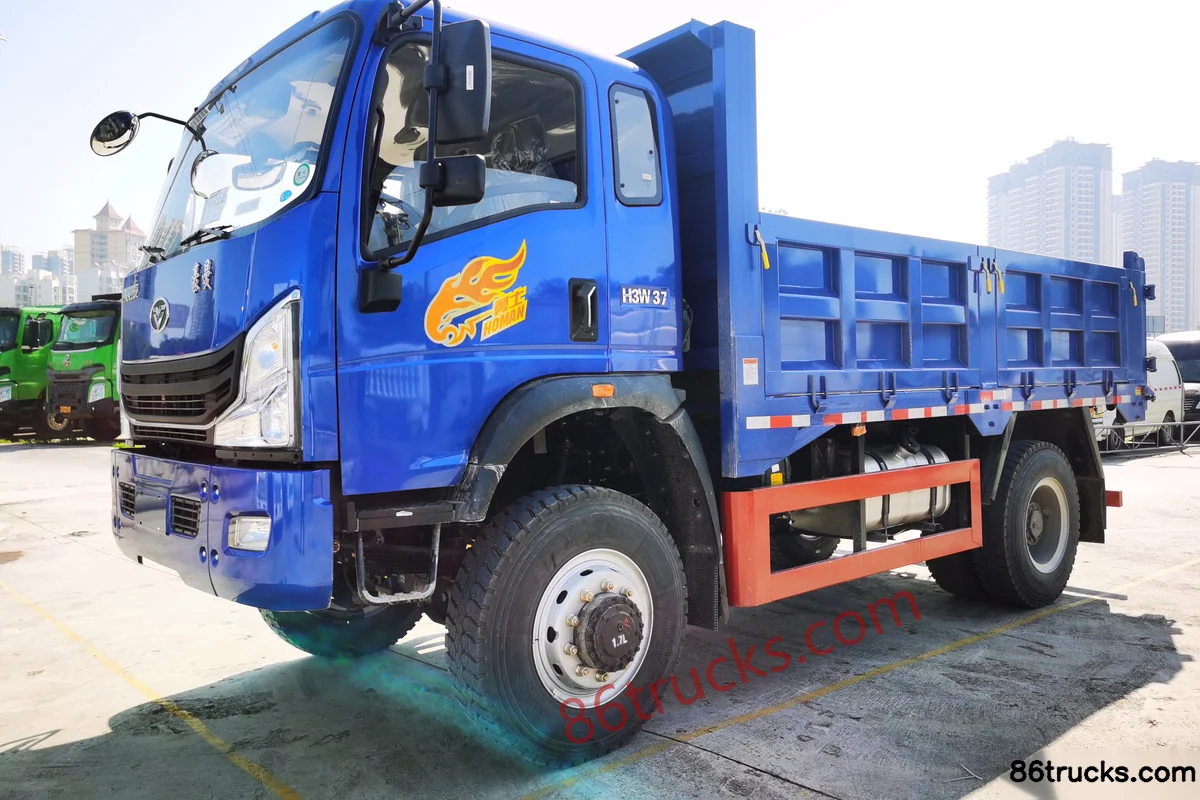

Exterior1

1 photos

FAQ

What is the export price of Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck, and what does it include?

Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck export reference is about From $40,000; MSRP is ¥28.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck?

Key specs of Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck: Drive: 4x4; Horsepower: 235 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck suited for?

Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck differ from other variants in the same series?

Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck belongs to Sinotruk Pioneer Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MAN H3 235 hp 4X4(6 wheels) 4.3m Off-Road Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
