Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.81ton
Wheelbase:: 3600mm
Tire Size:: 10.00-20 18PR
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Horsepower 180
Cargo box type: Dump type

Overview

The Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck is a Medium-duty truck featuring 9.995t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA180-50 engine, 180 hp, China V emissions and Fast Gear transmission.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3182D5AB
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC6JA180-50
transmission: Fast Gear8JS85E
Cab length: 6.65m
Cab width: 2.35m
Cab height: 2.95m
Front track width: 1825mm
rear track: 1700mm
Curb Weight: 7.81ton
Rated payload: 9.995ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 13°
departure angle: 25°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA180-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 132kW
Max hp: 180Horsepower
Max torque: 700N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: Fengjing
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 153 Shortened Axle
rear axle allowable load: 11500kg
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00-20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

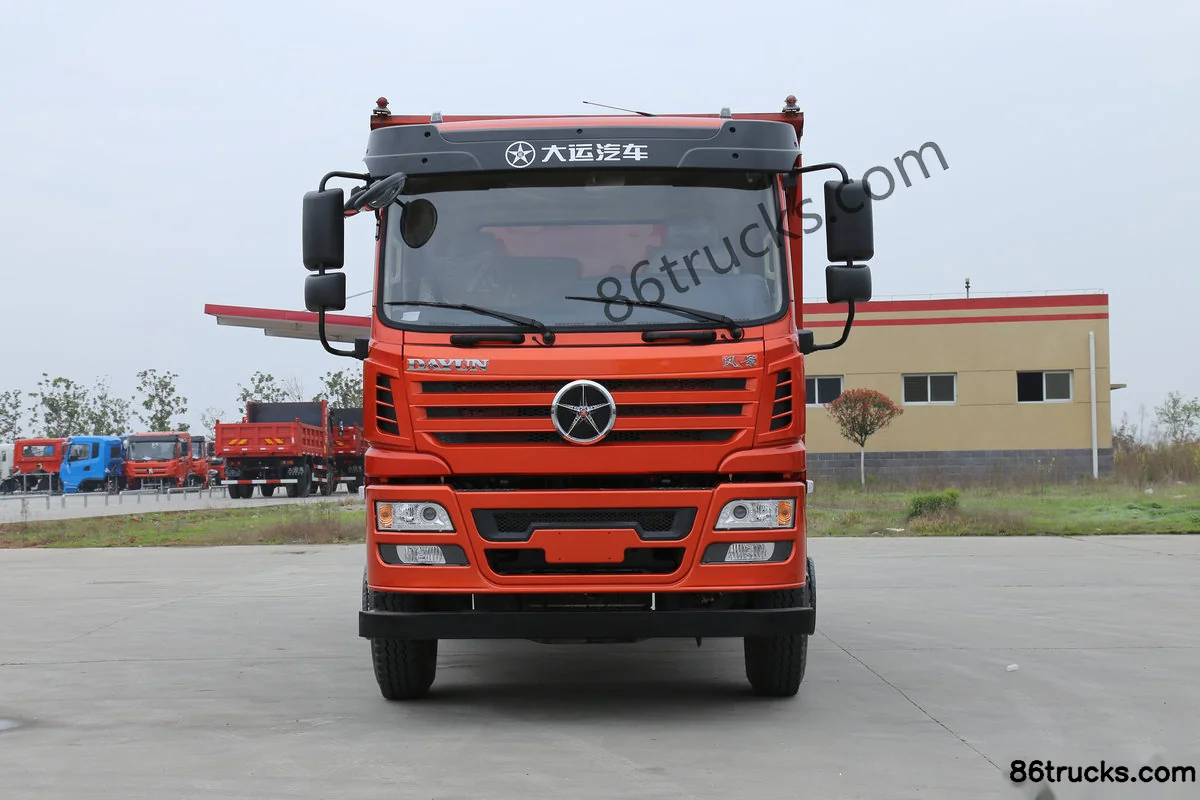

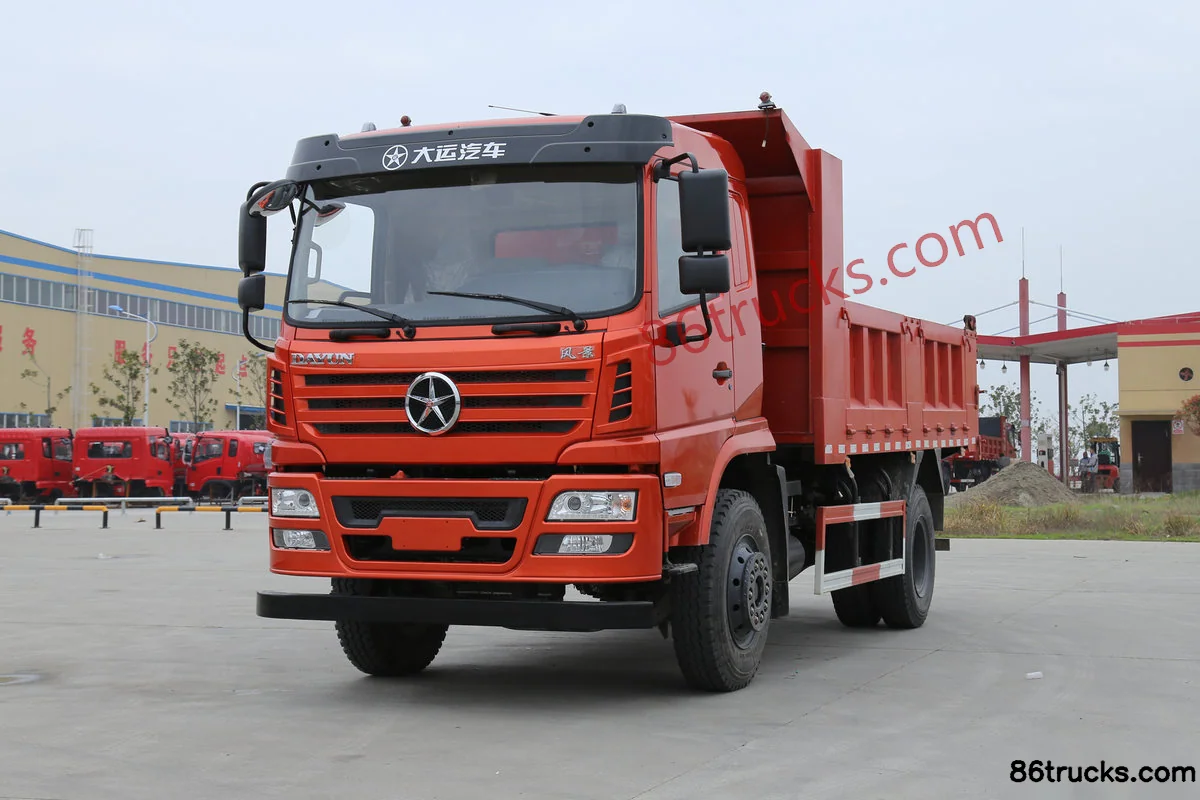

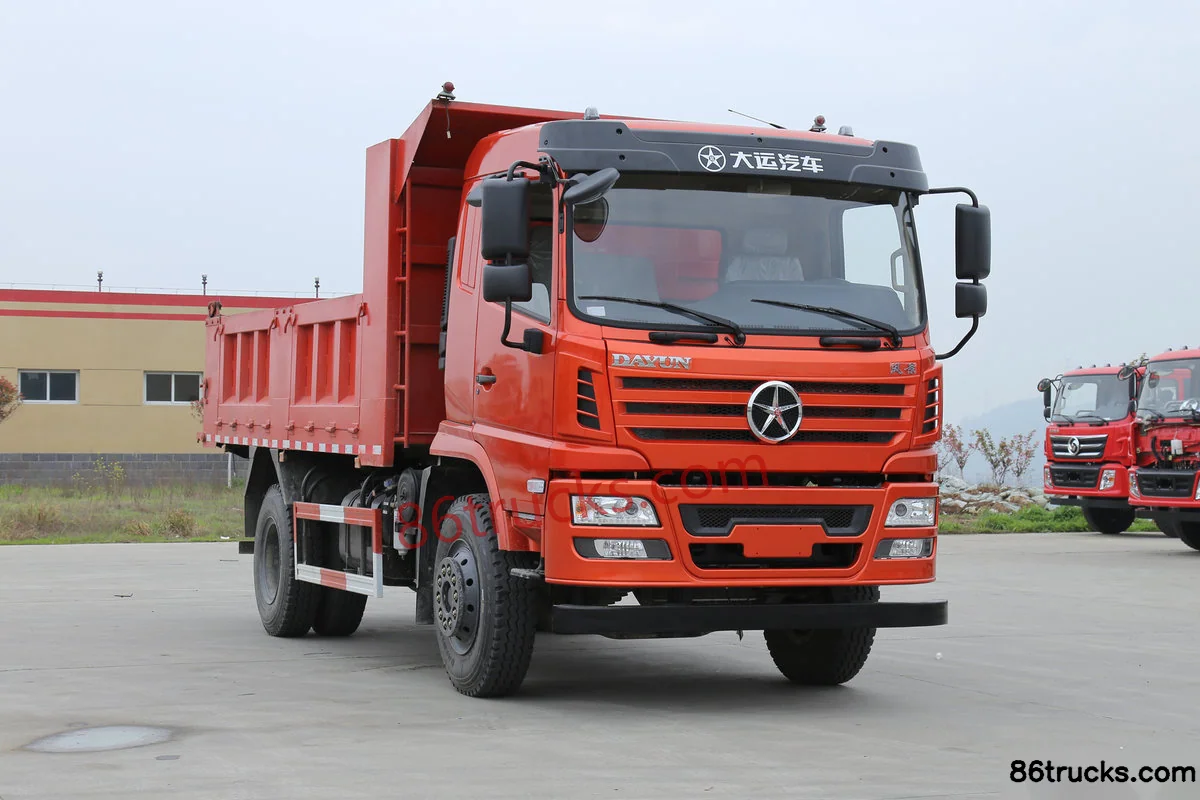

Exterior3

3 photos

FAQ

What emission standard does Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck?

Key specs of Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck suited for?

Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck differ from other variants in the same series?

Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck belongs to Dayun F-series medium-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun F-Series Medium Truck 180 hp 4X2(6 wheels) 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
