JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI)

Export reference
MSRP N/A
Transmission: Fast Gear
Curb Weight:: 11.4ton
Wheelbase:: 1800+2550+1350mm
Tire Size:: 12.00R20
Model code (announced):: HFC3311P1K6H25WS
engine:: XichaiCA6DM2-40E6
Drive 8X4 (12 wheels)
Horsepower 400
Emission China VI
Fuel Diesel

Overview

The JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) is a Heavy truck featuring 31t GVW, 8X4 (12 wheels) drive and Sleeper cab cab. On the powertrain side, it comes with a XichaiCA6DM2-40E6 engine, 400 hp, China VI emissions and Fast Gear transmission.

China VI 400 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3311P1K6H25WS
Drive type: 8X4
Wheelbase: 1800+2550+1350mm
engine: XichaiCA6DM2-40E6
transmission: Fast Gear12JSD200T-B
Rear Axle Ratio: 4.76
Cab length: 8.26m
Cab width: 2.55m
Cab height: 3.34m
Curb Weight: 11.4ton
GVWR: 31ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Remarks: QH70 PTO, optional ratio 5.26
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DM2-40E6
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 11.05L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1900N·m
Max torque speed: 1000-1400rpm
Rated speed: 1800rpm
Engine Type: 4-cylinder, inline, turbocharged with intercooler
Transmission Parameters
Transmission Model: Fast Gear12JSD200T-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: Sleeper cab
Chassis Specs
Front axle description: Forged steel, I-beam section
rear axle description: 16T dual-stage reduction
Axle ratio: 4.76
Leaf spring count: 9/9/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Drum Type

Photos

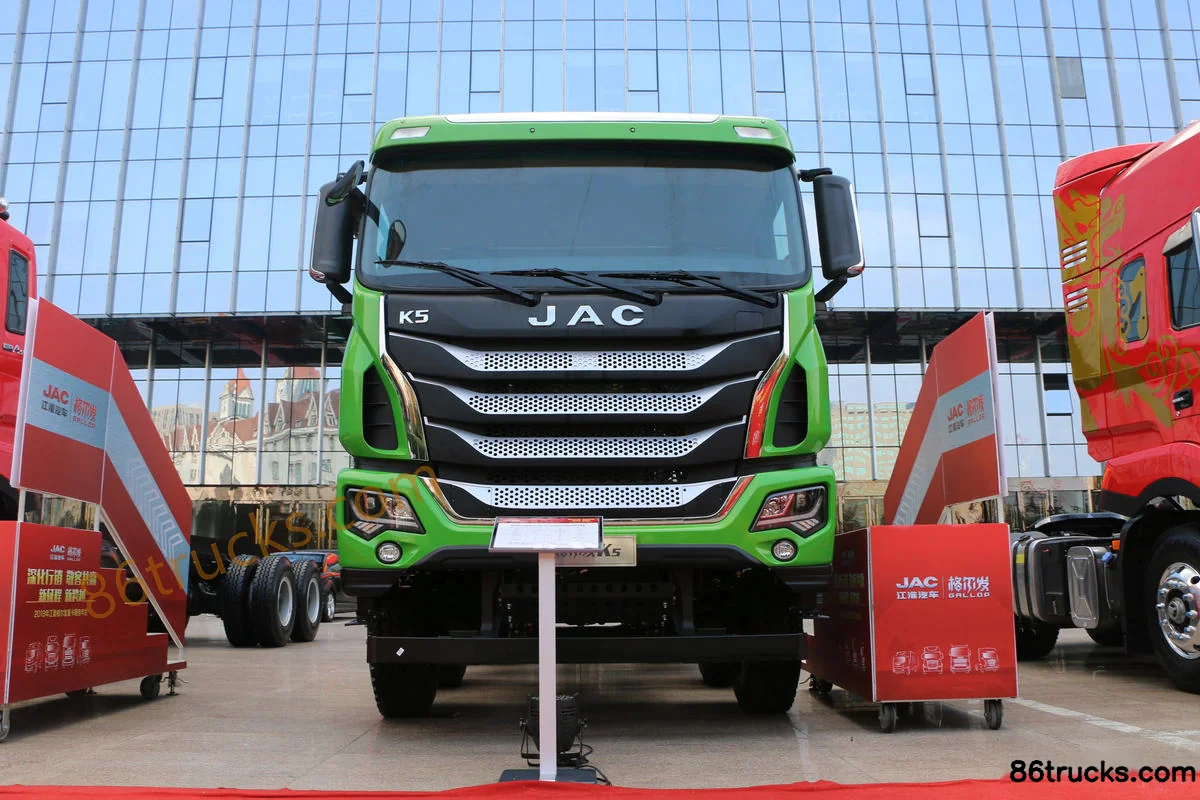

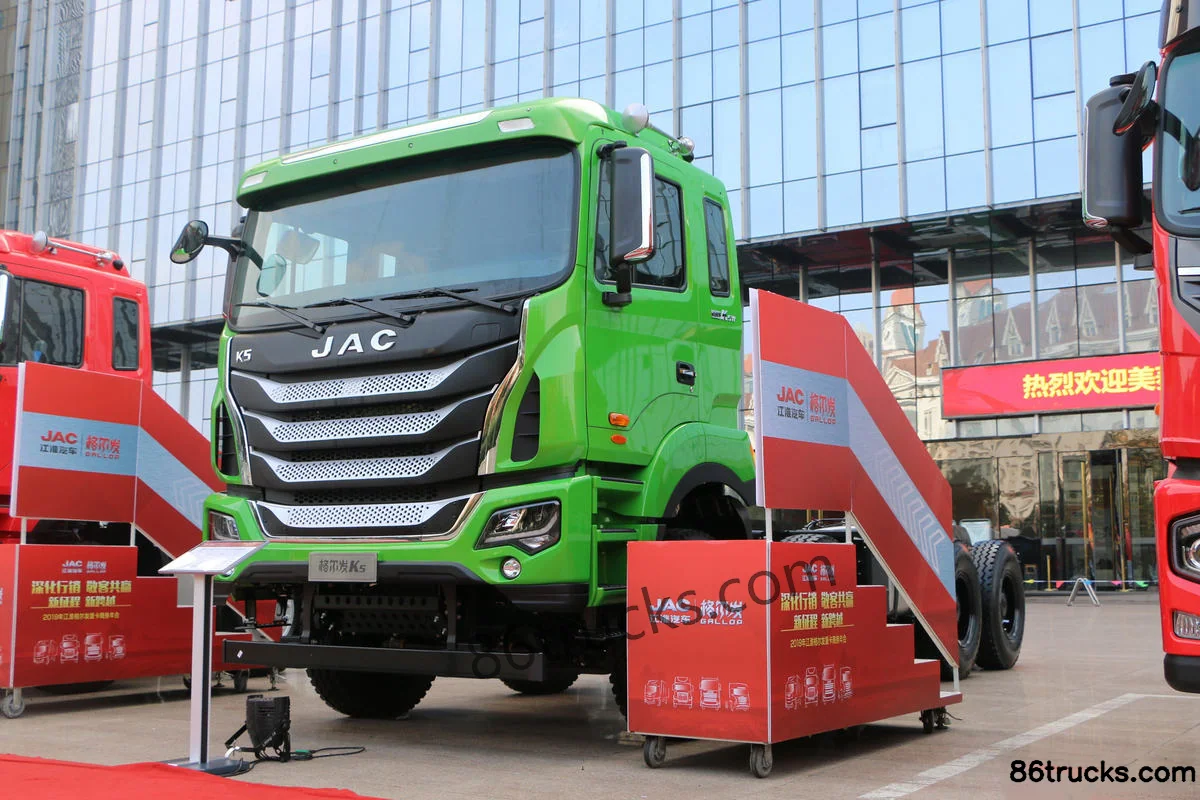

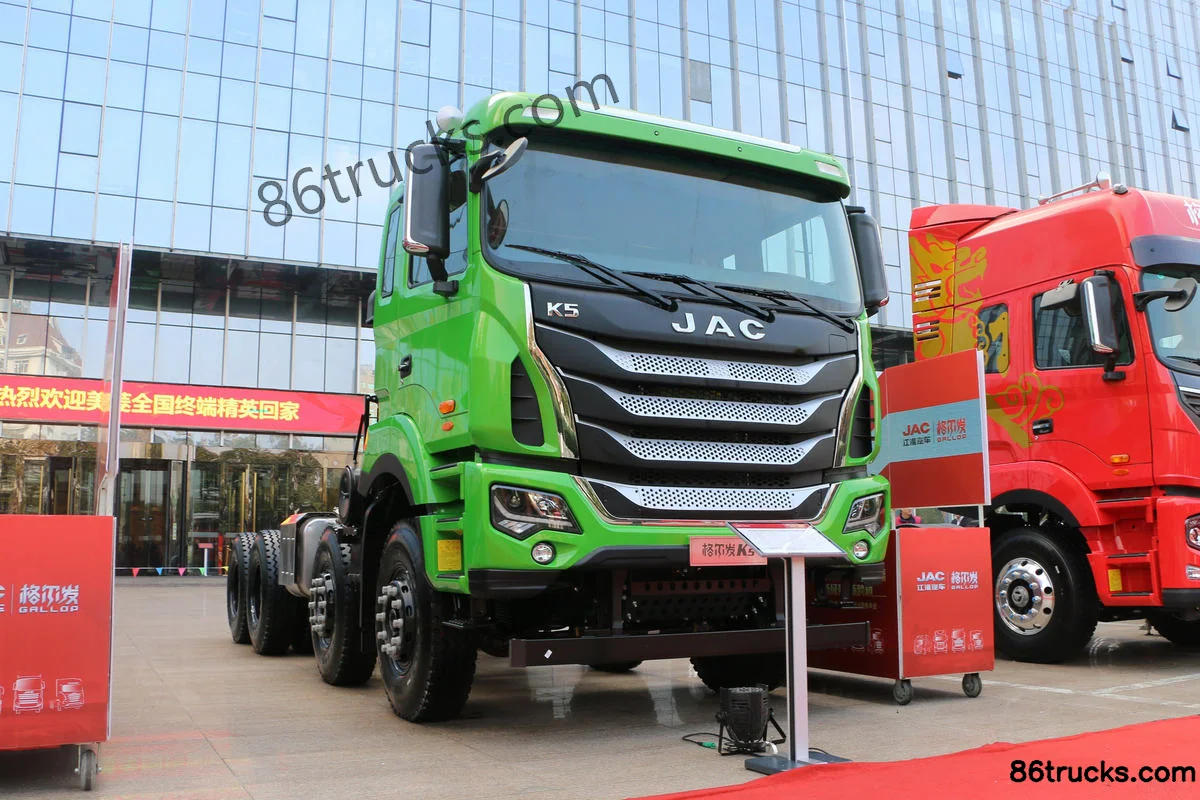

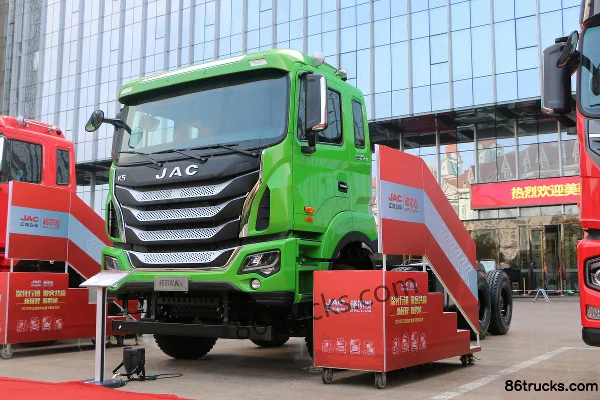

Exterior3

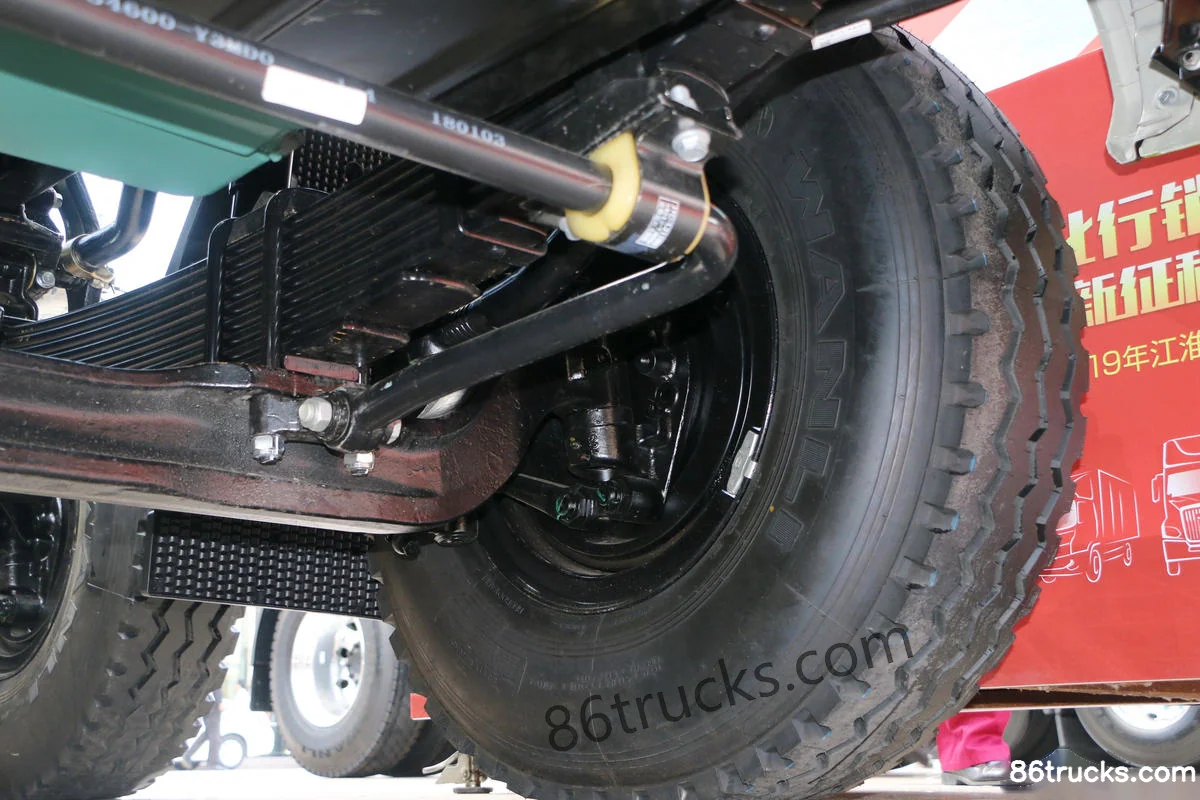

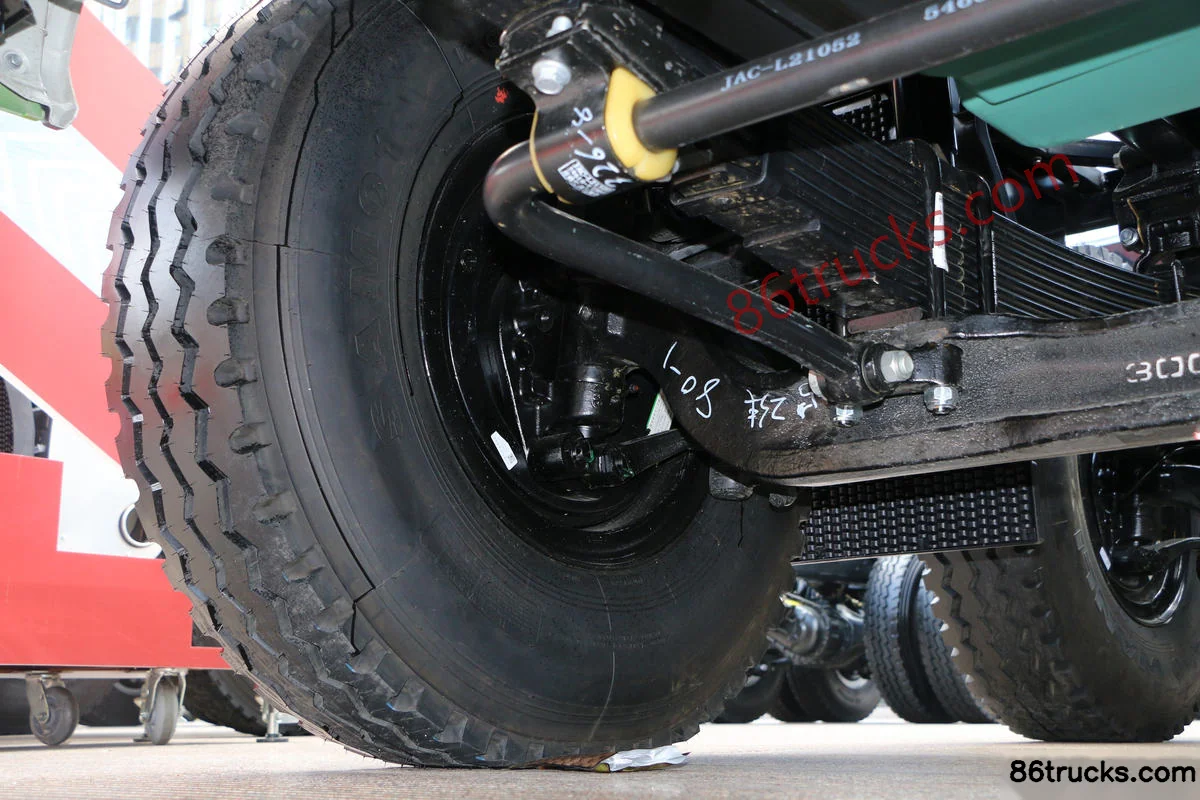

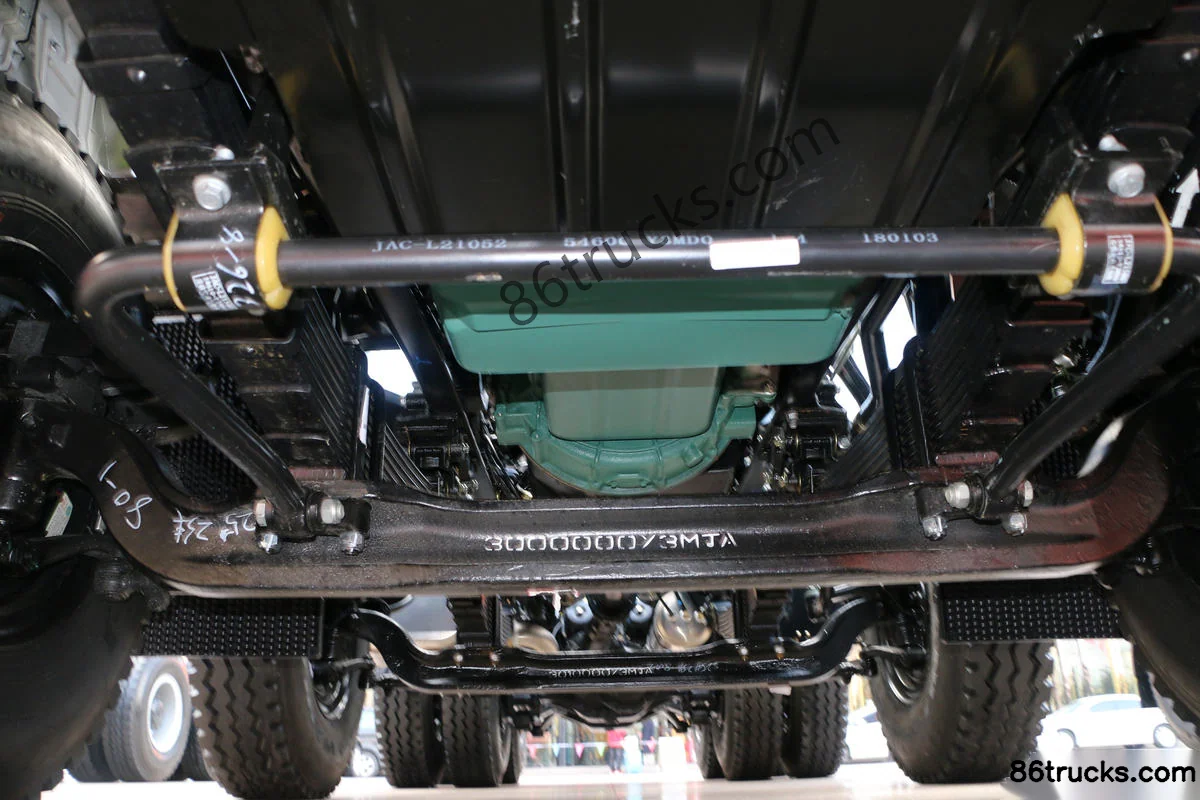

Chassis3

6 photos

FAQ

What emission standard does JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Key specs of JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI): Drive: 8x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) suited for?

JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) differ from other variants in the same series?

JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI) belongs to JAC Gallop K5 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W Heavy Truck 400hp 8X4(12 wheels) Dump Truck Chassis (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
