SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI)

Export reference
MSRP N/A
Emission: China VI
Fuel: LNG (liquefied natural gas)
Transmission: Fast Gear
Curb Weight:: 12.6ton
Wheelbase:: 2000+3000+1350mm
Tire Size:: 12R22.5
Rated payload: 18.27ton
Drive 8X4 (12 wheels)
Horsepower 320
Cargo box type: square box

Overview

The SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) is a Heavy truck featuring 18.27t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SDECSC10ET320Q6 engine, 320 hp, China VI emissions and Fast Gear transmission.

China VI 320 LNG (liquefied natural gas) 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SYM5310ZLJ2F
Drive type: 8X4
Wheelbase: 2000+3000+1350mm
engine: SDECSC10ET320Q6
transmission: Fast Gear12JSD160TA
Cab length: 9.55m
Cab width: 2.54m
Cab height: 3.48m
Front track width: 2048/2048mm
rear track: 1860/1860mm
Curb Weight: 12.6ton
Rated payload: 18.27ton
GVWR: 31ton
Origin: Changsha, Hunan
tonnage class: Heavy truck
Approach angle: 14°
departure angle: 21°
Version: Lightweight version
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC10ET320Q6
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Displacement: 10.42L
Emission standard: China VI
Max output power: 234kW
Max hp: 320Horsepower
Max torque: 1450N·m
Max torque speed: 1200rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, electronically controlled premix, TWC
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Seal cover type: Electric sealed cover
Unloading Type: Dump type
Cargo box type: square box
Cargo box type: Dump type
Cargo box length: 6.2m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Qixing/318
fuel tank
Fuel tank capacity: 450L
Chassis Specs
Front axle description: 5.5T Hande
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×(8+4)mm
rear axle description: 11.5T 440
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 3/3/4
Tire
Tire Size: 12R22.5
Number of tires: 12pcs
Control configuration
ASR traction control:

Photos

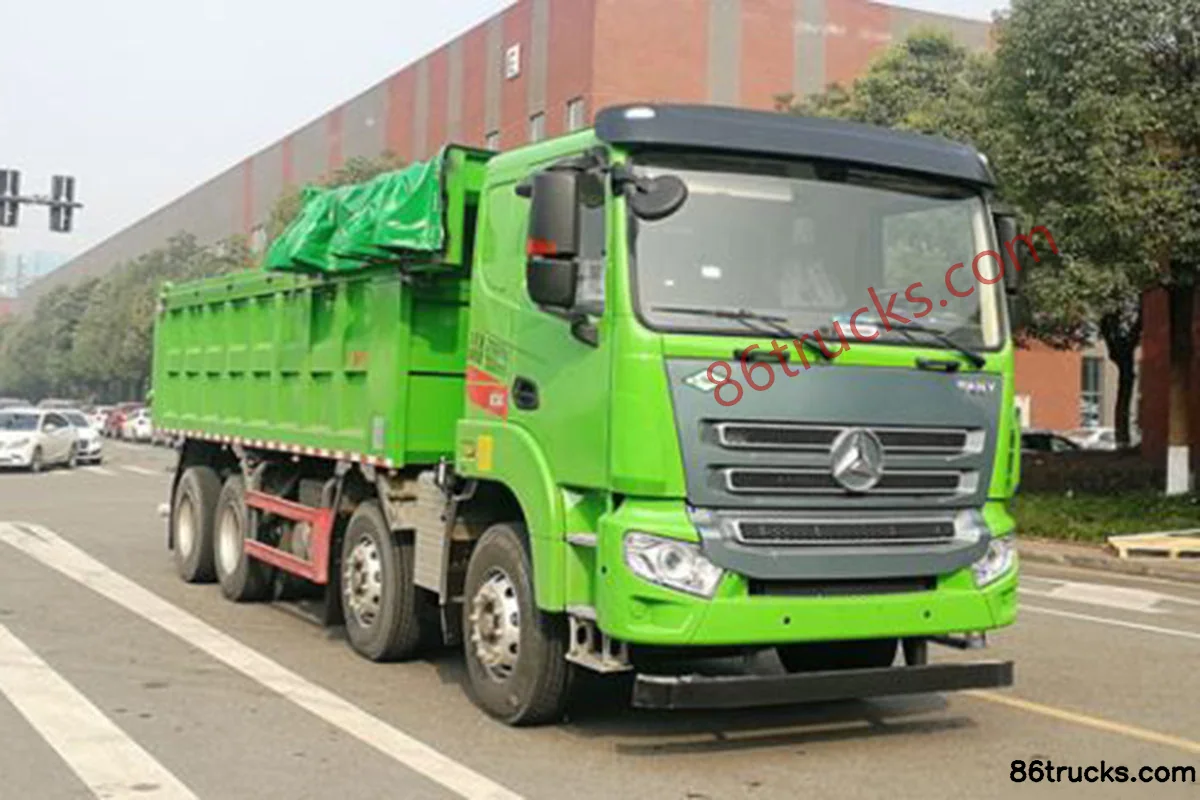

Exterior1

1 photos

FAQ

What emission standard does SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI)?

Key specs of SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI): Drive: 8x4; Horsepower: 320 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) suited for?

SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) differ from other variants in the same series?

SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI) belongs to SANY dump truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SANY Group Lightweight Version 320hp 8X4(12 wheels) LNG 6.2m Refuse Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
