MaxxForce 3.2H 156 hp 3.2L China V diesel engine

Export reference
MSRP N/A
Min. fuel consumption at full load:: 200g/kW.h
Compression ratio:: 16.8
Bore × Stroke:: 96x110mm
Engine Model: MF3.2H
Engine Series: MaxxForce
Intake type: High-pressure common rail

Overview

The JAC MaxxForce 3.2H 156 hp 3.2L China V diesel engine is a parts product with spec MF3.2H.

China V 156 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: MaxxForce
Engine manufacturer: Anhui JAC Diesel Engine Company
Intake type: High-pressure common rail
Min. fuel consumption at full load: 200g/kW.h
Compression ratio: 16.8
Bore × Stroke: 96x110mm
Valves per cylinder: 4pcs
Engine Brand: JAC
Engine Model: MF3.2H
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.2L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 3000rpm
Engine Type: Inline, single camshaft, high-pressure common rail

Photos

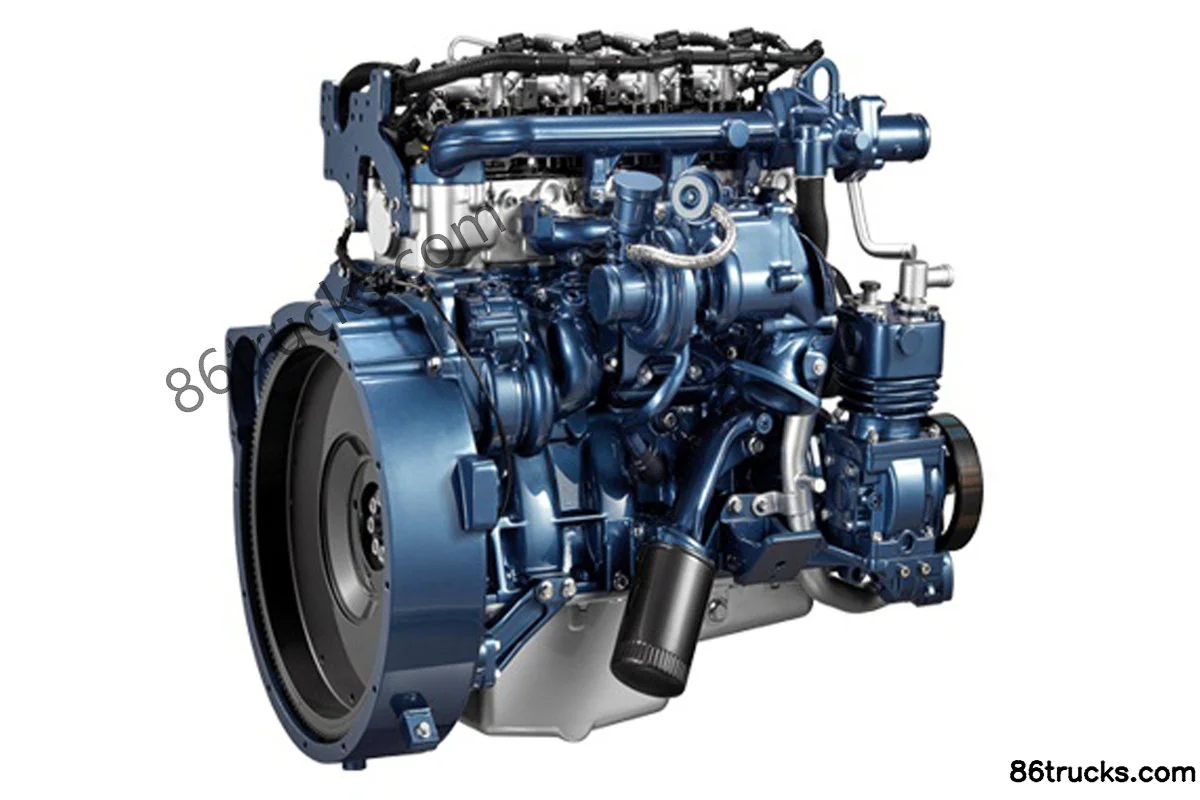

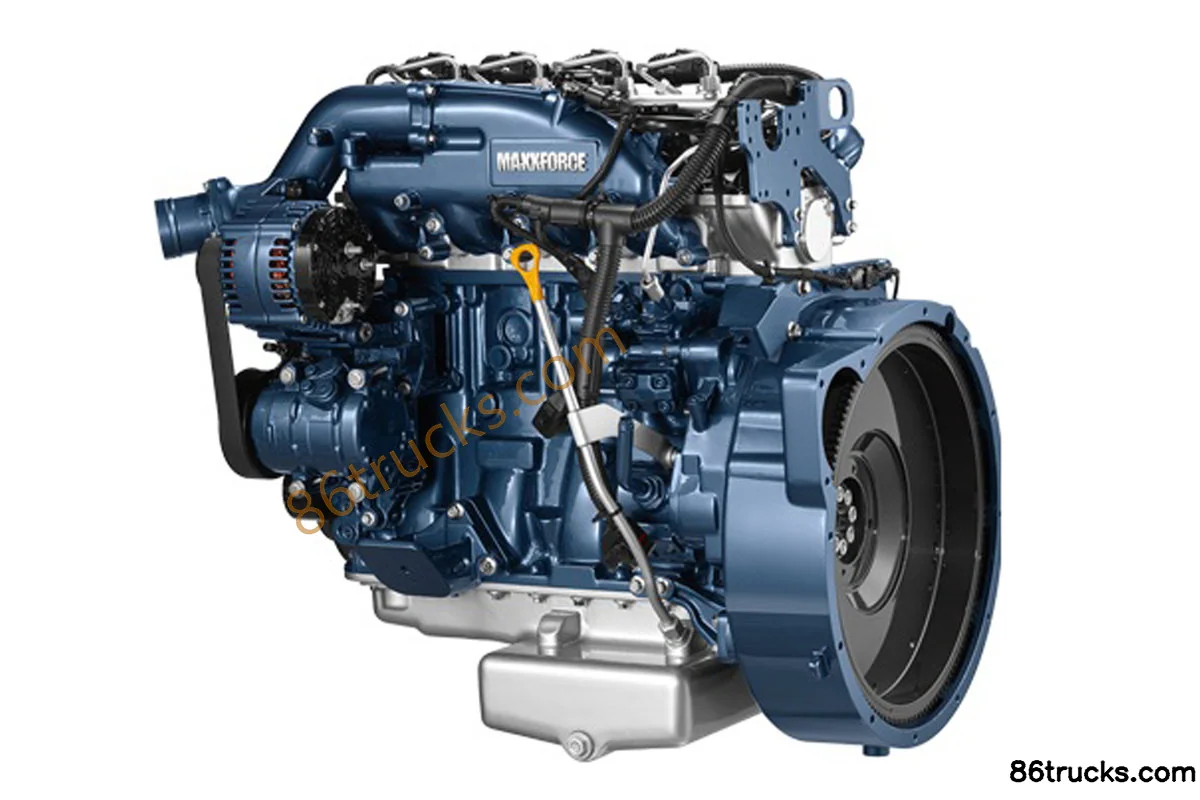

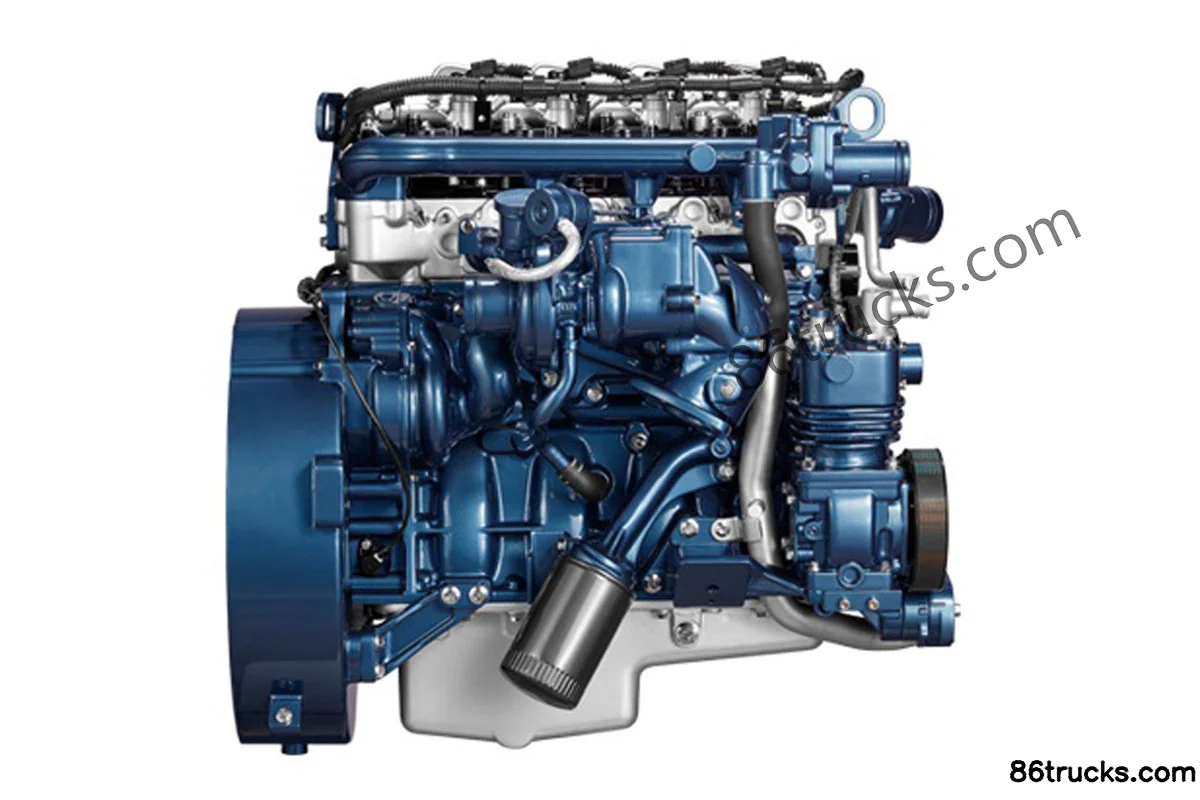

Exterior3

3 photos

FAQ

What emission standard does MaxxForce 3.2H 156 hp 3.2L China V diesel engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of MaxxForce 3.2H 156 hp 3.2L China V diesel engine?

Key specs of MaxxForce 3.2H 156 hp 3.2L China V diesel engine: Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is MaxxForce 3.2H 156 hp 3.2L China V diesel engine suited for?

Match MaxxForce 3.2H 156 hp 3.2L China V diesel engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does MaxxForce 3.2H 156 hp 3.2L China V diesel engine differ from other variants in the same series?

MaxxForce 3.2H 156 hp 3.2L China V diesel engine belongs to JAC Maixifu (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for MaxxForce 3.2H 156 hp 3.2L China V diesel engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export MaxxForce 3.2H 156 hp 3.2L China V diesel engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
