JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck

Export reference
From $16,389
MSRP ¥11.8M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 2.6ton
Wheelbase:: 3300mm
Tire Size:: 7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 6PR
Model code (announced):: HFC3046P92K2C8V
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 116
Cargo box type: Dump type

Overview

The JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck is a Light Truck featuring 1.495t payload, 4.29t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN33CRE1 engine, 116 hp, China V emissions and 5-speed transmission transmission.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3046P92K2C8V
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerYN33CRE1
transmission: 5-speed transmission
Rear Axle Ratio: 5.83
Cab length: 5.995m
Cab width: 2.185m
Cab height: 2.25m
Front track width: 1560,1470mm
rear track: 1530mm
Curb Weight: 2.6ton
Rated payload: 1.495ton
GVWR: 4.29ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 19°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.8m
Cargo box width: 2.01m
Cargo box height: 0.46m
Cab parameters
Cab: New Junling V6 Semi
fuel tank
Fuel tank capacity: 85L
Chassis Specs
Front axle allowable load: 1545kg
rear axle allowable load: 2745kg
Axle ratio: 5.83
Leaf spring count: 7/6+7
Tire
Tire Size: 7.00-16LT 8PR,7.00R16LT 8PR,7.50-16LT 6PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

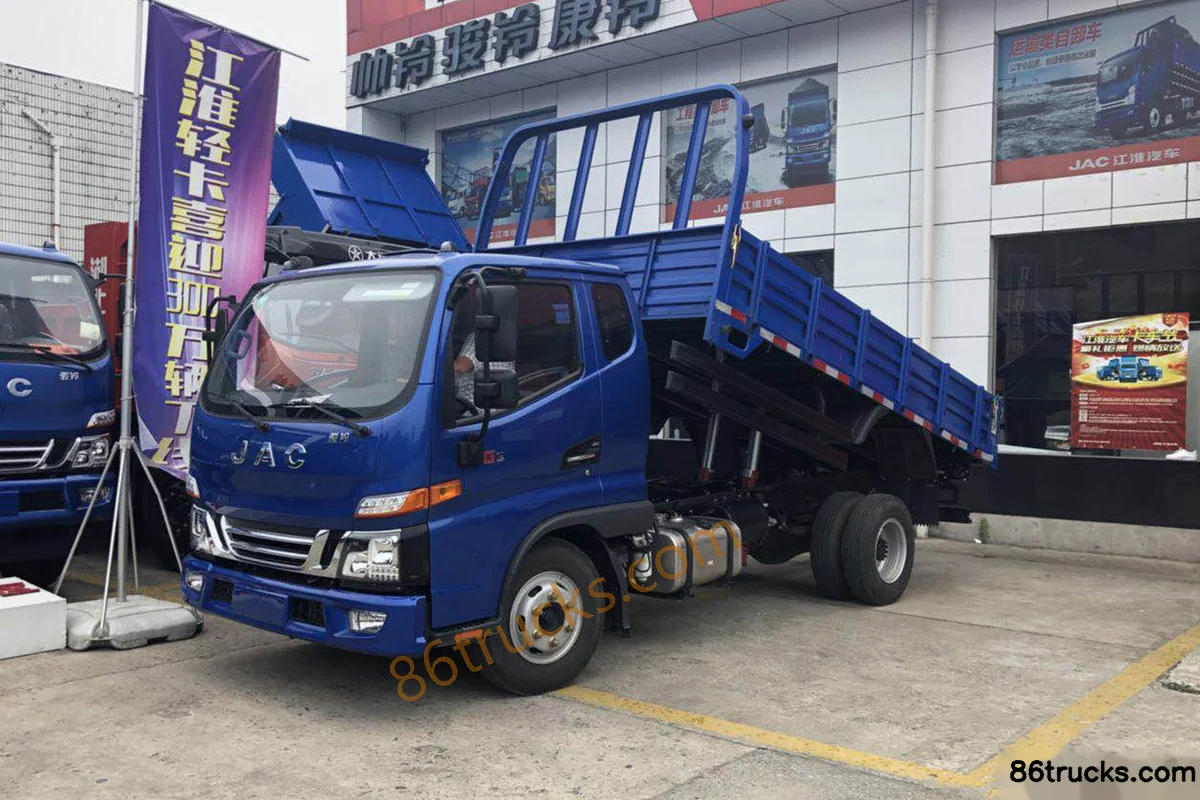

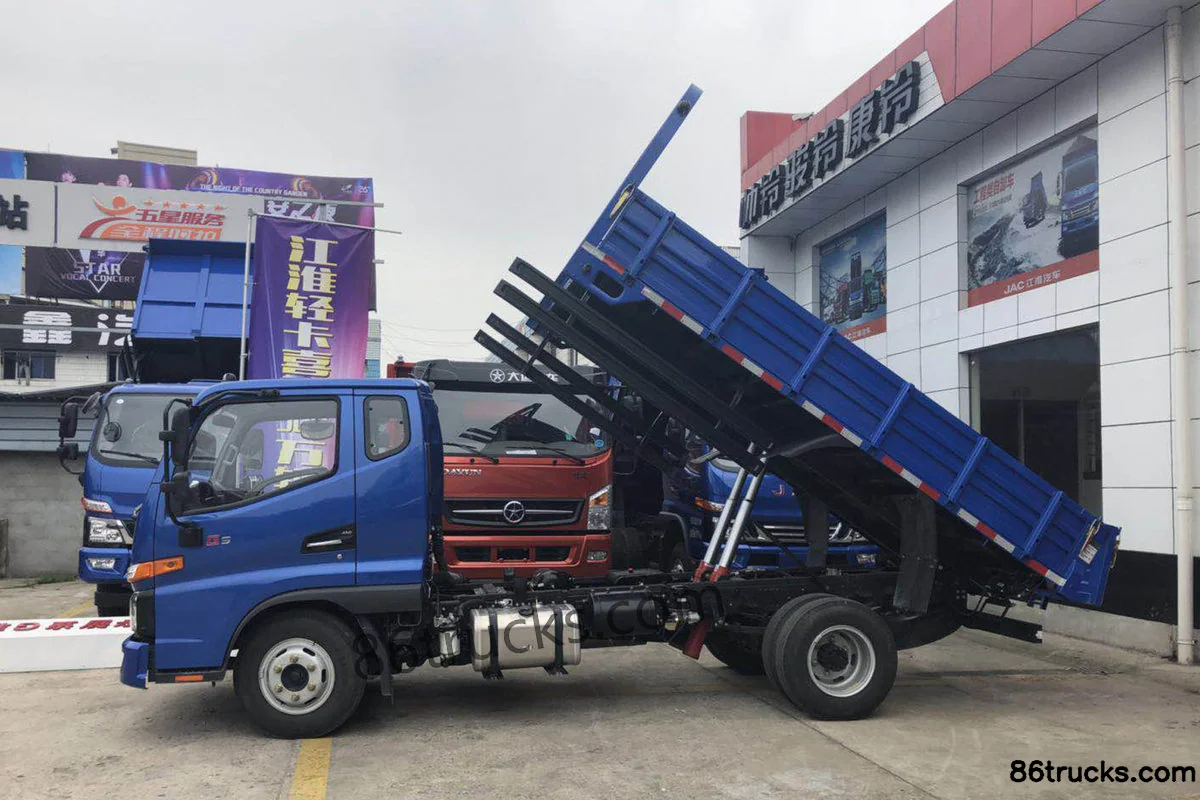

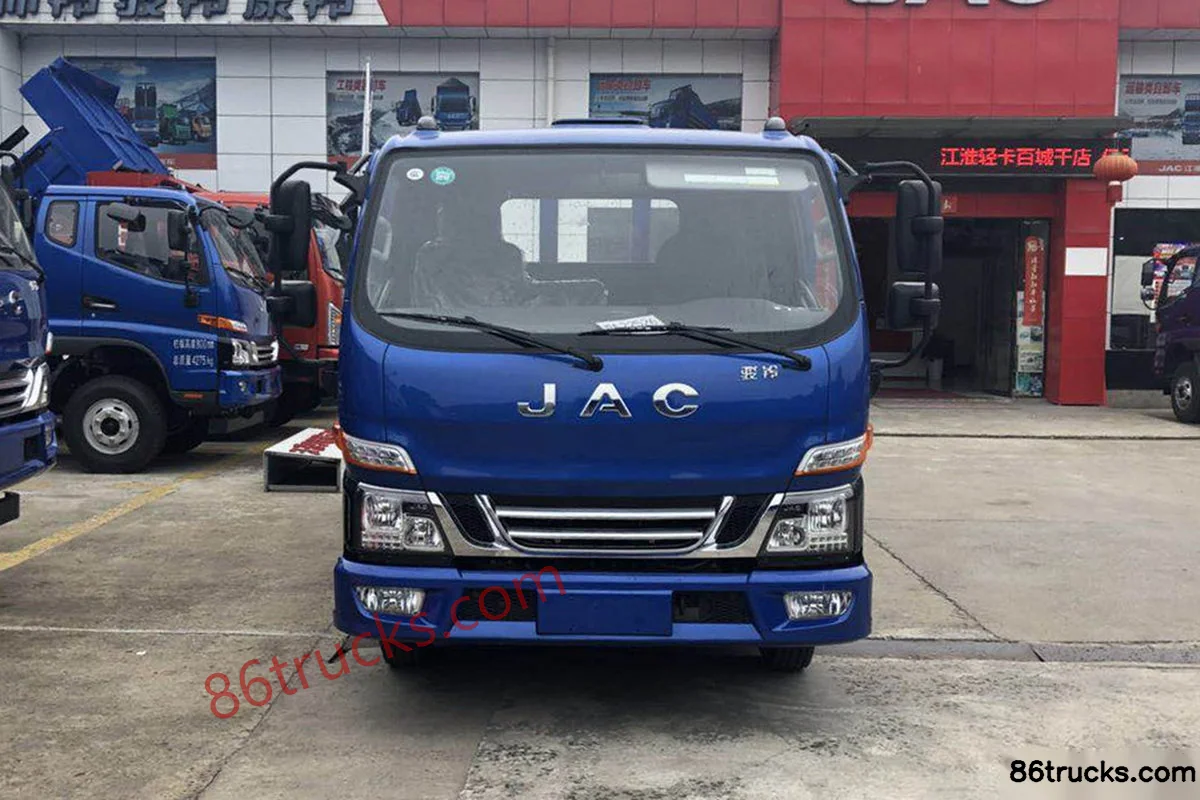

Photos

Exterior3

3 photos

FAQ

What is the export price of JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck, and what does it include?

JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck export reference is about From $16,389; MSRP is ¥11.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck?

Key specs of JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck suited for?

JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck differ from other variants in the same series?

JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G Series V5 Transport 116hp 4X2(6 wheels) 3.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
