Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 16.5ton
Wheelbase:: 4100+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 10.25x2.5x3.998m
Truck Type:: concrete mixer truck
Rated payload: 8.305ton
Drive 6X4 (10 wheels)
Horsepower 345
Emission China IV

Overview

The Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck featuring 8.305t payload, 16.5ton GVW, 6X4 (10 wheels) drive and 10.25x2.5x3.998m cab. On the powertrain side, it comes with 345 hp, China IV emissions and Diesel fuel.

China IV 345 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.25x2.5x3.998m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4100+1350mm
Front/rear track width: Front track: 2065; Rear track: 1860/1860mm
Curb Weight: 16.5ton
Rated payload: 8.305ton
Max. speed: 78km/h
Front/rear suspension: 1.45/3.05m
Body Parameters
Mixing drum capacity: 4.4m³
Vehicle certification code: AH5259GJB3L4B
Body Brand: Hualing
Engine parameters
Engine Model: HualingCM6D18.345 40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.84L
Emission standard: China IV
Max output power: 254kW
Max hp: 345Horsepower
Engine Type: High-pressure common rail
Chassis Specs
Chassis Series: Hualing Heavy Truck
Chassis Model: HN3252B34D1M4J
Front axle description: HL7.5T
rear axle description: HL300A
Axle ratio: 5.263
Leaf spring count: 9/12
Transmission Parameters
Number of gears: 8Gear
Transmission Model: SODA 8SDB1981
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

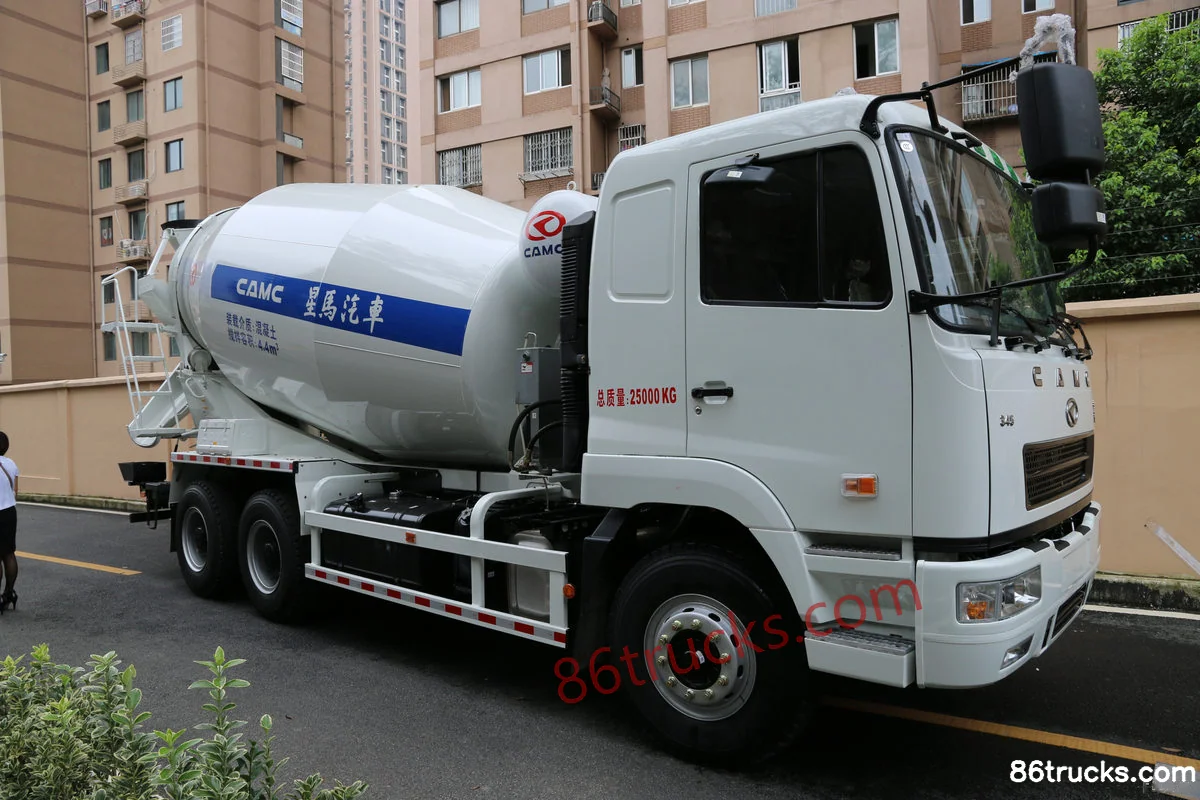

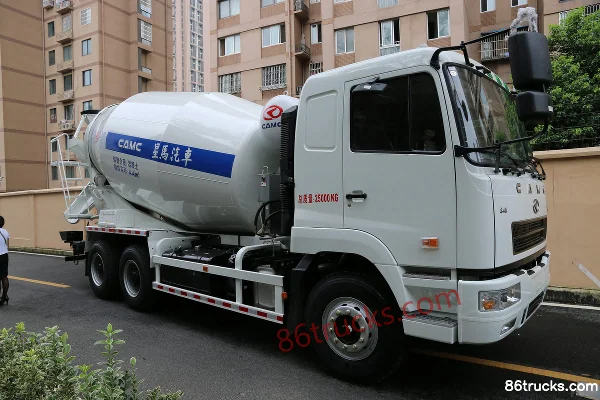

Exterior1

1 photos

FAQ

What emission standard does Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck?

Key specs of Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck: Drive: 6x4; Horsepower: 345 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck suited for?

Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck differ from other variants in the same series?

Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck belongs to Hualing M5 Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hualing Heavy Truck 345hp 6X4(10 wheels) Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
