Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck

Export reference
From $25,417
MSRP ¥18.3M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.2ton
Wheelbase:: 1800+2500mm
Tire Size:: 11.00R20 18PR
Rated payload: 16.605ton
Drive 6X2 (8 wheels)
Horsepower 240
Cargo box type: Dump type

Overview

The Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck is a Medium-duty truck featuring 16.605t payload, 25t GVW, Dump type cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYCK05240-60 engine, 240 hp, China VI emissions and Fast Gear transmission.

China VI 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3253D6CC
Drive type: 6X2
Wheelbase: 1800+2500mm
engine: YuchaiYCK05240-60
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.833
Cab length: 7.25m
Cab width: 2.36m
Cab height: 3.05m
Front track width: 1925/1925mm
rear track: 1750mm
Curb Weight: 8.2ton
Rated payload: 16.605ton
GVWR: 25ton
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Approach angle: 16°
departure angle: 21°
Remarks: Steel air reservoir.
Version: Composite type
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05240-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.55m
Cargo box width: 2.2m
Cargo box height:
Body Parameters
Lifting type: Front lift cylinder
Cab parameters
Cab: Day cab standard roof
Cab width: 2080mm
seating capacity: 2Personnel
Cab tilting: Manual
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: Dual 1094 Standard Axle/3.6t
Front axle allowable load: 6750/6750kg
Frame Dimensions: (860-800)×280×(8+4)mm
rear axle description: 457 shortened axle/13t
rear axle allowable load: 11500kg
Axle ratio: 5.833
Leaf spring count: 9/9/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

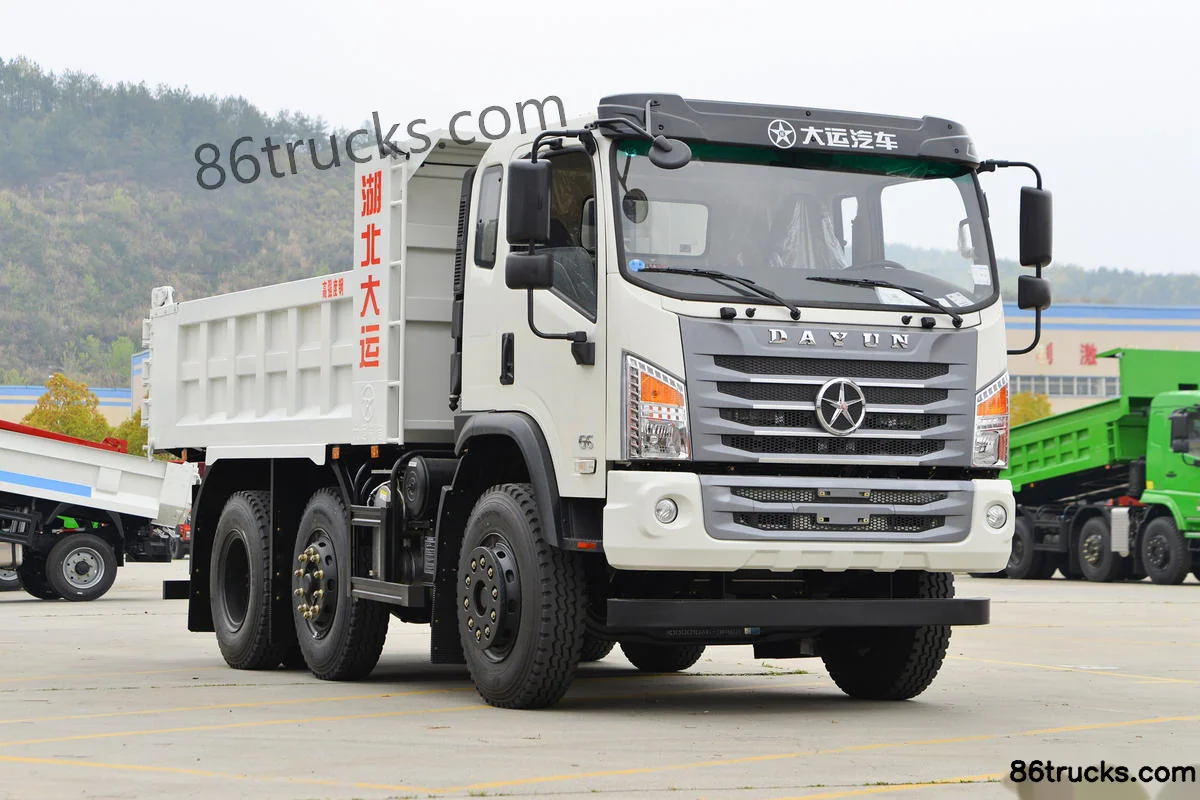

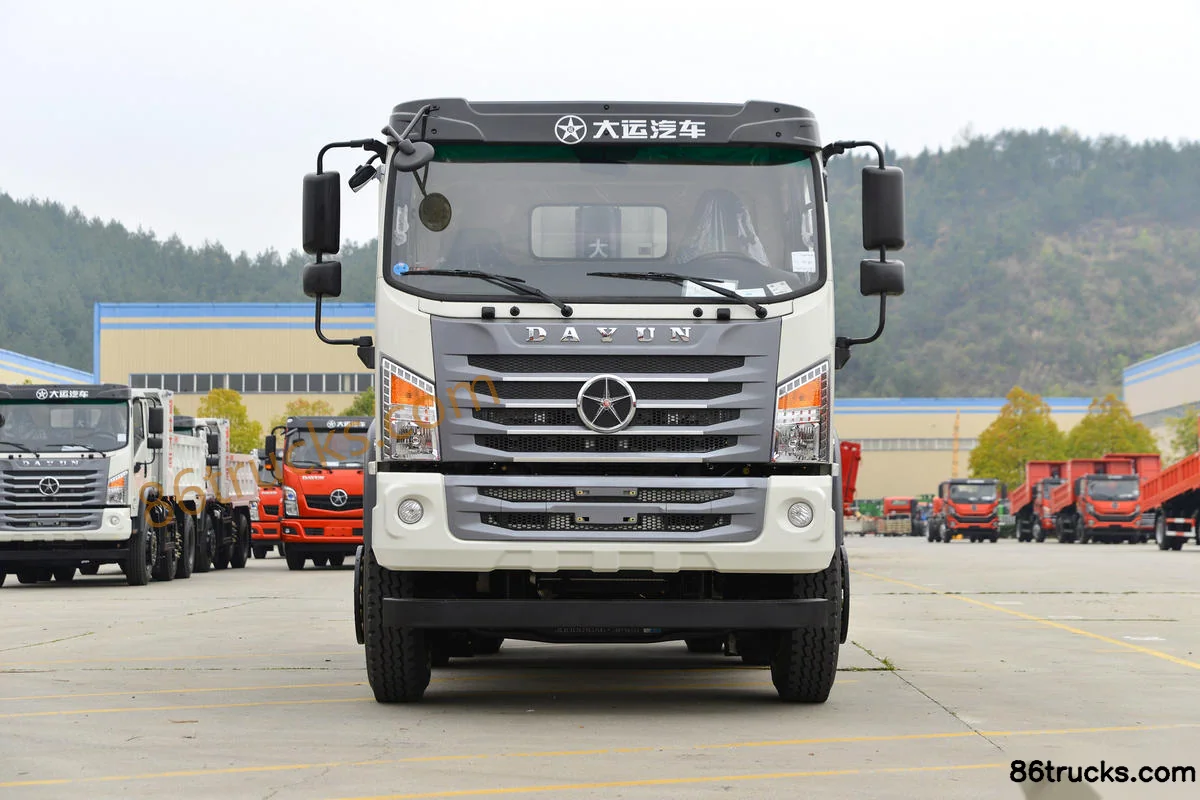

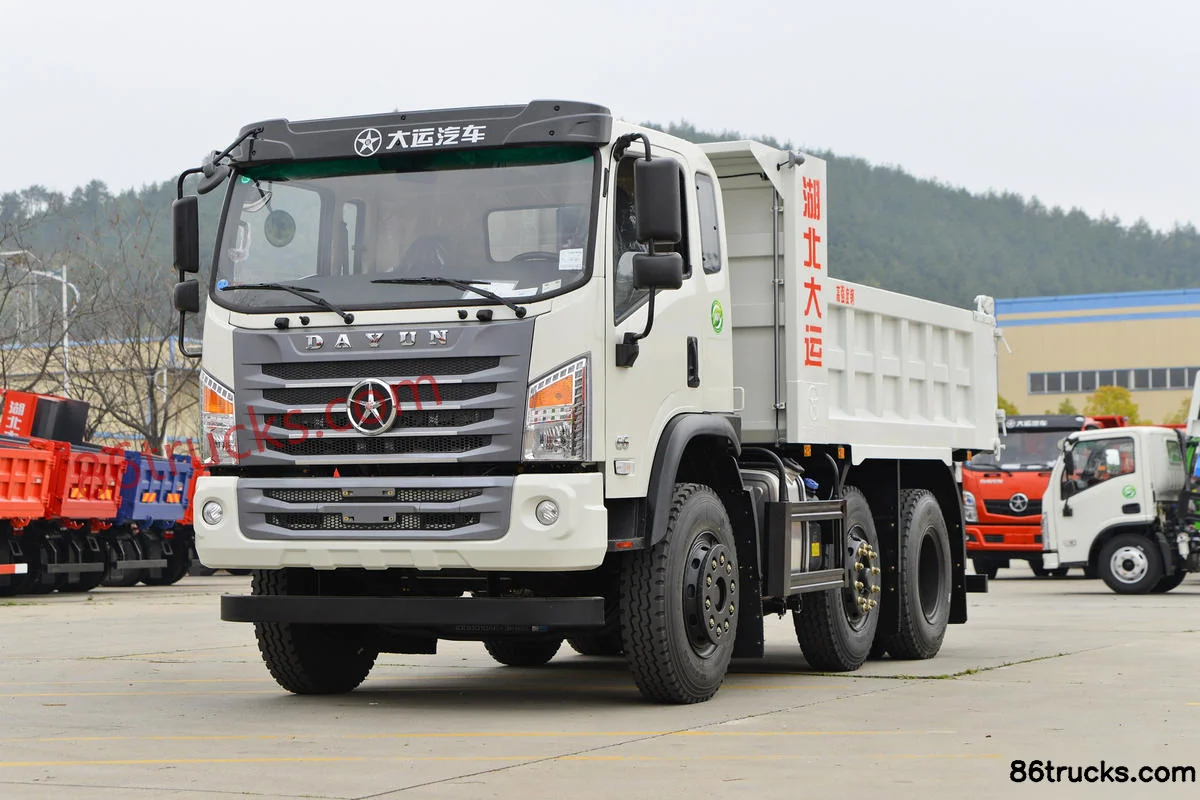

Exterior3

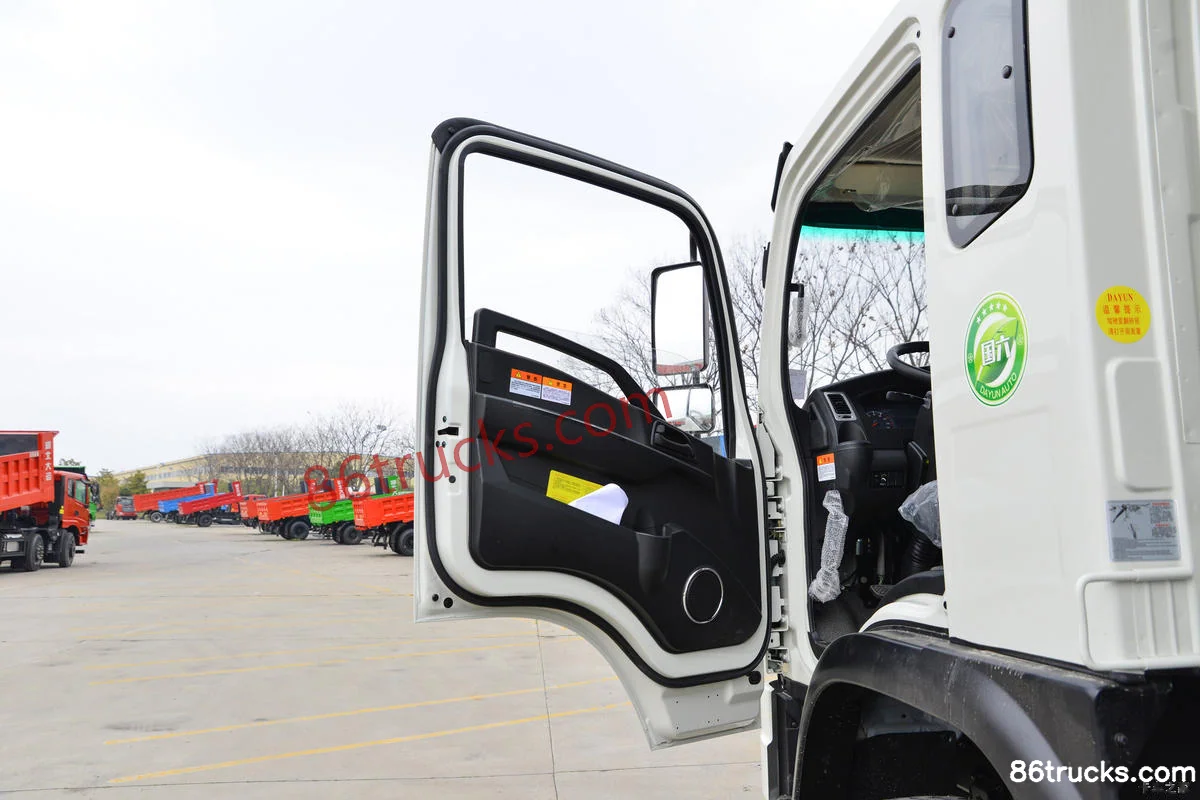

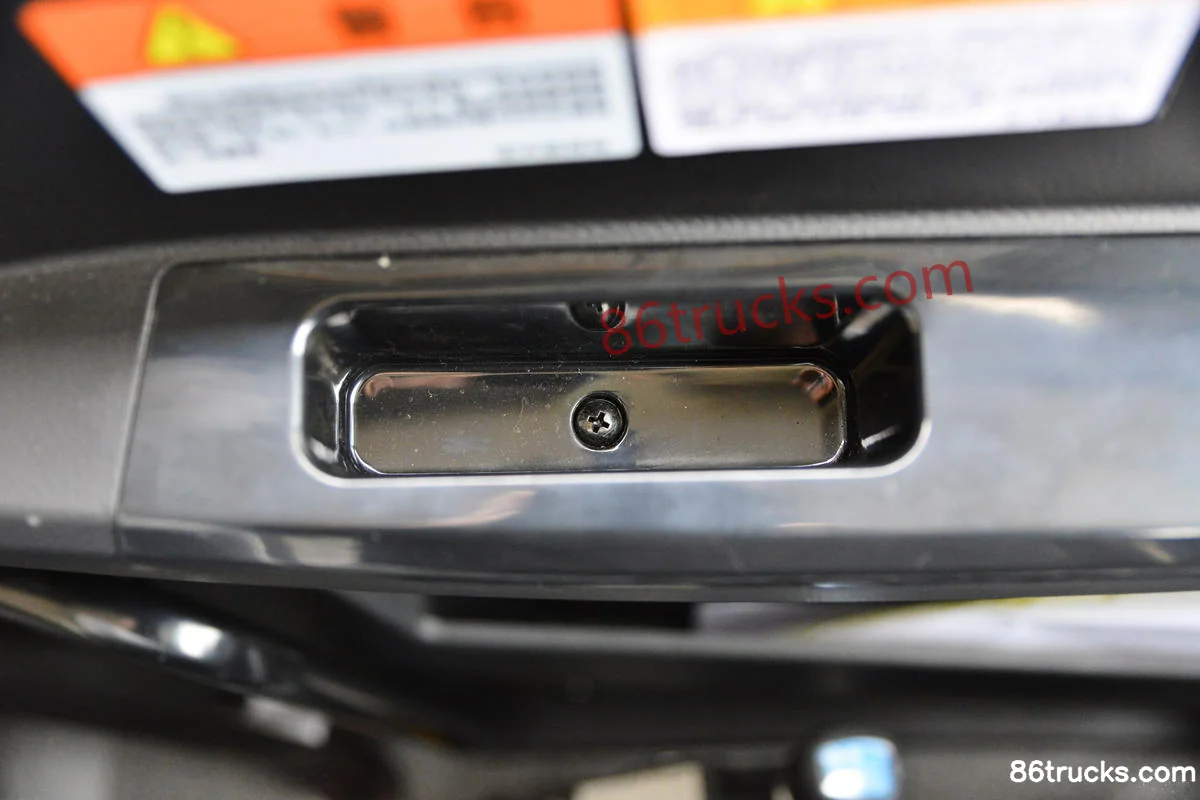

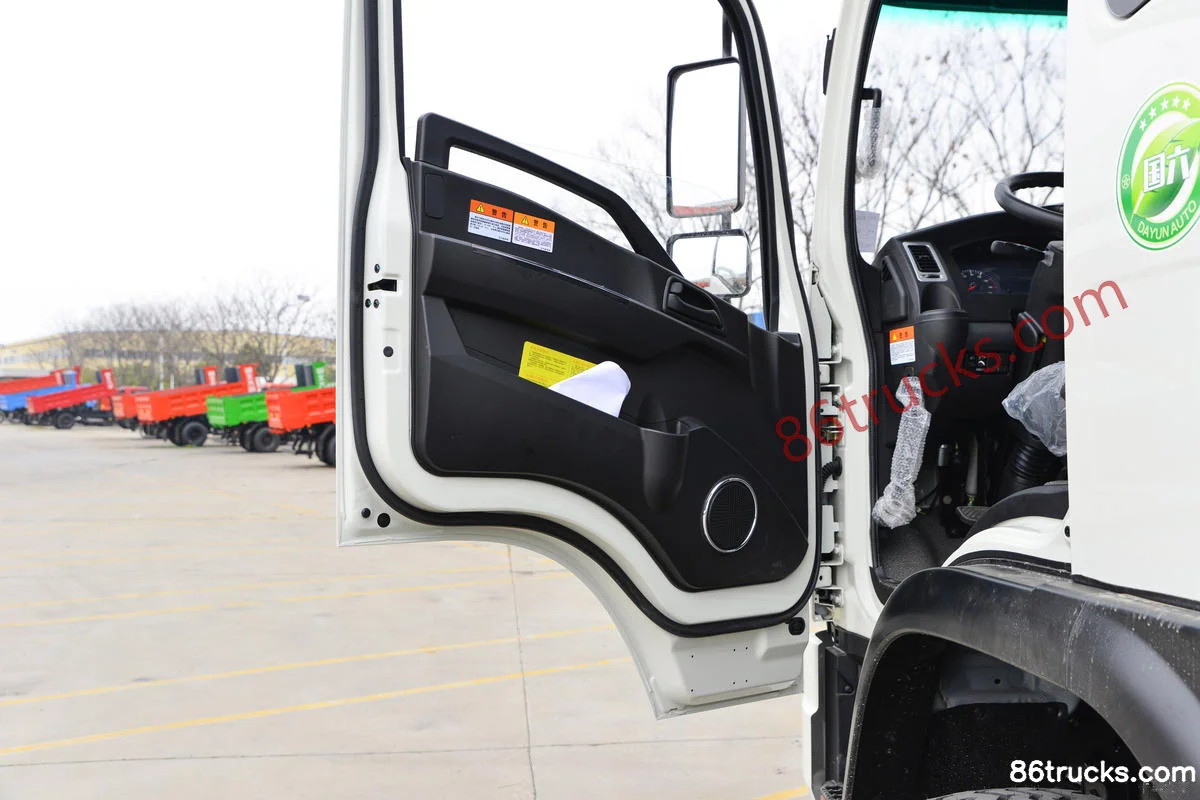

Cab3

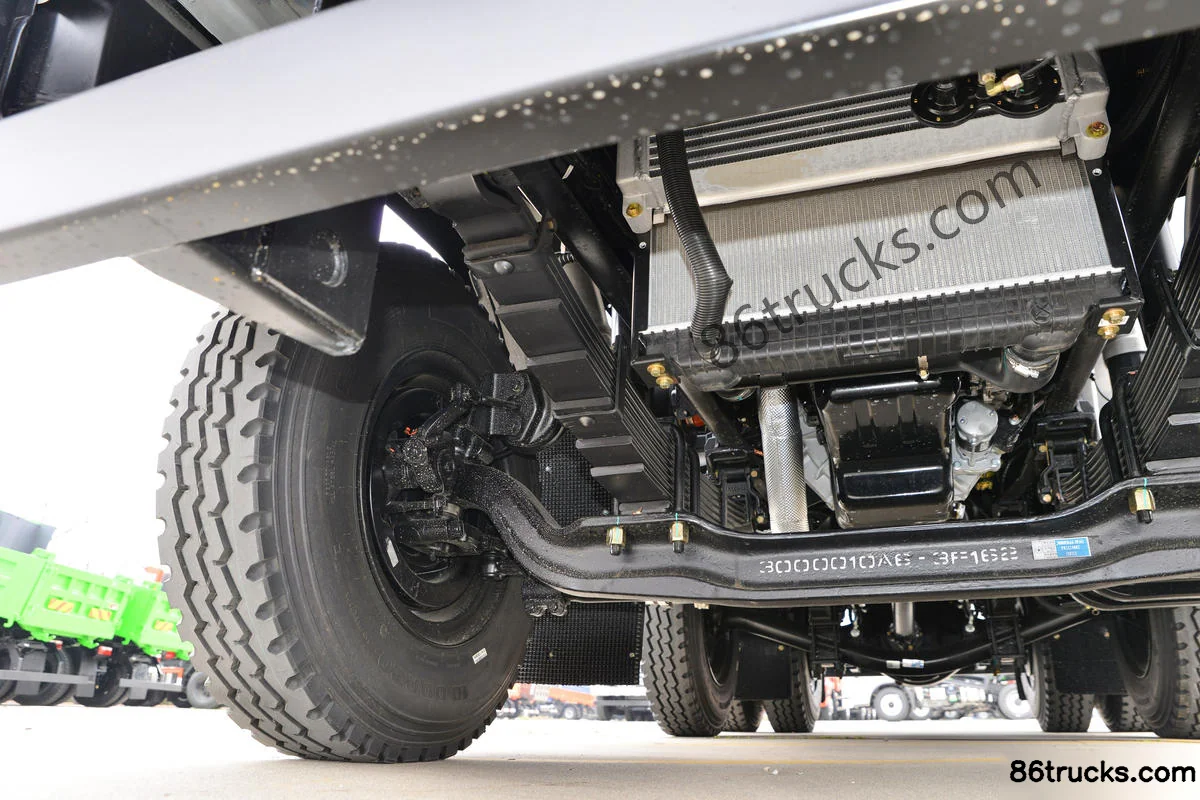

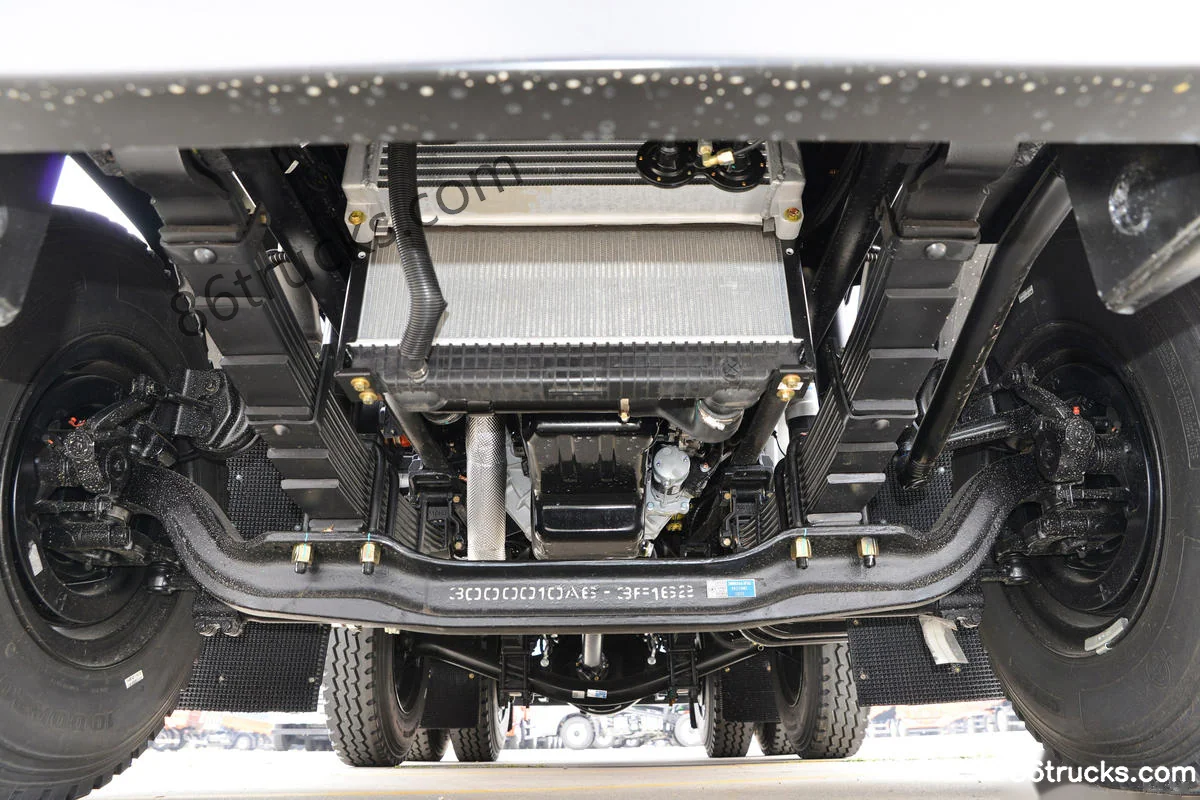

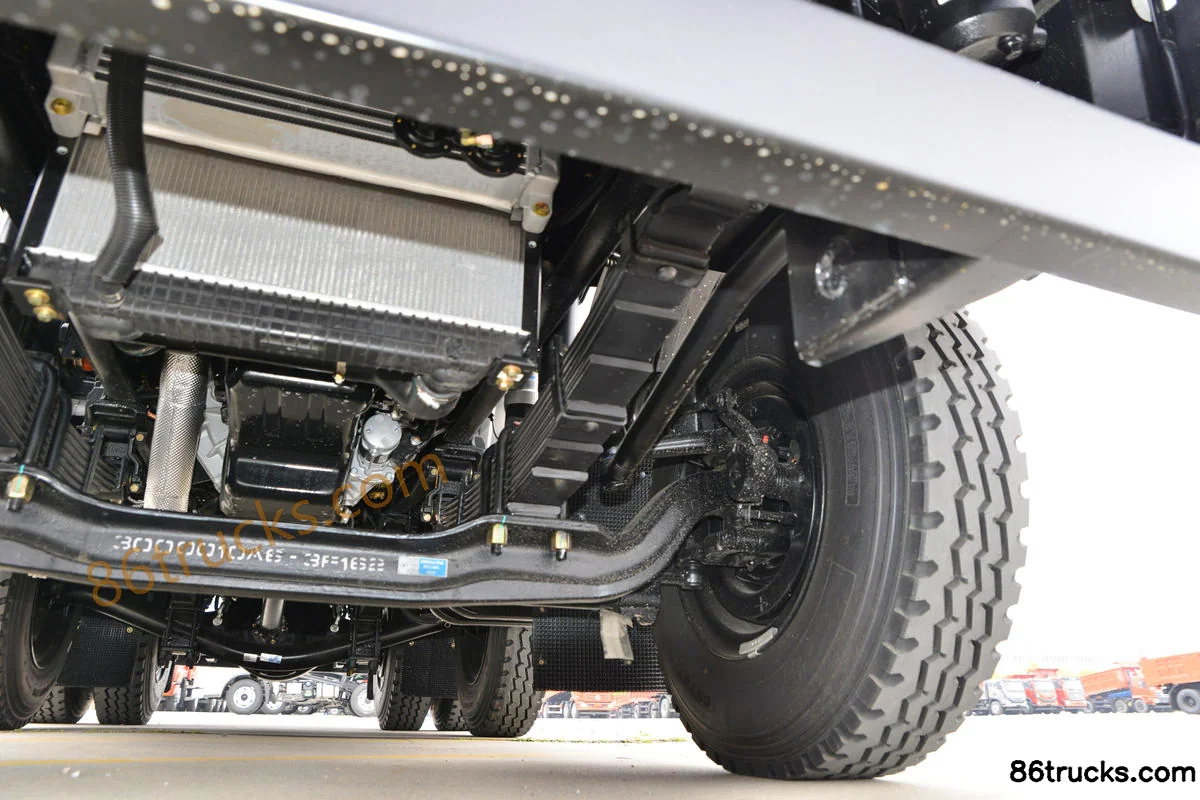

Chassis3

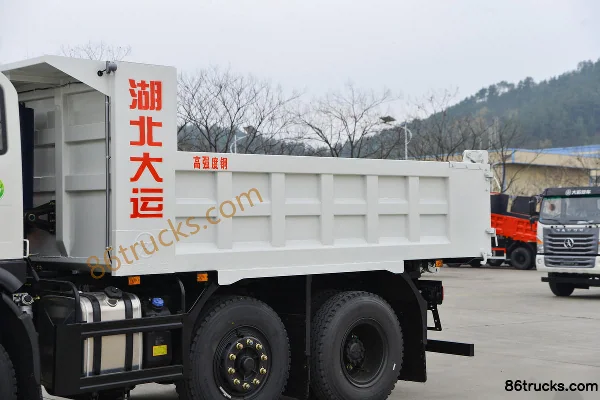

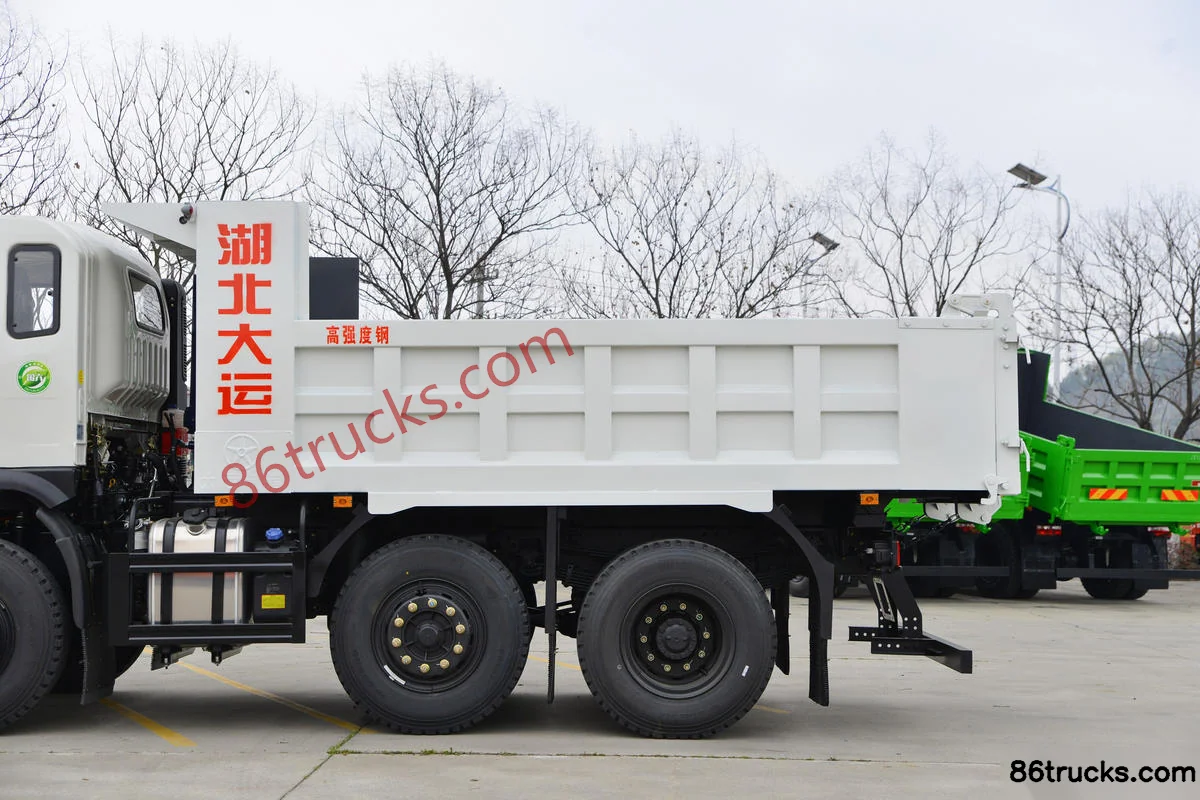

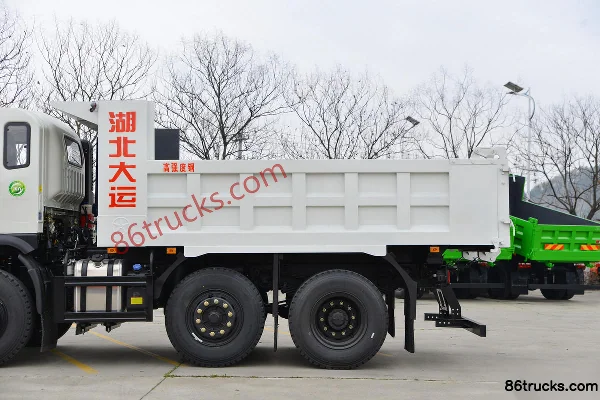

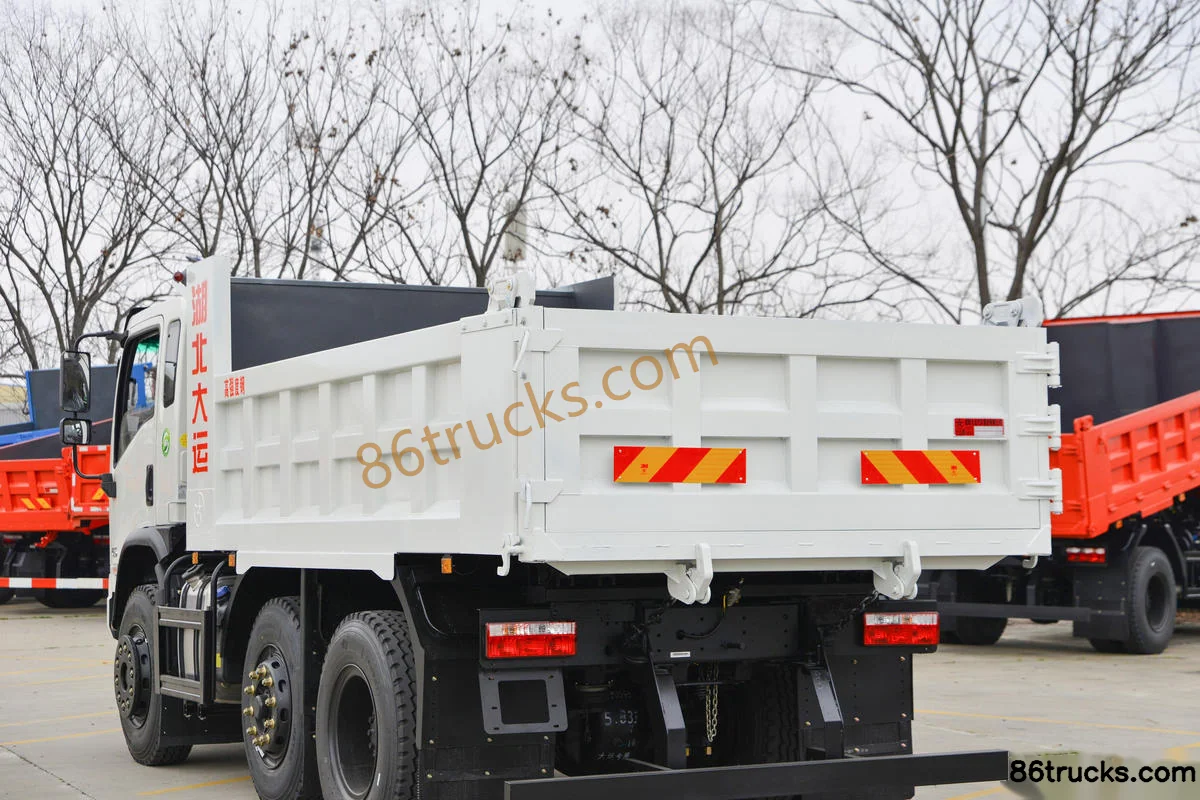

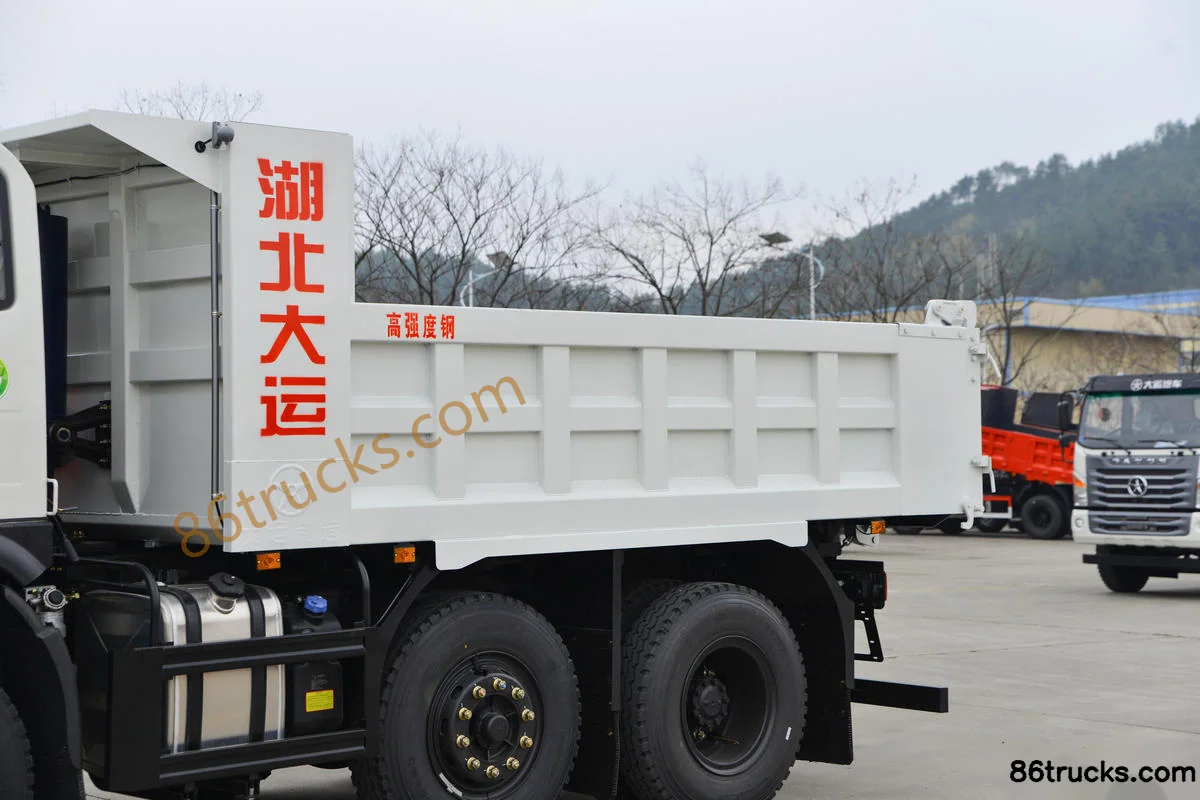

Body3

12 photos

FAQ

What is the export price of Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck, and what does it include?

Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck export reference is about From $25,417; MSRP is ¥18.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck?

Key specs of Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck: Drive: 6x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck suited for?

Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck differ from other variants in the same series?

Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck belongs to DayunG6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun G6 Heavy Duty 240hp 6X2(8 wheels) 4.55m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
