Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan)

Export reference
From $48,333
MSRP ¥34.8M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9.9ton
Wheelbase:: 1800+3600+1350mm
Tire Size:: 12.00R20
Rated payload: 15.8ton
Drive 8X4 (12 wheels)
Horsepower 340
Cargo box type: Rear-dump body

Overview

The SAIC Hongyan Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) is a Heavy truck featuring 15.8t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanC9.340(F2CE0681C*B052) engine, 340 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ3314HTG366
Drive type: 8X4
Wheelbase: 1800+3600+1350mm
engine: SAIC Fiat Powertrain HongyanC9.340(F2CE0681C*B052)
transmission: Fast Gear12JSD180T
Rear Axle Ratio: 5.73
Cab length: 10.285m
Cab width: 2.5m
Cab height: 3.51m
Front track width: 2006/2006mm
rear track: 1850/1850mm
Curb Weight: 9.9ton
Rated payload: 15.8ton
GVWR: 31ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 25°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanC9.340(F2CE0681C*B052)
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China III / Euro III
Max output power: 250kW
Max hp: 340Horsepower
Max torque speed: 1300rpm
Rated speed: 2100rpm
Engine Type: Turbocharged + air-to-air intercooling / charge air cooling
Transmission Parameters
Transmission Model: Fast Gear12JSD180T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.6m
Cargo box width: 2.3m
Cargo box height: 1.1m
Chassis Specs
rear axle allowable load: 18000kg
Axle ratio: 5.73
Leaf spring count: L14/R13 / L14/R13 / 12,8/8/12,3/3/4
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

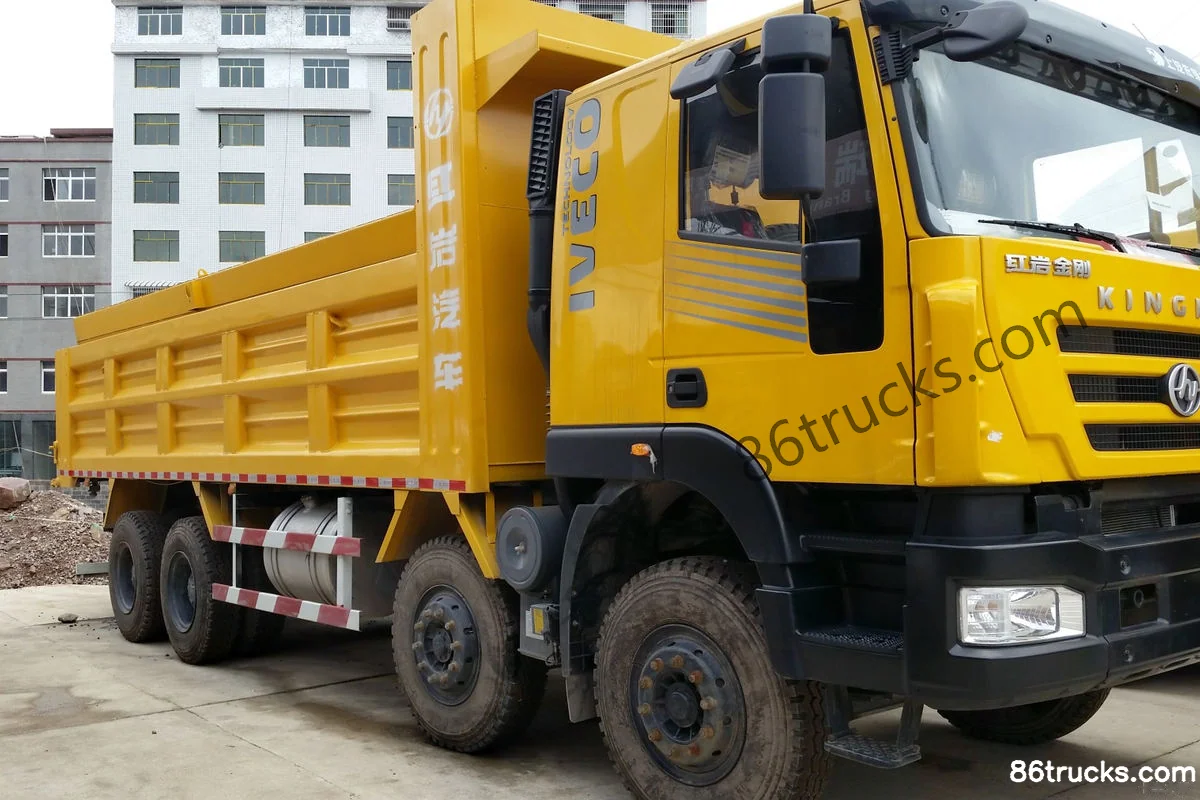

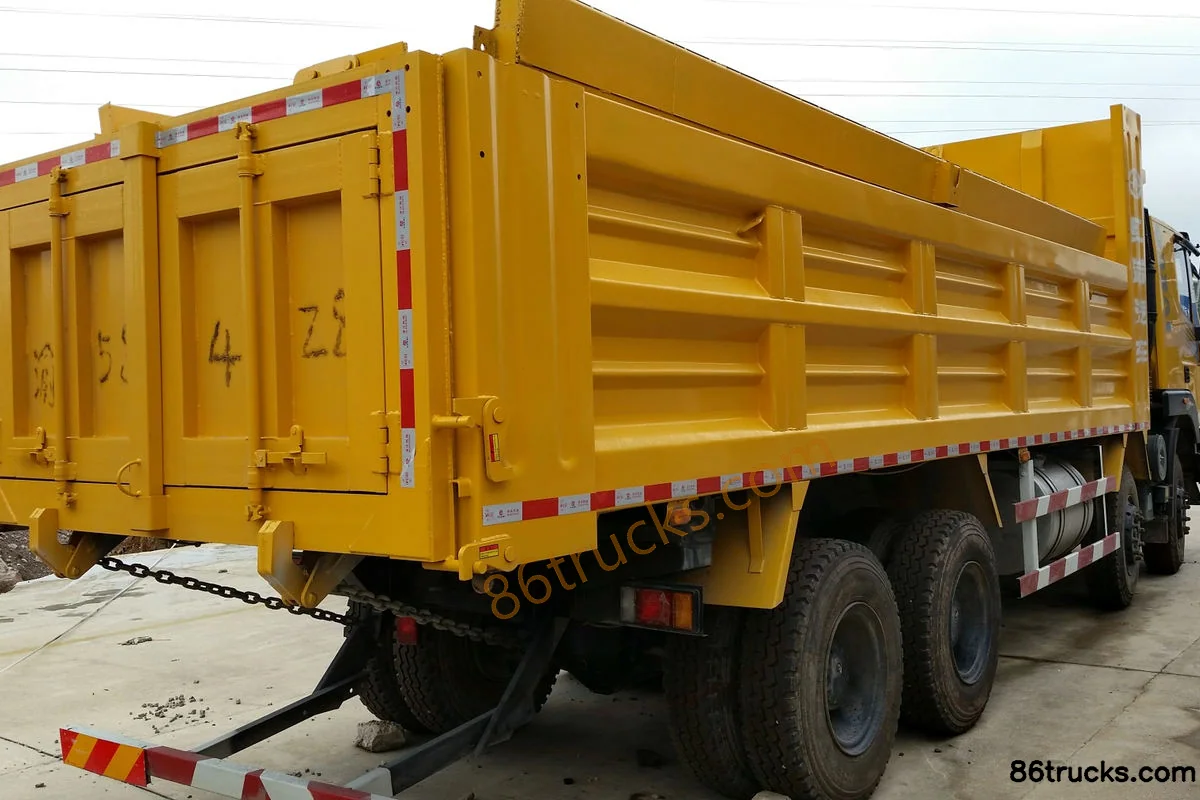

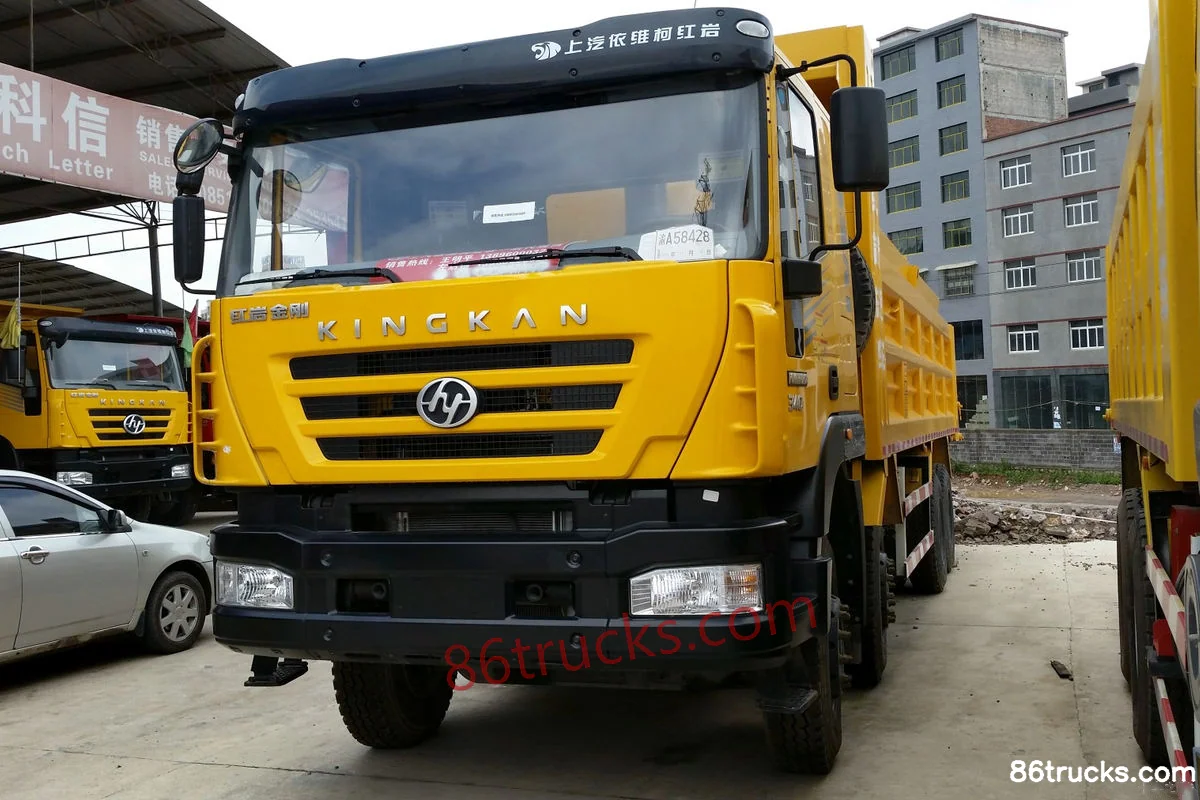

Photos

Exterior3

3 photos

FAQ

What is the export price of Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan), and what does it include?

Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) export reference is about From $48,333; MSRP is ¥34.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan)?

Key specs of Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan): Drive: 8x4; Horsepower: 340 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) suited for?

Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) differ from other variants in the same series?

Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan) belongs to SAIC Hongyan New King Kong Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Hongyan New King Kong Heavy Truck 340 hp 8X4(12 wheels) 7.6m Dump Truck (SAIC Fiat Powertrain Hongyan)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
