Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck

Export reference
From $24,278
MSRP ¥17.48M CNY
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 6.81ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20
Rated payload: 4.99ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box thickness: high-strength plate (side 2mm, bottom 3mm)

Overview

The Geely Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck is a Medium-duty truck featuring 4.99t payload, 11.995t GVW, high-strength plate (side 2mm, bottom 3mm) cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC4E160-56 engine, 160 hp, China V emissions and Fast Gear transmission.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DNC3125G-50
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC4E160-56
transmission: Fast Gear10JS90
Rear Axle Ratio: 6.83
Cab length: 6.41m
Cab width: 2.39m
Cab height: 2.8m
Front track width: 1750mm
rear track: 1640mm
Curb Weight: 6.81ton
Rated payload: 4.99ton
GVWR: 11.995ton
Origin: Nanchong, Sichuan
tonnage class: Medium-duty truck
Approach angle: 32°
departure angle: 10°
Remarks: Cab option: D913, front axle option: EQ153 narrowed, standard config: 105A battery, power steering, clutch booster, exhaust brake, intake preheater, air dryer, brake lining wear alarm, automatic adjust arm, ECU with VIN recording and extraction function, cargo body air-controlled lift sound alarm
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-56
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.26L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JS90
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box thickness: high-strength plate (side 2mm, bottom 3mm)
Cargo box length: 4.14m
Cargo box width: 2.2m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift cylinder
Cab parameters
Cab: D912
Cab suspension: Four-point air suspension
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 150L
Chassis Specs
Front axle description: EQ153 narrowed
Front axle allowable load: 4575kg
Frame Dimensions: 280mm
rear axle description: 13T457 narrowed
rear axle allowable load: 7420kg
Axle ratio: 6.83
Leaf spring count: 8/11+8
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Remote key:
Electronic Central Lock:
lighting configuration
Headlight height adjustment:
Service brake
Parking brake: Spring brake

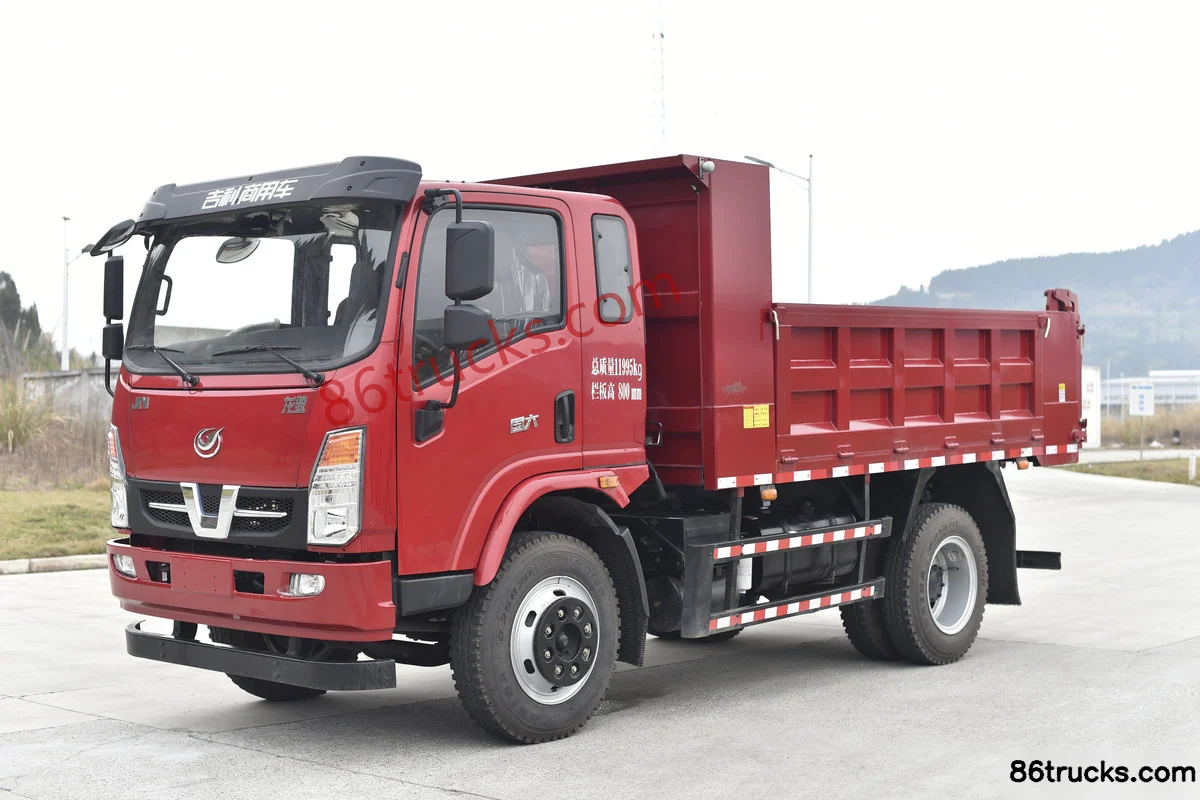

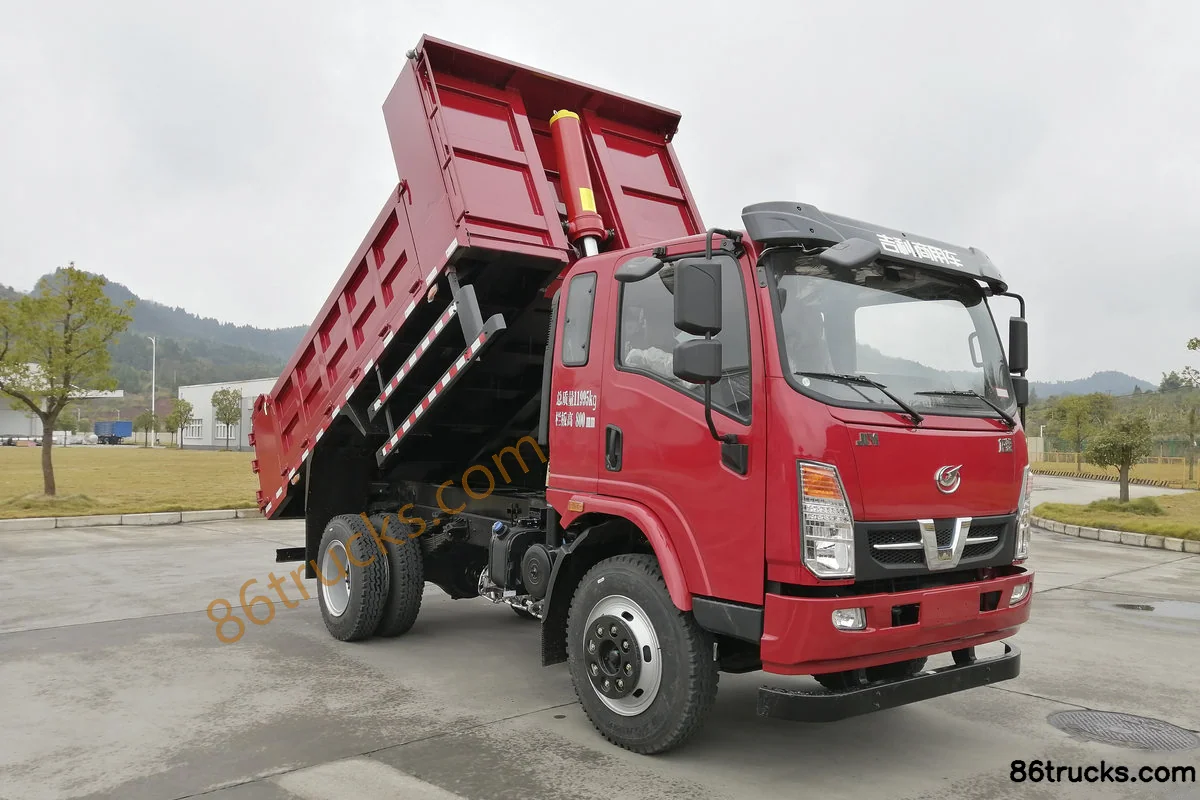

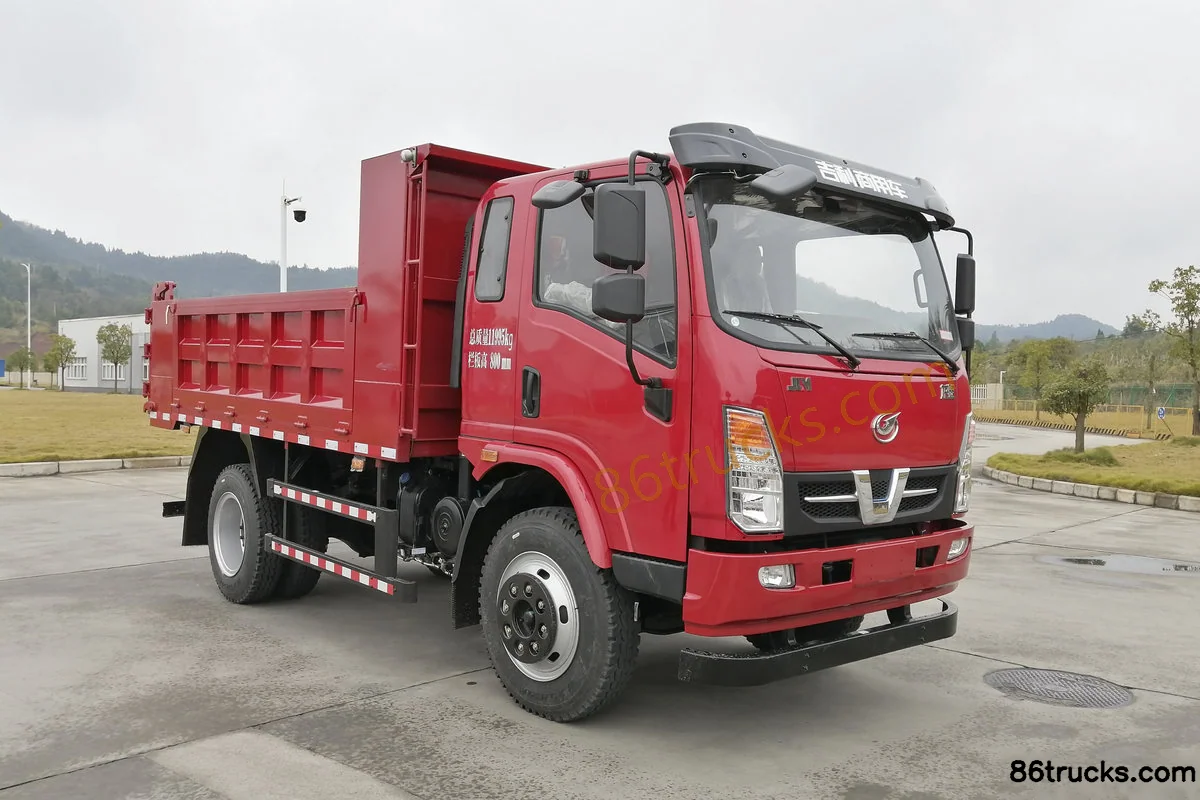

Photos

Exterior3

3 photos

FAQ

What is the export price of Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck, and what does it include?

Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck export reference is about From $24,278; MSRP is ¥17.48M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck?

Key specs of Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck suited for?

Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck differ from other variants in the same series?

Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck belongs to Jialong Longjun (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jialong Longjun 160 hp 4X2(6 wheels) 4.14m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
