Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck

Export reference
From $8,861
MSRP ¥6.38M CNY
Emission: China V
Fuel: gasoline
Transmission: Mengwo
Curb Weight:: 2ton
Wheelbase:: 3360mm
Tire Size:: 185R14LT8PR
Rated payload: 0.995ton
Drive 4X2 (6 wheels)
Horsepower 112
Cargo box type: Dump type

Overview

The Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck is a mini truck featuring 0.995t payload, 3.125t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xinchen PowerV22 engine, 112 hp, China V emissions and Mengwo transmission.

China V 112 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3030S4M5D
Drive type: 4X2
Wheelbase: 3360mm
engine: Xinchen PowerV22
transmission: MengwoMR78Q
Rear Axle Ratio: 4.785
Cab length: 5.59m
Cab width: 1.75m
Cab height: 2.135m
Front track width: 1410mm
rear track: 1280mm
Curb Weight: 2ton
Rated payload: 0.995ton
GVWR: 3.125ton
Origin: Chengdu, Sichuan
tonnage class: mini truck
Approach angle: 38°
departure angle: 15°
Version: Dual-fuel (LPG/gasoline) version
Energy Type: gasoline
Engine parameters
Engine Brand: Xinchen Power
Engine Model: Xinchen PowerV22
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 2.237L
Emission standard: China V
Max output power: 82kW
Max hp: 112Horsepower
Transmission Parameters
Transmission Model: MengwoMR78Q
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.5m
Cargo box width: 1.65m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row Flat Roof
fuel tank
Fuel tank capacity: 60L
Chassis Specs
Front axle description: 1T
Front axle allowable load: 1310kg
rear axle description: 1.5T
rear axle allowable load: 1815kg
Axle ratio: 4.785
Leaf spring count: 5/7
Tire
Tire Size: 185R14LT8PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

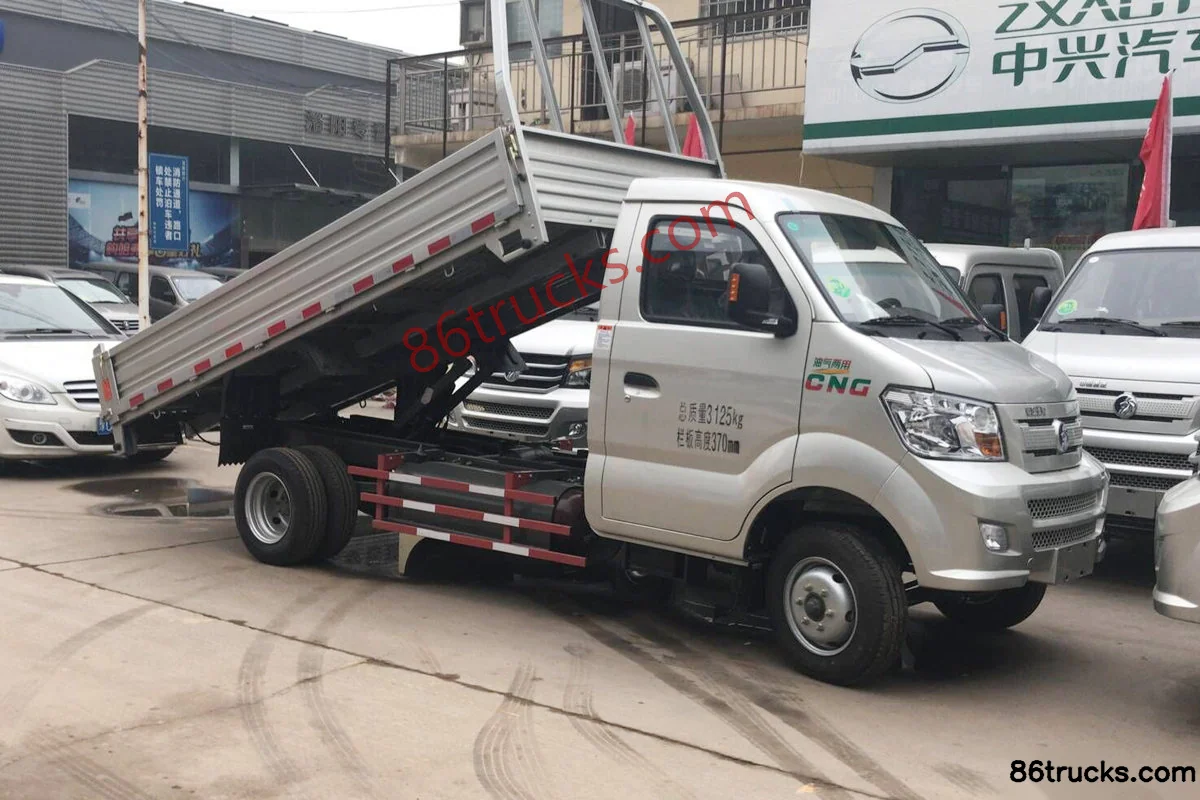

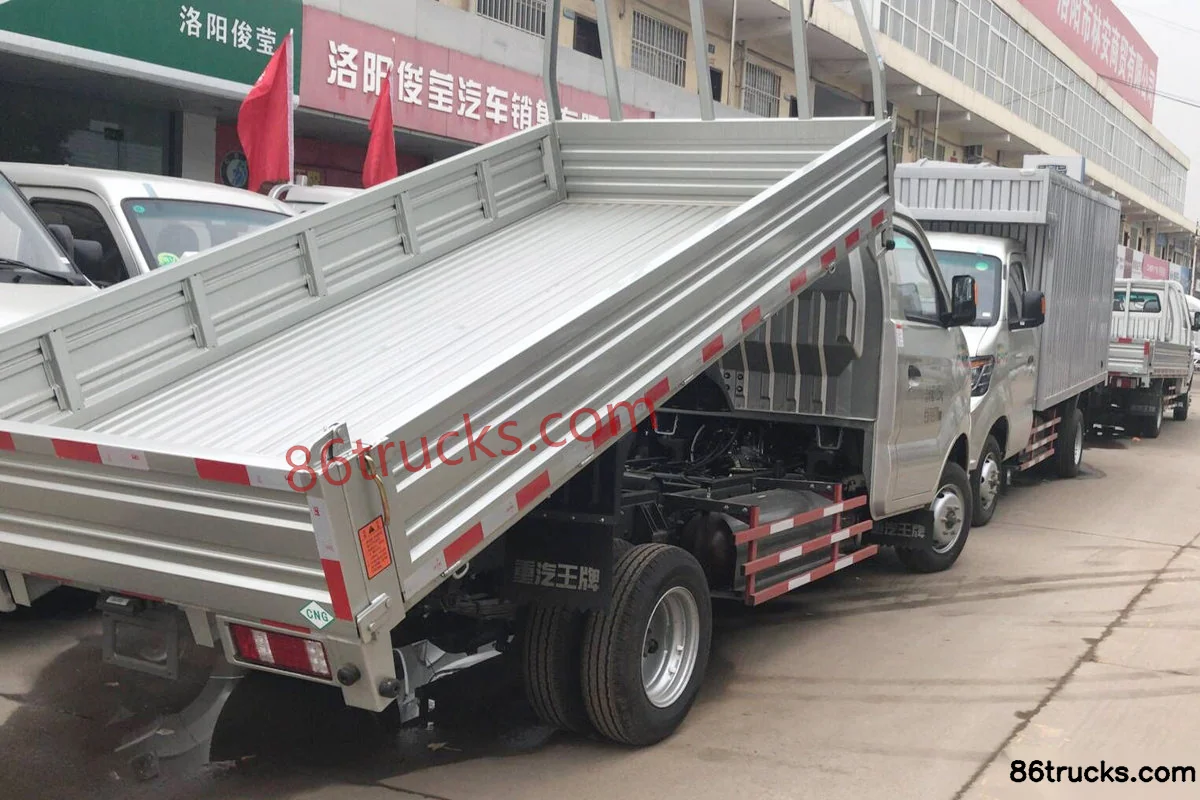

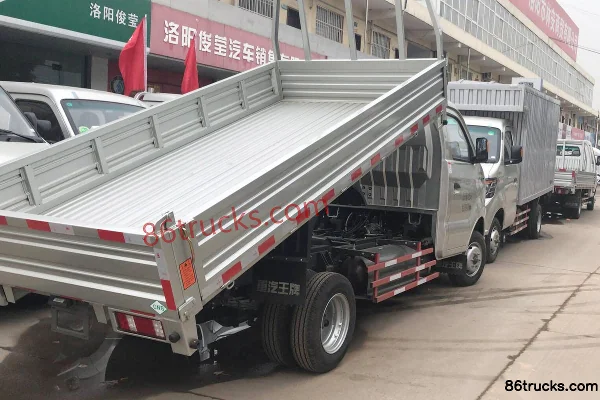

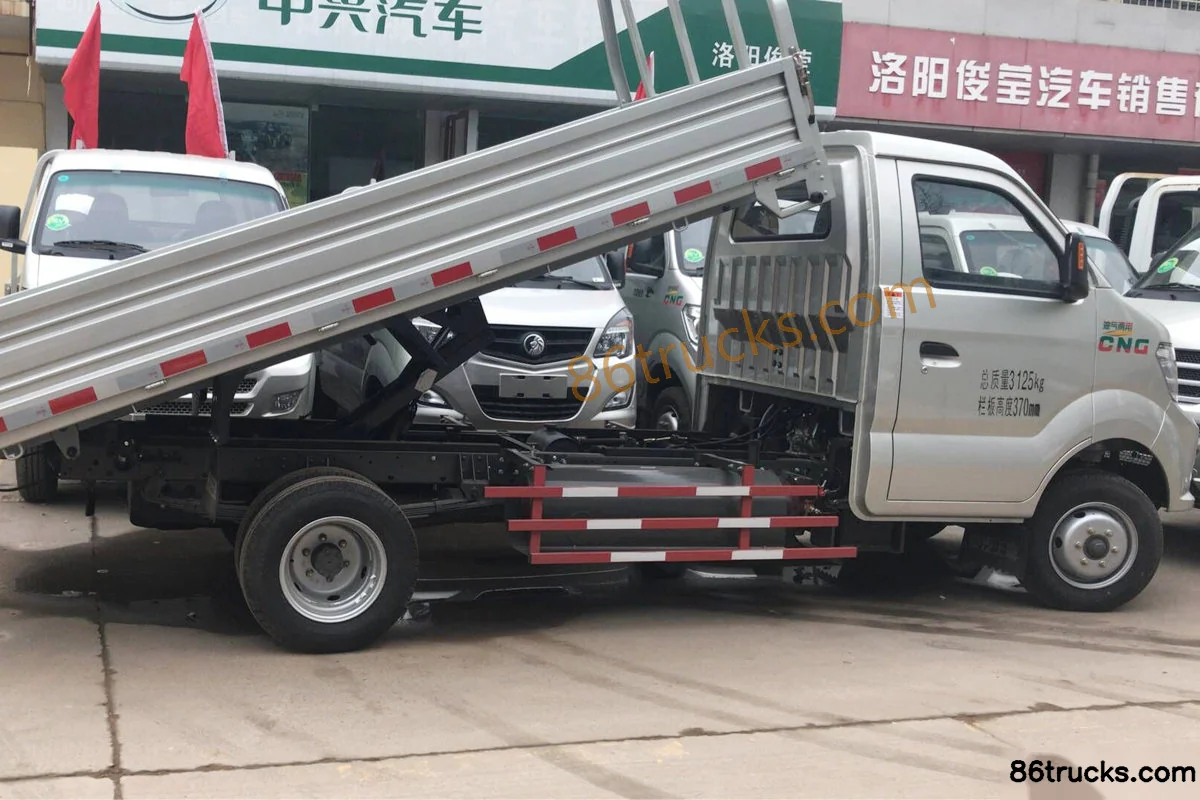

Exterior3

3 photos

FAQ

What is the export price of Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck, and what does it include?

Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck export reference is about From $8,861; MSRP is ¥6.38M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck?

Key specs of Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck: Drive: 4x2; Horsepower: 112 hp; Emission: China V; Fuel: gasoline; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck suited for?

Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck differ from other variants in the same series?

Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck belongs to Sinotruk Wangpai W1 micro truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Wangpai W1 series 2.2L 112 hp gasoline/CNG 4X2(6 wheels) 3.5m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
