Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 9ton
Wheelbase:: 4200mm
Tire Size:: 11.00R20 18PR

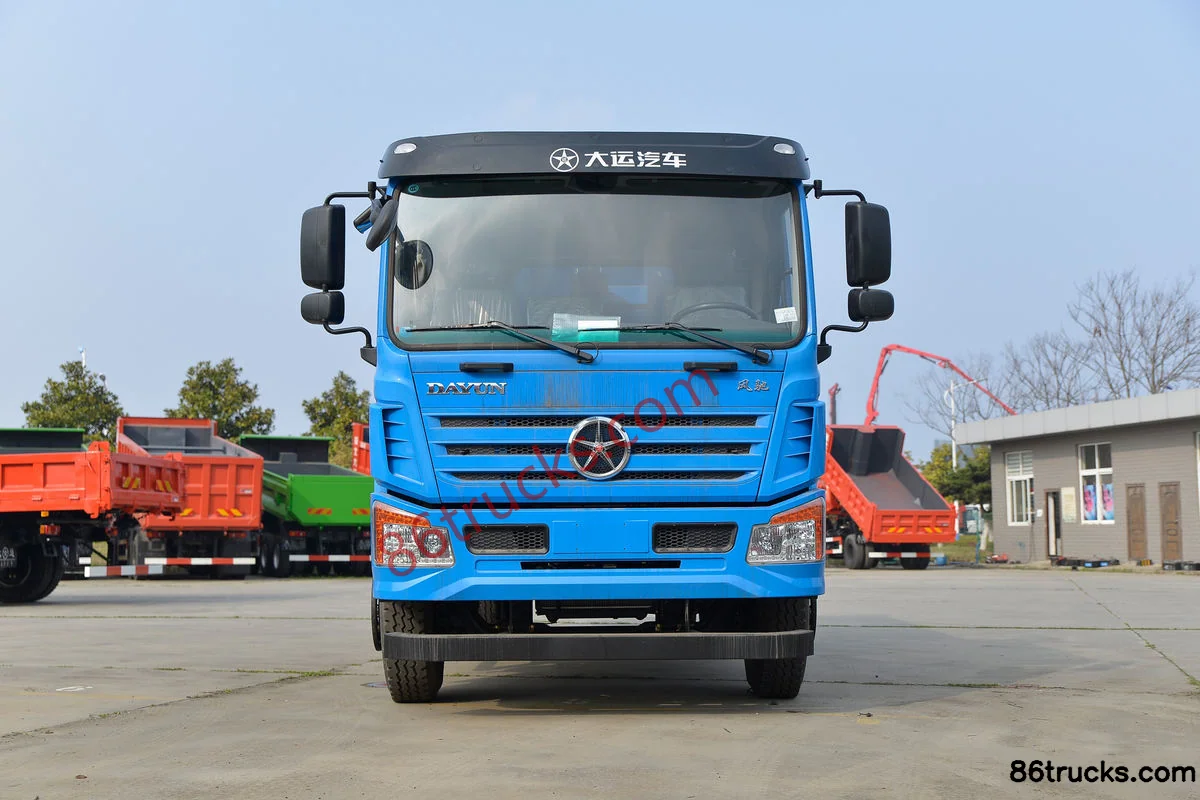

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck exterior
View more photos (12)
Rated payload: 8.805ton
Drive 4X2 (6 wheels)
Horsepower 240
Cargo box type: Dump type

Overview

The Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck is a Medium-duty truck featuring 8.805t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA240-50 engine, 240 hp, China V emissions and Fast Gear transmission.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DYQ3183D5AB
Drive type: 4X2
Wheelbase: 4200mm
engine: YuchaiYC6JA240-50
transmission: Fast Gear8JS105TA
Cab length: 7.45m
Cab width: 2.55m
Cab height: 3.15m
Front track width: 1820mm
rear track: 1800mm
Curb Weight: 9ton
Rated payload: 8.805ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 17°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA240-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 950N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear8JS105TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5m
Cargo box width: 2.4m
Cargo box height: 0.6m
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Leaf spring count: 9/10+8
Tire
Tire Size: 11.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
Center Console Color Screen:

Photos

Exterior3

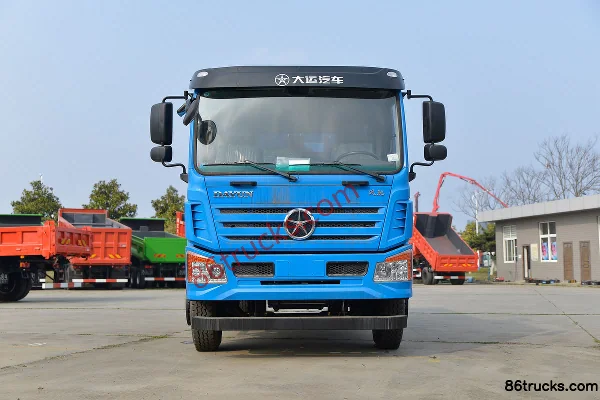

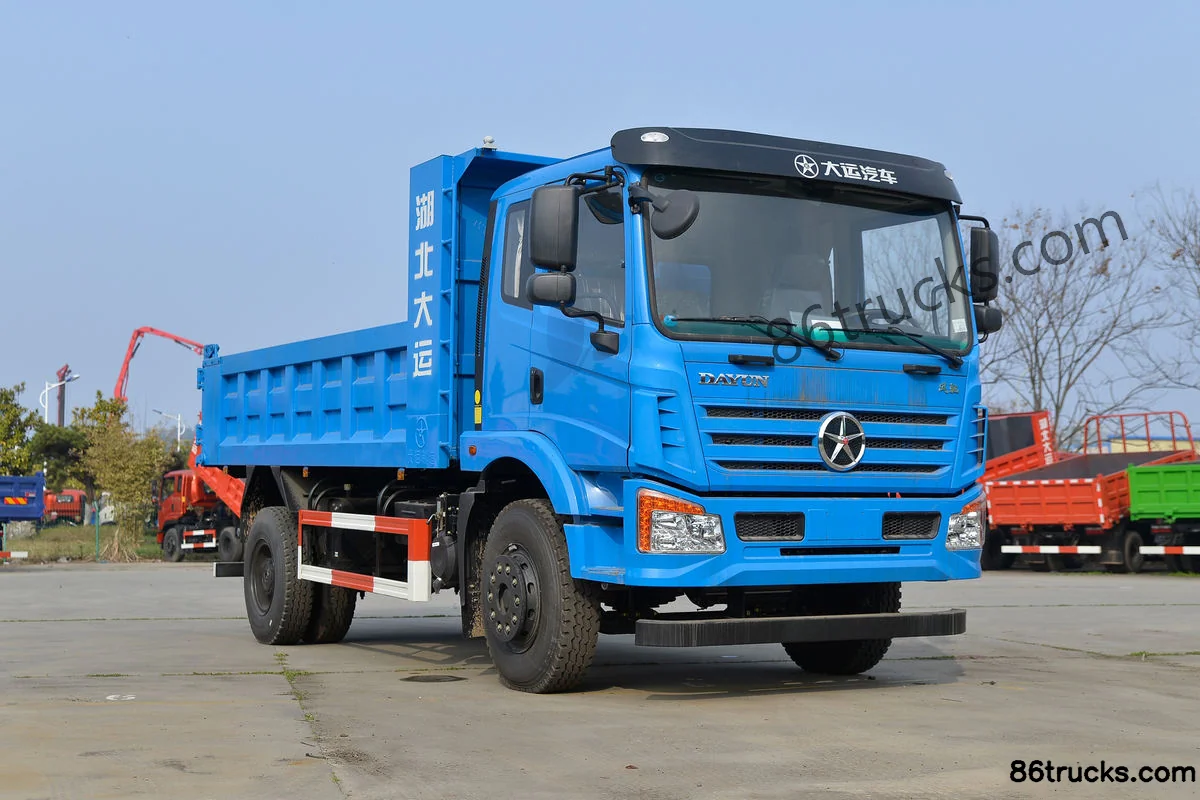

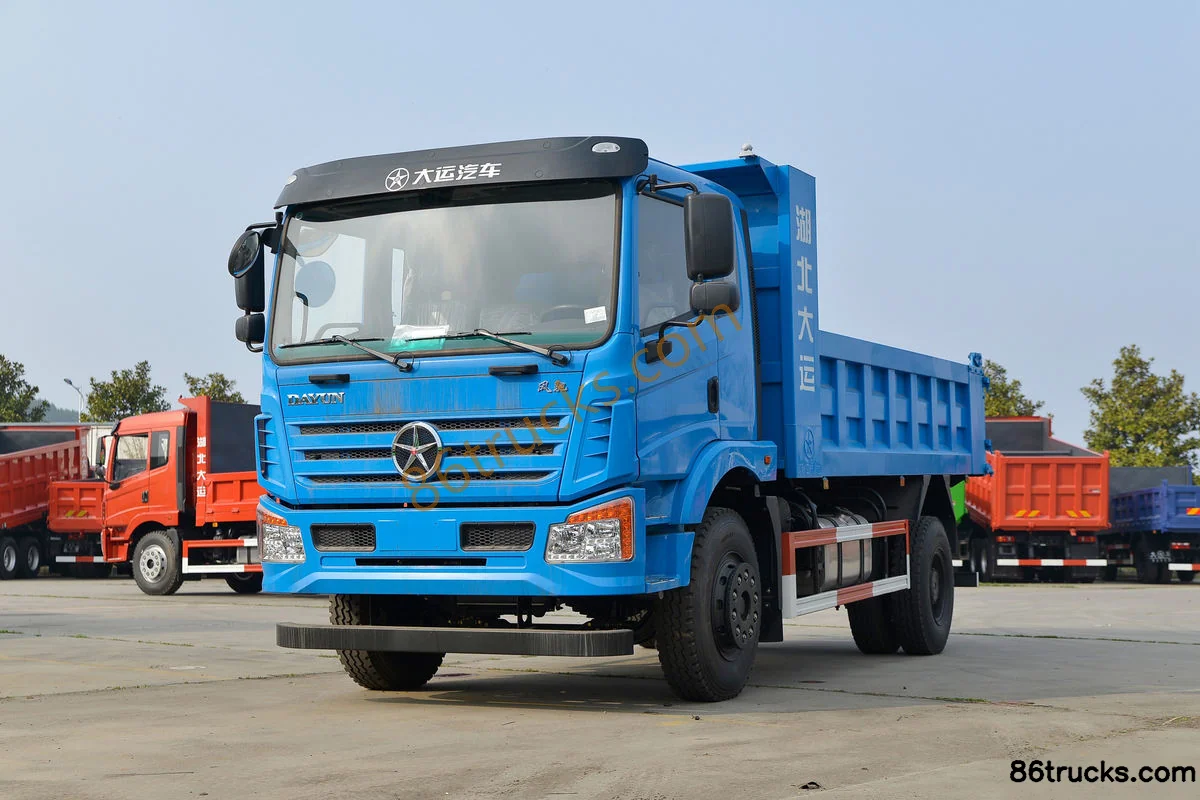

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Exterior (1) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Exterior (2) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Exterior (3) | 86Trucks

Cab3

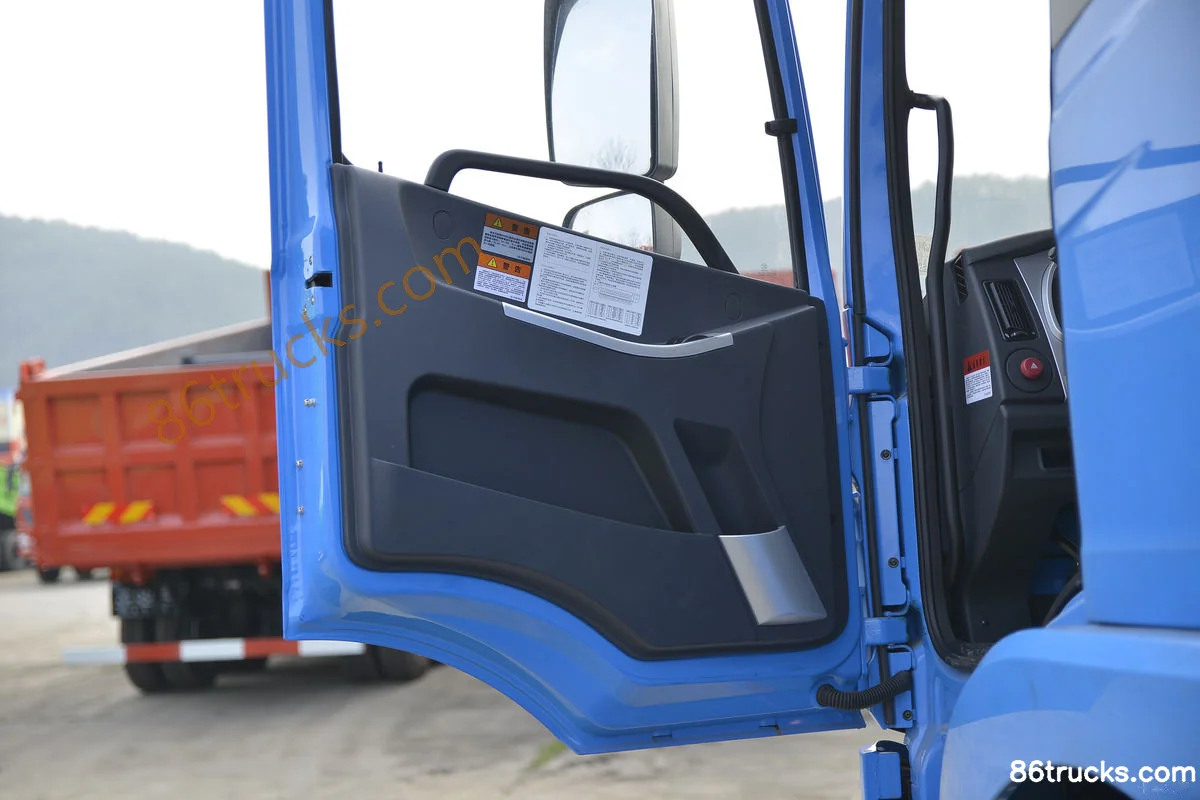

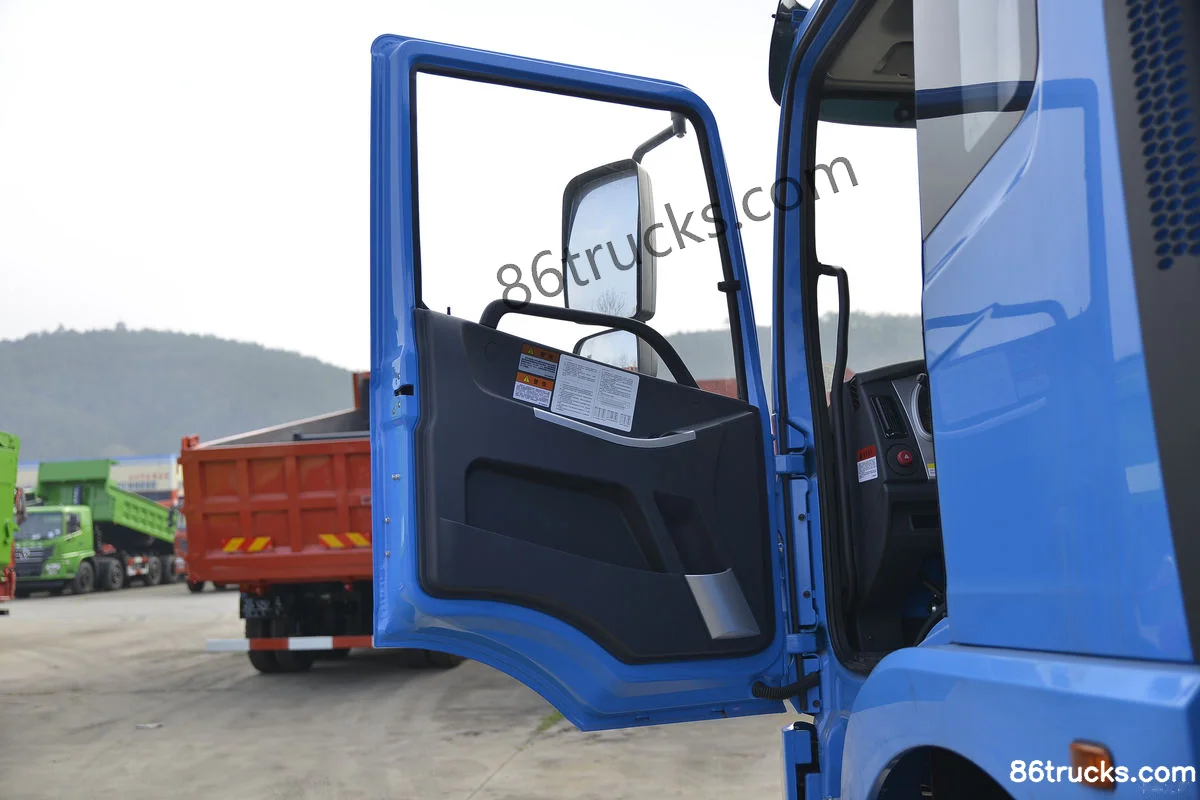

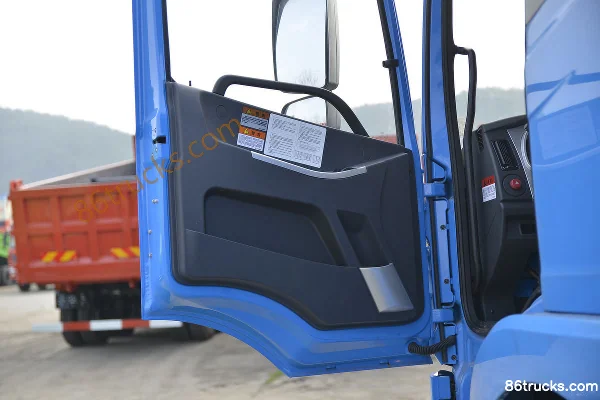

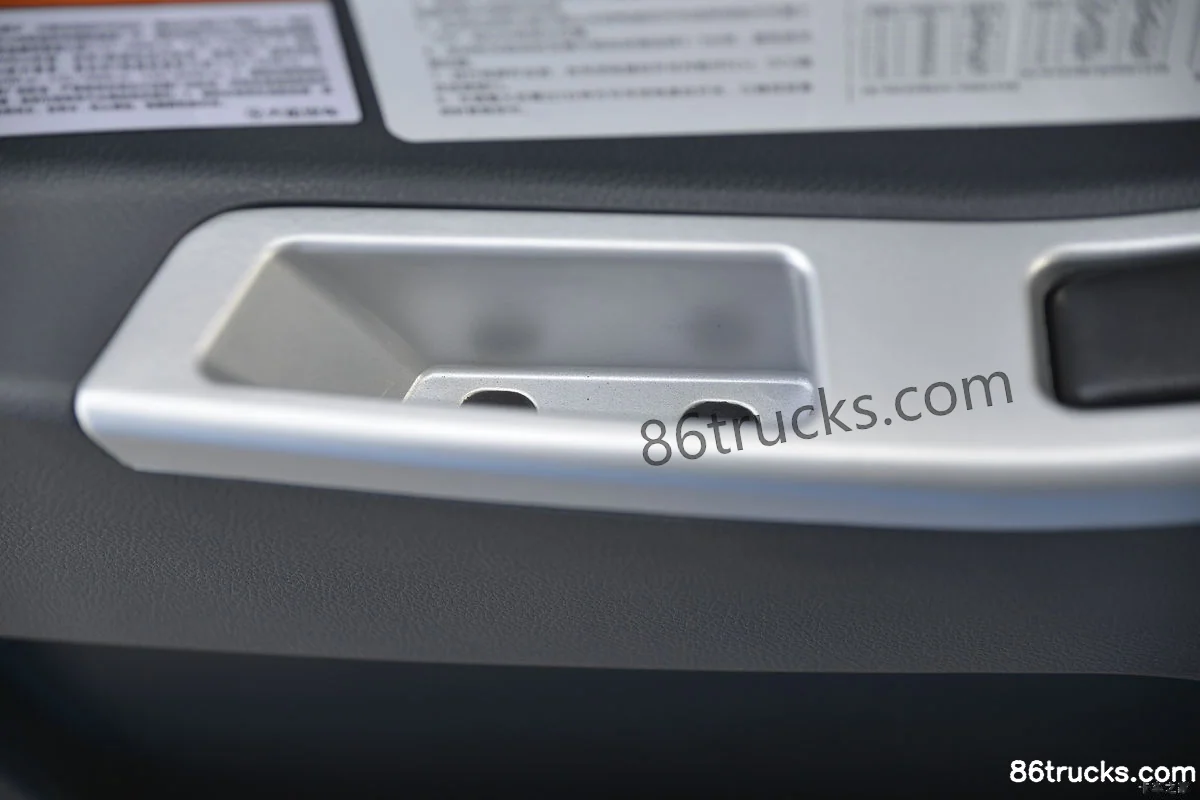

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Cab (1) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Cab (2) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Cab (3) | 86Trucks

Chassis3

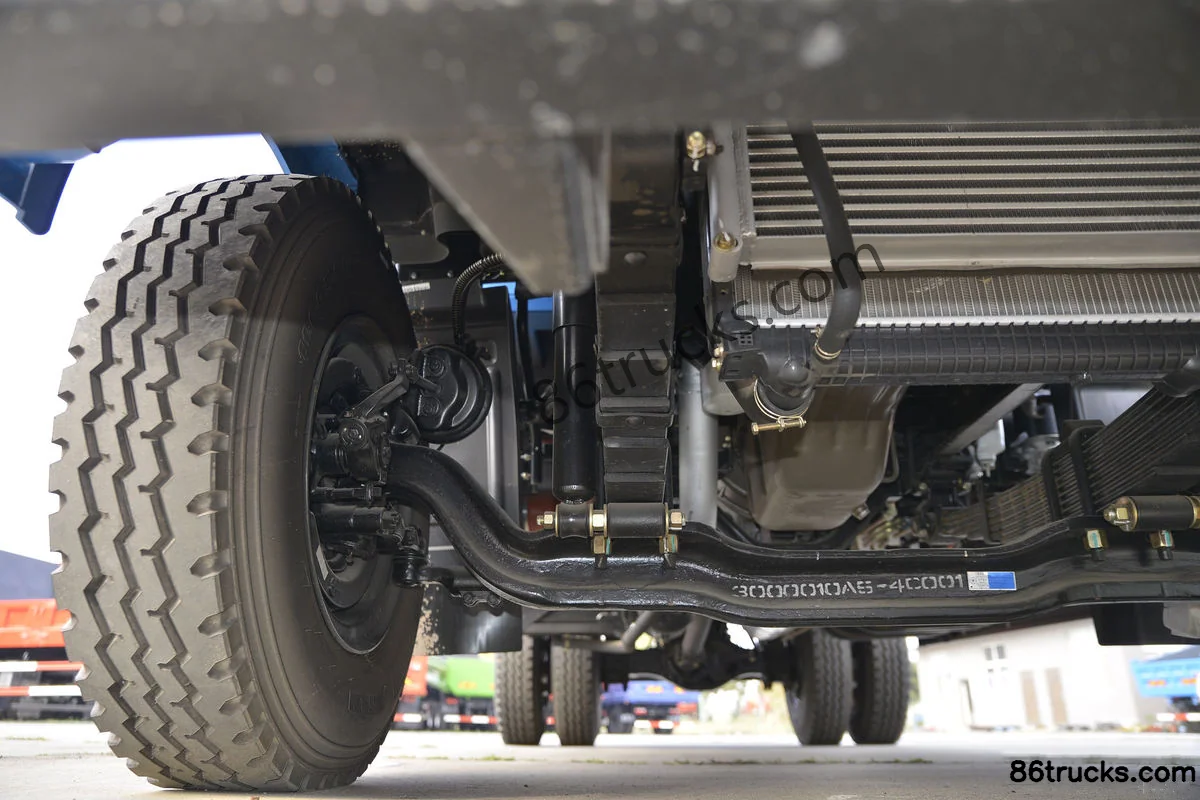

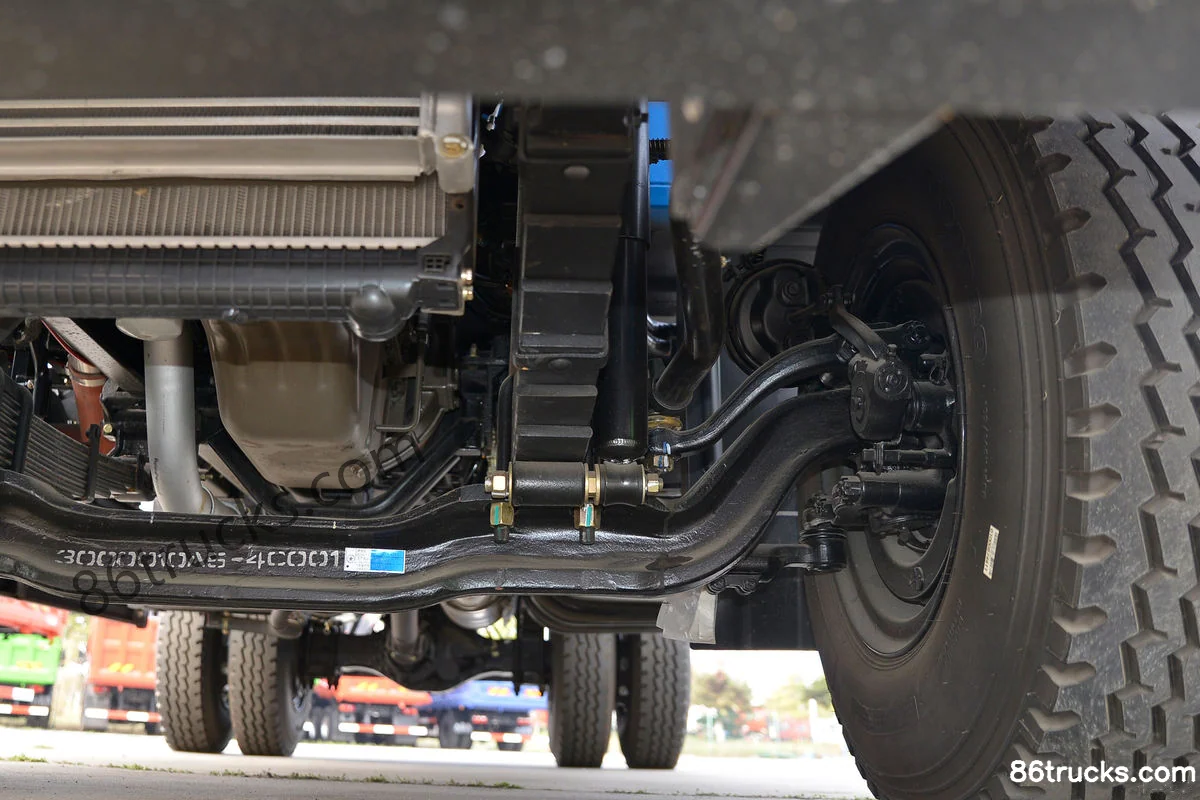

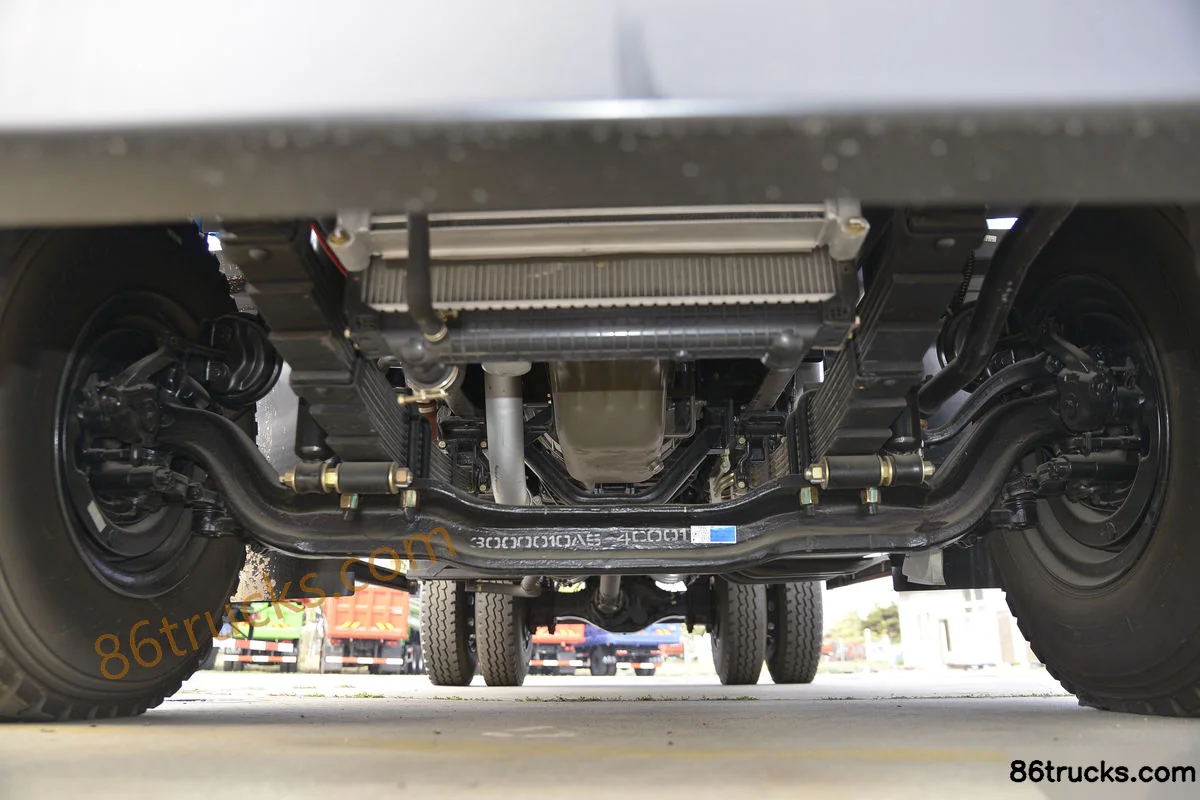

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Chassis (1) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Chassis (2) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Chassis (3) | 86Trucks

Body3

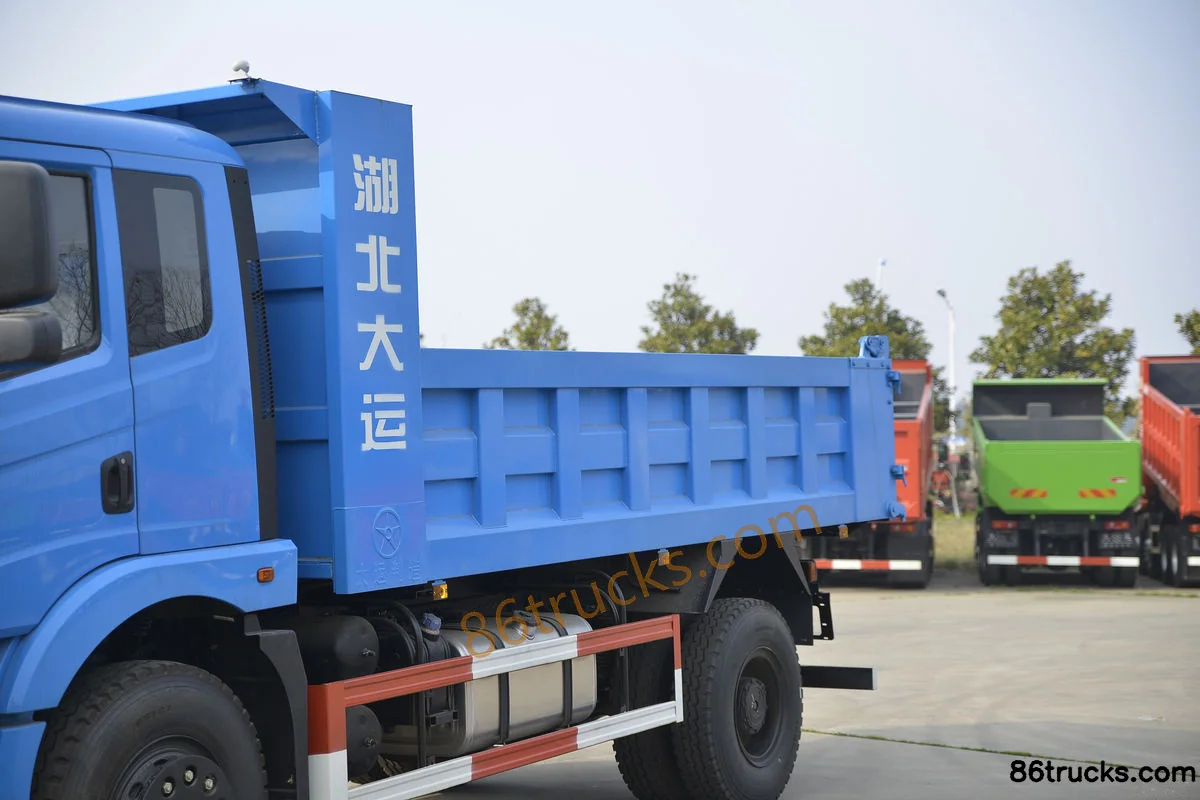

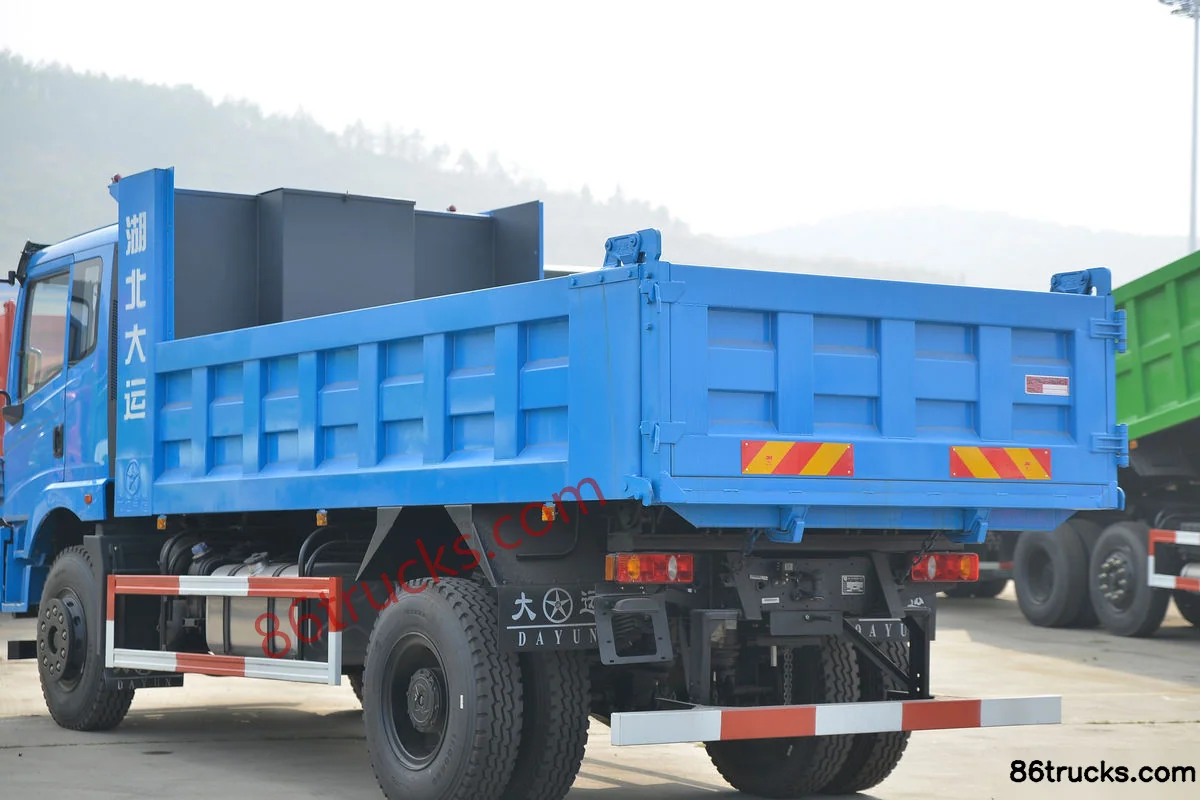

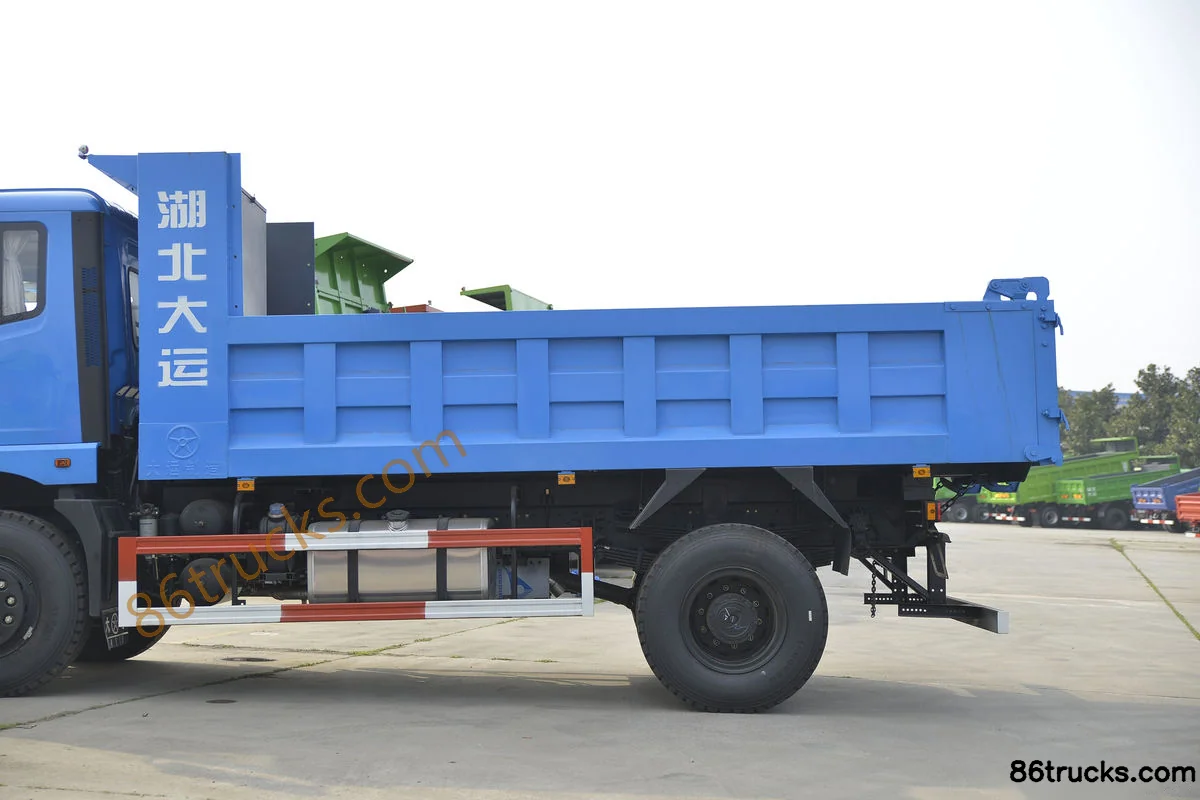

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Body (1) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Body (2) | 86Trucks Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck?

Key specs of Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck suited for?

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck differ from other variants in the same series?

Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck belongs to Dayun Fengchi Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Fengchi 240hp 4X2(6 wheels) 5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
