FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck

Export reference
From $55,556
MSRP ¥40M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.8ton
Wheelbase:: 1900+2500+1350mm
Tire Size:: 11.00R20 18PR
Rated payload: 18.07ton
Drive 8X4 (12 wheels)
Horsepower 350
Cargo box type: U-shaped box

Overview

The FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck is a Heavy truck featuring 18.07t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP8.350E62 engine, 350 hp, China VI emissions and Fast Gear transmission.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3312P28K15L2T4E6A80
Drive type: 8X4
Wheelbase: 1900+2500+1350mm
engine: WeichaiWP8.350E62
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 5.921
Cab length: 8.56m
Cab width: 2.55m
Cab height: 3.3m
Front track width: 1951/1951mm
rear track: 1878/1878mm
Curb Weight: 12.8ton
Rated payload: 18.07ton
GVWR: 31ton
Origin: Qingdao
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 35°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP8.350E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1400N·m
Max torque speed: 1200-1600rpm
Rated speed: 2100rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: U-shaped box
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab: JK6 Mid-Roof Full-Float Cab
Cab suspension: Four-point air suspension
Cab width: 2300mm
seating capacity: 2Personnel
Cab tilting: Electric
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7-ton class
Front axle allowable load: 6500/6500kg
rear axle description: 16t class
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.921
Leaf spring count: 10/10/10
clutch: Φ430
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
steering wheel adjustment: pneumatic
Multifunction steering wheel:
AC control type: Manual

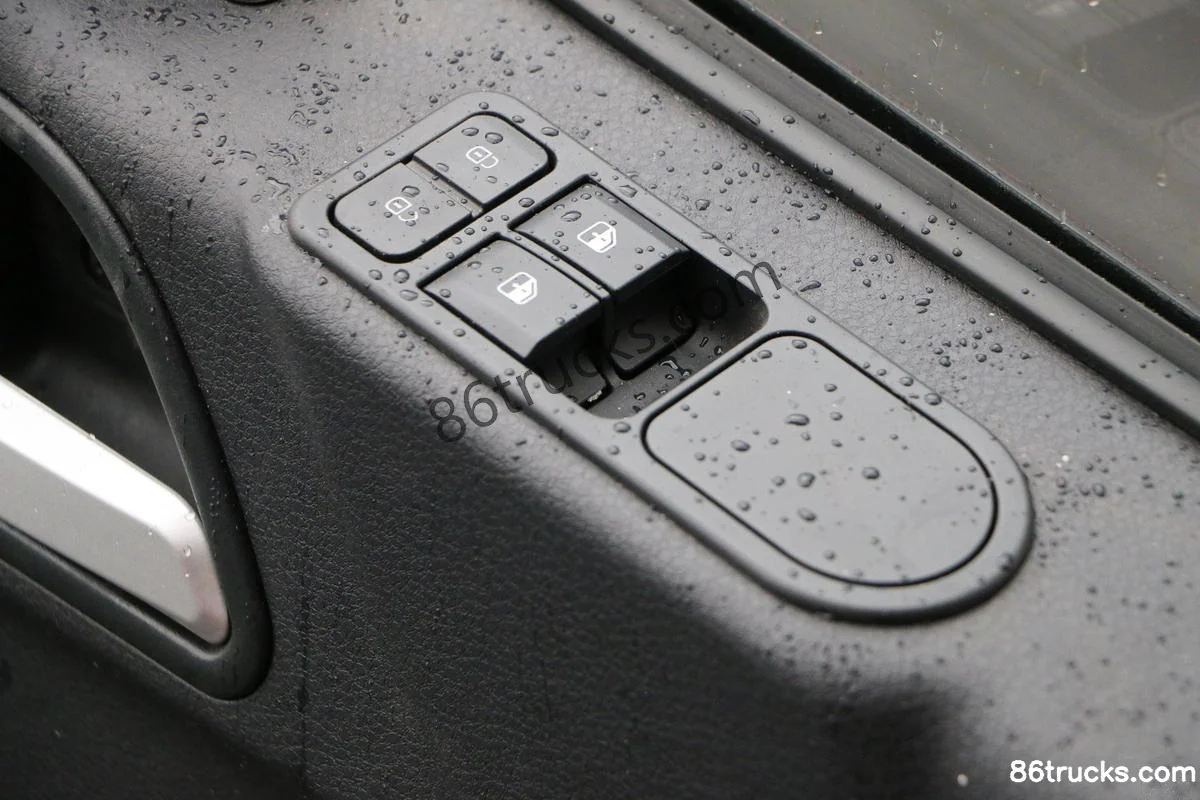

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):

Photos

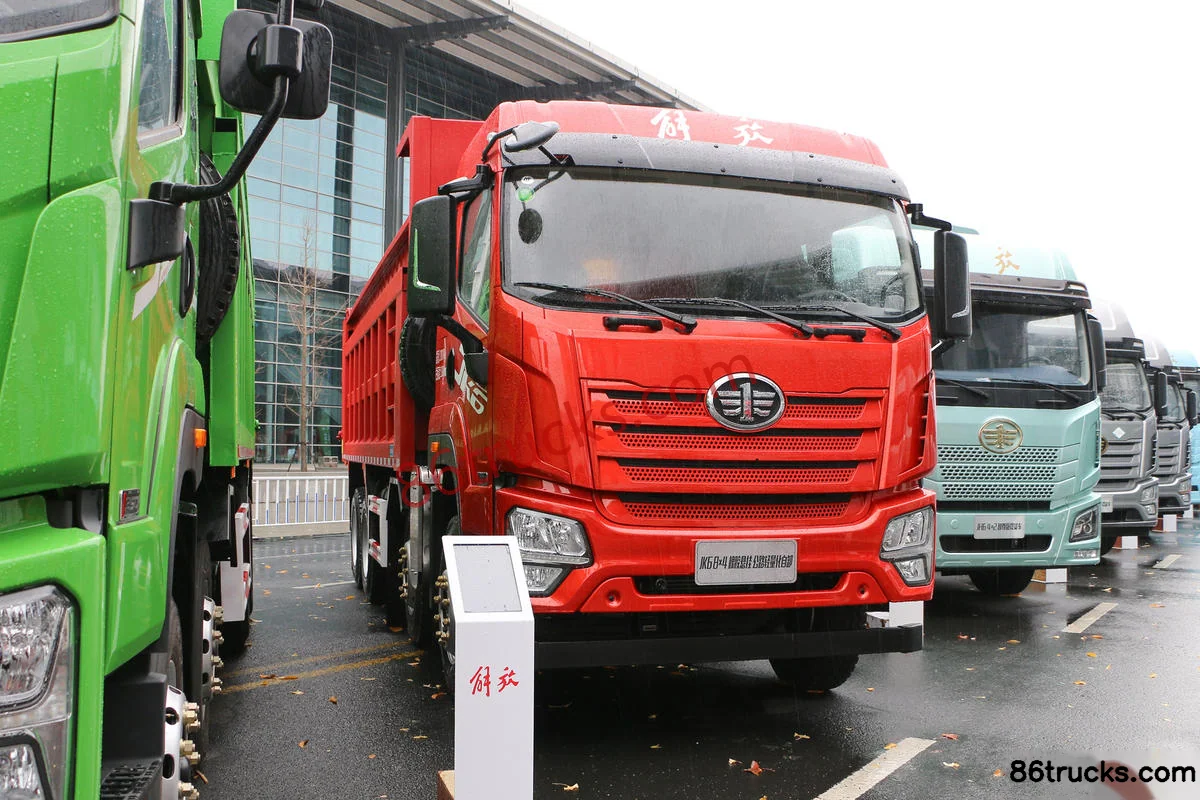

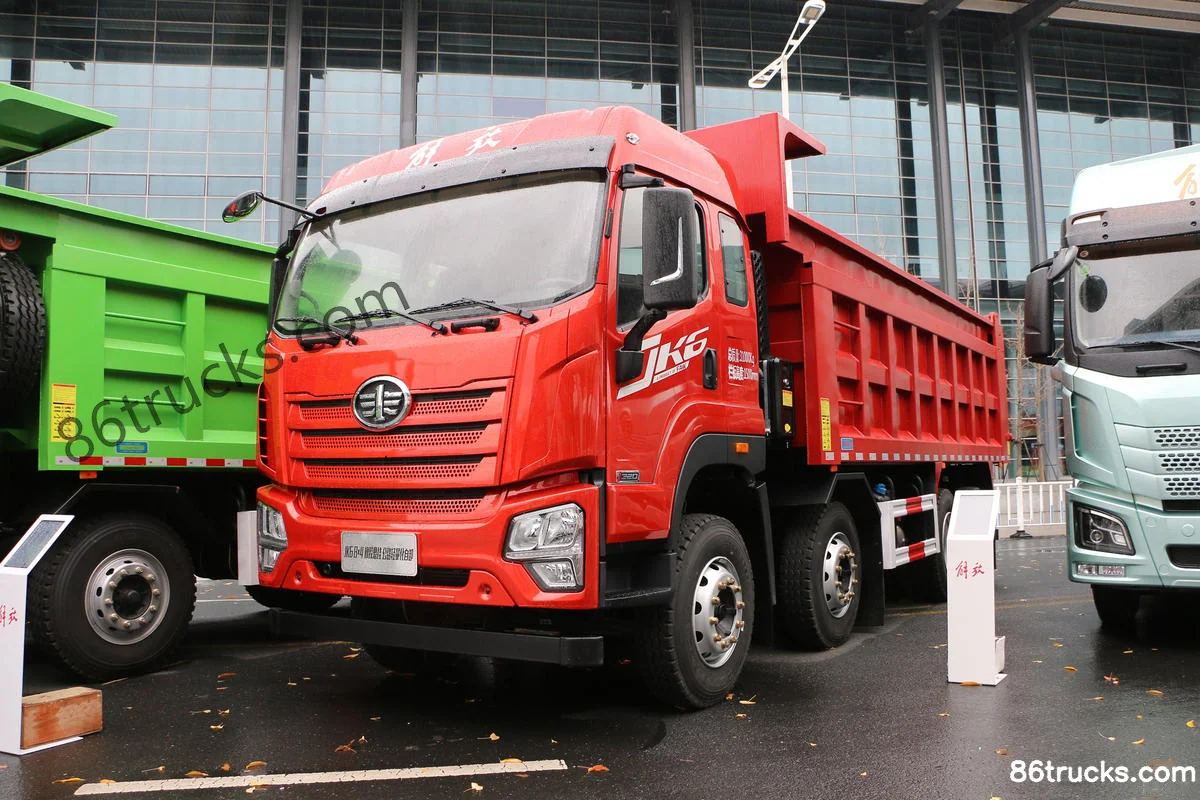

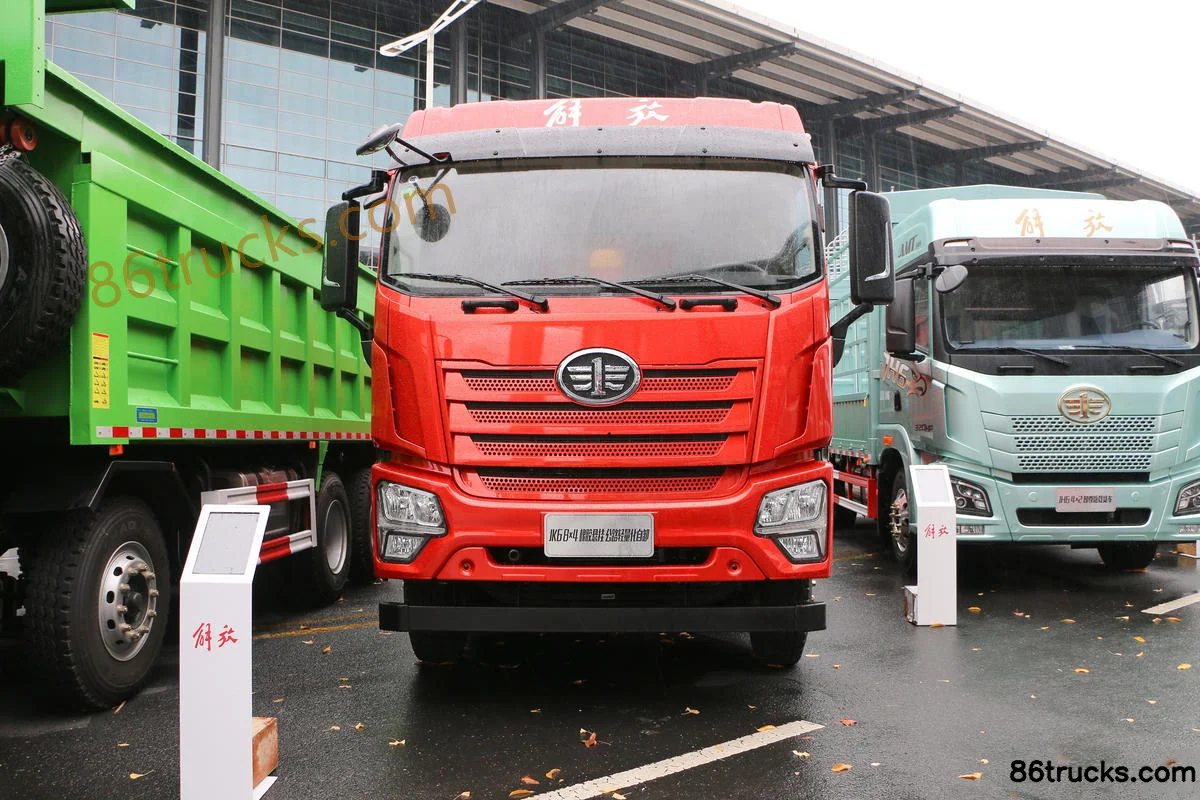

Exterior3

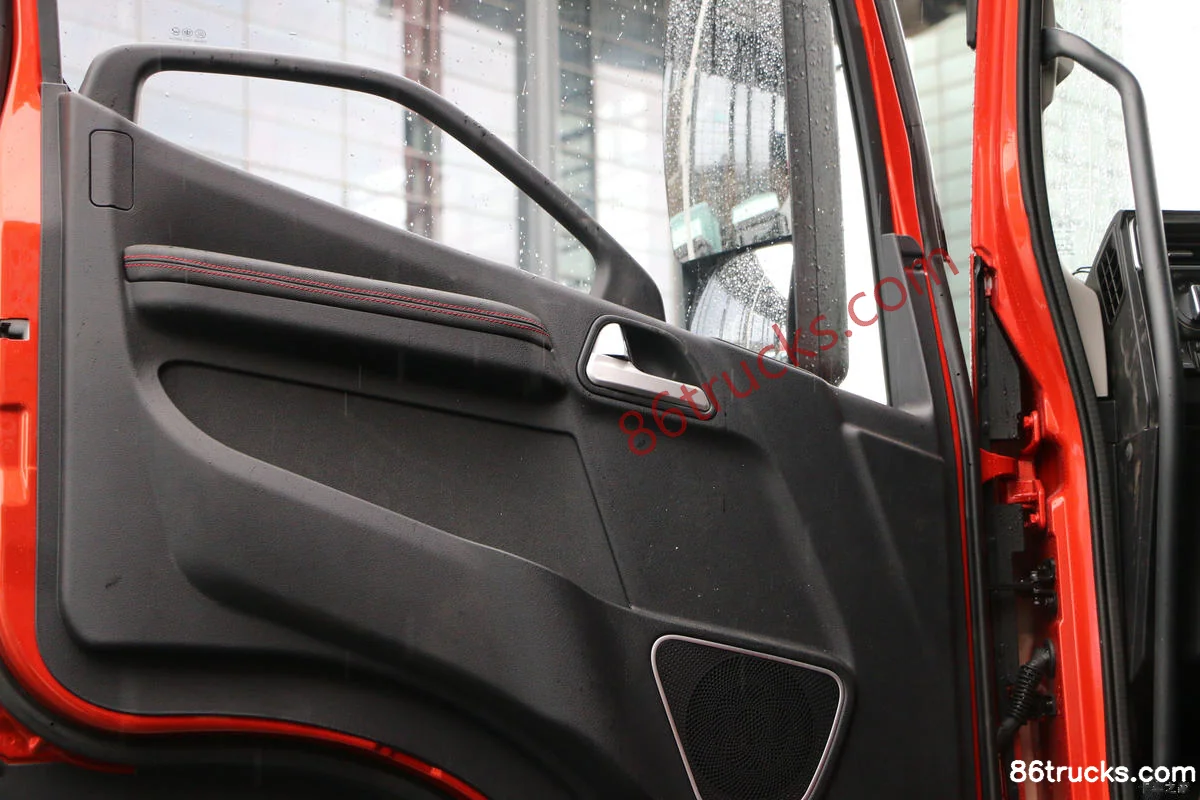

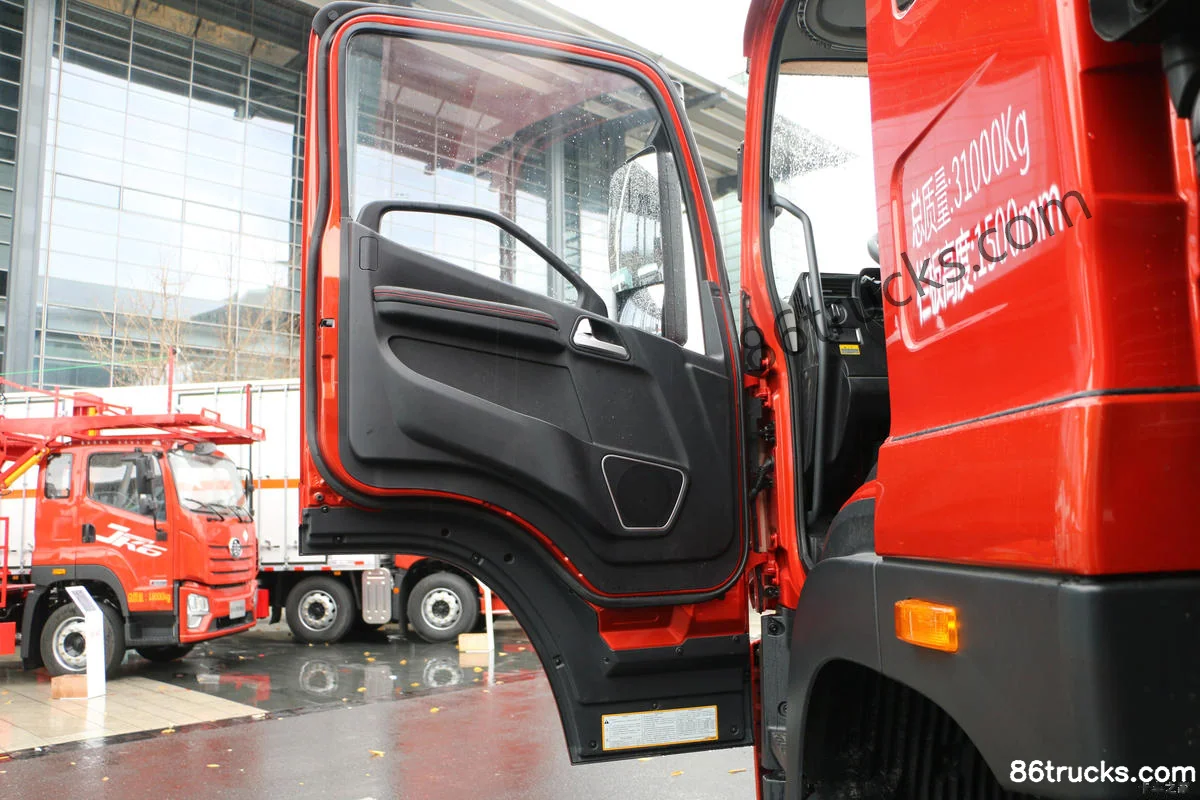

Cab3

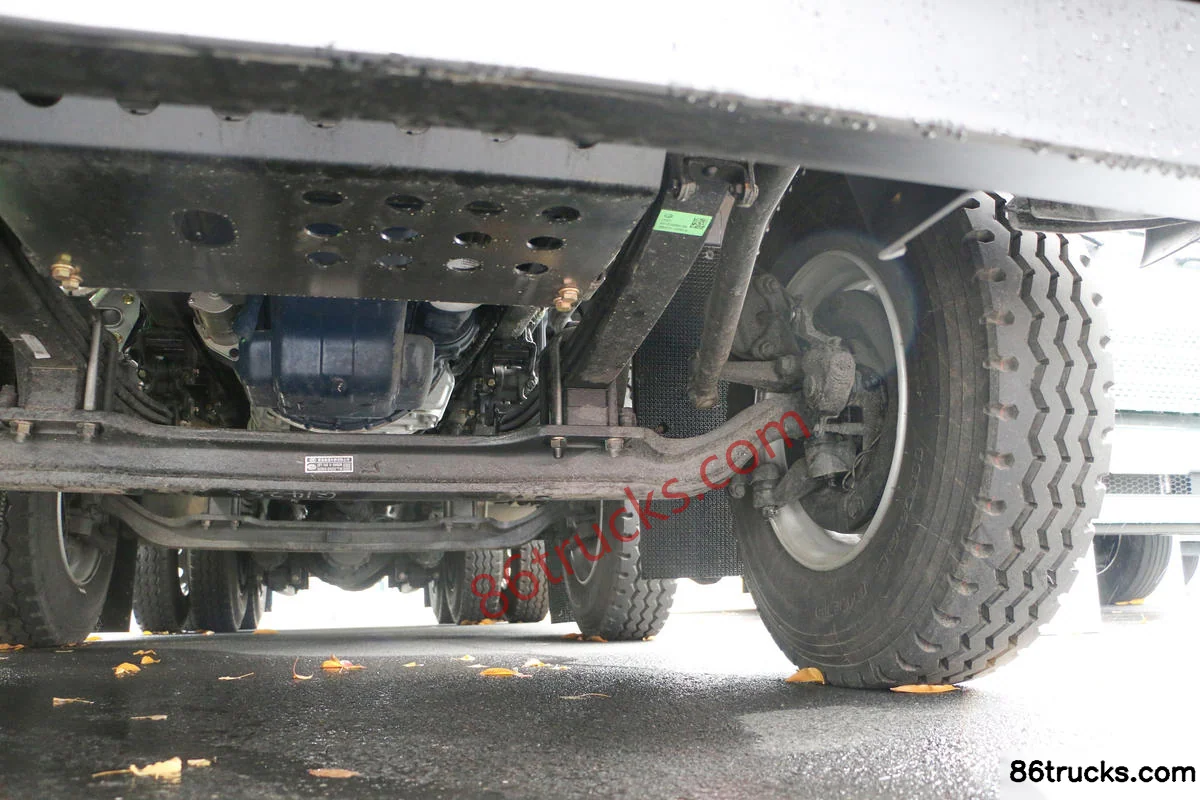

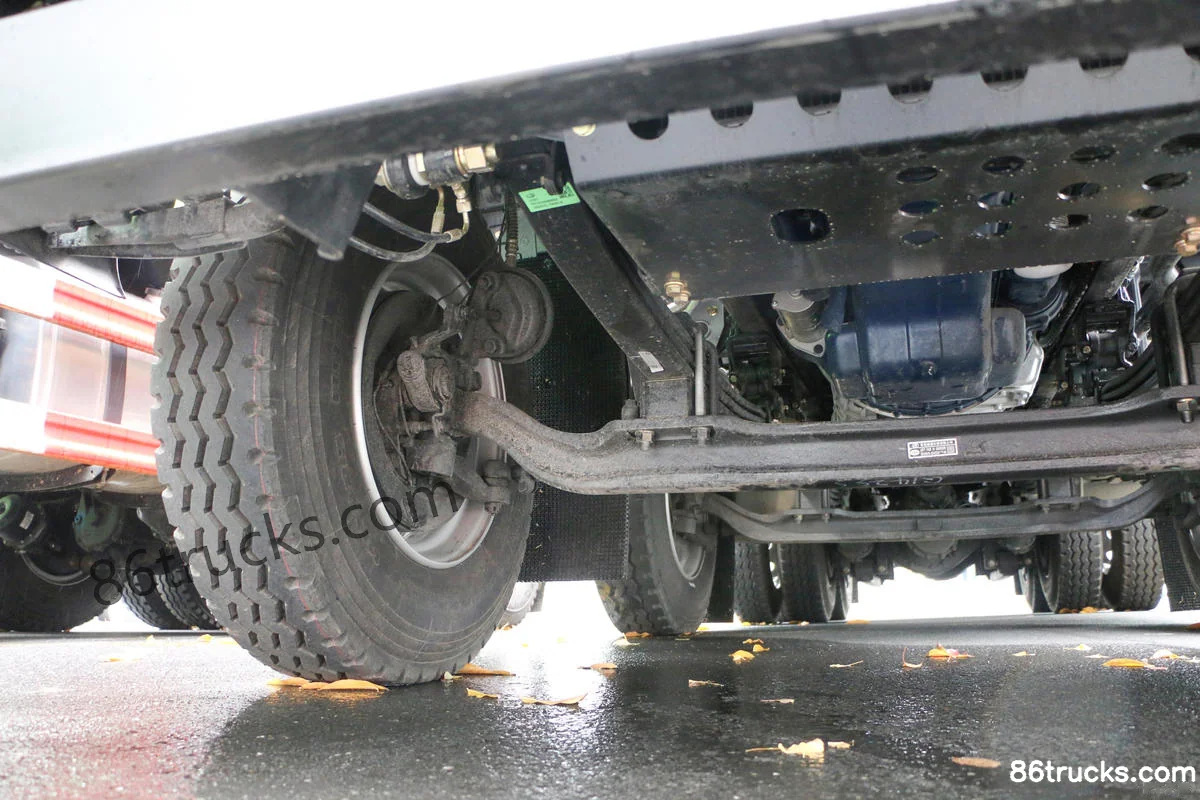

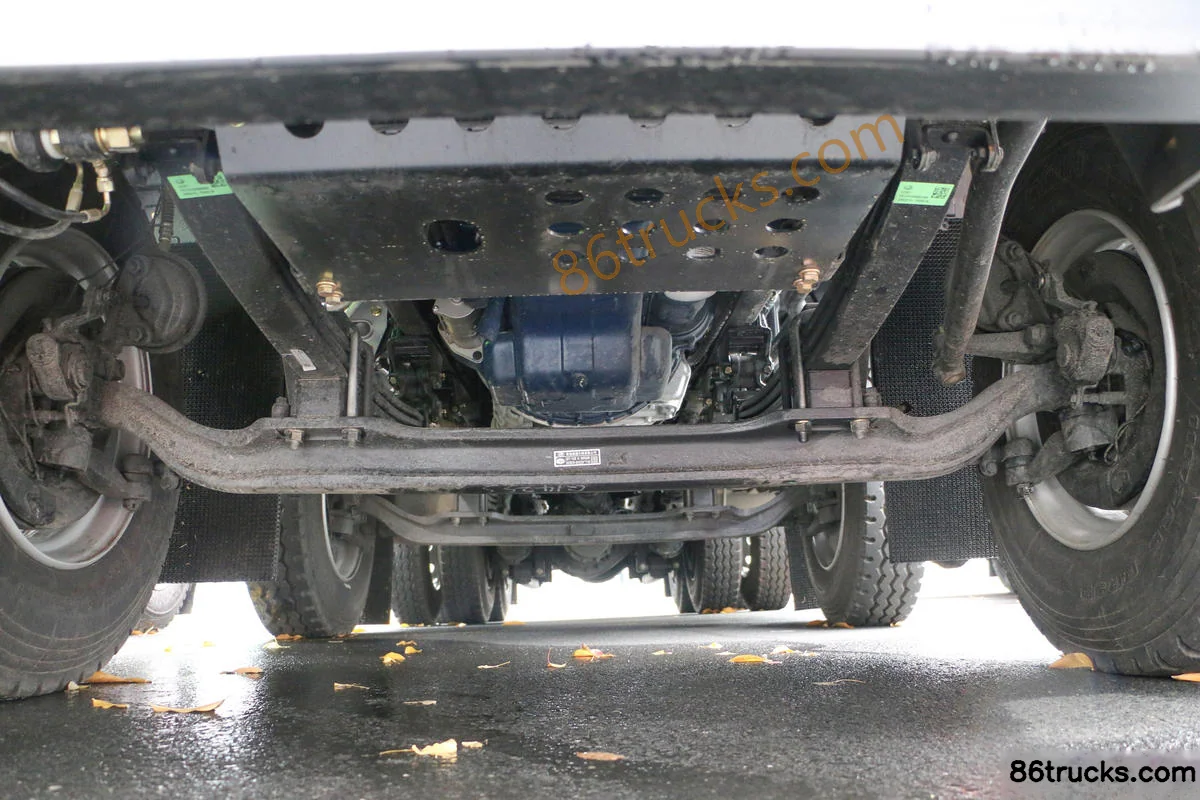

Chassis3

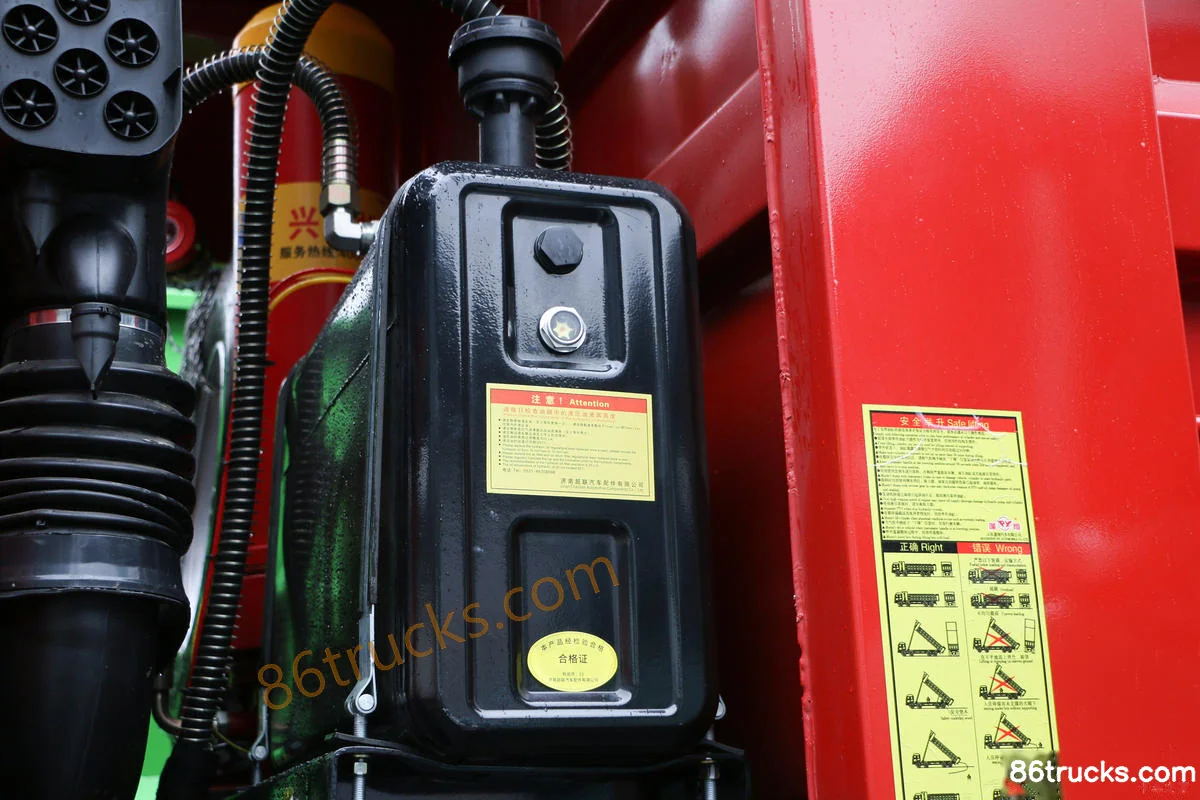

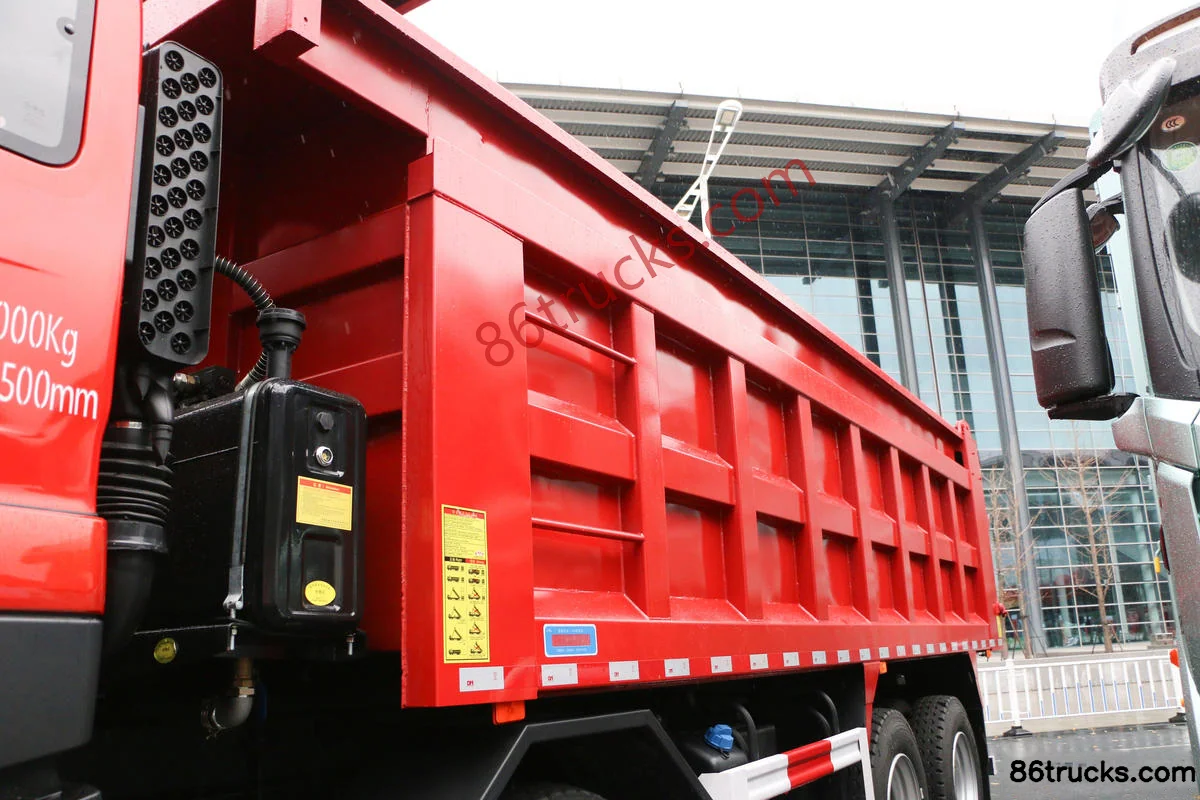

Body3

12 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck, and what does it include?

FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck export reference is about From $55,556; MSRP is ¥40M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck?

Key specs of FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck: Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck suited for?

FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck differ from other variants in the same series?

FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck belongs to FAW Jiefang QingdaoJK6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 350 hp 8X4(12 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
