Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck

Export reference
From $17,083
MSRP ¥12.3M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 6.16ton
Wheelbase:: 3400mm
Tire Size:: 9.00R20
Model code (announced):: KMC3160GC34P5
Rated payload: 9.845ton
Drive 4X2 (6 wheels)
Horsepower 156
Cargo box type: Dump type

Overview

The Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck is a Light Truck featuring 9.845t payload, 16.2t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYNF40E2 engine, 156 hp, China V emissions and 5-speed transmission transmission.

China V 156 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3160GC34P5
Drive type: 4X2
Wheelbase: 3400mm
engine: Yunnei PowerYNF40E2
transmission: 5-speed transmission
Cab length: 6.32m
Cab width: 2.48m
Cab height: 2.7m
Front track width: 1780mm
rear track: 1650mm
Curb Weight: 6.16ton
Rated payload: 9.845ton
GVWR: 16.2ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYNF40E2
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.92L
Emission standard: China V
Max output power: 115kW
Max hp: 156Horsepower
Max torque: 500N·m
Max torque speed: 1200-2000rpm
Rated speed: 2600rpm
Engine Type: 4-valve, centrally mounted injector, centrally mounted camshaft, high-pressure common rail fuel injection, rear-mounted gear train
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.9m
Cargo box width: 2.3m
Cargo box height: 0.8m
Cab parameters
Cab: Kaijie semi-sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
rear axle allowable load: 10600kg
Leaf spring count: 8/11+8
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

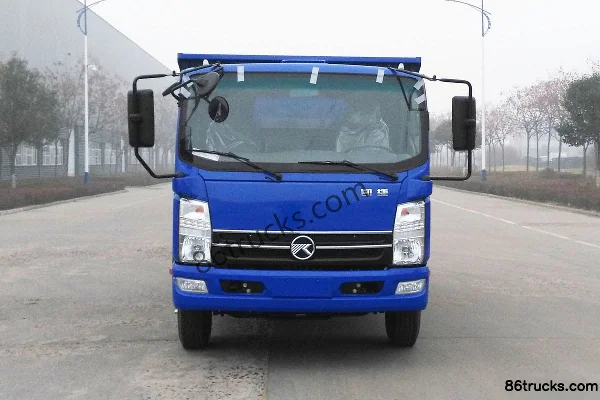

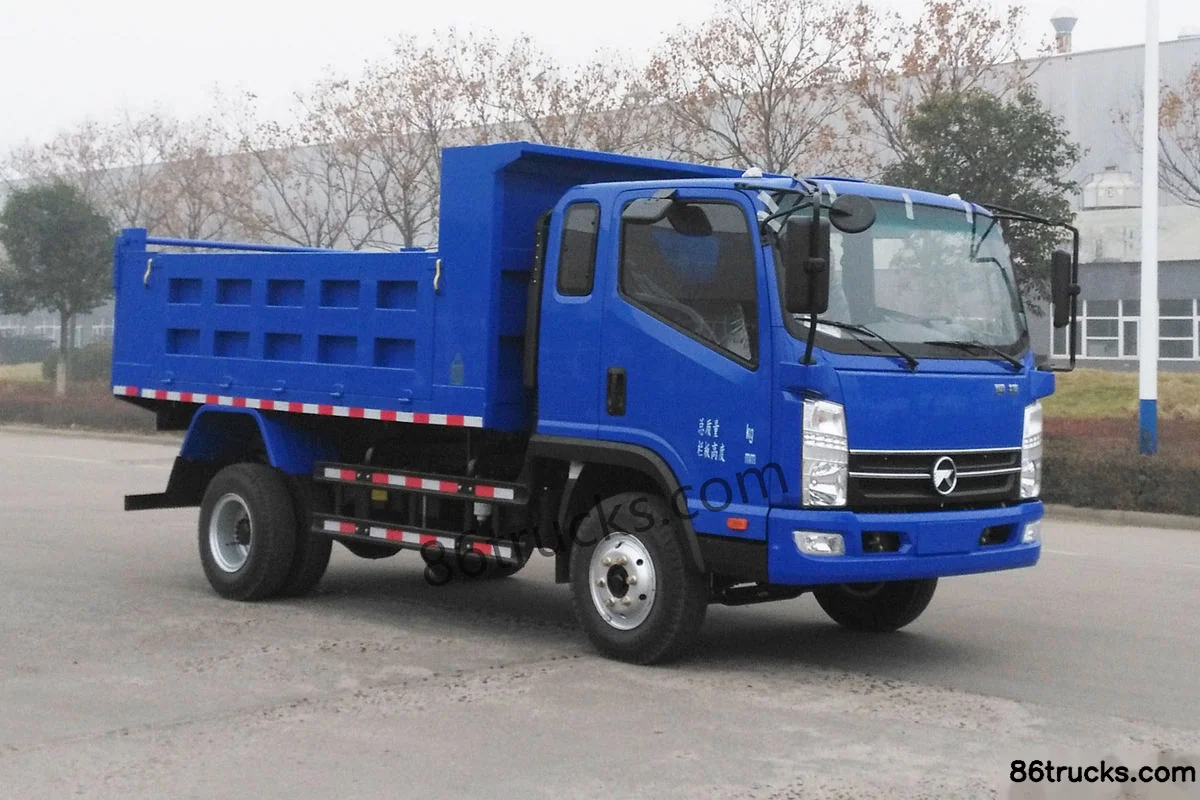

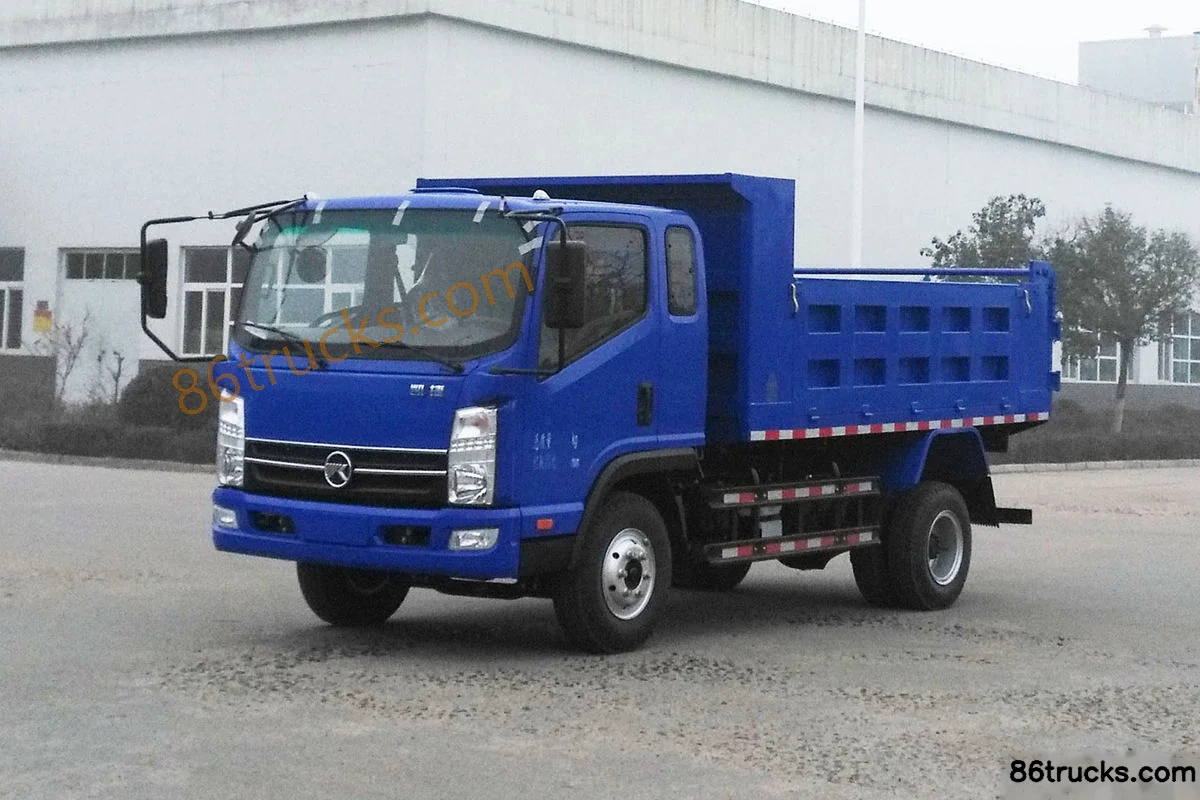

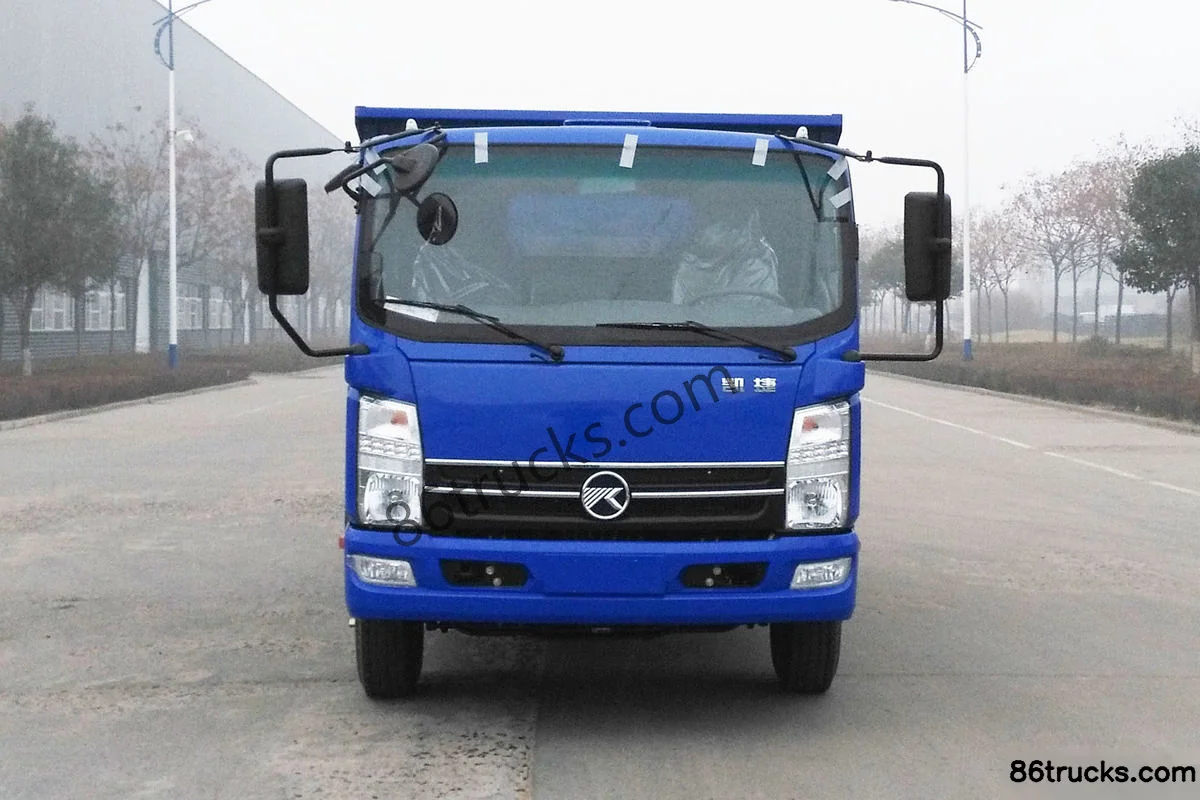

Photos

Exterior3

3 photos

FAQ

What is the export price of Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck, and what does it include?

Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck export reference is about From $17,083; MSRP is ¥12.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck?

Key specs of Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck: Drive: 4x2; Horsepower: 156 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck suited for?

Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck differ from other variants in the same series?

Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck belongs to Kama Kaijie GM6 Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie GM6 156hp 4X2(6 wheels) 3.9m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
