Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission)

Export reference
From $16,486
MSRP ¥11.87M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 3.88ton
Wheelbase:: 2800mm
Tire Size:: 235/75R17.5 16PR
Rated payload: 7.54ton
Drive 4X2 (6 wheels)
Horsepower 150
Cargo box type: Dump type

Overview

The Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) is a Medium-duty truck featuring 7.54t payload, 11.4t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD25TCIF1 engine, 150 hp, China VI emissions and WLY transmission.

China VI 150 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ3115DGJBA-59
Drive type: 4X2
Wheelbase: 2800mm
engine: Yunnei PowerD25TCIF1
transmission: WLYWLY8G45
Rear Axle Ratio: 5.833
Cab length: 5.28m
Cab width: 2.01m
Cab height: 2.195m
Front track width: 1535mm
rear track: 1552mm
Curb Weight: 3.88ton
Rated payload: 7.54ton
GVWR: 11.4ton
Origin: Changsha, Hunan; Zhucheng, Shandong
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.5L
Emission standard: China VI
Max output power: 110kW
Max hp: 150Horsepower
Max torque: 400N·m
Max torque speed: 1400-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: WLYWLY8G45
Transmission Brand: WLY
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.3m
Cargo box width: 1.9m
Cargo box height: 0.8m
Body Parameters
Lifting type: dual lift cylinders
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Driver seat type: Mechanical suspension seat
Chassis Specs
Front axle allowable load: 4000kg
Frame Dimensions: Riveted/215*65*6+4-760mm
rear axle description: 1088
rear axle allowable load: 7400kg
Axle ratio: 5.833
Leaf spring count: 8/8+5
Tire
Tire Size: 235/75R17.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
lighting configuration
daytime running lights:

Photos

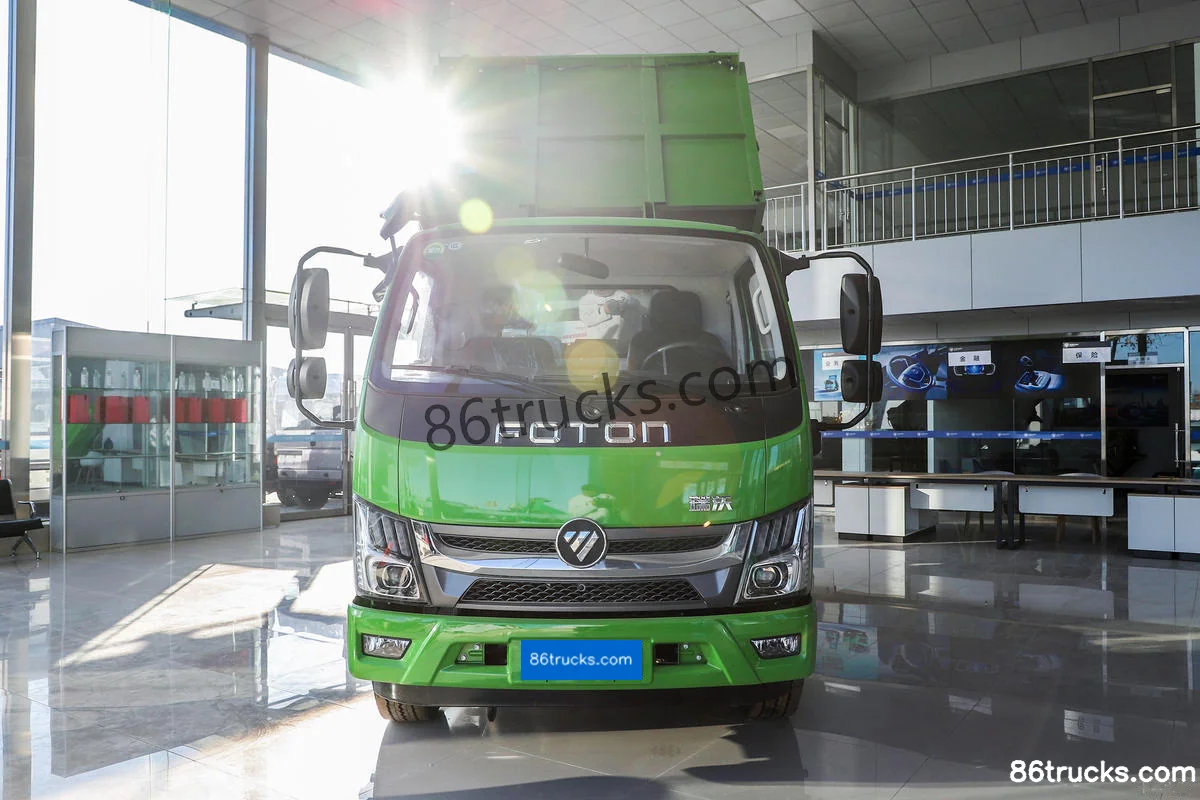

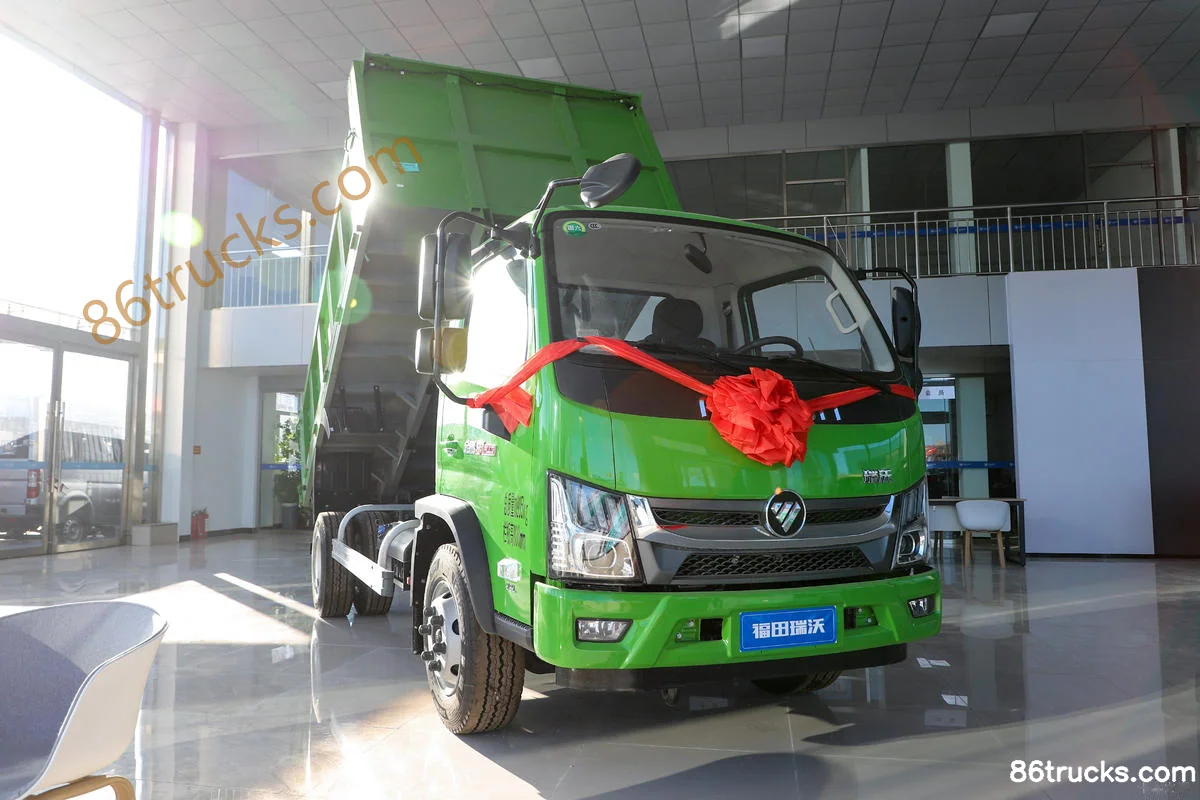

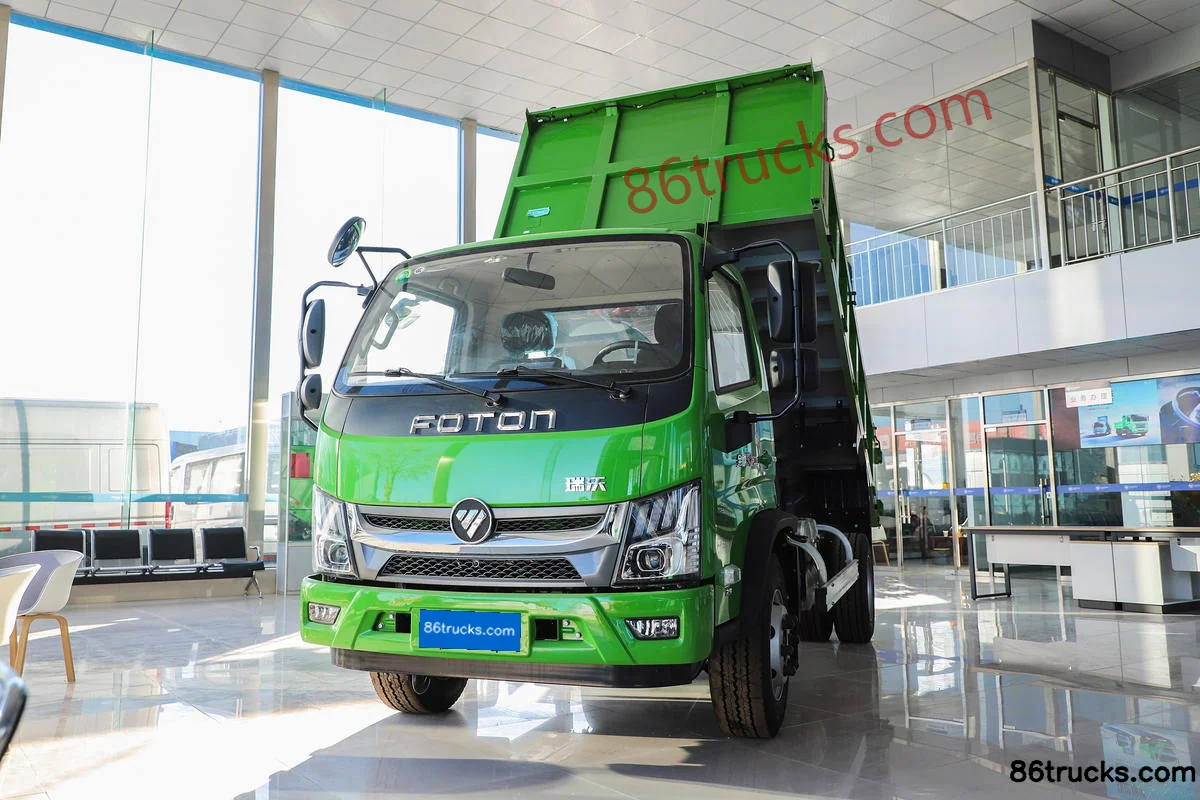

Exterior3

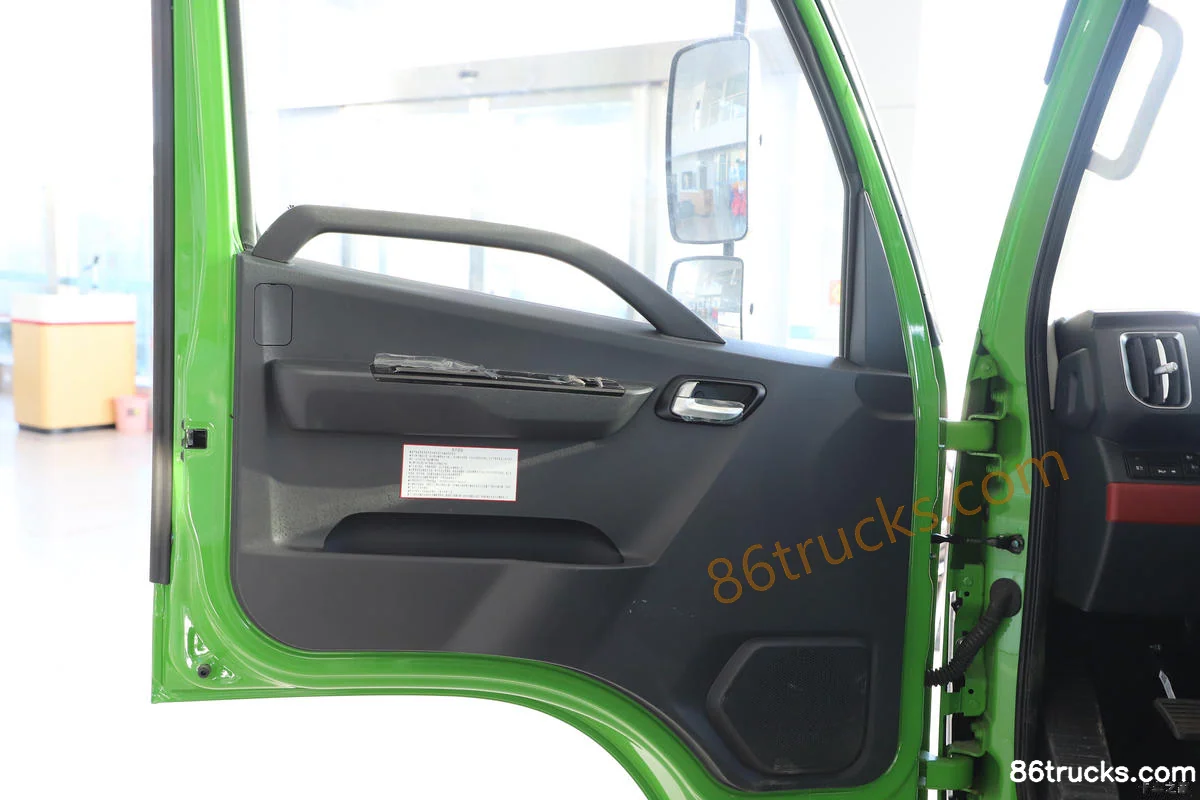

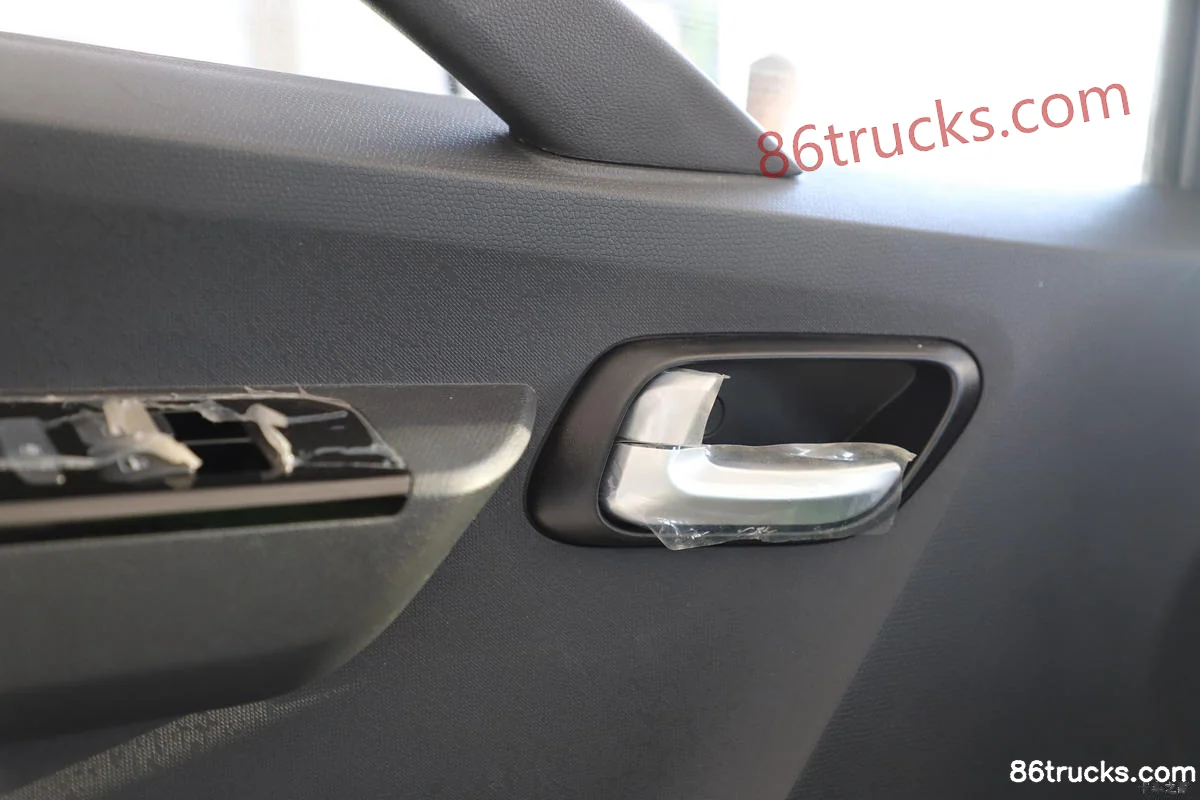

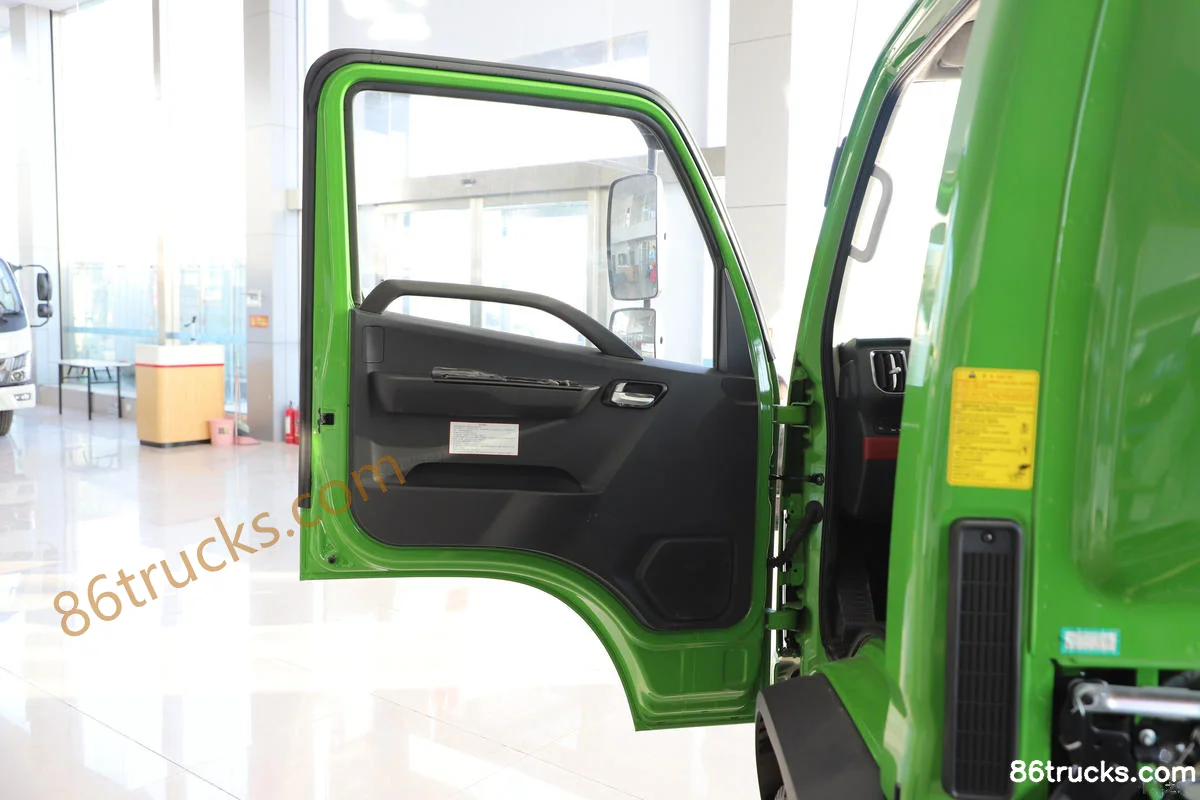

Cab3

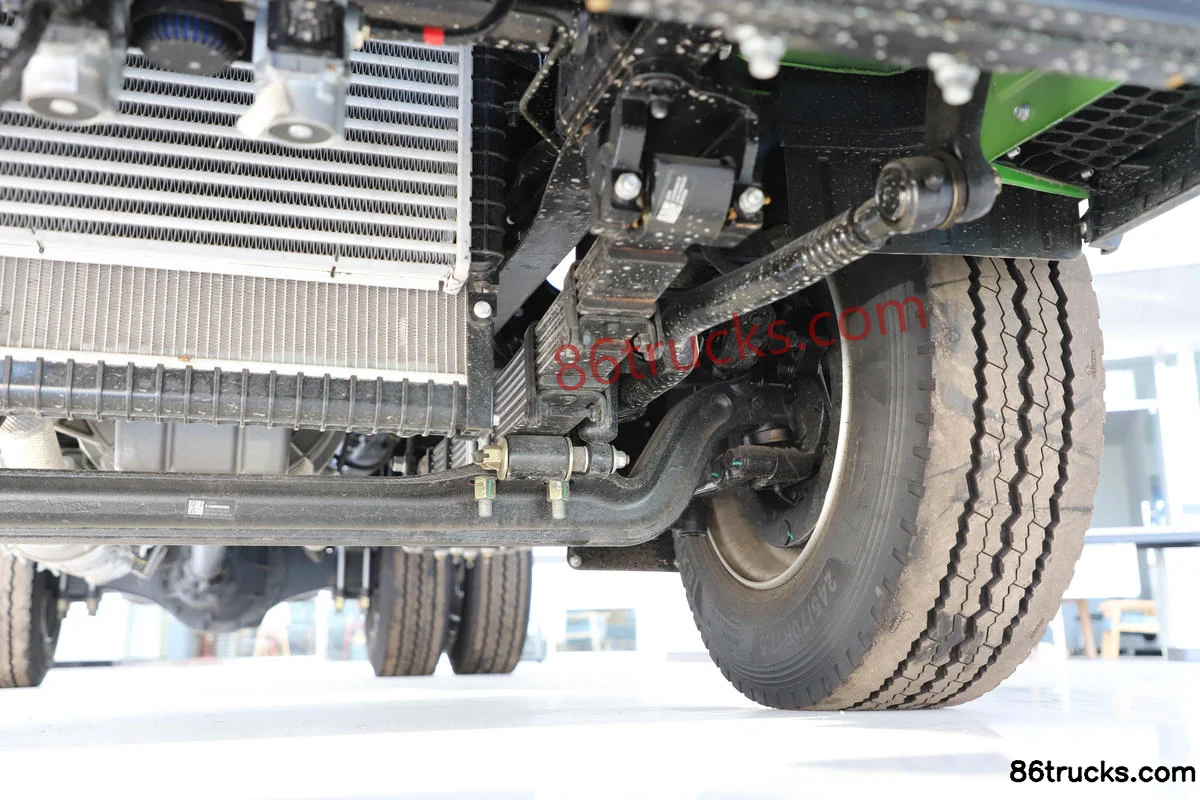

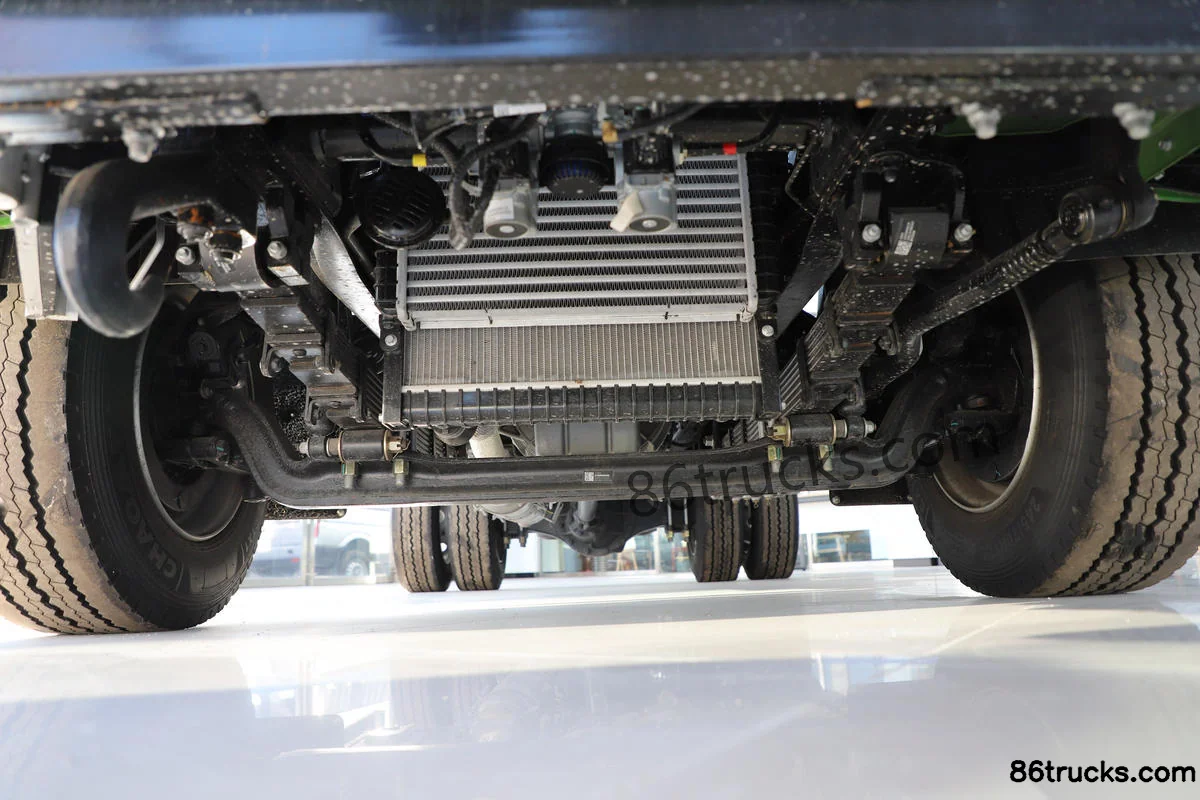

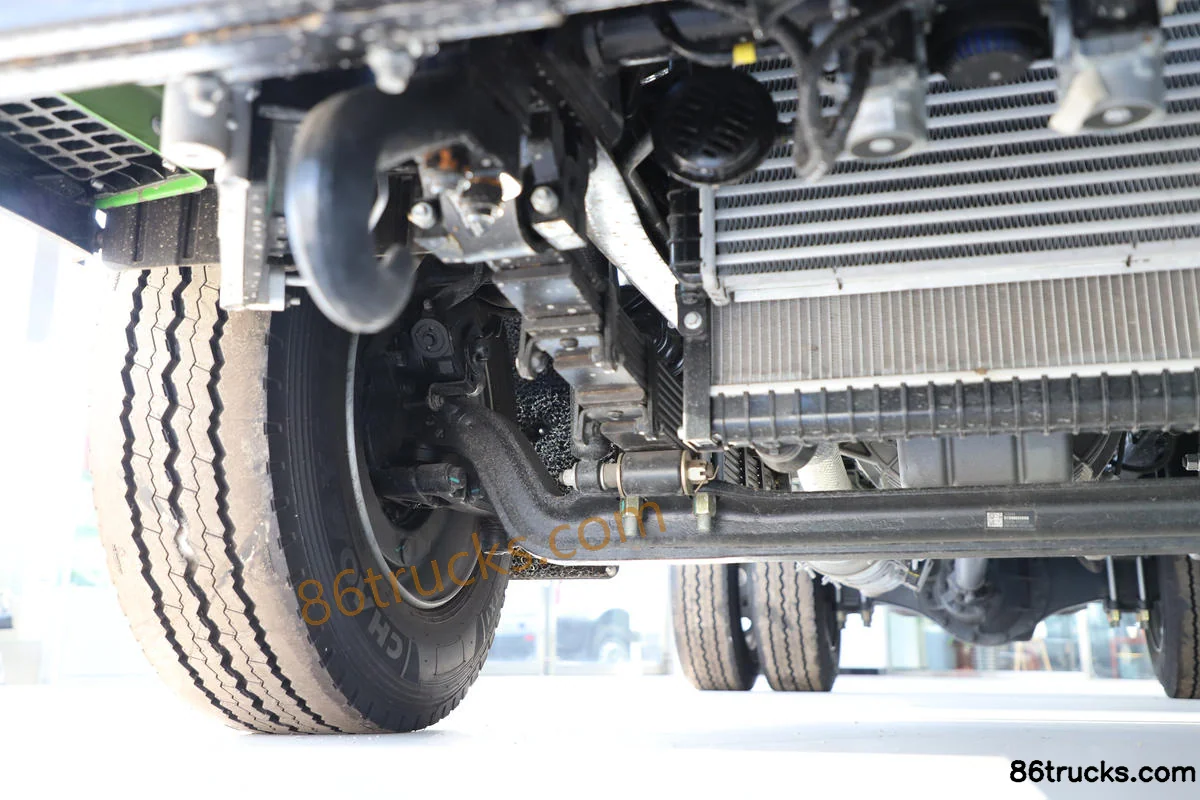

Chassis3

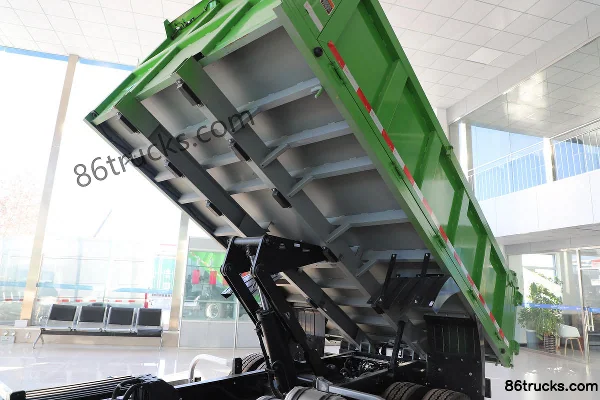

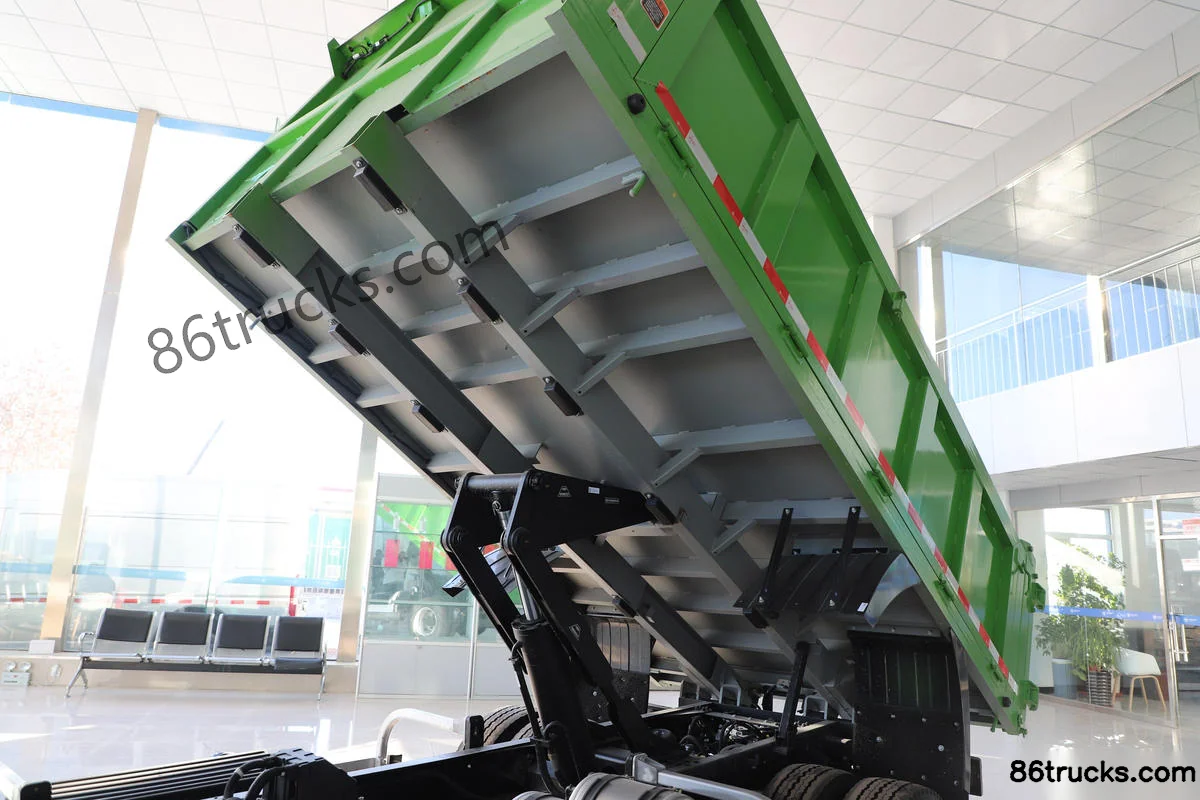

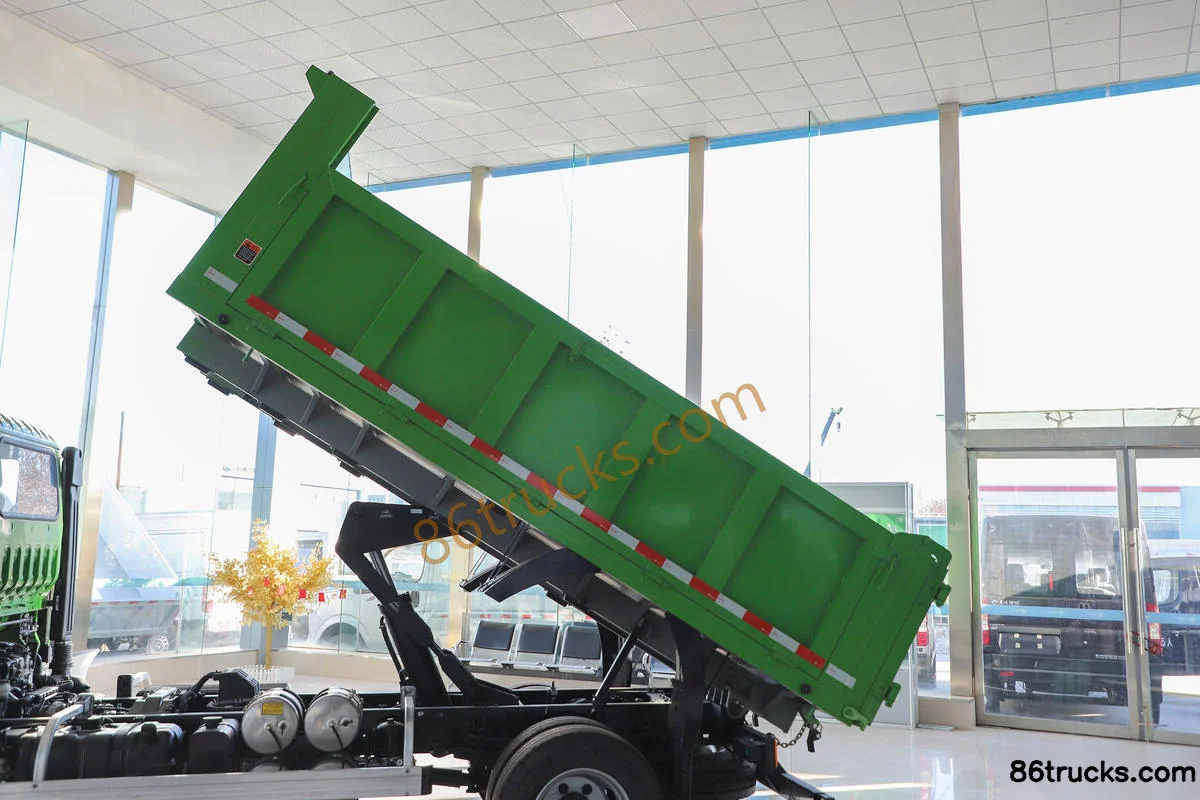

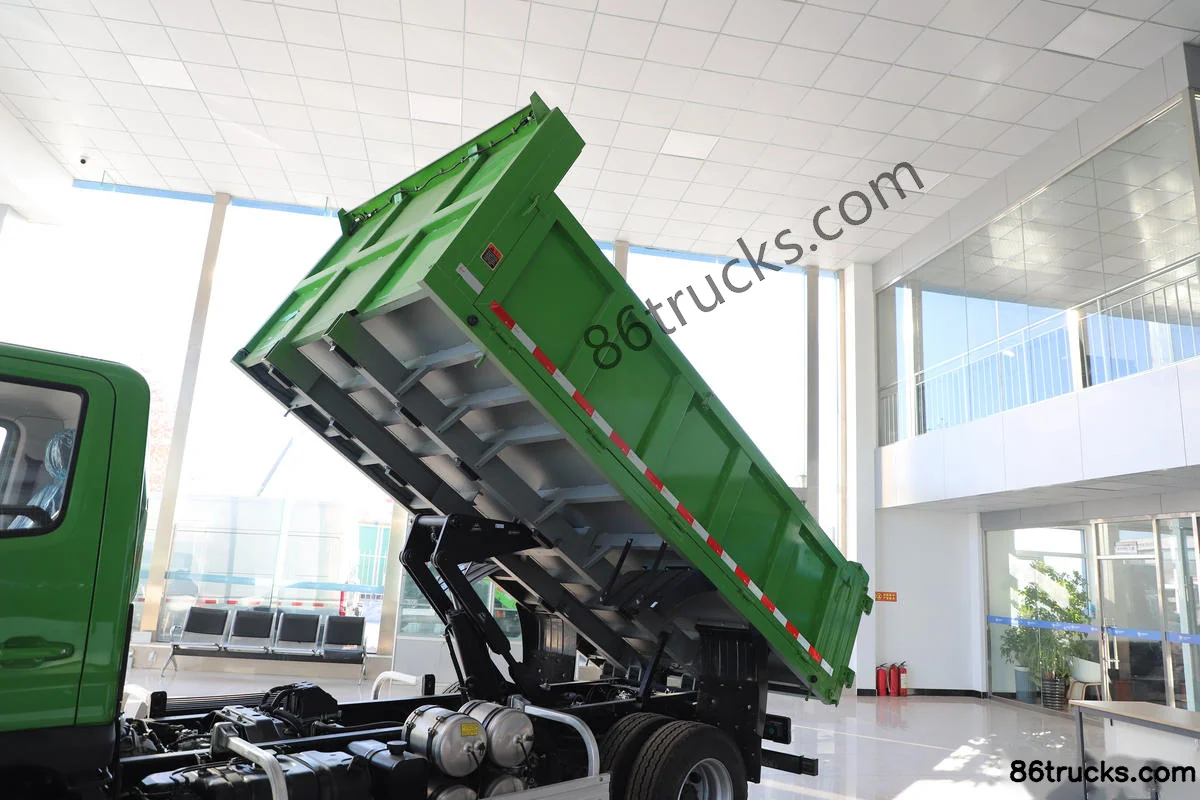

Body3

12 photos

FAQ

What is the export price of Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission), and what does it include?

Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) export reference is about From $16,486; MSRP is ¥11.87M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission)?

Key specs of Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission): Drive: 4x2; Horsepower: 150 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) suited for?

Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) differ from other variants in the same series?

Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission) belongs to Foton King S1 PLUS Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton King Kong S1 PLUS 150 hp 4X2(6 wheels) 3.3m dump truck (China VI)(8-speed transmission)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
