FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh

Export reference
MSRP N/A
Fuel: Methanol
Curb Weight:: 14.98ton
Wheelbase:: 1850+3100+1350mm
Tire Size:: 12R22.5 18PR
Cab dimensions:: 10.55×2.525×3.96m
Truck Type:: concrete mixer truck
Rated payload: 15.89ton
Drive 8X4 (12 wheels)
Horsepower 245
Emission China VI

Overview

The FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh is a concrete mixer truck featuring 15.89t payload, 14.98ton GVW, 8X4 (12 wheels) drive and Flat roof cab. On the powertrain side, it comes with 245 hp, China VI emissions and Methanol fuel.

China VI 245 Methanol 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.55×2.525×3.96m
Drive type: 8X4
Truck Type: concrete mixer truck
Front/rear track width: Front track: 2038/2038mm; Rear track: 1860/1860mm
Vehicle origin: Ma'anshan
Wheelbase: 1850+3100+1350mm
Curb Weight: 14.98ton
Rated payload: 15.89ton
Max. speed: 85km/h
Front/rear suspension: 1.5/2.75m
electric motor
Motor 1 Brand: Bosch
Motor 1 Model: TZ370XSHME03
Motor Type: Permanent magnet synchronous motor
total rated power: 280kW
Peak power: 410kW
Body Parameters
Mixing drum capacity: 7.28m³
Vehicle certification code: HN5310GJBMH41C1SHEVY
Body Brand: FARIZON
Engine parameters
Engine Model: GS06M245H-61
Number of cylinders: 6cylinder
fuel type: Methanol
Displacement: 5.91L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Chassis Specs
Chassis Series: X7M
Chassis Model: HN1310MH41C1SHEVJY
Front axle description: HL6T
rear axle description: HL460
Axle ratio: 5.286
Cab parameters
Cab: Flat roof
Tire
Tire Size: 12R22.5 18PR
Number of tires: 12pcs

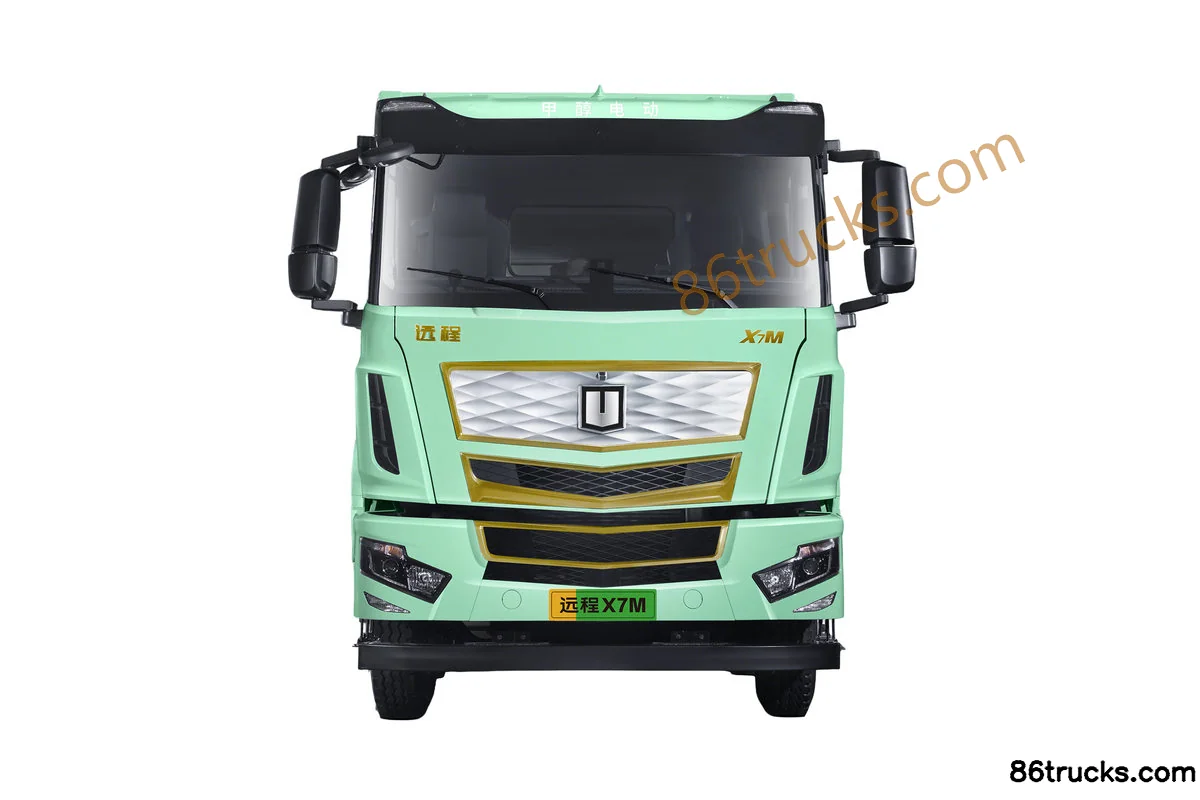

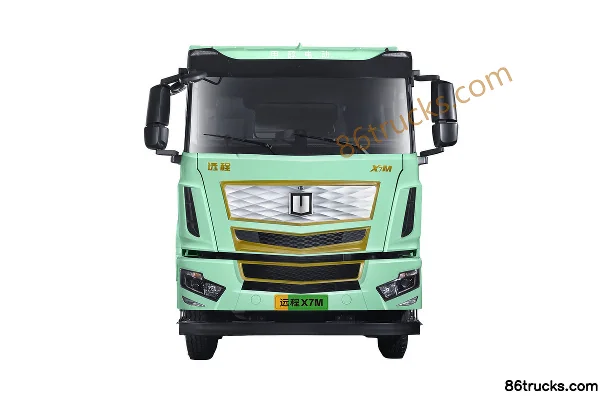

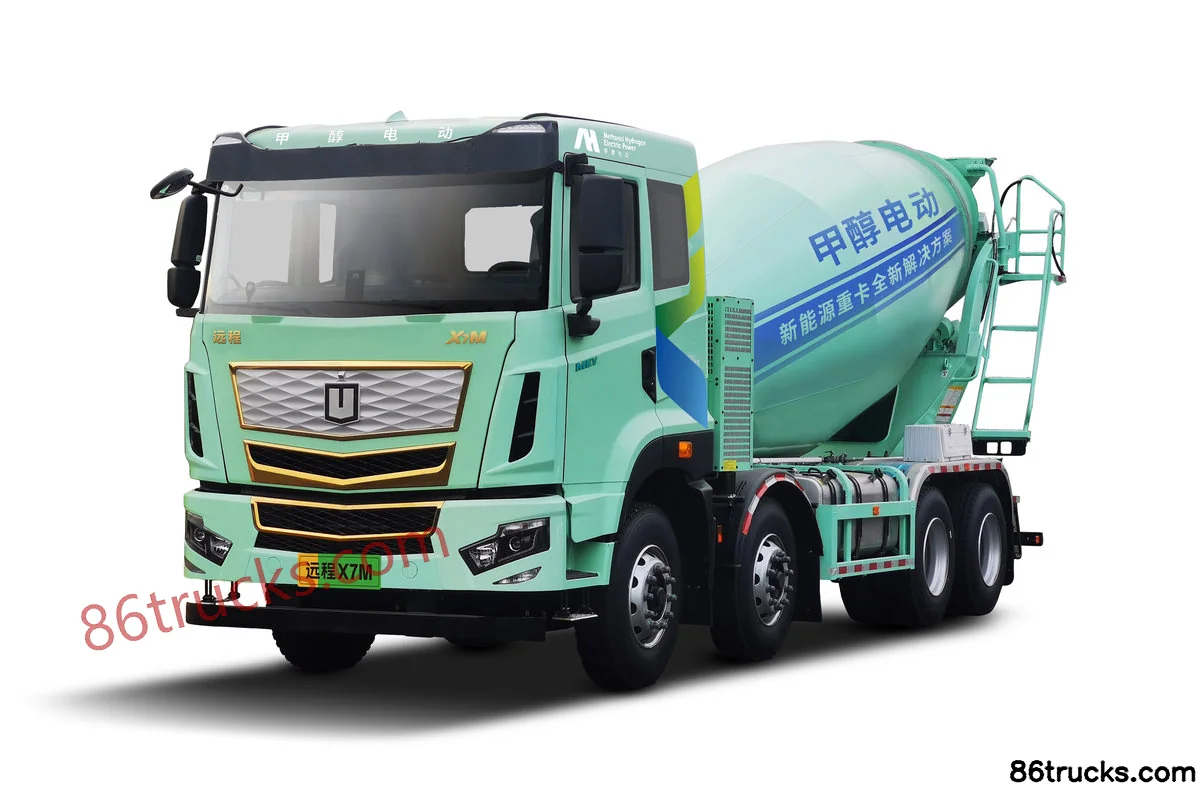

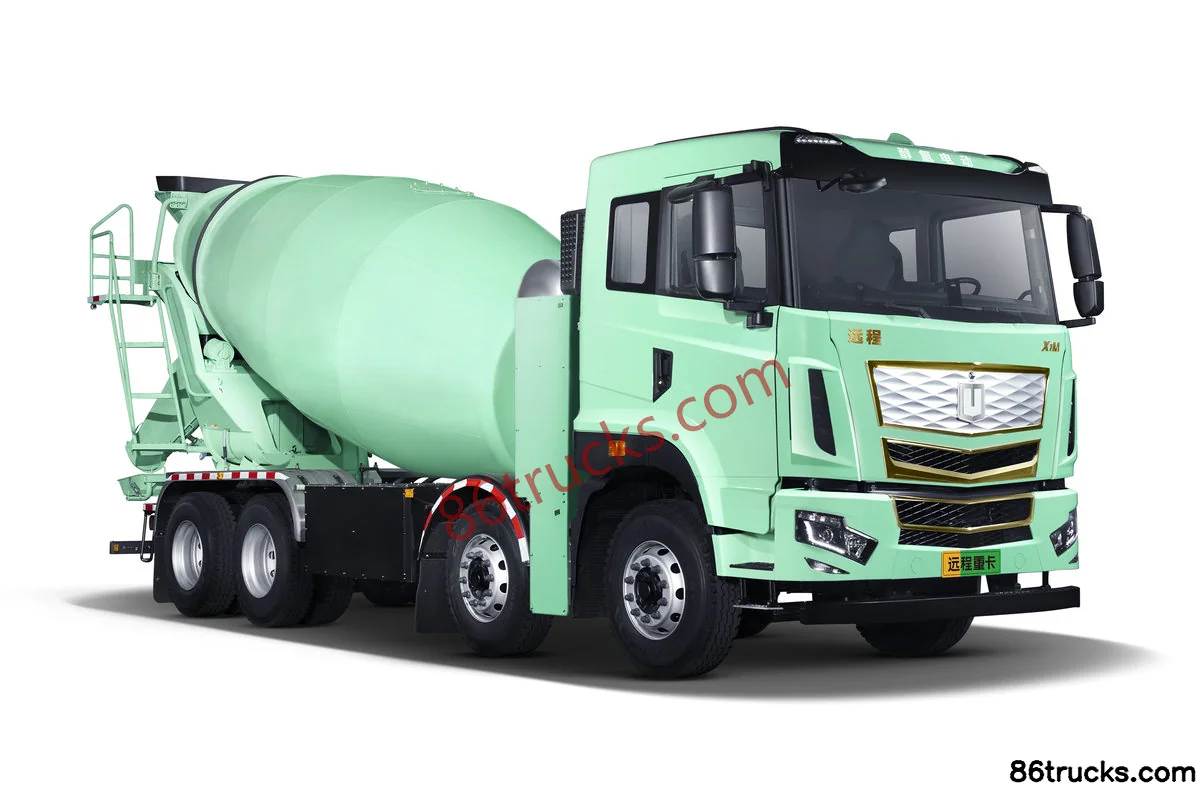

Photos

Exterior3

3 photos

FAQ

What emission standard does FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh?

Key specs of FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh: Drive: 8x4; Horsepower: 245 hp; Emission: China VI; Fuel: Methanol. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh suited for?

FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh differ from other variants in the same series?

FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh belongs to FARIZON X7M heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FARIZON X7M Composite Edition 8X4(12 wheels) 7.28m³ Methanol Plug-in Hybrid Range-Extender Concrete Mixer Truck Xuanwu 65kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
