Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck

Export reference
MSRP N/A
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.8ton
Wheelbase:: 1800+3000mm
Tire Size:: 11.00R20 18PR

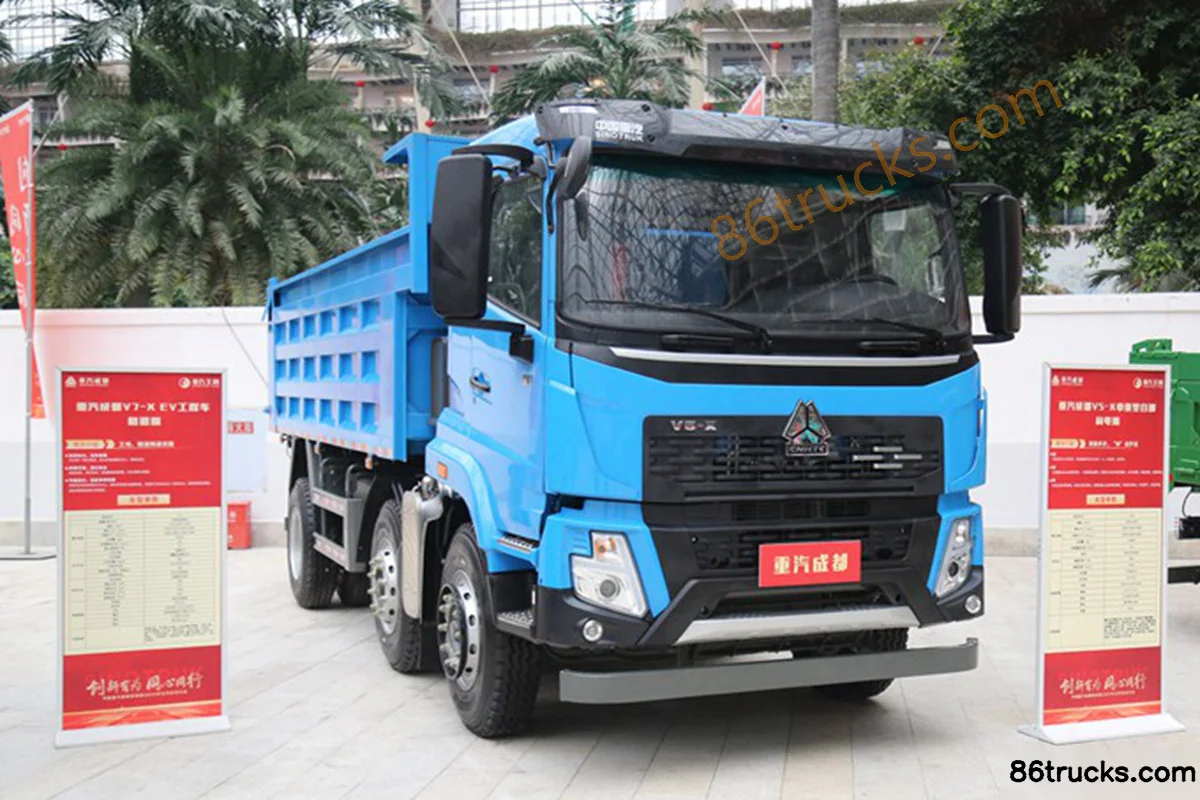

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck exterior
View more photos (12)
Rated payload: 15.5ton
Drive 6X2 (8 wheels)
Horsepower 245
Cargo box length: 5.3m

Overview

The Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck is a Heavy truck featuring 15.5t payload, 24.495t GVW, 5.3m cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a WeichaiWP7H245E62 engine, 245 hp, China VI emissions and Fast Gear transmission.

China VI 245 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3244N46C7F1B
Drive type: 6X2
Wheelbase: 1800+3000mm
engine: WeichaiWP7H245E62
transmission: Fast Gear10JS90-B
Rear Axle Ratio: 4.8
Cab length: 8.165m
Cab width: 2.46m
Cab height: 3.08m
Front track width: 1920/1920mm
rear track: 1850mm
Curb Weight: 8.8ton
Rated payload: 15.5ton
GVWR: 24.495ton
Origin: Chengdu, Sichuan
tonnage class: Heavy truck
Approach angle: 17°
departure angle: 14°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP7H245E62
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.8L
Emission standard: China VI
Max output power: 180kW
Max hp: 245Horsepower
Max torque: 1000N·m
Max torque speed: 1100-1700rpm
Rated speed: 2100rpm
Engine Type: CR+DOC+DPF+Hi-SCR
Transmission Parameters
Transmission Model: Fast Gear10JS90-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 5.3m
Cargo box width: 2.3m
Cargo box height: 1.5m
Cab parameters
Cab suspension: Four-point air suspension
Cab width: 2260mm
Cab tilting: Electric
seating capacity: 3Personnel
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 220L
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 6500/6495kg
Frame Dimensions: 280x10-(940-850)mm
rear axle description: 16T
rear axle allowable load: 11500kg
Axle ratio: 4.8
Leaf spring count: 11/11/11+9
Tire
Tire Size: 11.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:

Photos

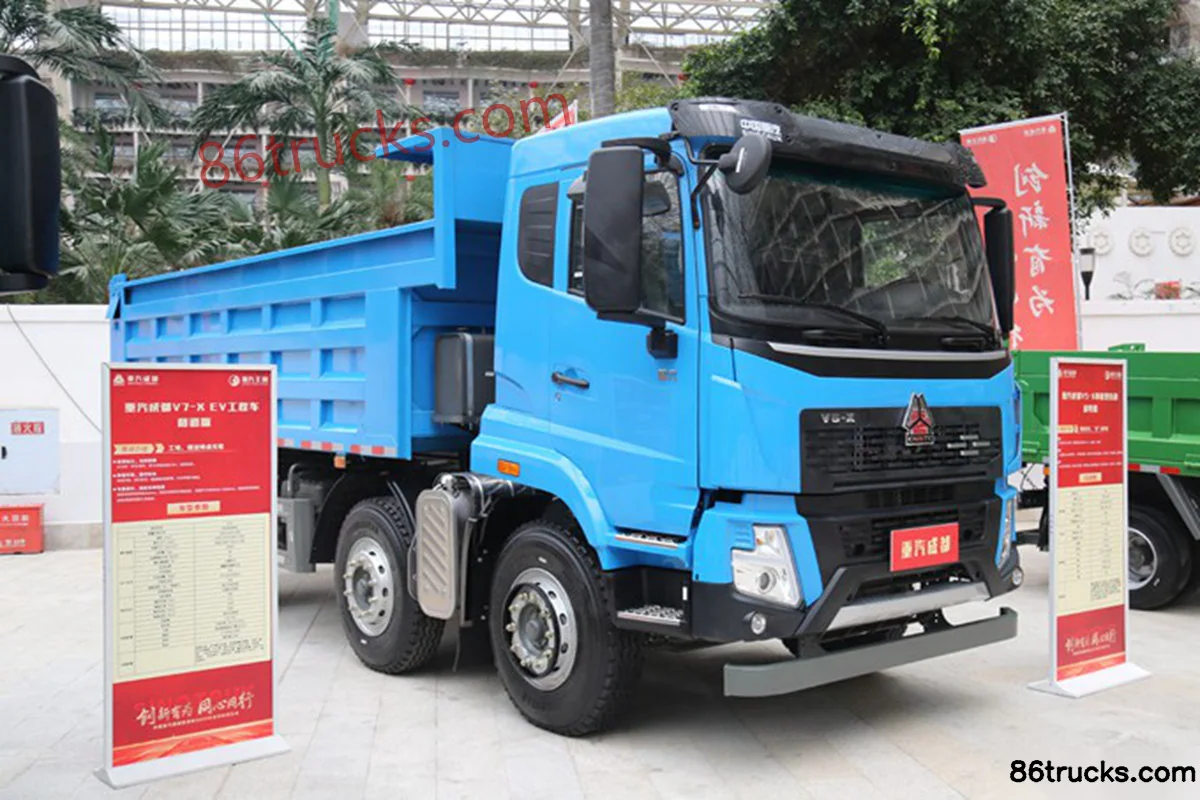

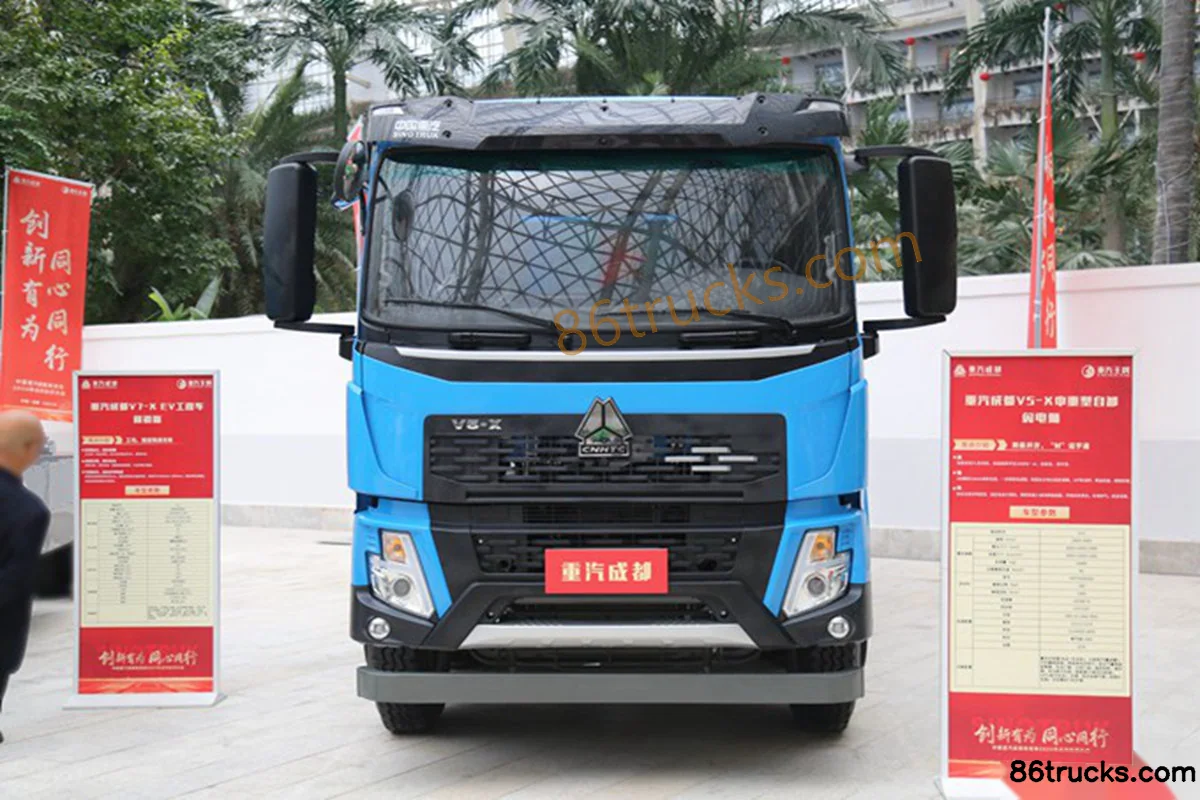

Exterior3

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Exterior (1) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Exterior (2) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Exterior (3) | 86Trucks

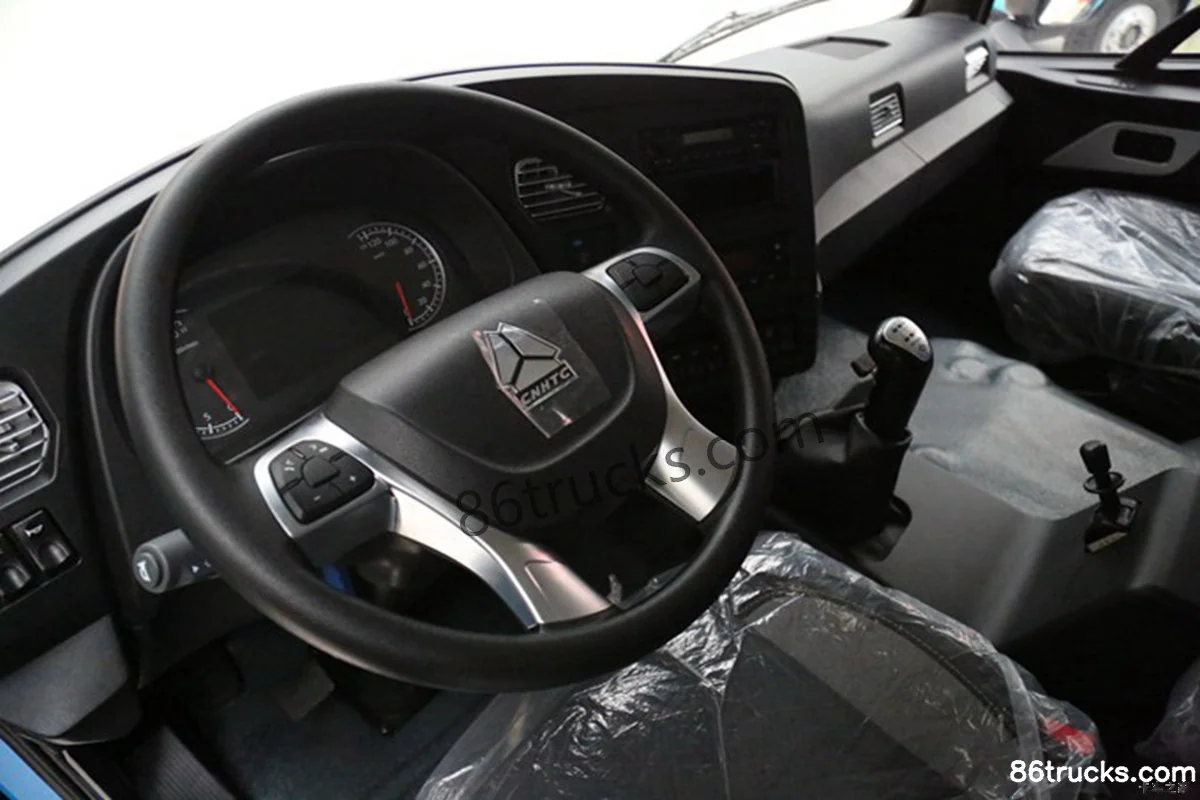

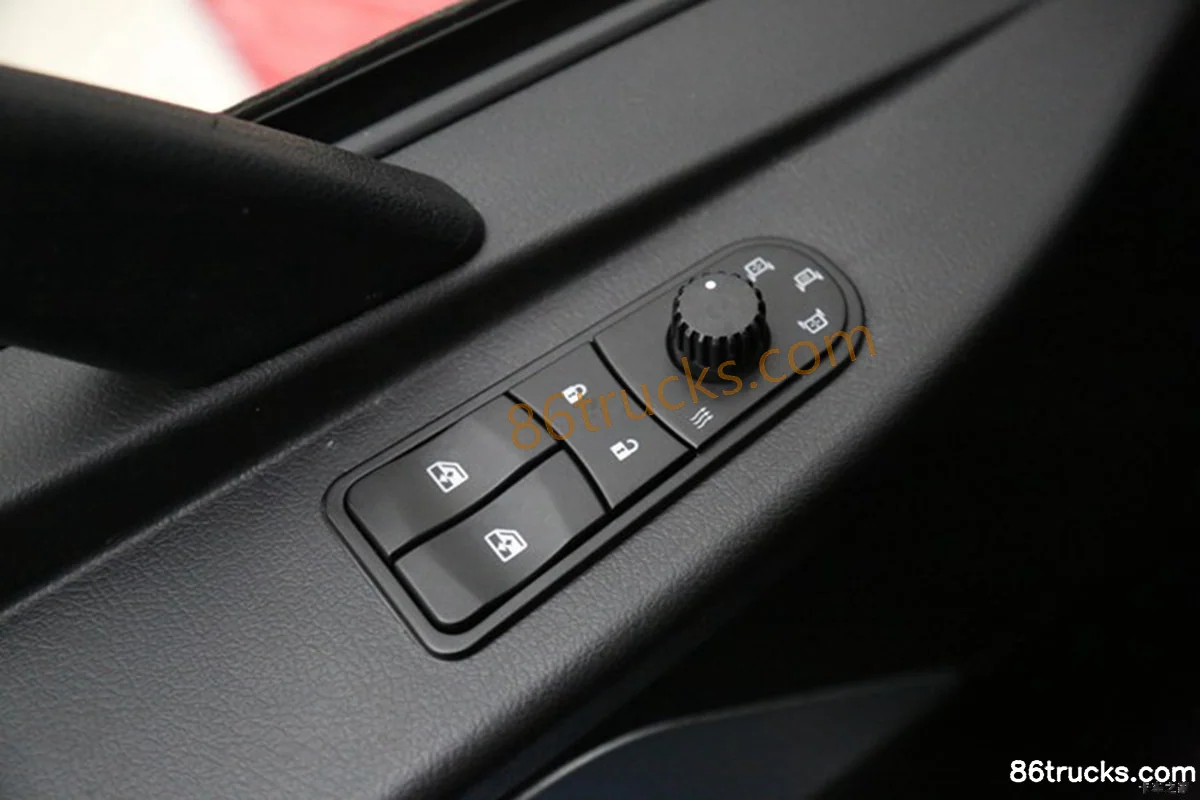

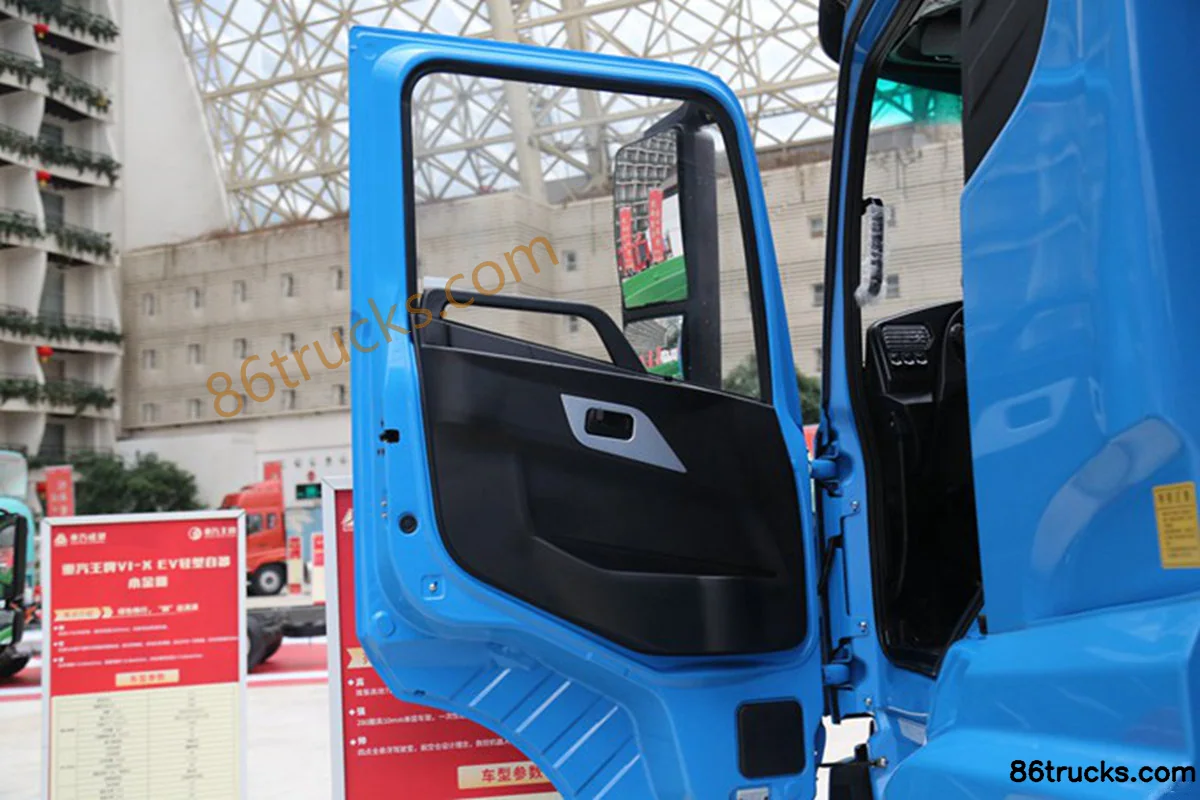

Cab3

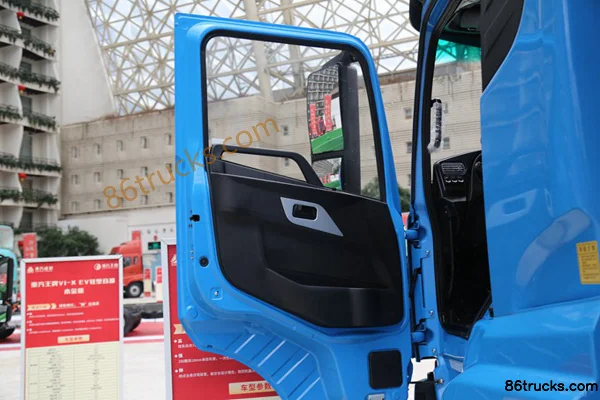

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Cab (1) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Cab (2) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Cab (3) | 86Trucks

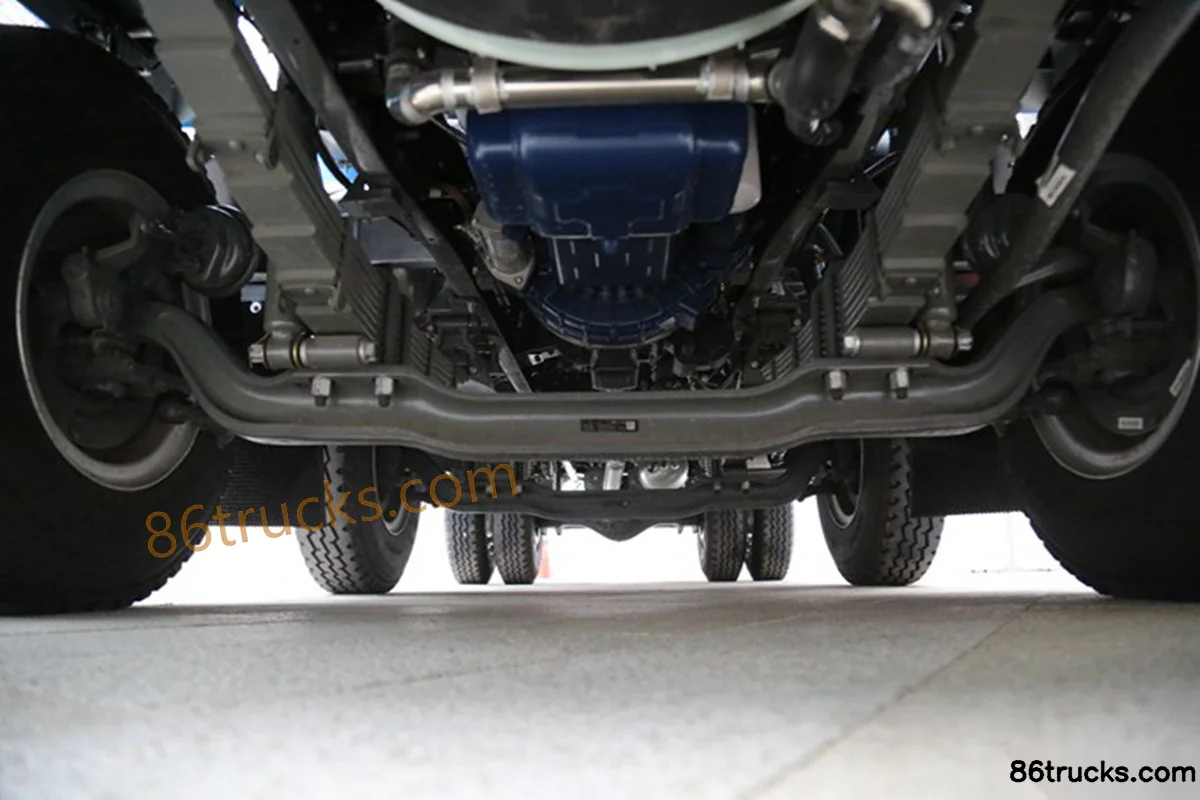

Chassis3

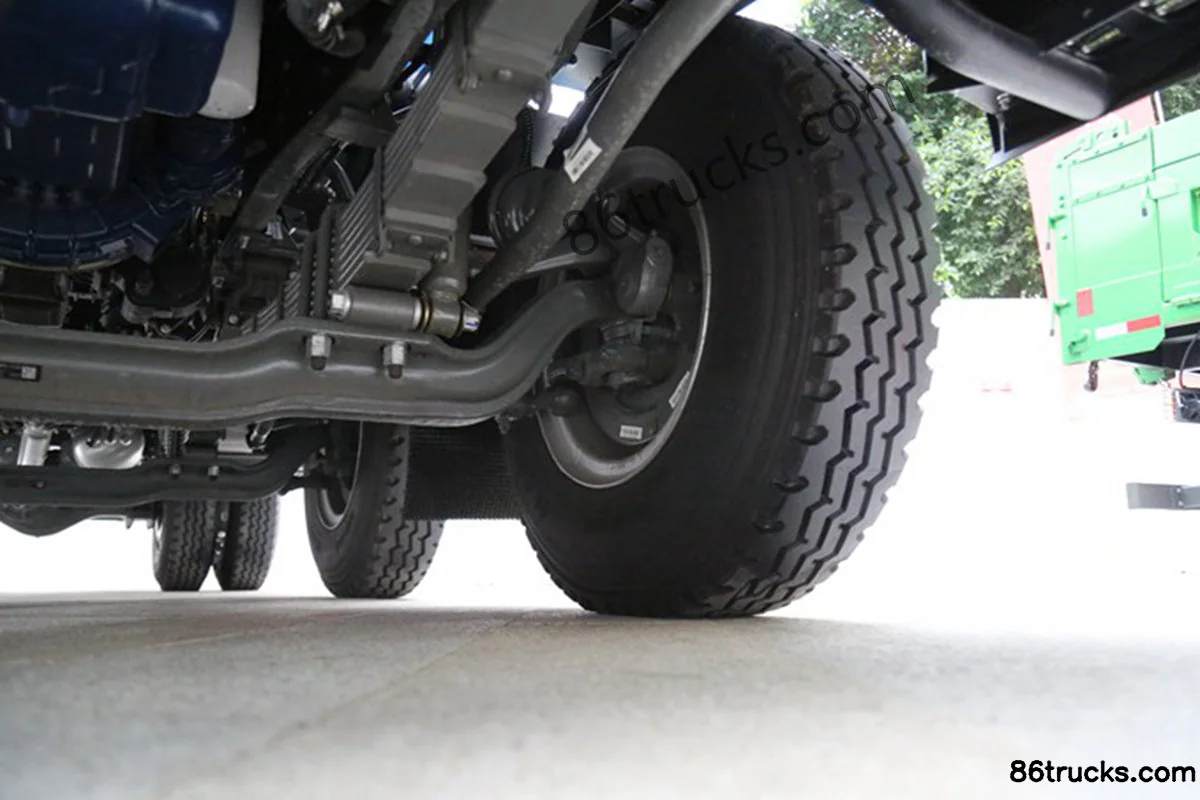

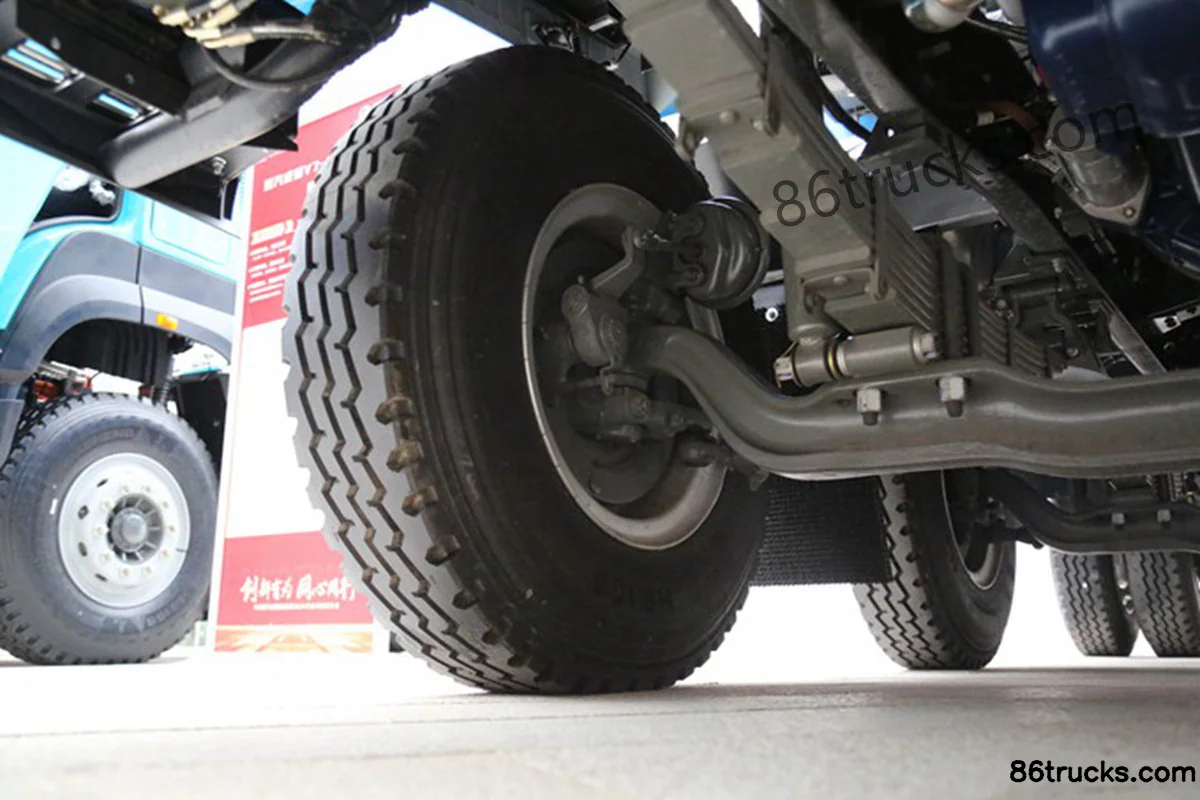

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Chassis (1) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Chassis (2) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Chassis (3) | 86Trucks

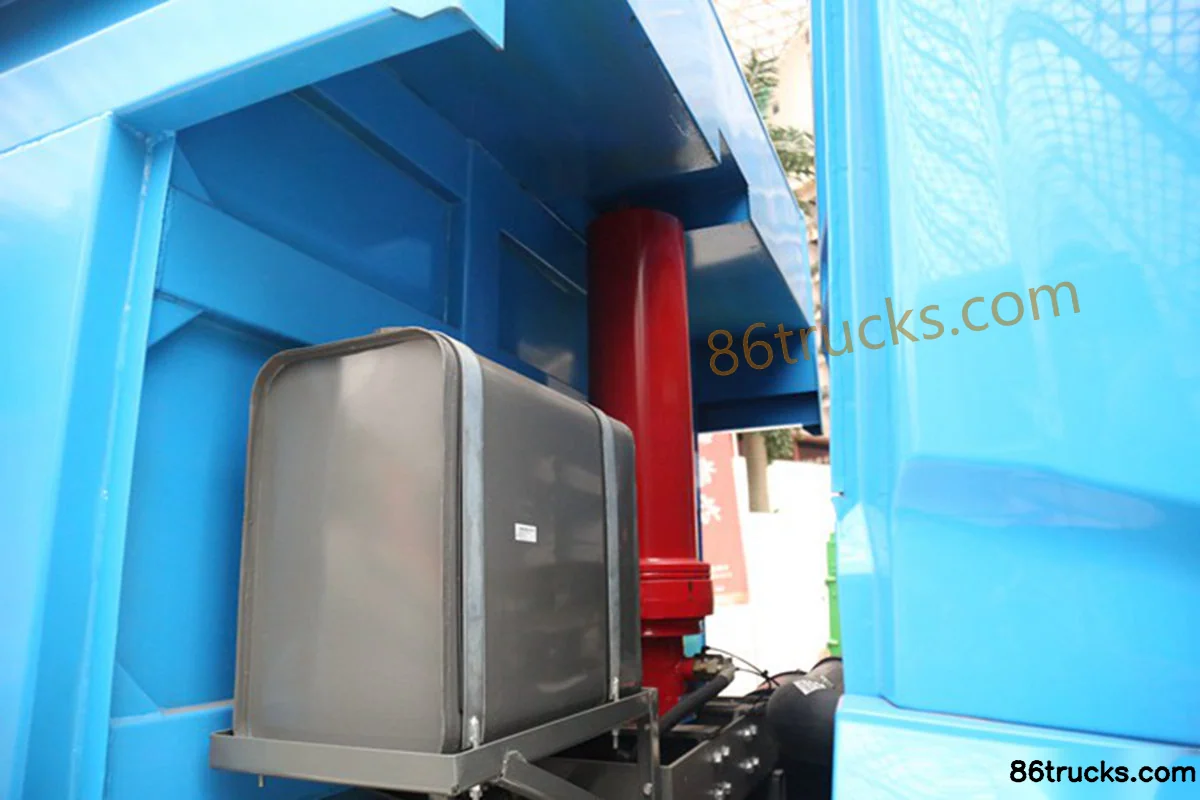

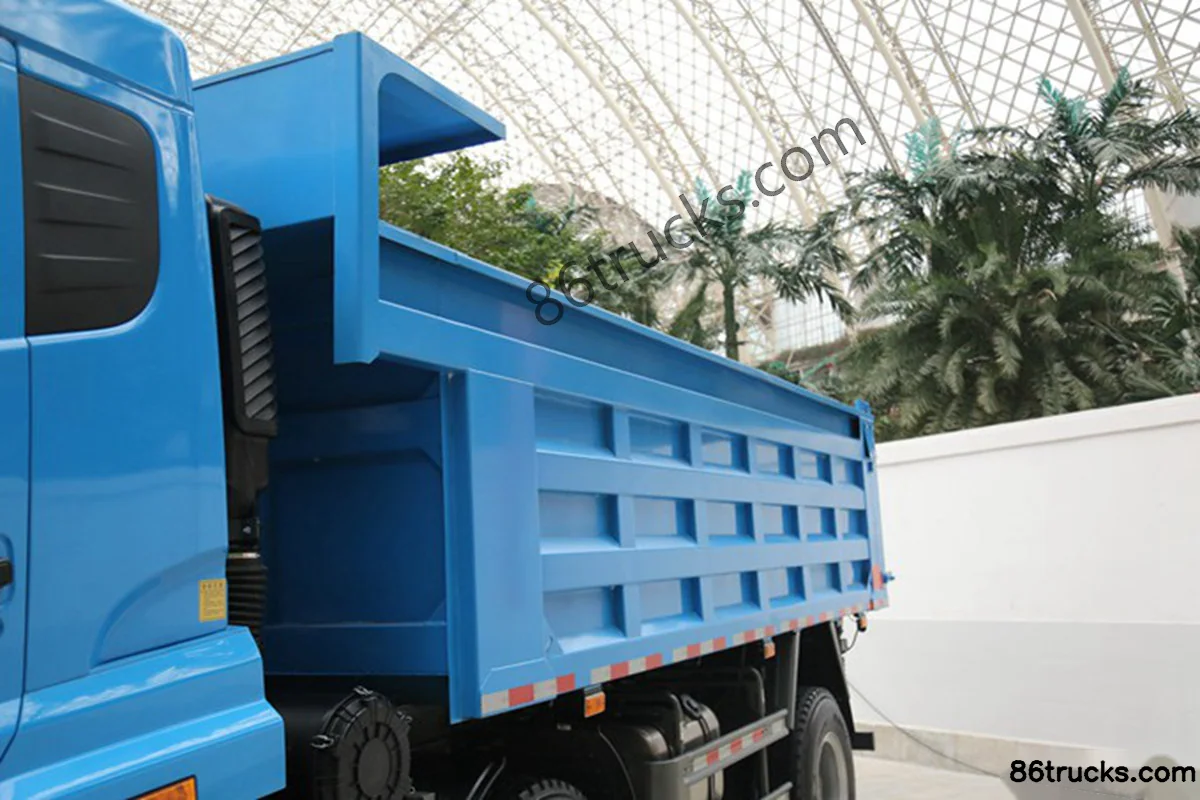

Body3

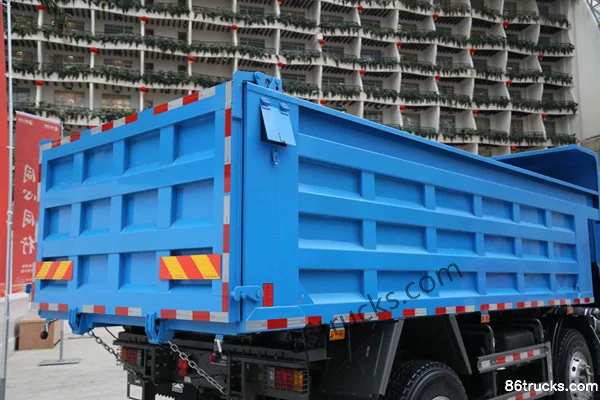

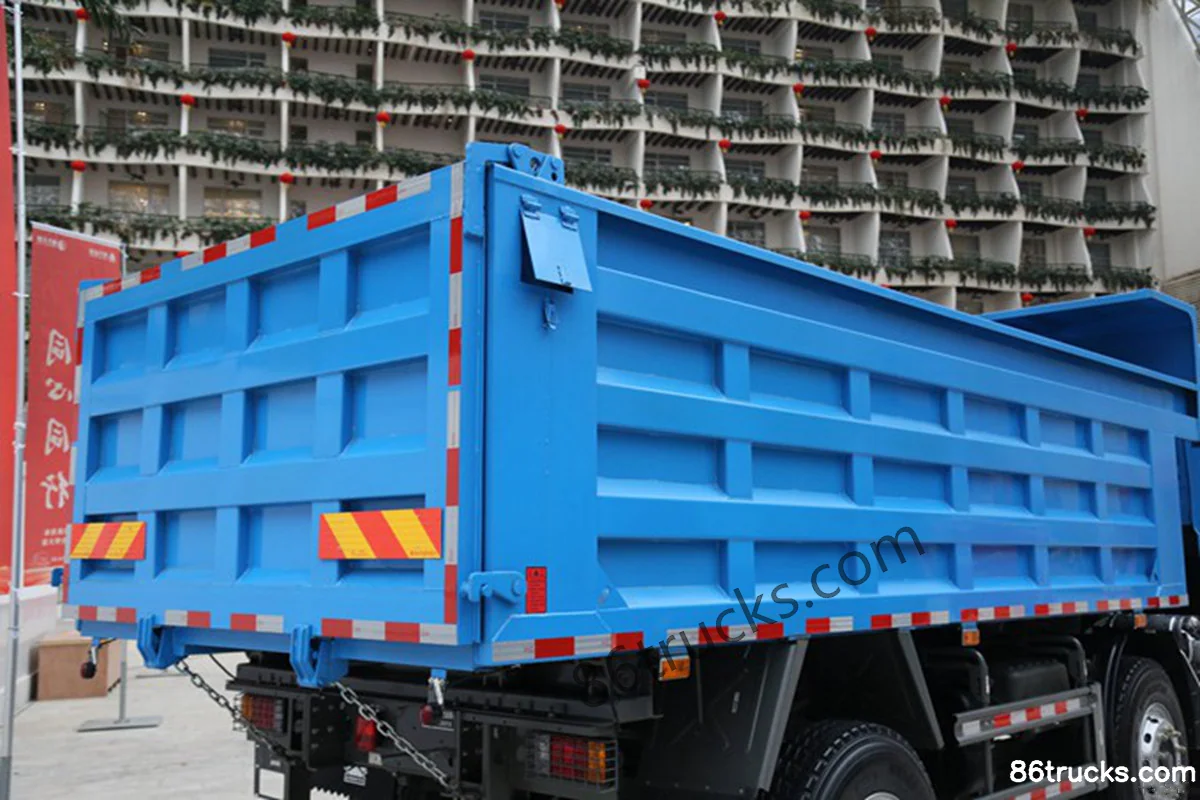

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Body (1) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Body (2) | 86Trucks Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck?

Key specs of Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck: Drive: 6x2; Horsepower: 245 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck suited for?

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck differ from other variants in the same series?

Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck belongs to Sinotruk HOWO V5-X Medium Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO V5-X 245hp 6X2(8 wheels) 5.3m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
