Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck

Export reference
From $23,333
MSRP ¥16.8M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 4.56ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 18PR
Model code (announced):: FD3110W63K6-1
Rated payload: 6.445ton
Drive 4X2 (6 wheels)
Horsepower 158
Cargo box thickness: side2 bottom3 channel beam, work body dump rear side width

Overview

The Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck is a Medium-duty truck featuring 6.445t payload, 11.2t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF3 engine, 158 hp, China VI emissions and Changtai 845X transmission.

China VI 158 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD3110W63K6-1
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerD30TCIF3
transmission: Changtai 845X
Rear Axle Ratio: 5.286
Cab length: 5.995m
Cab width: 2.3m
Cab height: 2.545m
Front track width: 1760mm
rear track: 1670mm
Curb Weight: 4.56ton
Rated payload: 6.445ton
GVWR: 11.2ton
Origin: Rizhao, Shandong
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 20°
Remarks: Steering wheel material: magnesium-aluminum alloy/steel.
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF3
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 116kW
Max hp: 158Horsepower
Max torque: 400N·m
Max torque speed: 1100-2800rpm
Rated speed: 2800rpm
Transmission Parameters
Transmission Model: Changtai 845X
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
hydraulic cylinder brand & model: 100、110
Cargo box thickness: side2 bottom3 channel beam, work body dump rear side width
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.75m
Cargo box width: 2.1m
Cargo box height: 0.6m
Cab parameters
Cab width: 2000mm
seating capacity: 3Personnel
Cab tilting: Manual
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 4000kg
rear axle description: 1093A
rear axle allowable load: 7200kg
Axle ratio: 5.286
Leaf spring count: 8/10+7
Aluminum wheels:
Tire
Tire Size: 8.25R16LT 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
ASR traction control:
interior configuration
steering wheel adjustment: Manual
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Diesel primary filter heating:
Service brake
Engine brake: Yes
Parking brake: Spring brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
smart configuration
Telematics System:

Photos

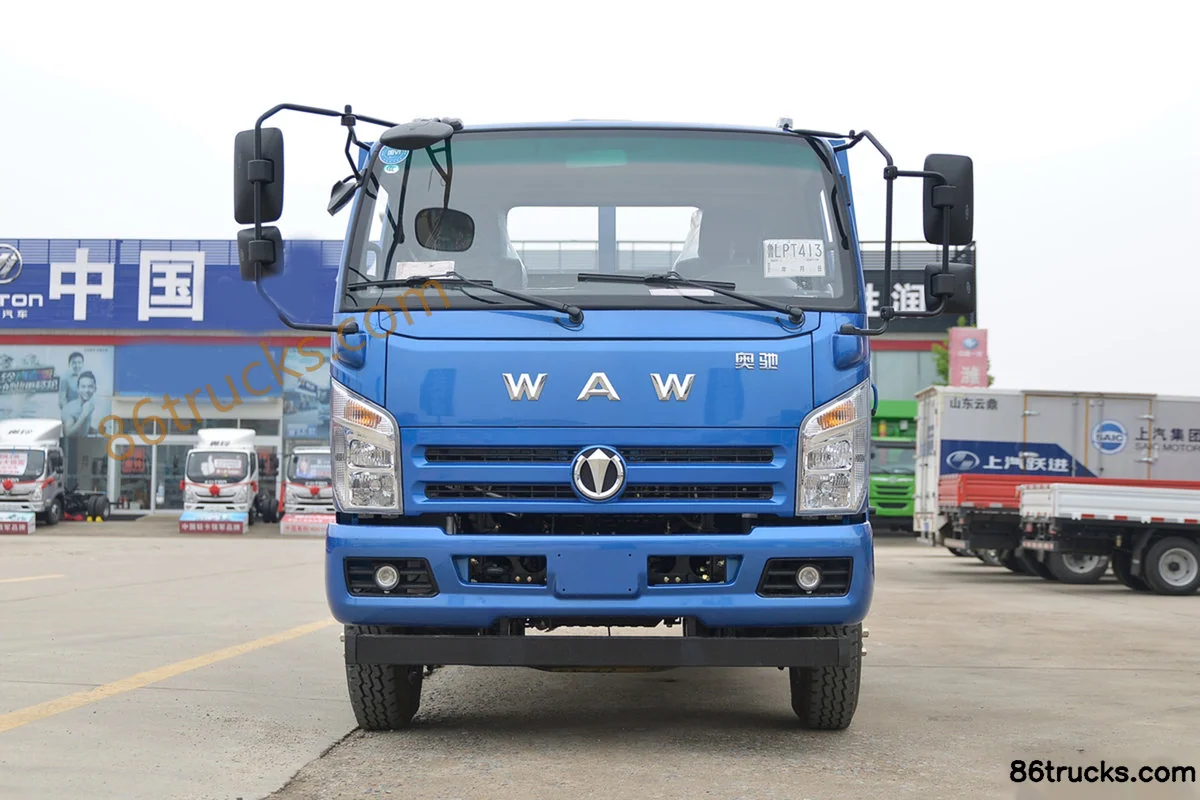

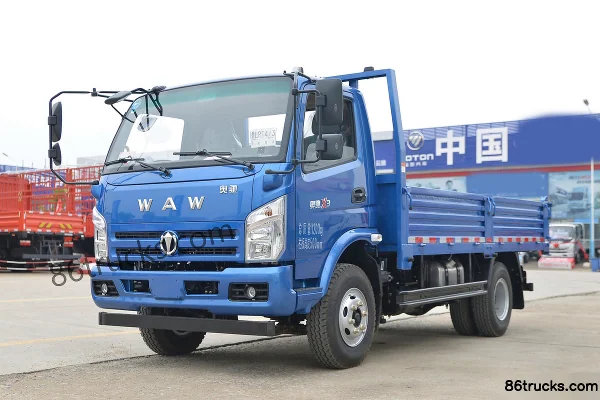

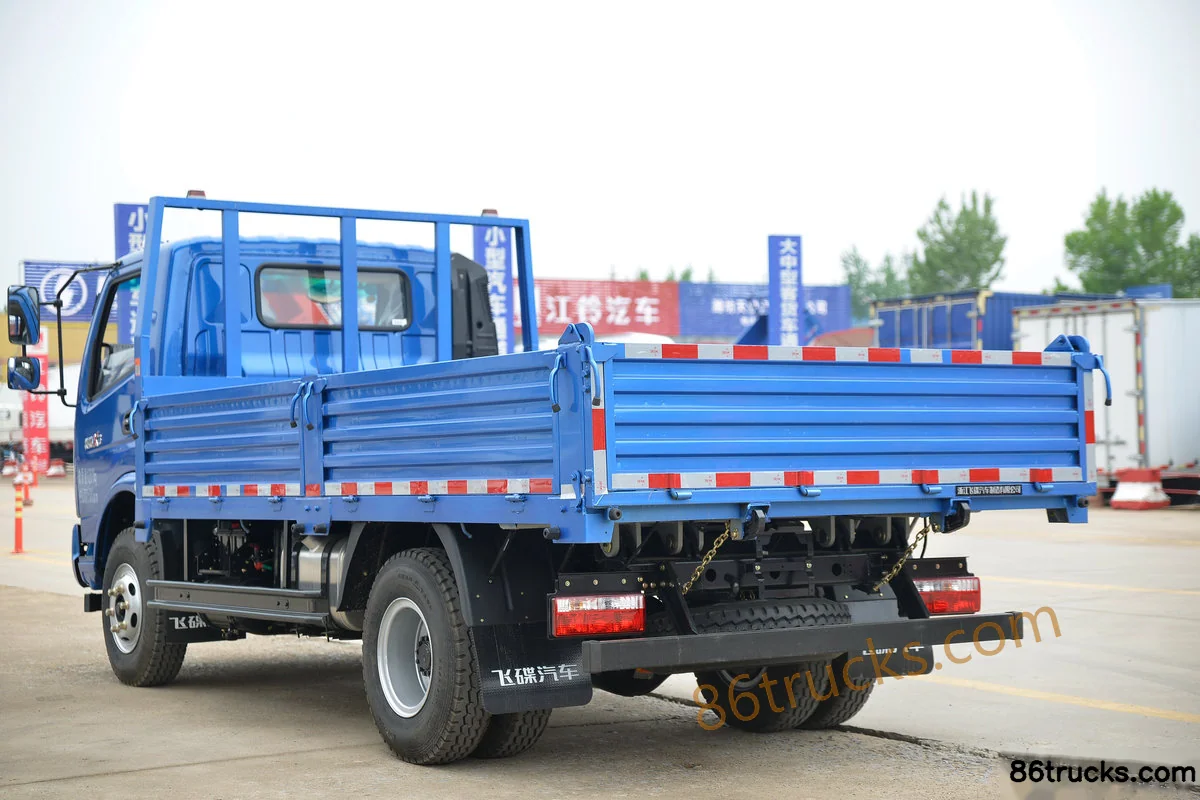

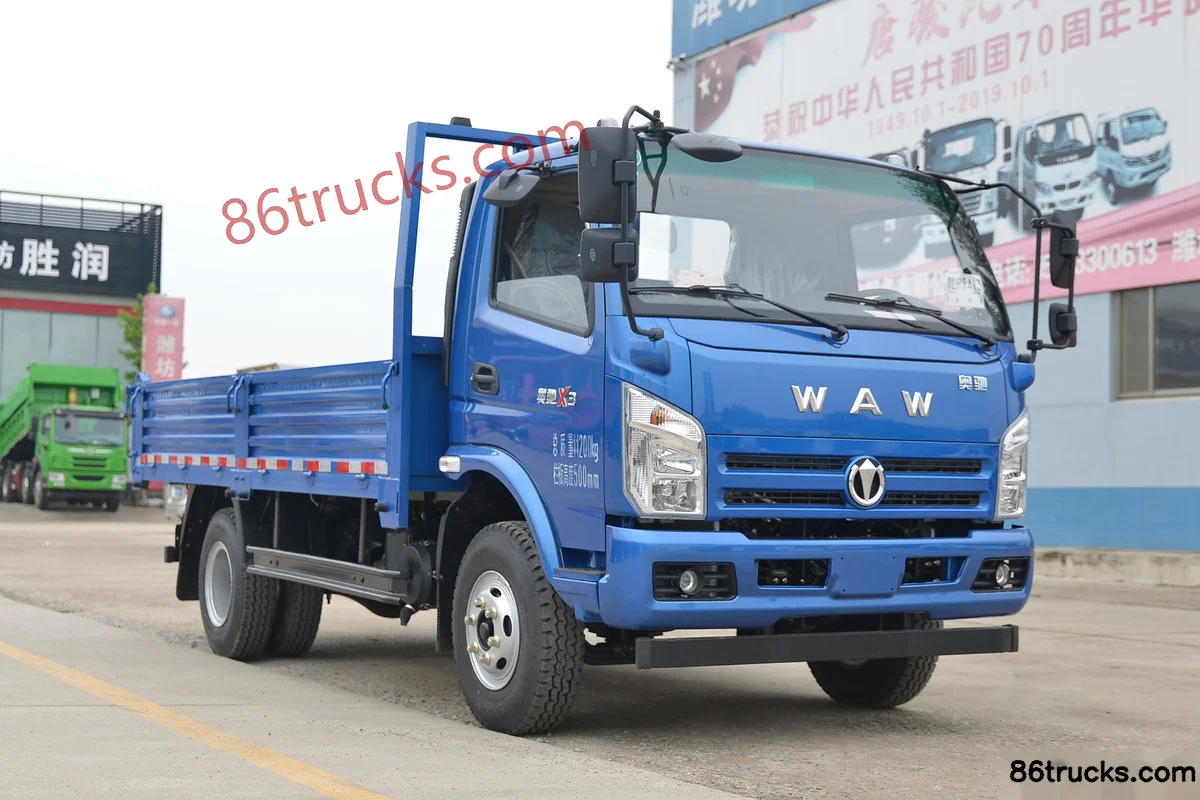

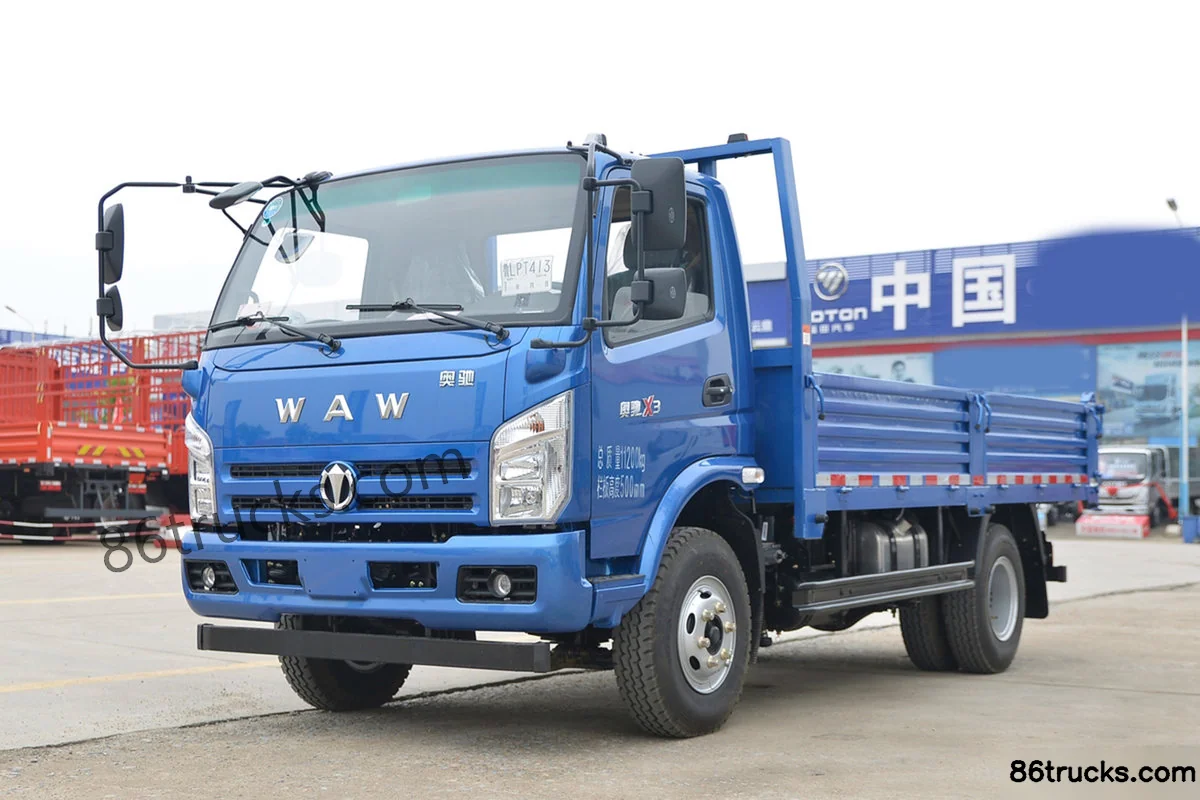

Exterior3

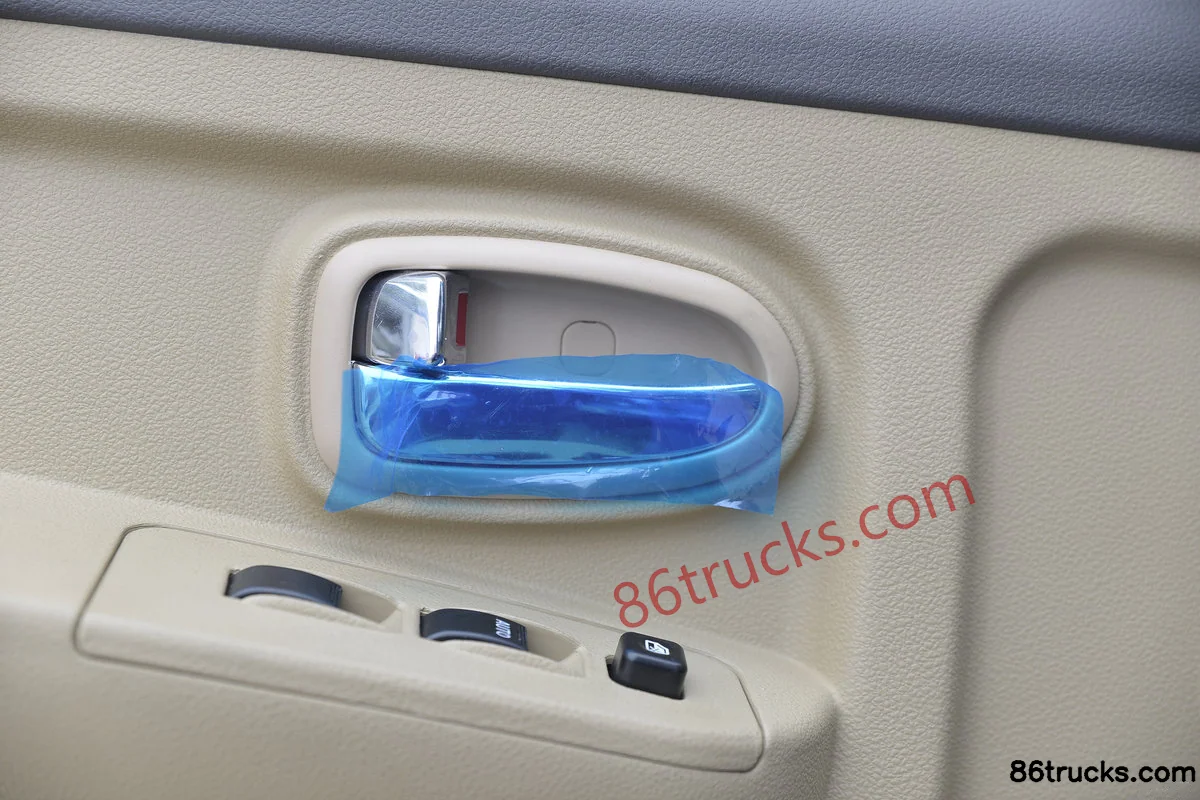

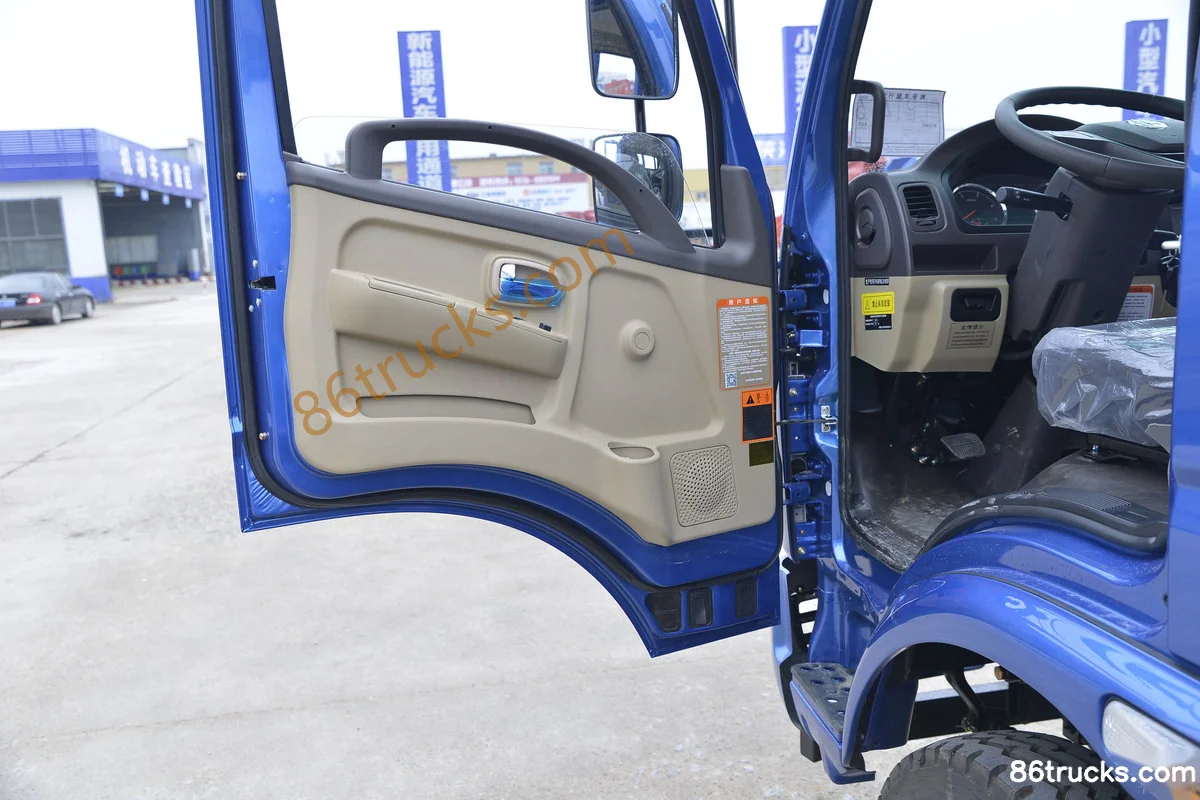

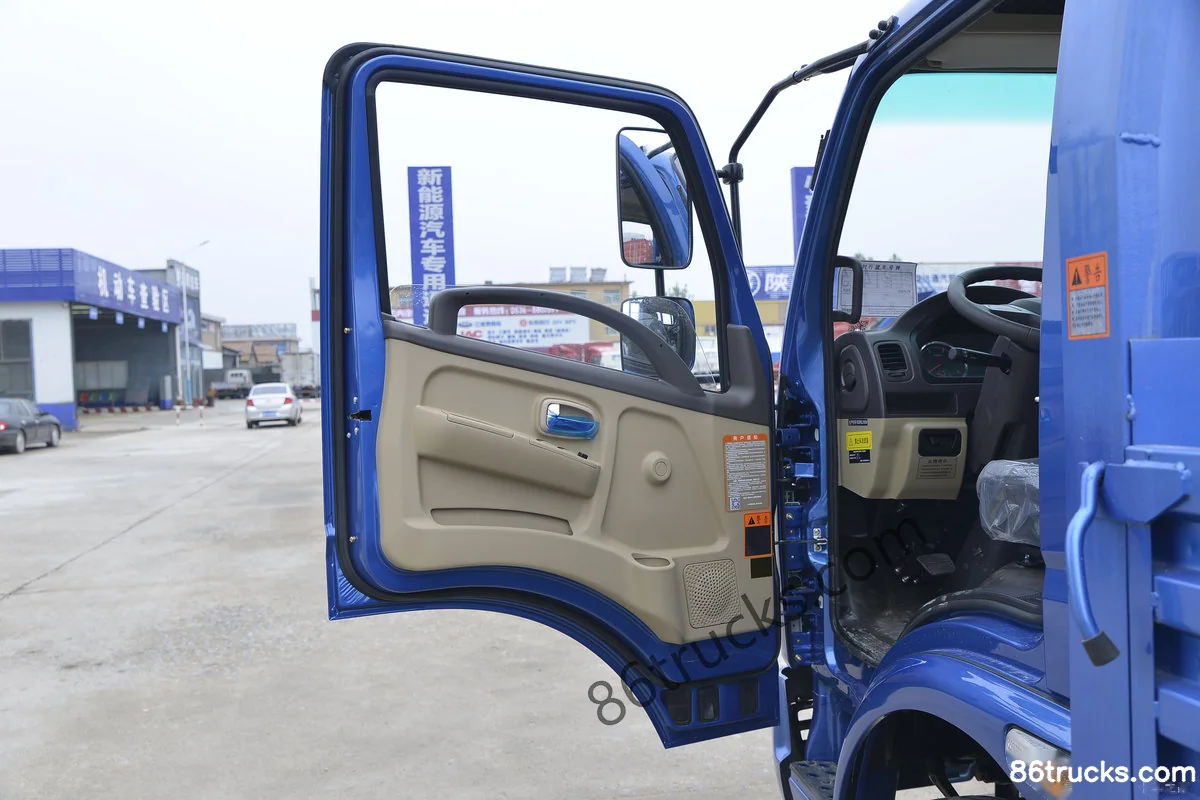

Cab3

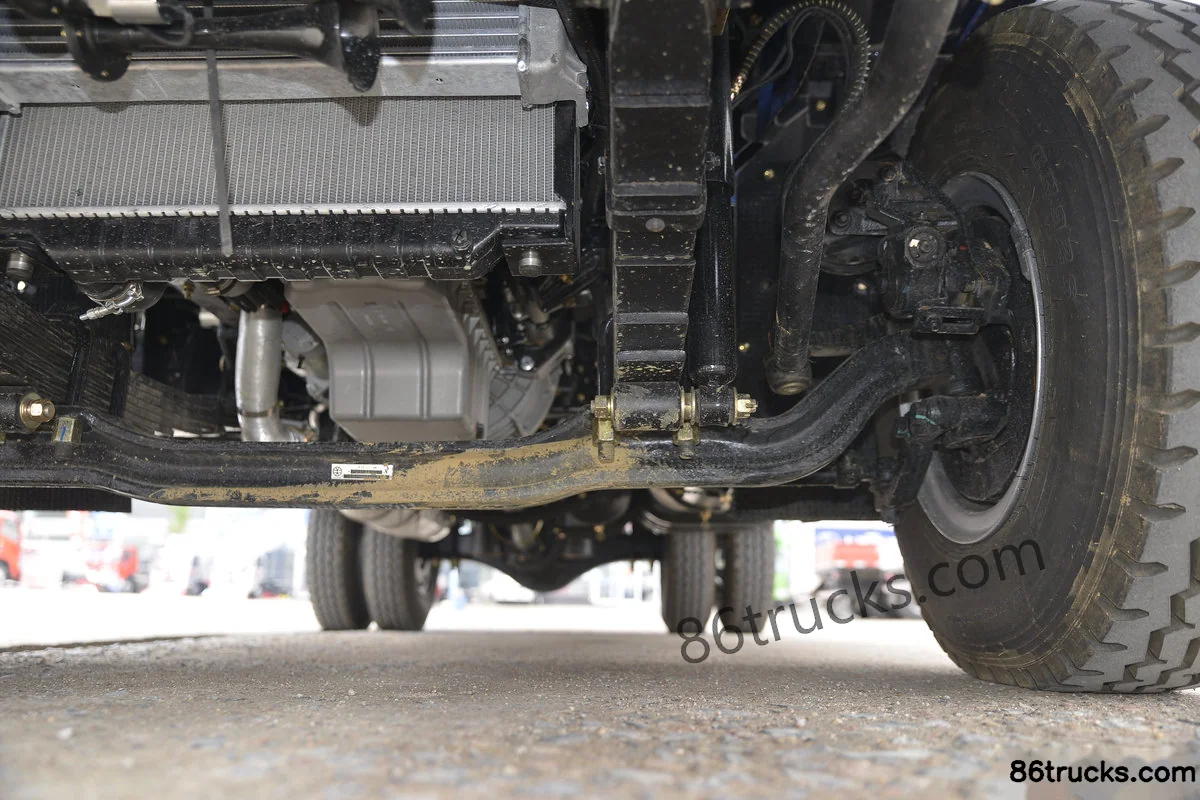

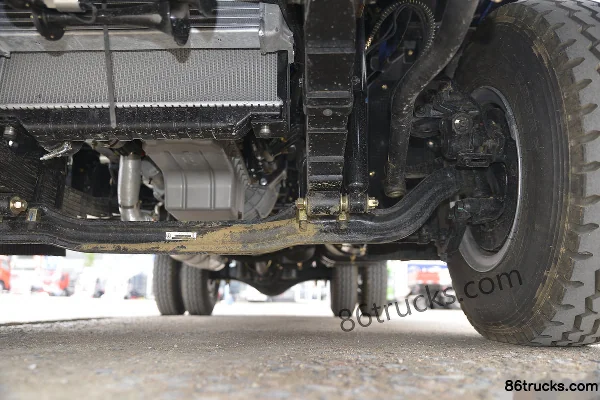

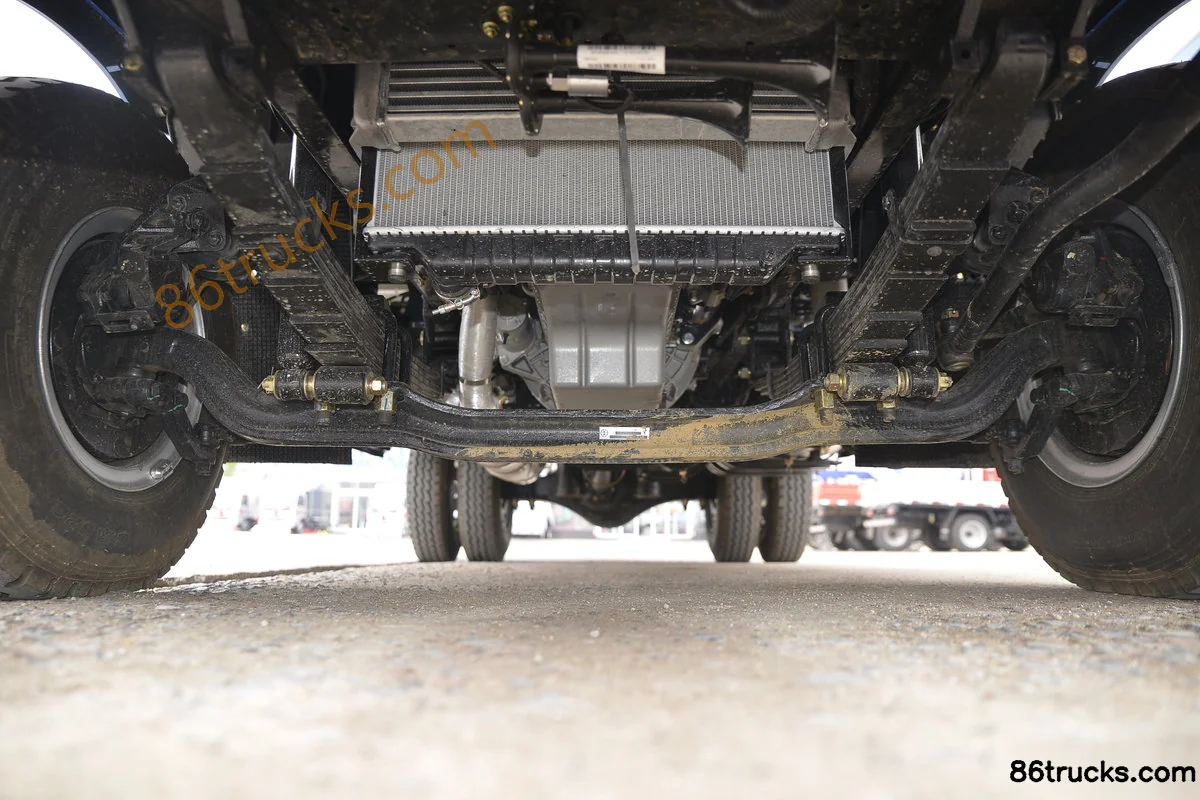

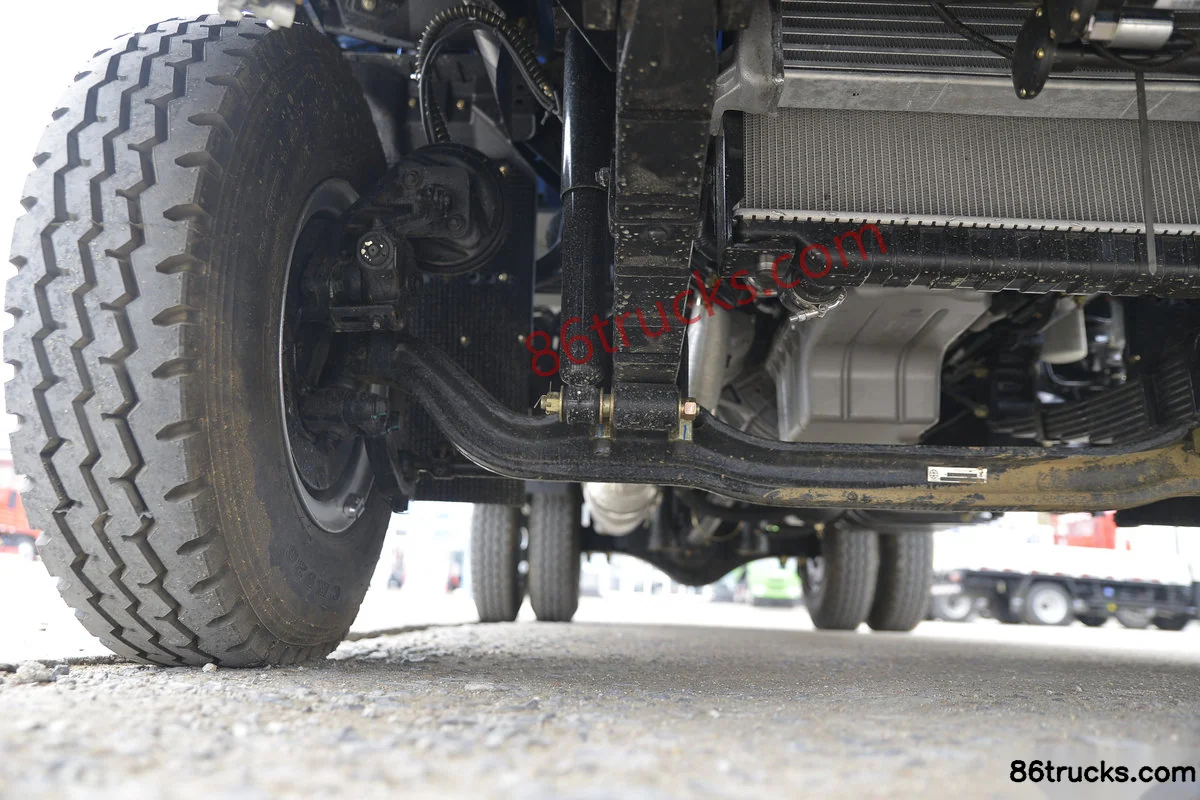

Chassis3

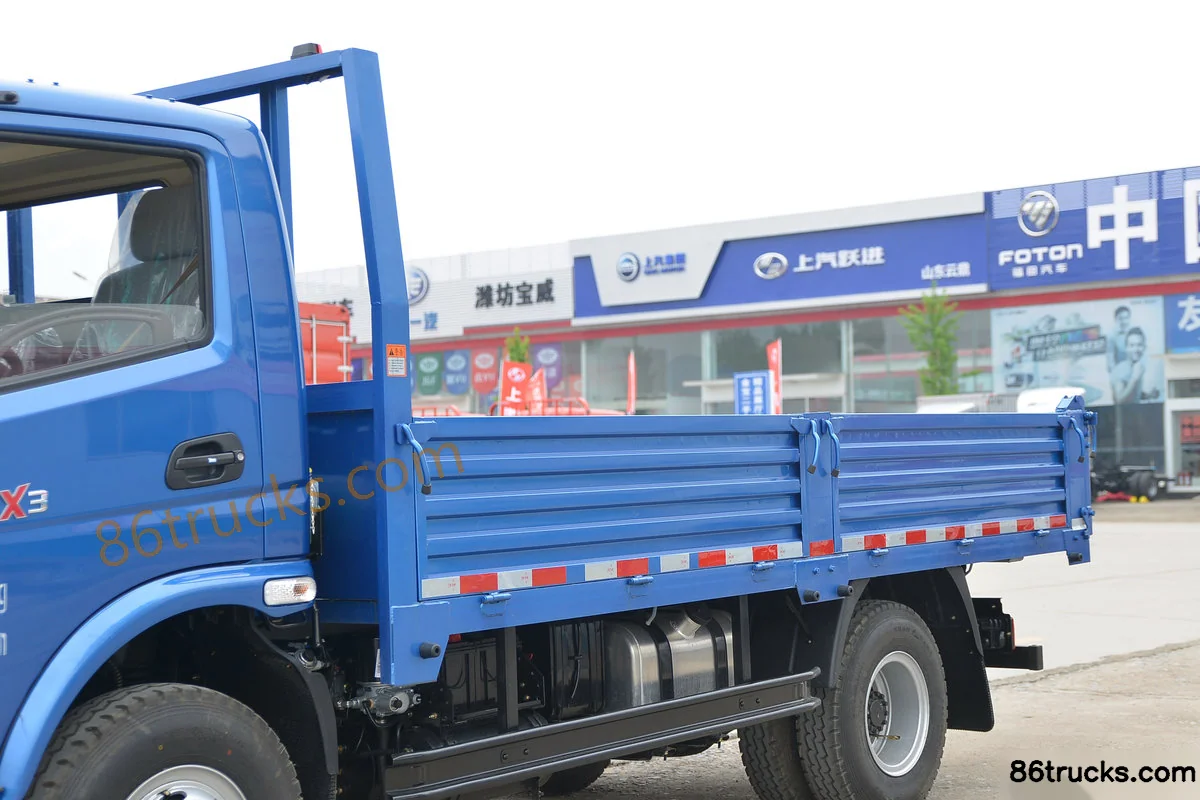

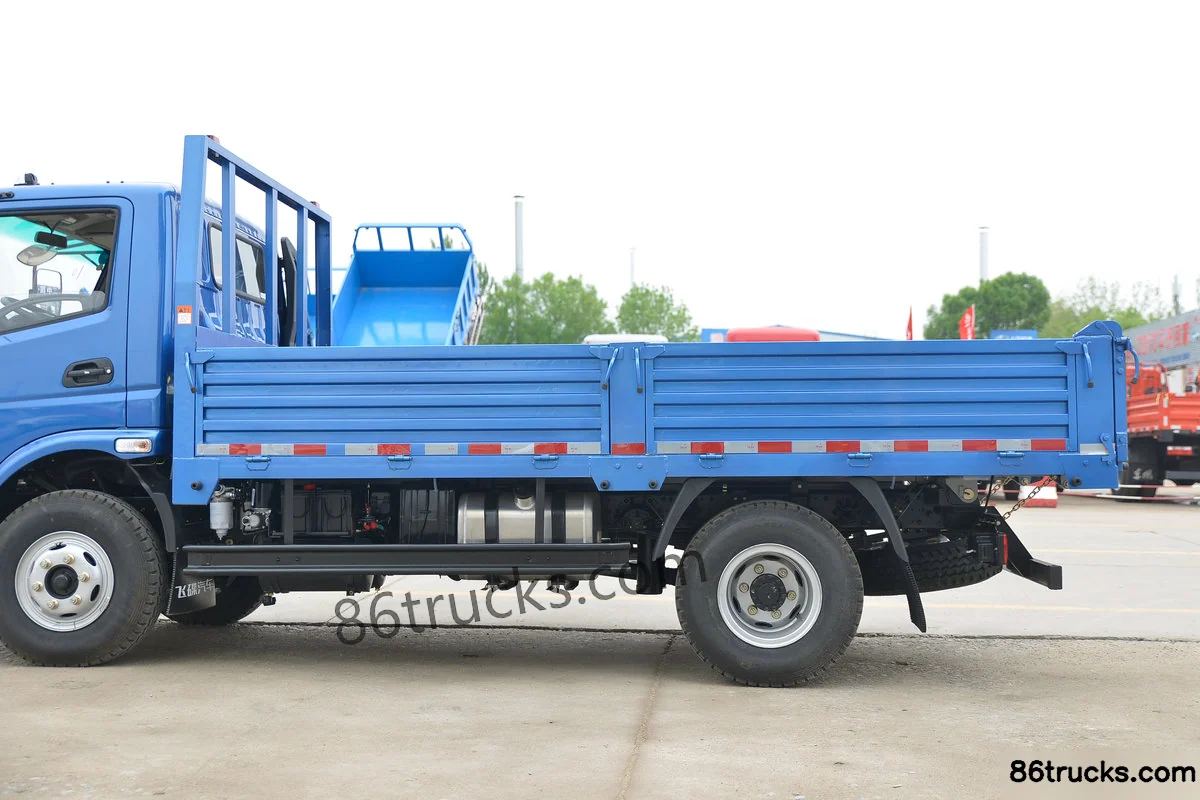

Body3

12 photos

FAQ

What is the export price of Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck, and what does it include?

Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck export reference is about From $23,333; MSRP is ¥16.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck?

Key specs of Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck: Drive: 4x2; Horsepower: 158 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck suited for?

Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck differ from other variants in the same series?

Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck belongs to Feidi Jinniu X6 (formerly Aochi X series) light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi X3 Series 158hp 4X2(6 wheels) 3.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
