Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.96ton
Wheelbase:: 1800+3200+1350mm
Tire Size:: 11.00R20,12.00R20,12R22.5/315

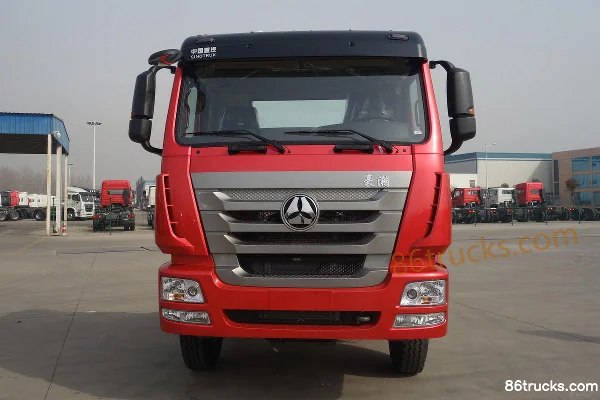

Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis exterior
Rated payload: 15.91ton
Drive 8X4 (12 wheels)
Horsepower 340
Cargo box type: Dump type

Overview

The Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis is a Heavy truck featuring 15.91t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukMC07.34-50 engine, 340 hp, China V emissions and Sinotruk transmission.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3315N3263E1
Drive type: 8X4
Wheelbase: 1800+3200+1350mm
engine: SinotrukMC07.34-50
transmission: SinotrukHW13710
Rear Axle Ratio: 4.875
Cab length: 9.56m
Cab width: 2.496m
Cab height: 3.55m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 14.96ton
Rated payload: 15.91ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 21°
Remarks: Ratio (H457 optional 5.833, 153 cast optional 5.286); Tires 12.00R20 295/80R22.5, front underrun protection, automatic slack adjuster, reflective vest, Triangle warning triangle, wheel chock, A/C
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 245kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 1.19m
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle description: H153
Front axle allowable load: 6500/7000kg
Frame Dimensions: 850×300×80×(8+5)mm
rear axle description: H457
rear axle allowable load: 17500 (tandem axle)kg
Axle ratio: 4.875
Leaf spring count: 4/4/-,4/4/5,4/4/12,11/11/-,11/11/12
Tire
Tire Size: 11.00R20,12.00R20,12R22.5/315
Number of tires: 12pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis?

Key specs of Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis: Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis suited for?

Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis differ from other variants in the same series?

Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis belongs to Sinotruk J5G Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Hohan J5G 340 hp 8X4(12 wheels) dump truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
