Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck

Export reference
From $42,319
MSRP ¥30.47M CNY
Fuel: Diesel
Curb Weight:: 16ton
Wheelbase:: 4300+1350mm
Tire Size:: 12.00R20
Cab dimensions:: 10.51×2.495×3.98m
Truck Type:: concrete mixer truck
Rated payload: 8.87ton
Drive 6X4 (10 wheels)
Horsepower 340
Emission China V

Overview

The Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck is a concrete mixer truck featuring 8.87t payload, 16ton GVW, 6X4 (10 wheels) drive and ETX-2490 flat roof cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.51×2.495×3.98m
Drive type: 6X4
Truck Type: concrete mixer truck
Wheelbase: 4300+1350mm
Front/rear track width: Front track: 2021mm; Rear track: 1865/1865
Curb Weight: 16ton
Rated payload: 8.87ton
Max. speed: 85km/h
Front/rear suspension: 1.532/3.328m
Body Parameters
Slump: 80-220mm
Mixing drum capacity: 4.03m³
Feed rate: ≥ 3m³/min
Discharge speed: ≥ 2m³/min
Discharge residue rate: ≤ 0.4%
water supply method: Air pressure water supply
Vehicle certification code: BJ5253GJB-AC
Body Brand: FotonAuman
Engine parameters
Injection System: Common Rail (China V)
Engine Model: FotonISGe5-340
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 10.5L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Chassis Specs
Chassis Series: AumanETX
Chassis Model: BJ5253GJB-AC
Frame Dimensions: 320mm
rear axle description: 16T
Steering gear: Domestic
Axle ratio: 4.76
Leaf spring count: 10/12,11/14,9/12,3/5,3/-,3/4,2/4
clutch: Φ430
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9-speed
Cab parameters
Cab: ETX-2490 flat roof
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

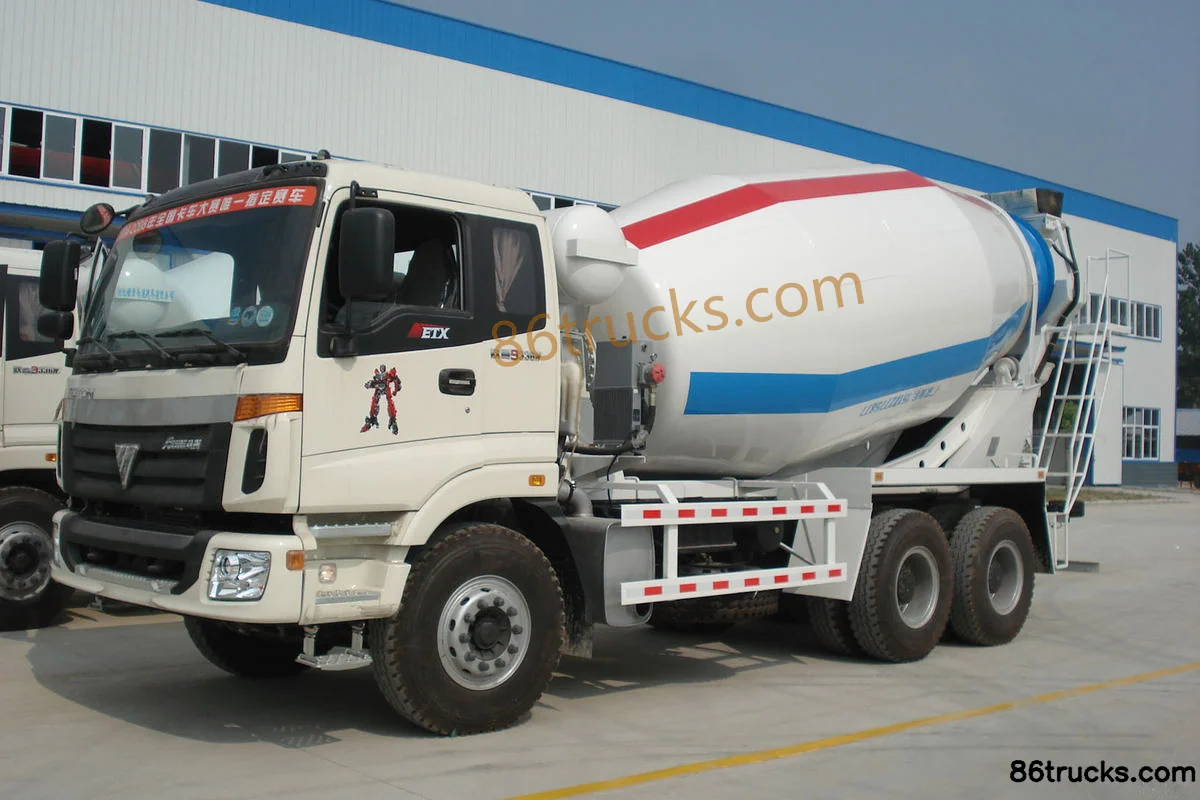

Exterior1

1 photos

FAQ

What is the export price of Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck, and what does it include?

Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck export reference is about From $42,319; MSRP is ¥30.47M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck?

Key specs of Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck suited for?

Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck differ from other variants in the same series?

Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck belongs to Foton Auman ETX Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton AumanETX 9 Series 340 hp 6X4(10 wheels) 4.03 m³ concrete mixer truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
