Shantui Excavator JCM907D Crawler Excavator

Export reference
MSRP N/A
Model:: JCM907D
Engine Model:: crawler excavator
Tonnage:: 7ton
Bucket capacity:: 0.28cubic meter
Arm Length:: 1650mm
Machine dimensions:: 9.146×2.21×2.595mm
Operating weight: 7.1ton
Bucket type: backhoe
Fuel Tank Capacity: 170L
Product power: Conventional Power

Overview

The SUNWARD Shantui Excavator JCM907D Crawler Excavator is a excavator featuring 7.1ton GVW, backhoe bucket capacity, 170L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: JCM907D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 7ton
Bucket capacity: 0.28cubic meter
Operating weight: 7.1ton
Arm Length: 1650mm
Machine dimensions: 9.146×2.21×2.595mm
Track shoe width: 450mm
Counterweight ground clearance: 775mm
Min ground clearance: 332cm
Rear Overhang Radius: 1750mm
hydraulic system
Max flow of main pump: 2×74.8L/min
travel hydraulic circuit: 27.5Mpa
Swing Hydraulic Circuit: 23.5Mpa
Oil capacity
Fuel Tank Capacity: 170L
coolant: 20L
hydraulic oil tank: 100L
Engine Oil Capacity: 13L
performance specs
Travel speed: 3.14/5.26km/h
Bucket digging force: 53.6kN
Arm Digging Force: 39.9kN
Max tractive force: 67.7kN
Operating Range
Max digging radius: 6326mm
Max digging depth: 4147mm
Max digging height: 7118mm
Max unloading height: 5110mm
Max vertical digging depth: 3579mm
Engine parameters
Engine Model: CumminsCummins B3.3(Tier2)
Max output power: 45kW

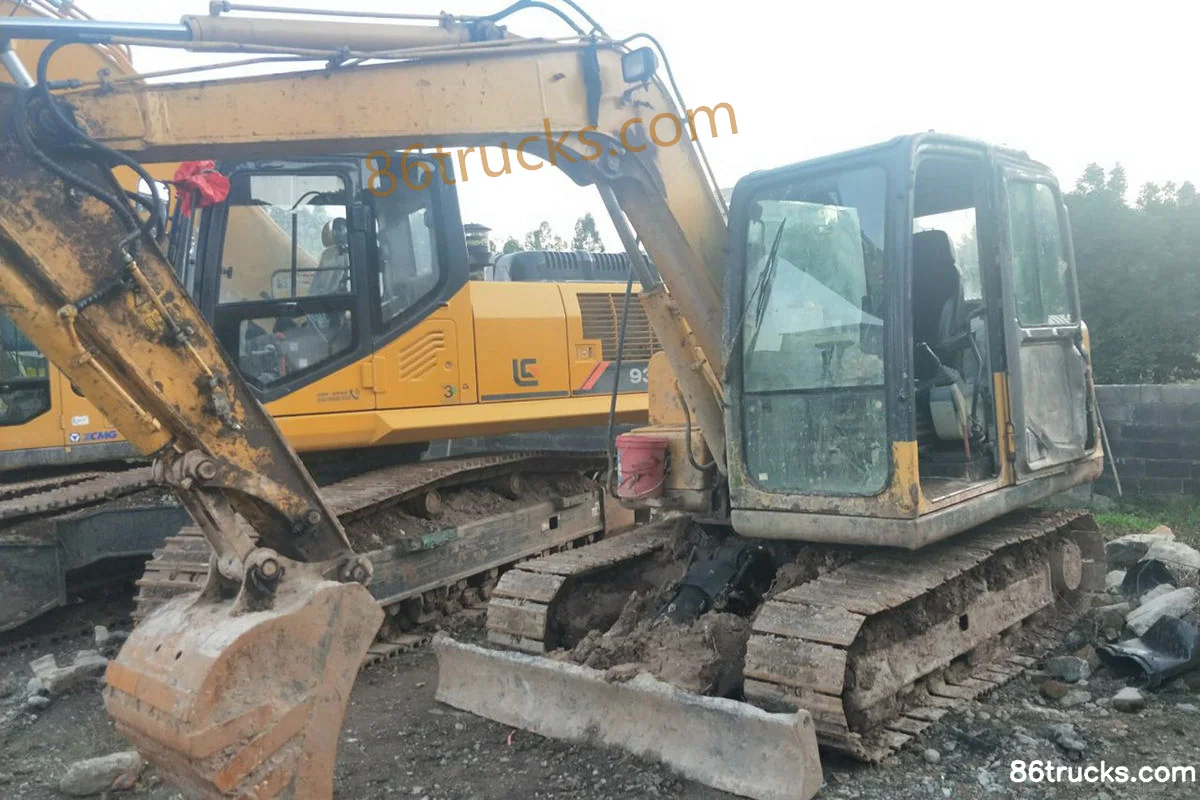

Photos

Exterior3

3 photos
