JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.95ton
Wheelbase:: 1800+4100+1350mm
Tire Size:: 12.00R20
JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck exterior
View more photos (9)
Rated payload: 15.805ton
Drive 8X4 (12 wheels)
Horsepower 290
Cargo box type: Rear-dump body

Overview

The JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck is a Heavy truck featuring 15.805t payload, 30.95t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.290E41 engine, 290 hp, China IV emissions and Fast Gear transmission.

China IV 290 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC3311P2K4H41F
Drive type: 8X4
Wheelbase: 1800+4100+1350mm
engine: WeichaiWP10.290E41
transmission: Fast Gear10JSD120
Rear Axle Ratio: 4.875
Cab length: 10.795m
Cab width: 2.495m
Cab height: 3.5m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 14.95ton
Rated payload: 15.805ton
GVWR: 30.95ton
Origin: Hefei, Anhui
tonnage class: Heavy truck
Approach angle: 27°
departure angle: 20°
Remarks: Optional ratio 5.286
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E41
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1160N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled, electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear10JSD120
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 7.8m
Cargo box width: 2.3m
Cargo box height: 1.05m
Body Parameters
Lifting type: 180 front lift
Cab parameters
Cab: K3 series medium cab semi-high roof single bunk
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 322×90×(10+4)mm
rear axle description: 457 rear axle
rear axle allowable load: 17950 (tandem axle)kg
Axle ratio: 4.875
Leaf spring count: 9/9/12
Tire
Tire Size: 12.00R20
Number of tires: 12pcs

Photos

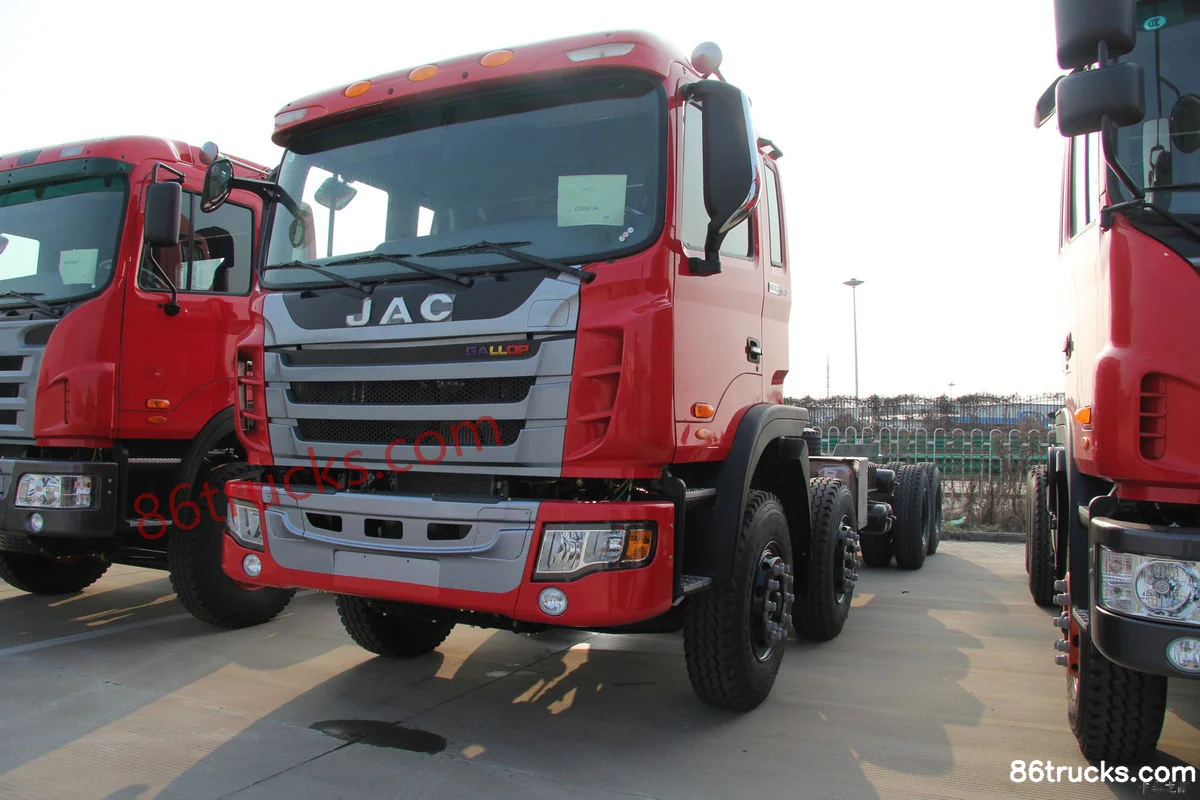

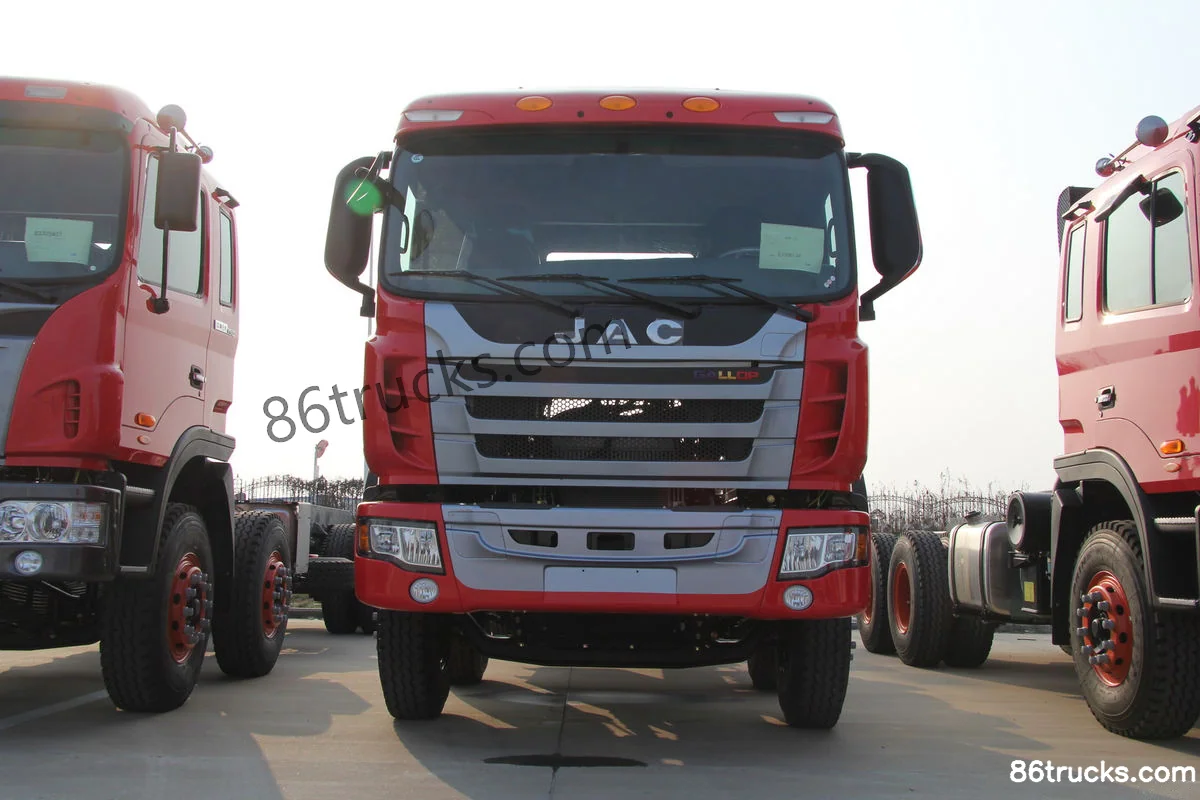

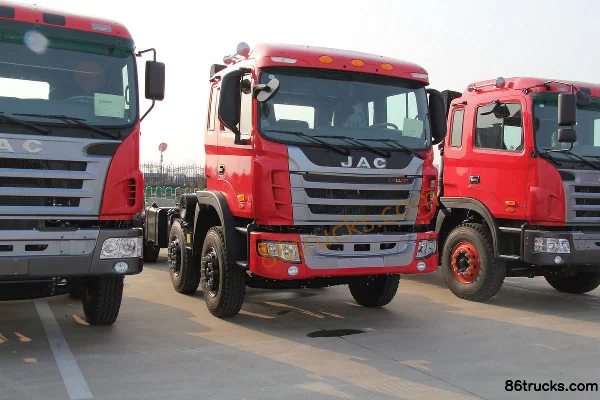

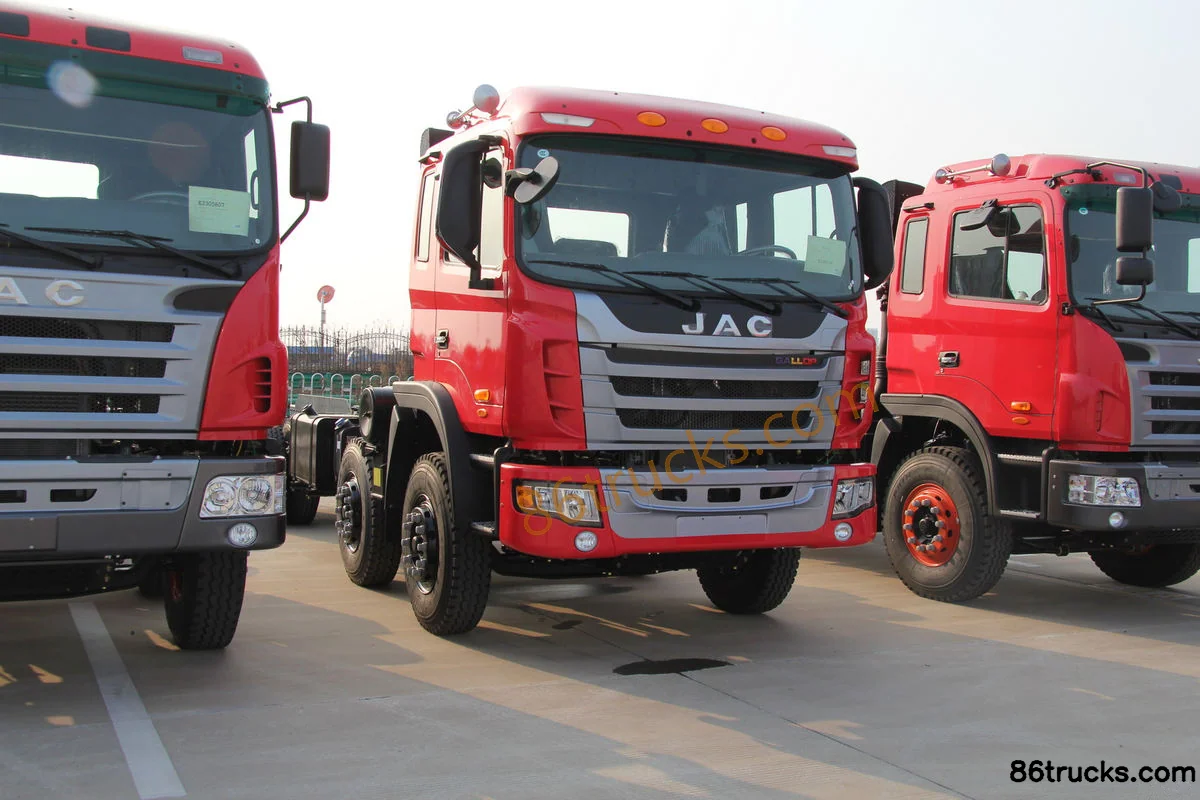

Exterior3

JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Exterior (1) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Exterior (2) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Exterior (3) | 86Trucks

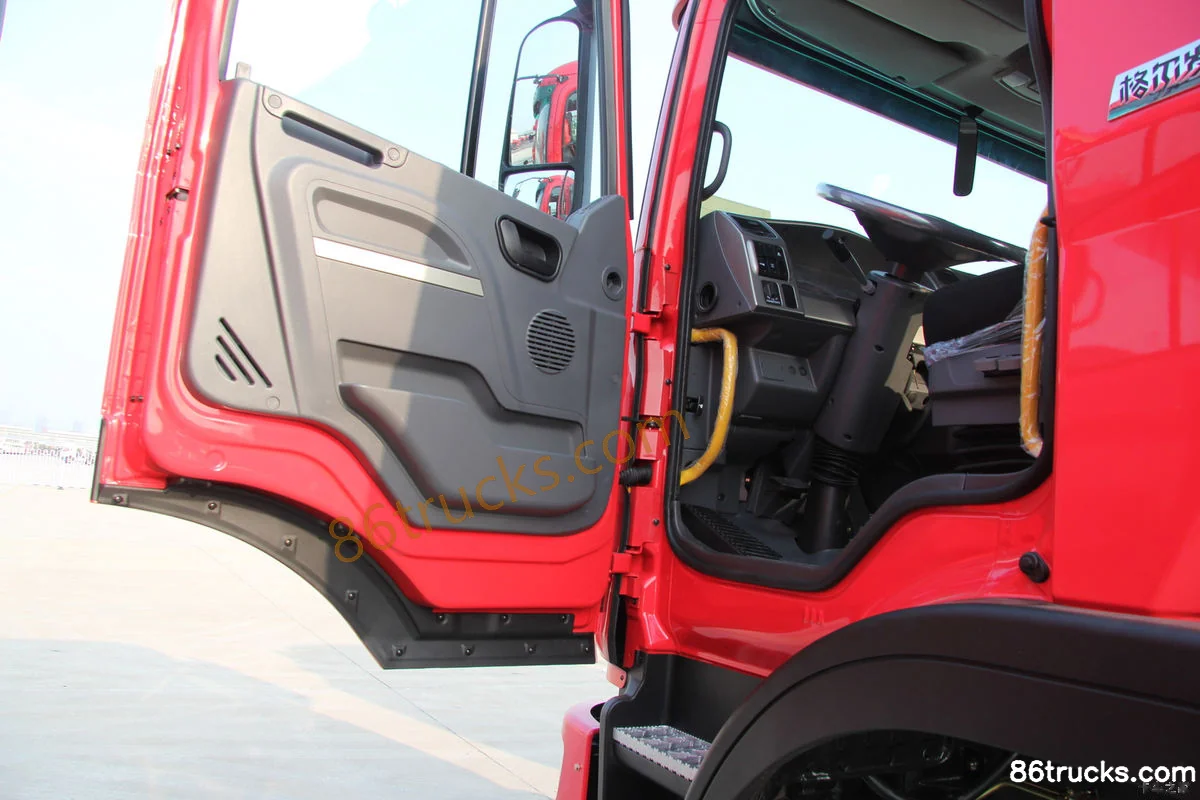

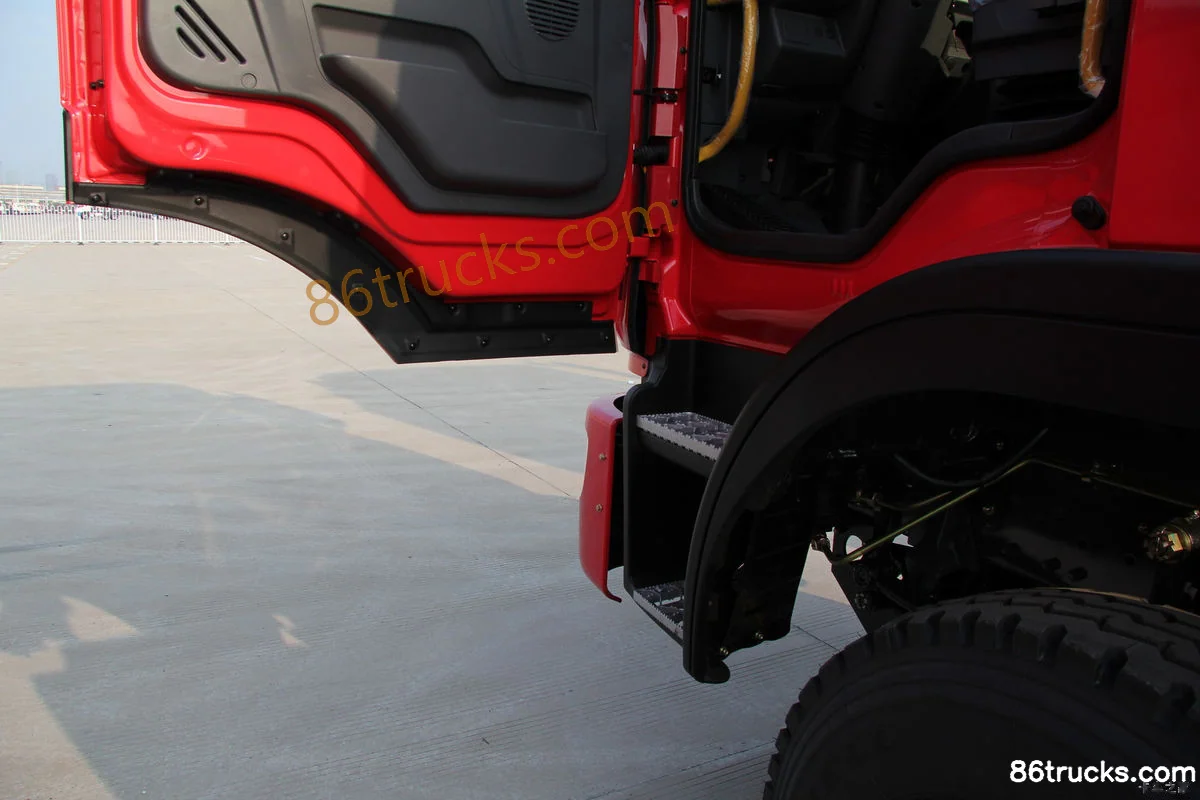

Cab3

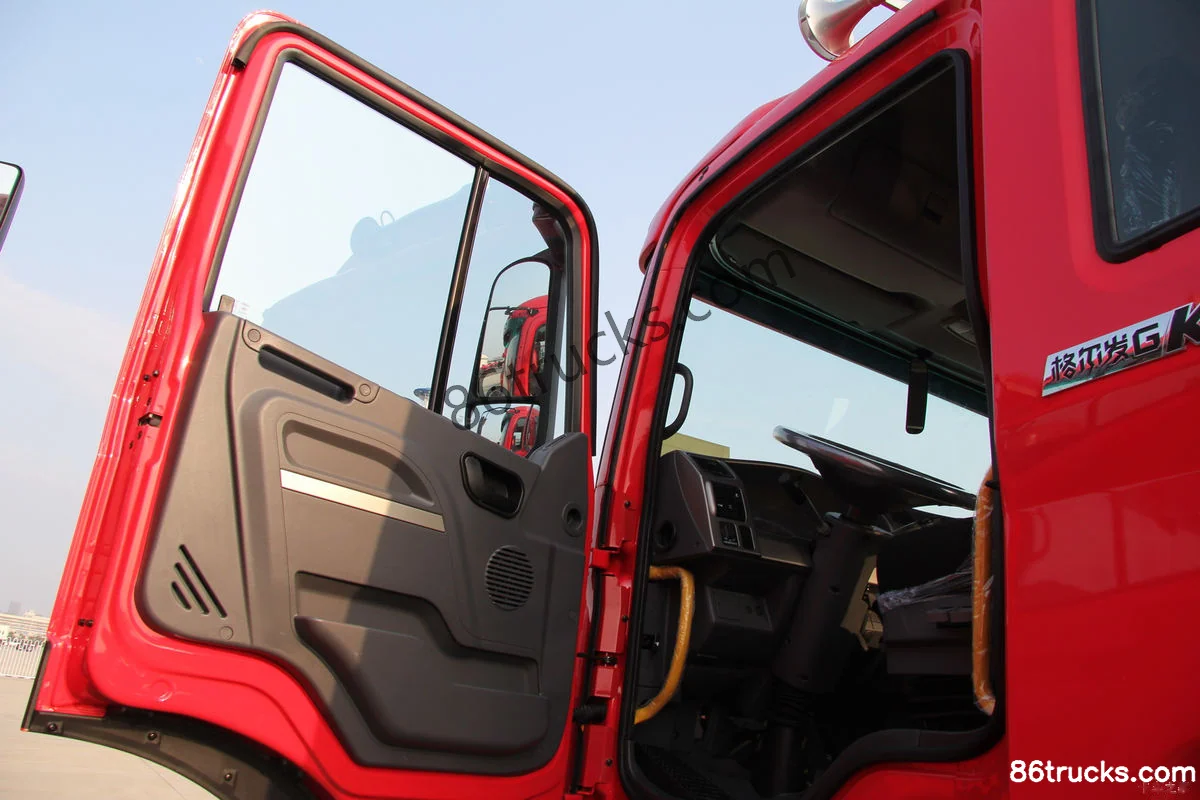

JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Cab (1) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Cab (2) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Cab (3) | 86Trucks

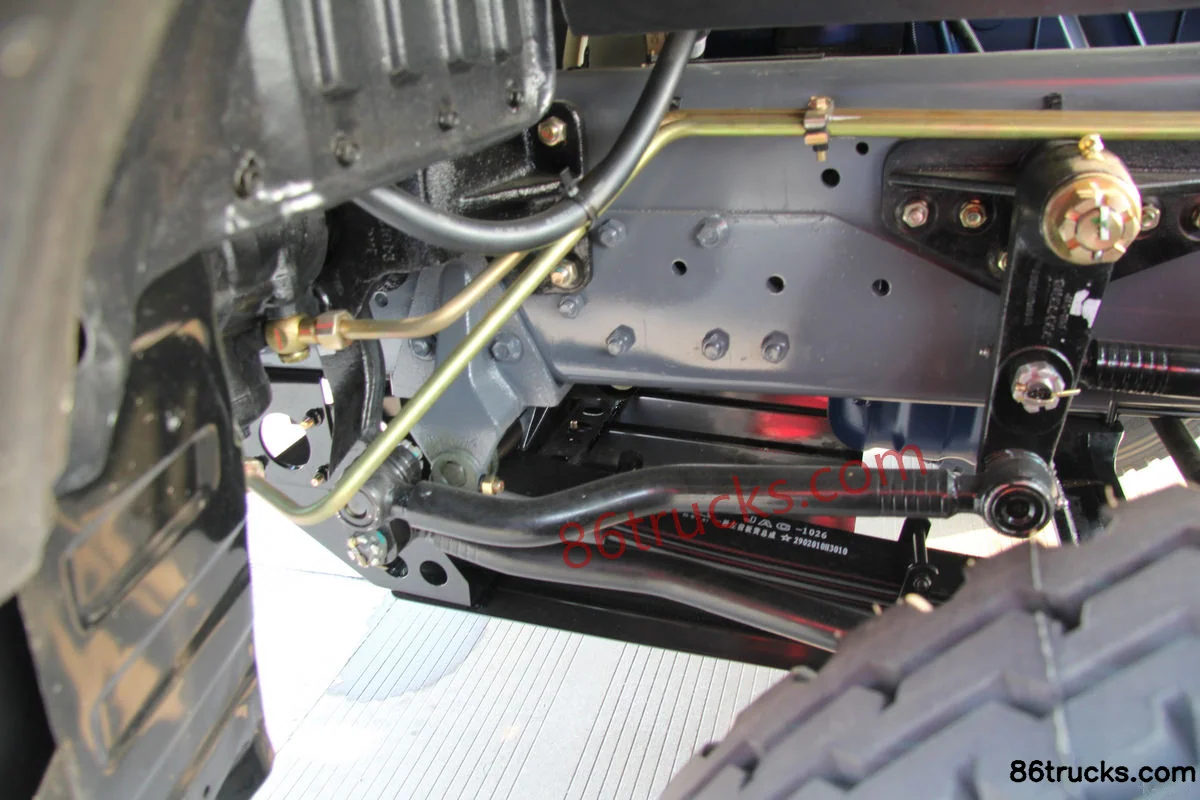

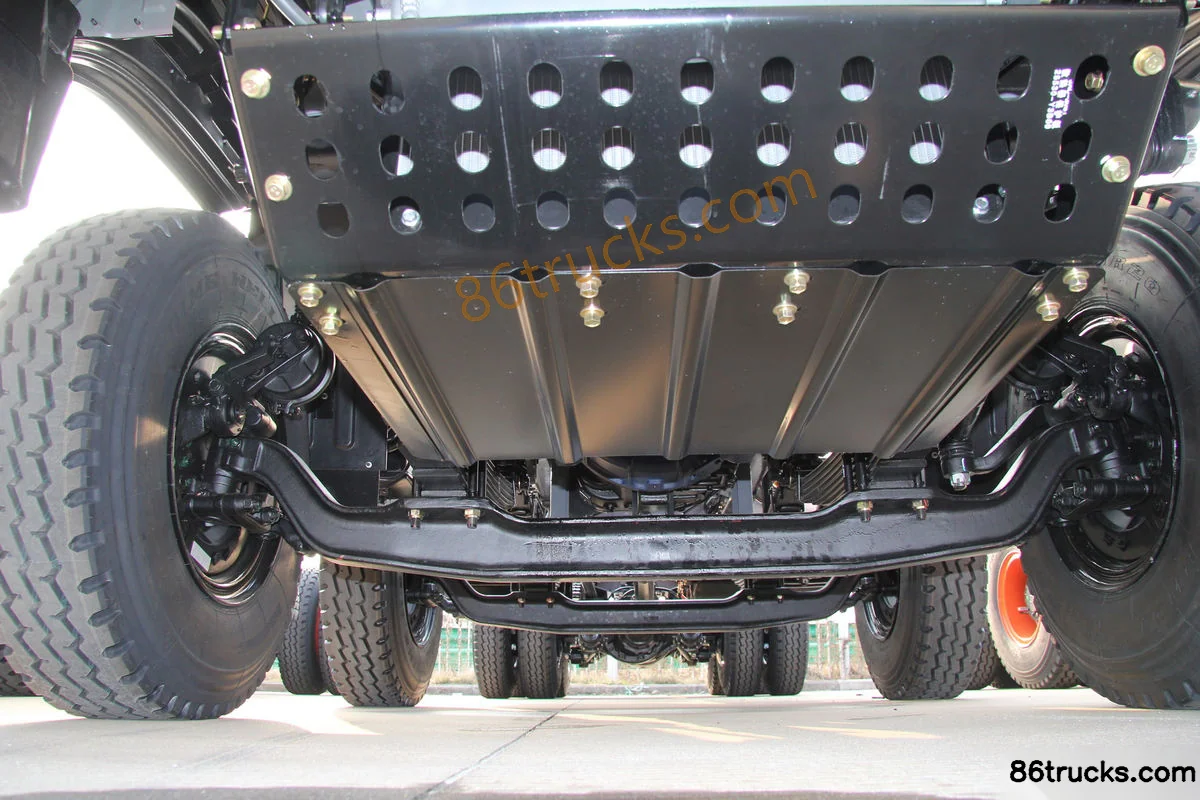

Chassis3

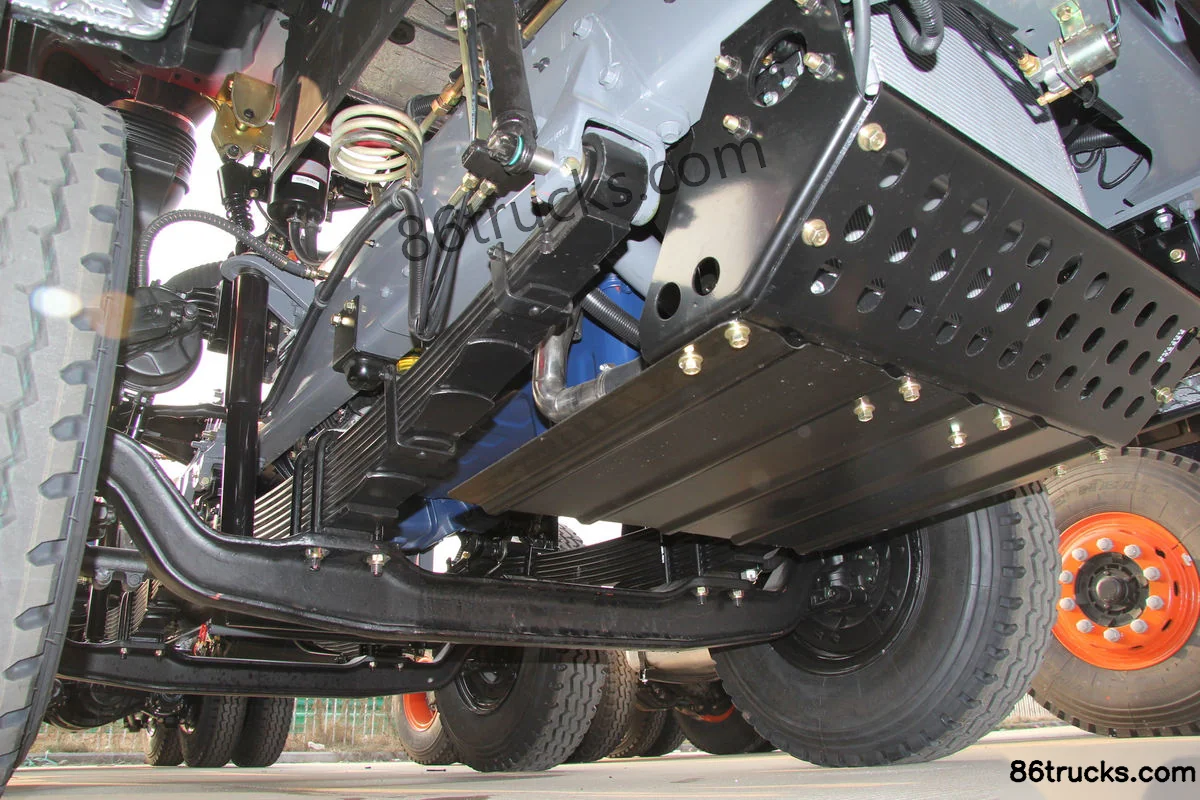

JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Chassis (1) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Chassis (2) | 86Trucks JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck?

Key specs of JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck: Drive: 8x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck suited for?

JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck differ from other variants in the same series?

JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck belongs to JAC Gallop K3 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC GallopK3 Heavy Truck 290 hp 8X4(12 wheels) 7.8m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
