SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI)

Export reference
From $50,194
MSRP ¥36.14M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.5ton
Wheelbase:: 4000+1400mm
Tire Size:: 12R22.5 18PR
Rated payload: 12.37ton
Drive 6X4 (10 wheels)
Horsepower 390
Cargo box type: Dump type

Overview

The SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) is a Heavy truck featuring 12.37t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SAIC Fiat Powertrain HongyanF2CCE611A*M engine, 390 hp, China VI emissions and Fast Gear transmission.

China VI 390 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ5257ZLJHV09384
Drive type: 6X4
Wheelbase: 4000+1400mm
engine: SAIC Fiat Powertrain HongyanF2CCE611A*M
transmission: Fast Gear12JSD160T
Cab length: 8.285m
Cab width: 2.55m
Cab height: 3.46m
Front track width: 2020mm
rear track: 1858/1858mm
Curb Weight: 12.5ton
Rated payload: 12.37ton
GVWR: 25ton
Origin: Chongqing
tonnage class: Heavy truck
Approach angle: 16°
departure angle: 23°
Remarks: Intercooler guard, 180Ah battery, metal front bumper, electric fuel pump, urea heating system, curtains, standard lower bunk, 220V power supply, gearbox with power assist
Version: Heavy-duty version
Energy Type: Diesel
Engine parameters
Engine Brand: SAIC Fiat Powertrain Hongyan
Engine Model: SAIC Fiat Powertrain HongyanF2CCE611A*M
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.709L
Emission standard: China VI
Max output power: 287kW
Max hp: 390Horsepower
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.4m
Cargo box width: 2.3m
Cargo box height: 1.5m
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
Frame Dimensions: 980_865/305×8+4mm
rear axle description: HY320
rear axle allowable load: 18000 (tandem axle group)kg
Leaf spring count: 8/12
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Remote key:
Electronic Central Lock:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

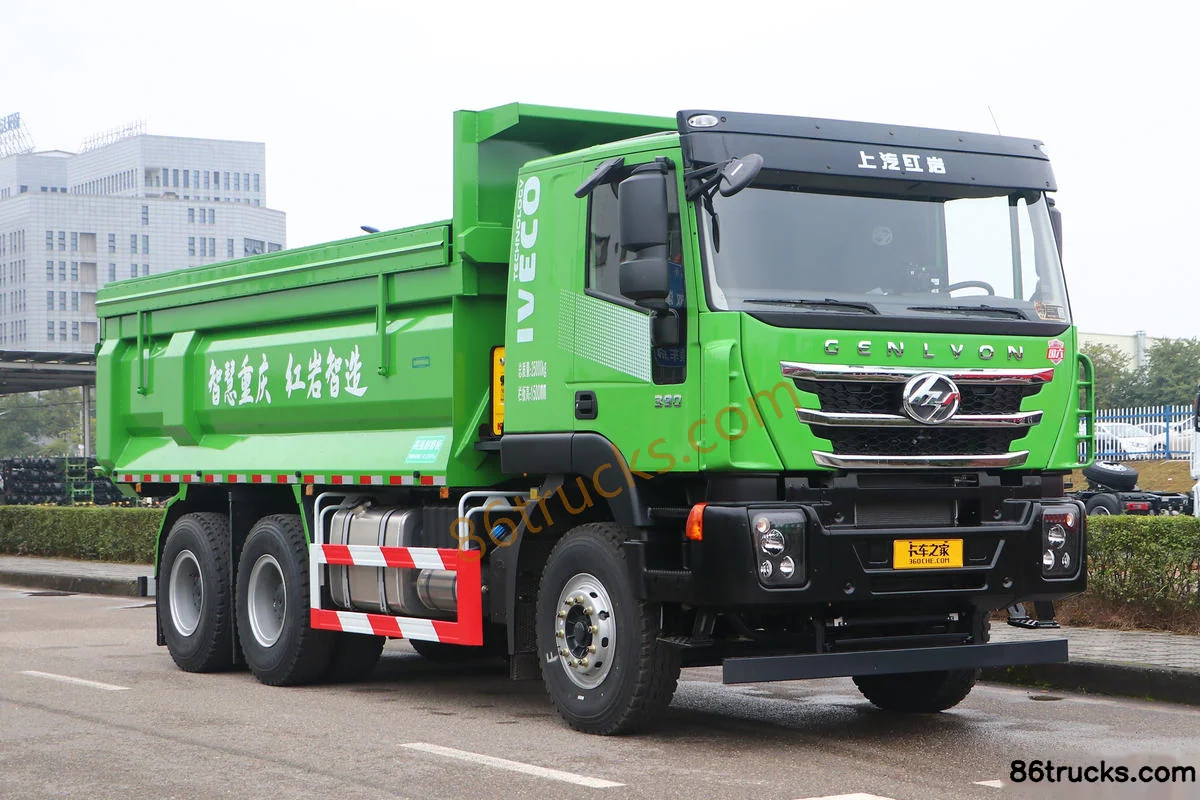

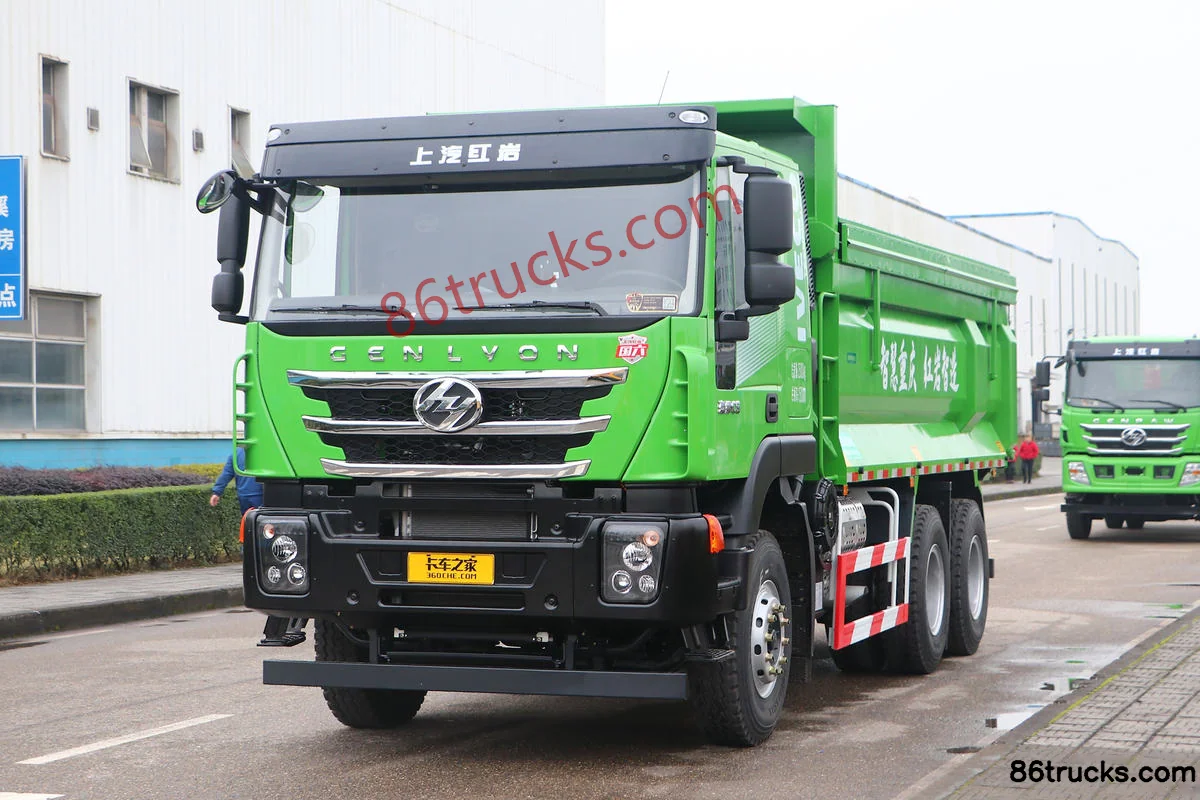

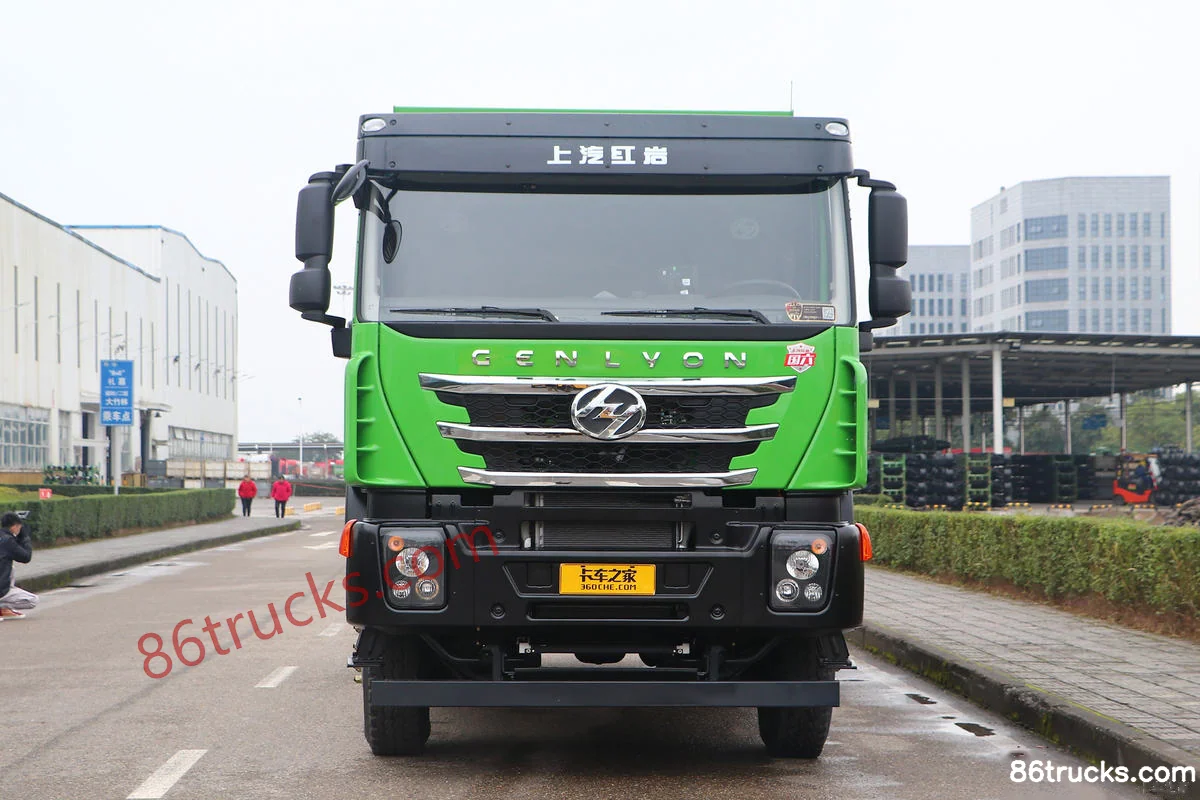

Exterior3

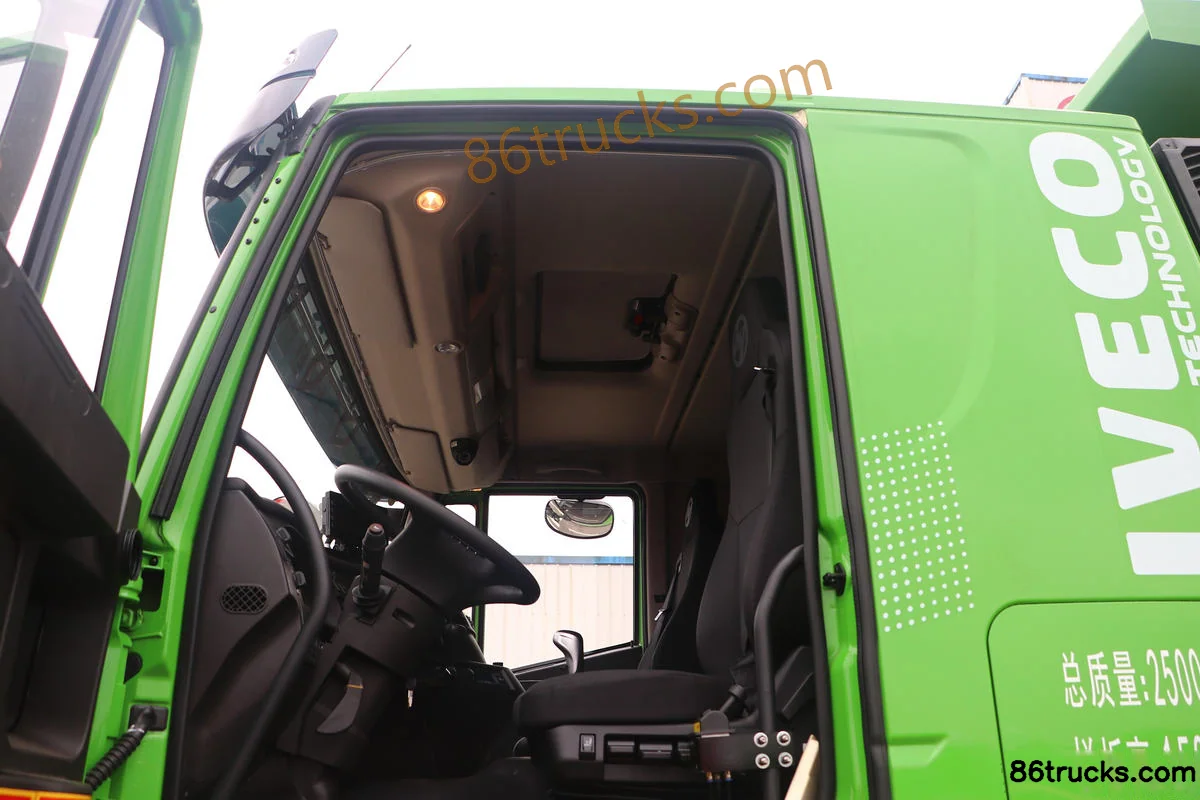

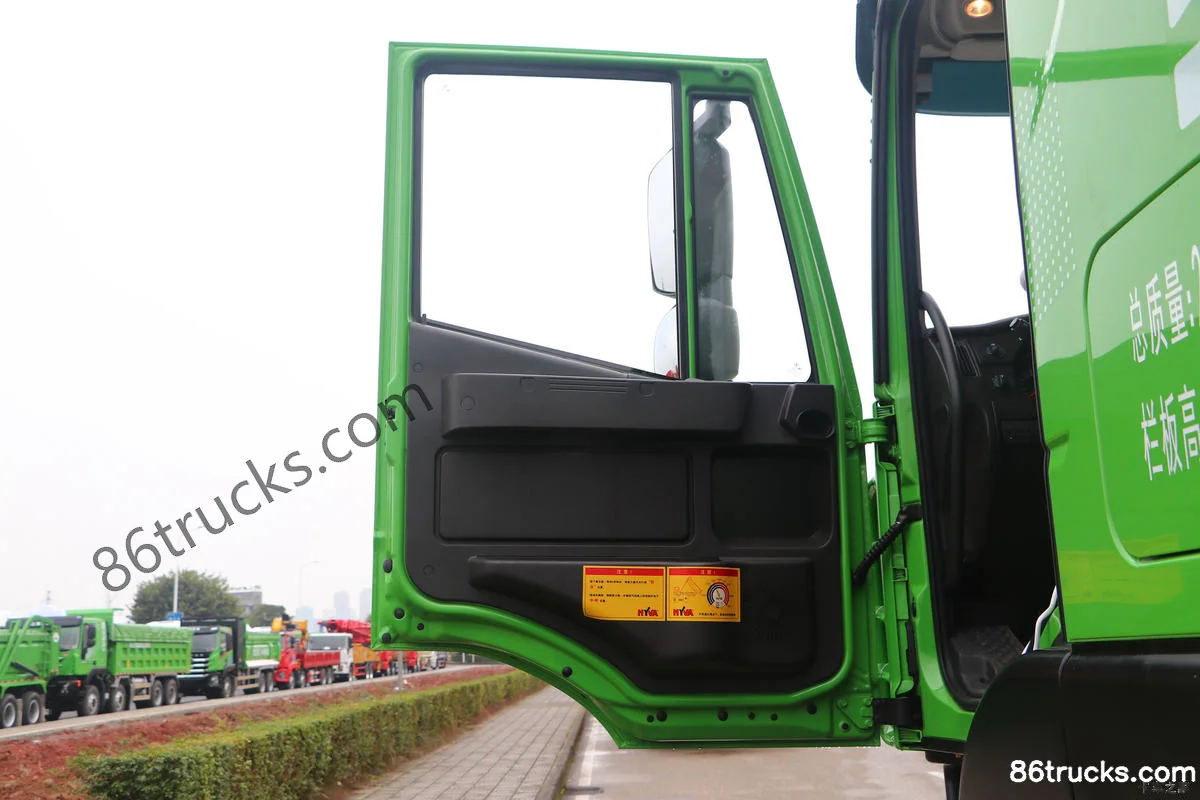

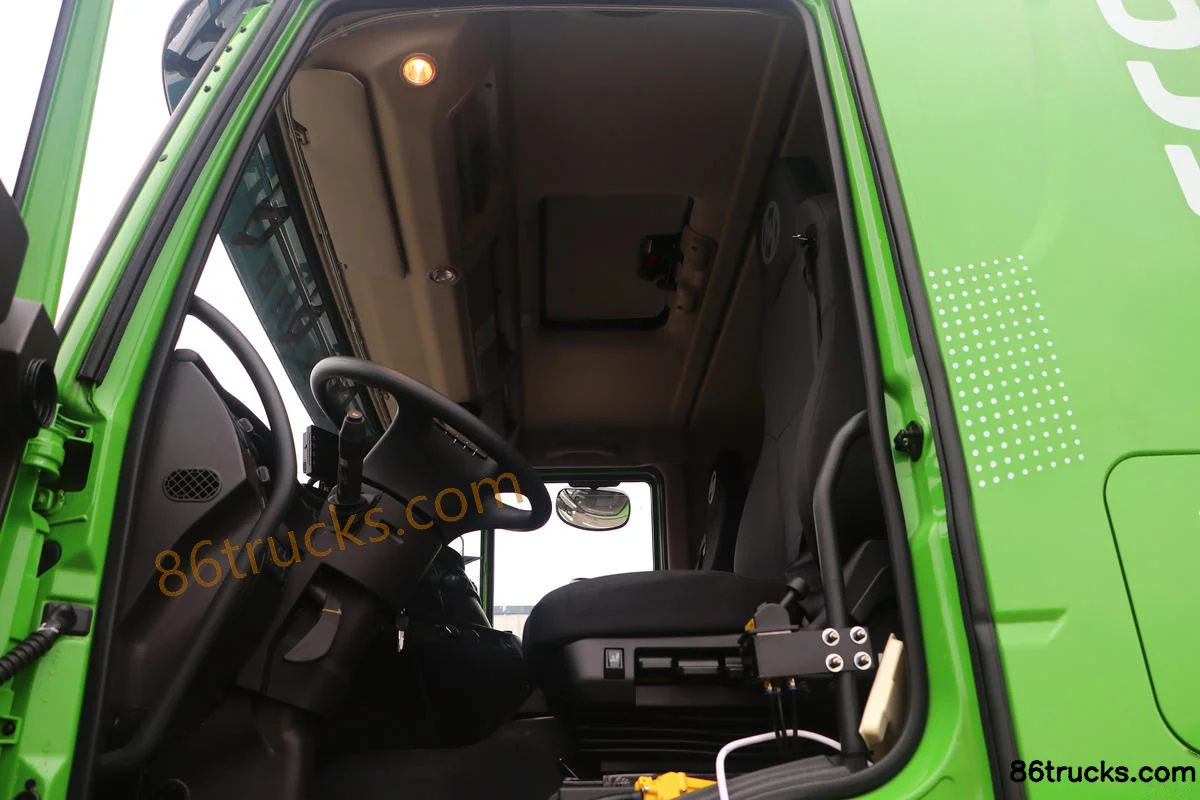

Cab3

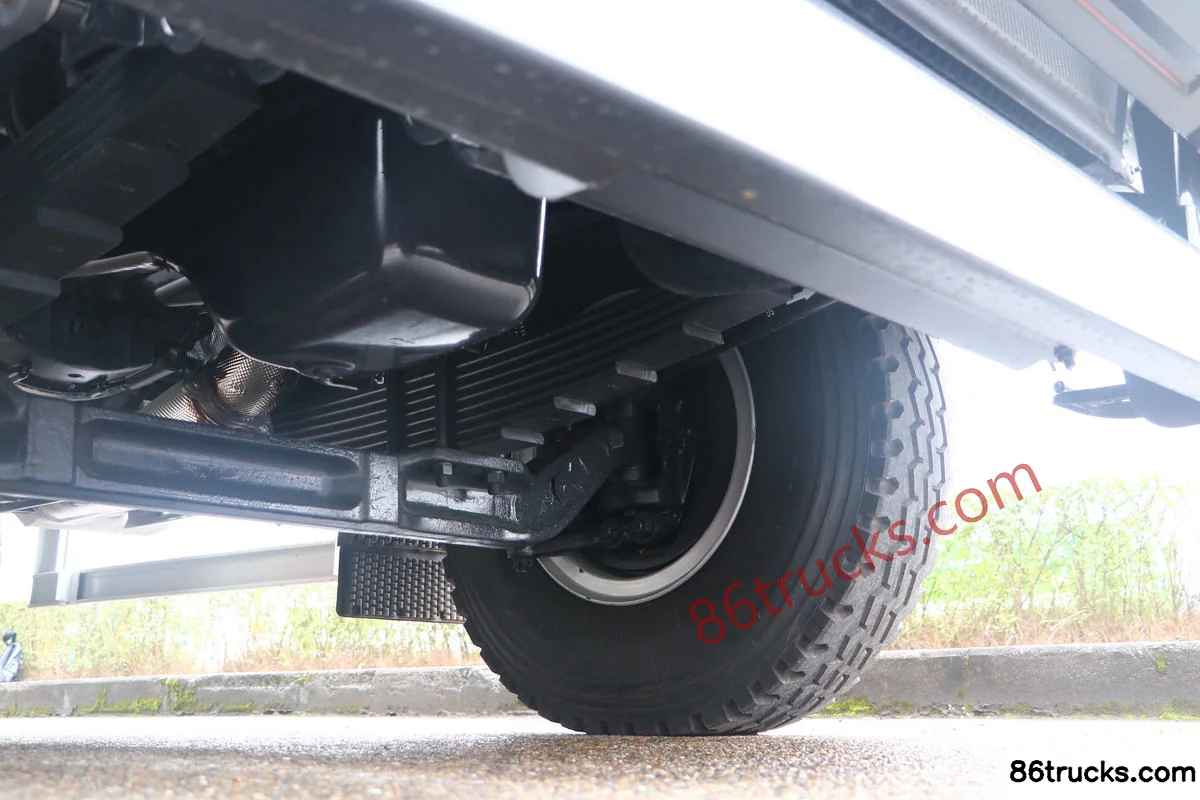

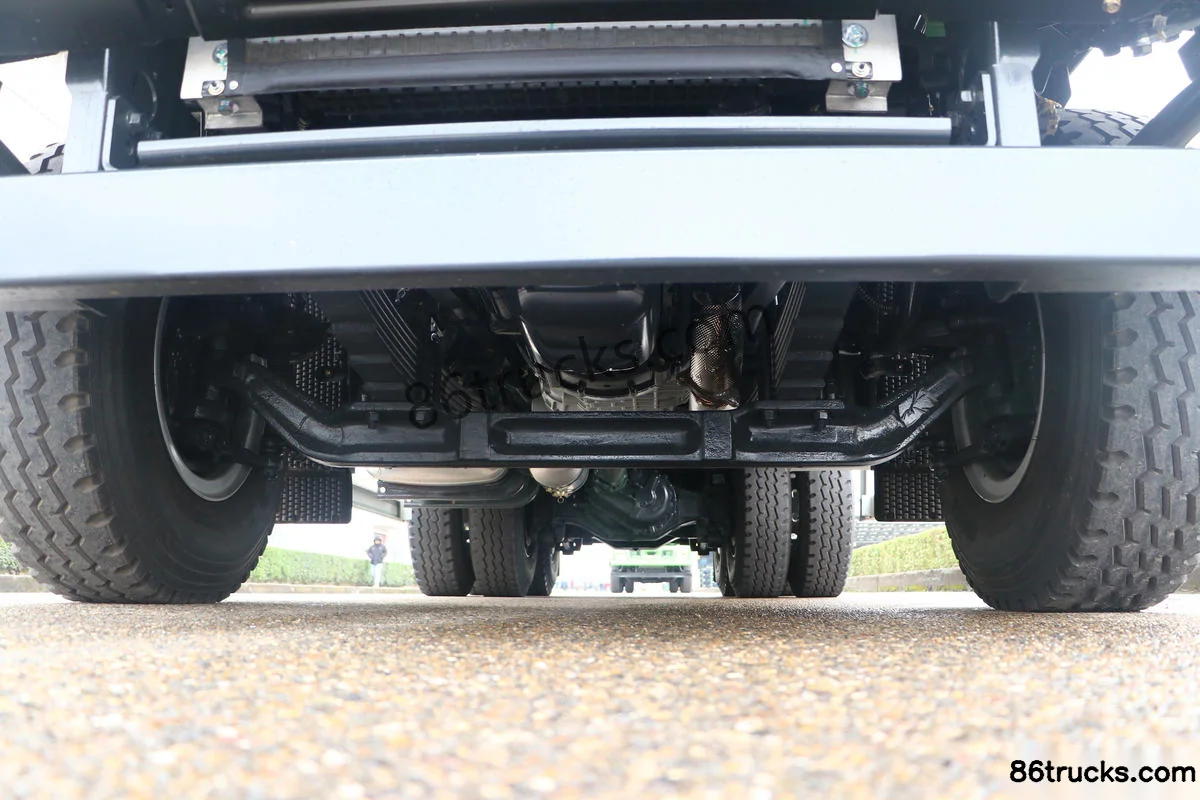

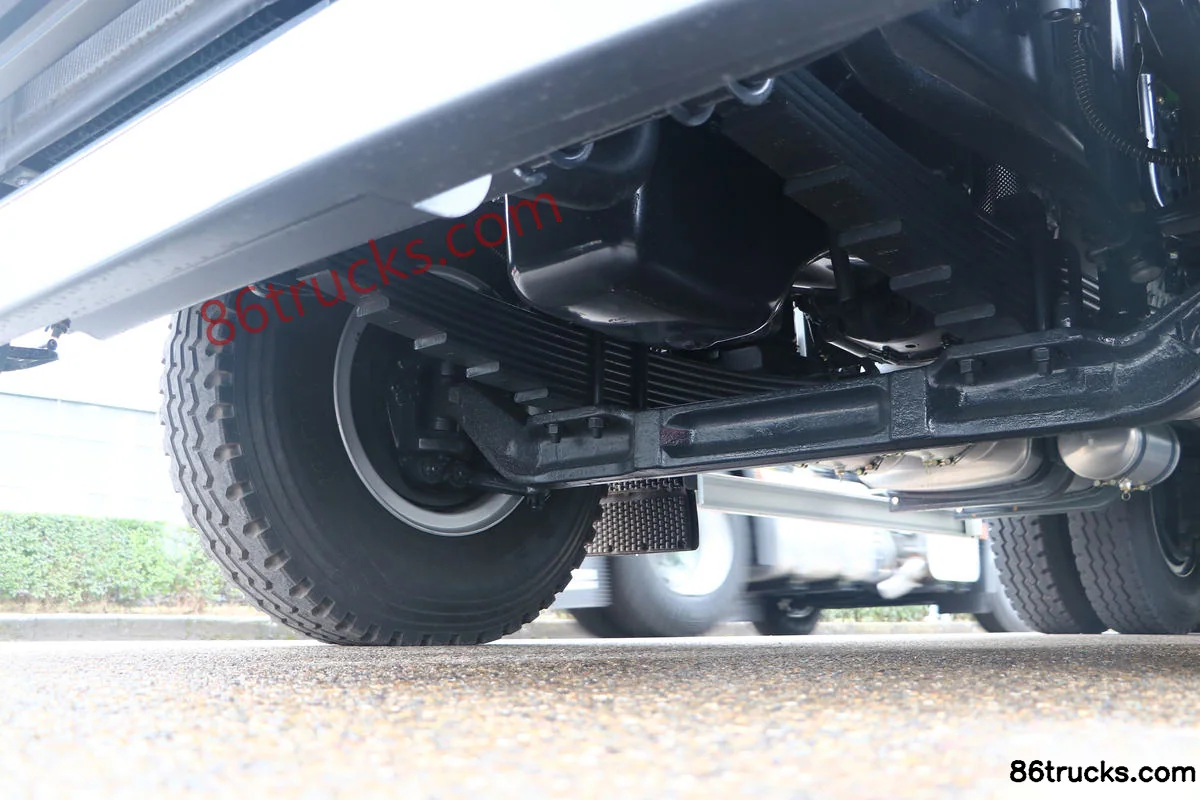

Chassis3

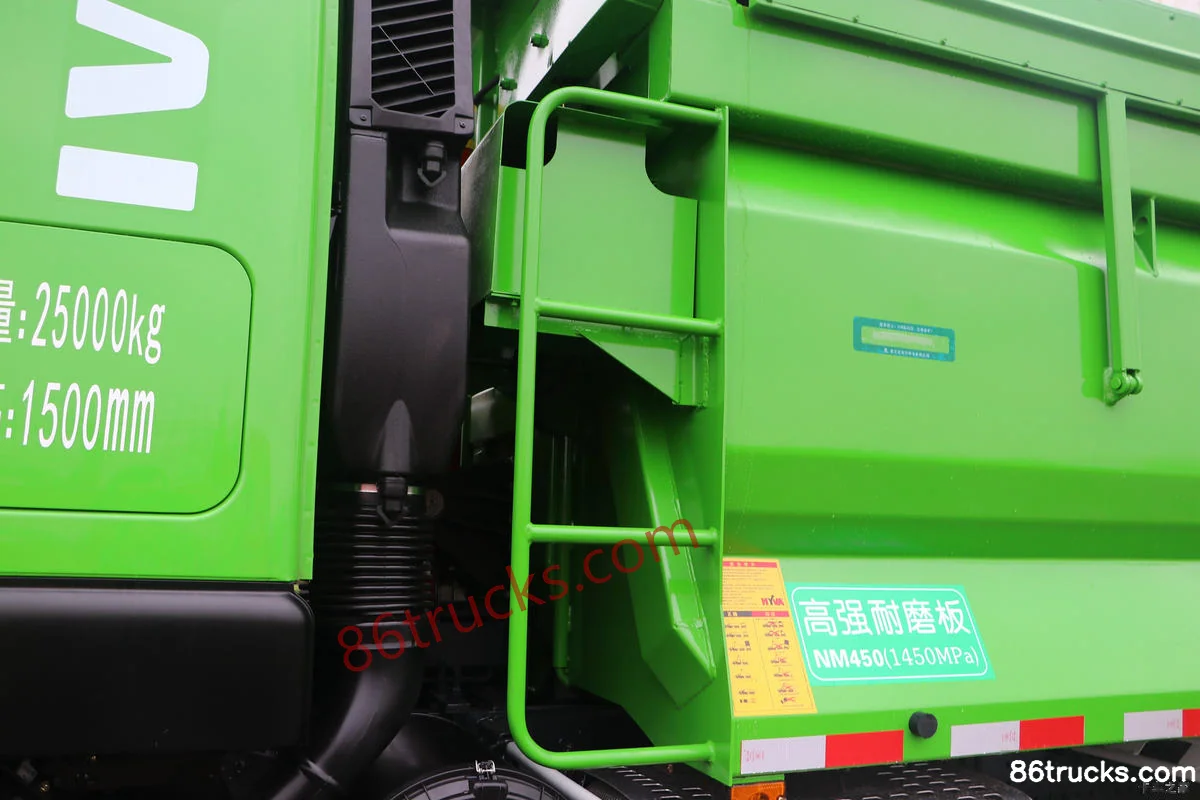

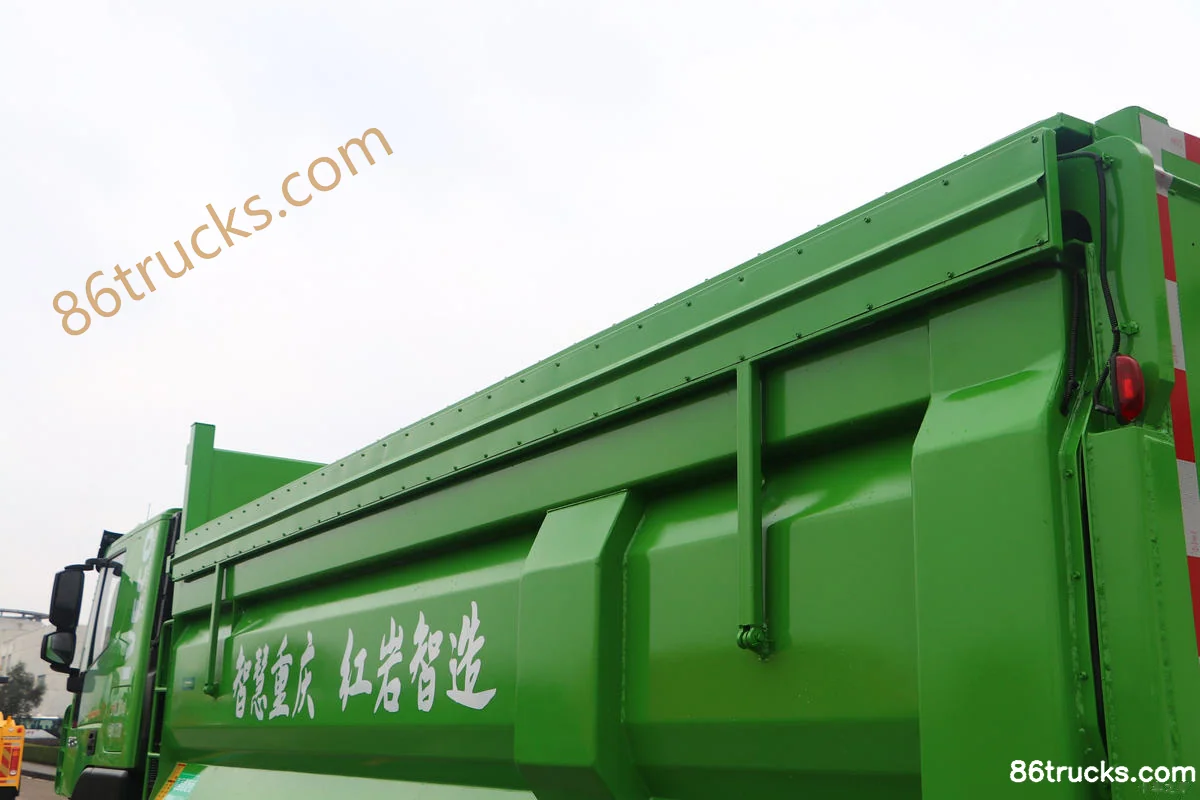

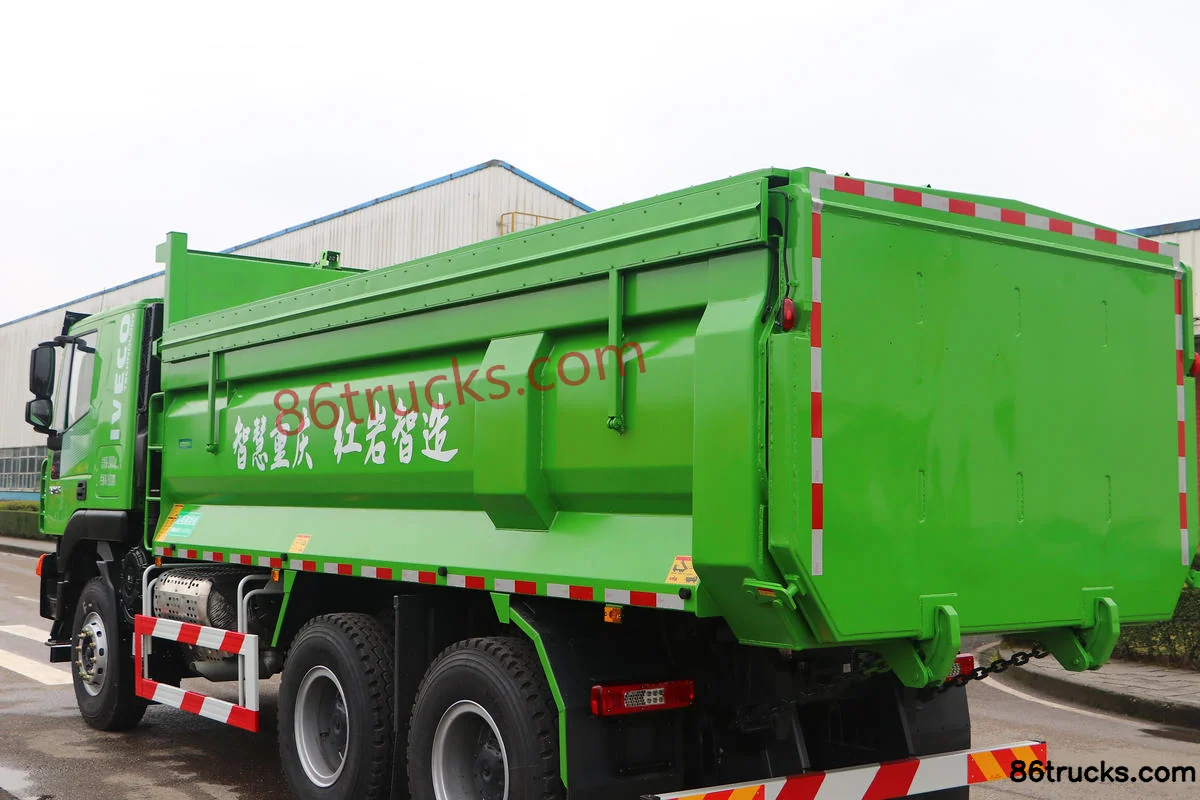

Body3

12 photos

FAQ

What is the export price of SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI), and what does it include?

SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) export reference is about From $50,194; MSRP is ¥36.14M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI)?

Key specs of SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI): Drive: 6x4; Horsepower: 390 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) suited for?

SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) differ from other variants in the same series?

SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI) belongs to SAIC Hongyan Genlyon Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon C6 Heavy Load Edition 390hp 6X4(10 wheels) 5.4m dump truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
